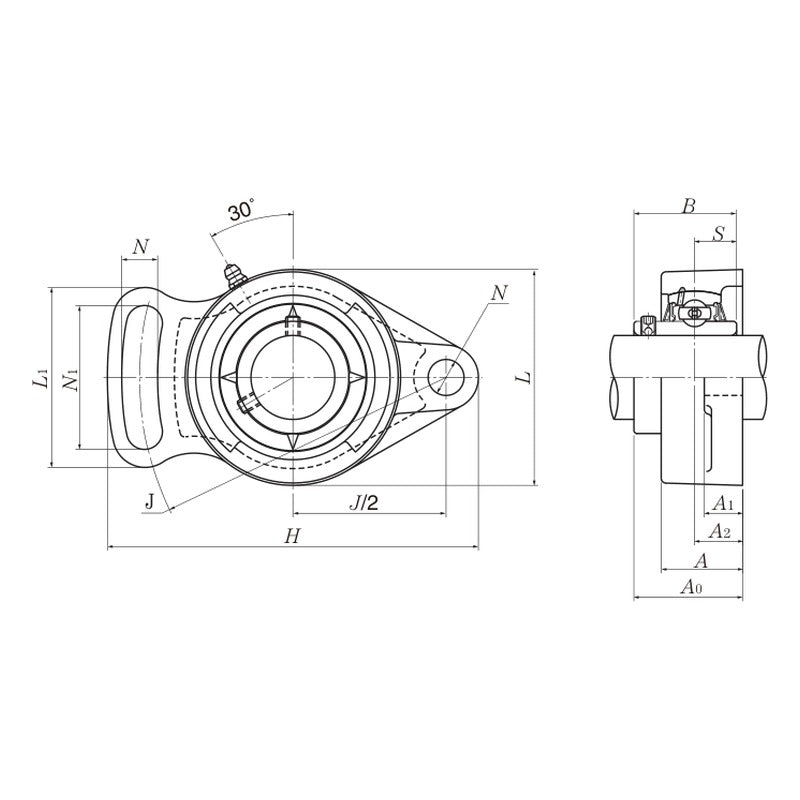

NTN UCFA2 Modified Rhombus Flanged Units, Cast Housing

NTN UCFA2 Modified Rhombus Flanged Units, Cast Housing

NTN UCFA2 series modified rhombus flanged units cast housing, set screw locking type, for shafts 12-55 mm and inch sizes.

Key features

  • Modified rhombus flanged units cast housing with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • D1 suffix: relubricatable design

Specifications

Series UCFA2
Unit type Modified rhombus flanged units cast housing
Shaft range 12-55 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 186-189
UCFA201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: FA204D1
UCFA201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: FA204D1
UCFA202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: FA204D1
UCFA202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: FA204D1
UCFA202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: FA204D1
UCFA203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: FA204D1
UCFA203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: FA204D1
UCFA204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: FA204D1
UCFA204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: FA204D1
UCFA205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: FA205D1
UCFA205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: FA205D1
UCFA205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: FA205D1
UCFA205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: FA205D1
UCFA205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: FA205D1
UCFA206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: FA206D1
UCFA206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: FA206D1
UCFA206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: FA206D1
UCFA206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: FA206D1
UCFA206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: FA206D1
UCFA207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: FA207D1
UCFA207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FA207D1
UCFA207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: FA207D1
UCFA207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: FA207D1
UCFA207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: FA207D1
UCFA208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: FA208D1
UCFA208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: FA208D1
UCFA208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: FA208D1
UCFA209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: FA209D1
UCFA209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: FA209D1
UCFA209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: FA209D1
UCFA209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: FA209D1
UCFA210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: FA210D1
UCFA210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FA210D1
UCFA210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: FA210D1
UCFA210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: FA210D1
UCFA210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: FA210D1
UCFA211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: FA211D1
UCFA211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FA211D1
UCFA211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: FA211D1
UCFA211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: FA211D1
UCFA211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: FA211D1
Mounted Bearing UnitsNTN
41 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN UCFA2 Modified Rhombus Flanged Units, Cast Housing

Brand NTN·Mounted Bearing Units

Available part numbers (41)

UCFA201D1, UCFA201-008D1, UCFA202D1, UCFA202-009D1, UCFA202-010D1, UCFA203D1, UCFA203-011D1, UCFA204D1, UCFA204-012D1, UCFA205D1 + 31 more — see full table ↓
