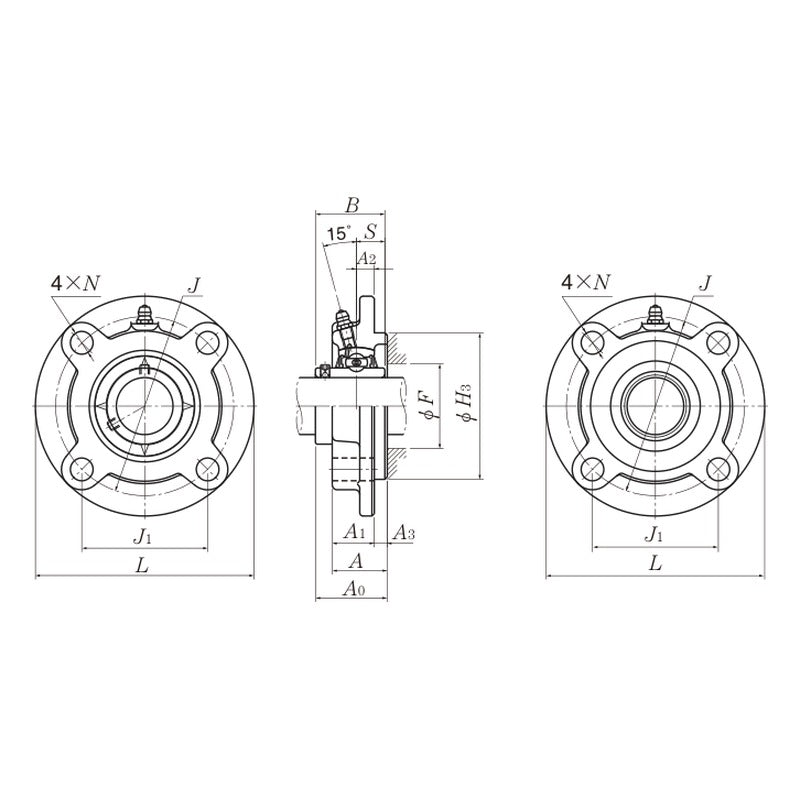

NTN UCFC2 Round Flanged Units, Cast Housing w/ Spigot

NTN UCFC2 Round Flanged Units, Cast Housing w/ Spigot

NTN UCFC2 series round flanged units cast housing with spigot joint, set screw locking type, for shafts 12-90 mm and inch sizes.

Key features

  • Round flanged units cast housing with spigot joint with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • D1 suffix: relubricatable design
  • Dust cover options: S/SM pressed steel and C/CM cast iron covers (open / closed end) where listed

Specifications

Series UCFC2
Unit type Round flanged units cast housing with spigot joint
Shaft range 12-90 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 150-155
UCFC201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
UCFC202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: FC205D1 | Cover: None (open unit)
S-UCFC205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: FC205D1 | Cover: Pressed steel, open end
SM-UCFC205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: FC205D1 | Cover: Pressed steel, closed end
C-UCFC205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: FC205D1 | Cover: Cast iron, open end
CM-UCFC205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: FC205D1 | Cover: Cast iron, closed end
UCFC205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: FC205D1 | Cover: None (open unit)
S-UCFC205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: FC205D1 | Cover: Pressed steel, open end
SM-UCFC205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: FC205D1 | Cover: Pressed steel, closed end
C-UCFC205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: FC205D1 | Cover: Cast iron, open end
CM-UCFC205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: FC205D1 | Cover: Cast iron, closed end
UCFC205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: FC205D1 | Cover: None (open unit)
S-UCFC205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: FC205D1 | Cover: Pressed steel, open end
SM-UCFC205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: FC205D1 | Cover: Pressed steel, closed end
C-UCFC205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: FC205D1 | Cover: Cast iron, open end
CM-UCFC205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: FC205D1 | Cover: Cast iron, closed end
UCFC205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: FC205D1 | Cover: None (open unit)
S-UCFC205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: FC205D1 | Cover: Pressed steel, open end
SM-UCFC205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: FC205D1 | Cover: Pressed steel, closed end
C-UCFC205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: FC205D1 | Cover: Cast iron, open end
CM-UCFC205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: FC205D1 | Cover: Cast iron, closed end
UCFC205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: FC205D1 | Cover: None (open unit)
S-UCFC205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: FC205D1 | Cover: Pressed steel, open end
SM-UCFC205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: FC205D1 | Cover: Pressed steel, closed end
C-UCFC205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: FC205D1 | Cover: Cast iron, open end
CM-UCFC205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: FC205D1 | Cover: Cast iron, closed end
UCFC206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: FC206D1 | Cover: None (open unit)
S-UCFC206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: FC206D1 | Cover: Pressed steel, open end
SM-UCFC206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: FC206D1 | Cover: Pressed steel, closed end
C-UCFC206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: FC206D1 | Cover: Cast iron, open end
CM-UCFC206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: FC206D1 | Cover: Cast iron, closed end
UCFC206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: FC206D1 | Cover: None (open unit)
S-UCFC206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: FC206D1 | Cover: Pressed steel, open end
SM-UCFC206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: FC206D1 | Cover: Pressed steel, closed end
C-UCFC206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: FC206D1 | Cover: Cast iron, open end
CM-UCFC206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: FC206D1 | Cover: Cast iron, closed end
UCFC206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: FC206D1 | Cover: None (open unit)
S-UCFC206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: FC206D1 | Cover: Pressed steel, open end
SM-UCFC206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: FC206D1 | Cover: Pressed steel, closed end
C-UCFC206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: FC206D1 | Cover: Cast iron, open end
CM-UCFC206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: FC206D1 | Cover: Cast iron, closed end
UCFC206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: FC206D1 | Cover: None (open unit)
S-UCFC206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: FC206D1 | Cover: Pressed steel, open end
SM-UCFC206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: FC206D1 | Cover: Pressed steel, closed end
C-UCFC206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: FC206D1 | Cover: Cast iron, open end
CM-UCFC206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: FC206D1 | Cover: Cast iron, closed end
UCFC206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: FC206D1 | Cover: None (open unit)
S-UCFC206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: FC206D1 | Cover: Pressed steel, open end
SM-UCFC206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: FC206D1 | Cover: Pressed steel, closed end
C-UCFC206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: FC206D1 | Cover: Cast iron, open end
CM-UCFC206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: FC206D1 | Cover: Cast iron, closed end
UCFC207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: FC207D1 | Cover: None (open unit)
S-UCFC207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: FC207D1 | Cover: Pressed steel, open end
SM-UCFC207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: FC207D1 | Cover: Pressed steel, closed end
C-UCFC207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: FC207D1 | Cover: Cast iron, open end
CM-UCFC207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: FC207D1 | Cover: Cast iron, closed end
UCFC207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FC207D1 | Cover: None (open unit)
S-UCFC207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FC207D1 | Cover: Pressed steel, open end
SM-UCFC207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FC207D1 | Cover: Pressed steel, closed end
C-UCFC207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FC207D1 | Cover: Cast iron, open end
CM-UCFC207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FC207D1 | Cover: Cast iron, closed end
UCFC207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: FC207D1 | Cover: None (open unit)
S-UCFC207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: FC207D1 | Cover: Pressed steel, open end
SM-UCFC207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: FC207D1 | Cover: Pressed steel, closed end
C-UCFC207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: FC207D1 | Cover: Cast iron, open end
CM-UCFC207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: FC207D1 | Cover: Cast iron, closed end
UCFC207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: FC207D1 | Cover: None (open unit)
S-UCFC207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: FC207D1 | Cover: Pressed steel, open end
SM-UCFC207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: FC207D1 | Cover: Pressed steel, closed end
C-UCFC207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: FC207D1 | Cover: Cast iron, open end
CM-UCFC207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: FC207D1 | Cover: Cast iron, closed end
UCFC207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: FC207D1 | Cover: None (open unit)
S-UCFC207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: FC207D1 | Cover: Pressed steel, open end
SM-UCFC207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: FC207D1 | Cover: Pressed steel, closed end
C-UCFC207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: FC207D1 | Cover: Cast iron, open end
CM-UCFC207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: FC207D1 | Cover: Cast iron, closed end
UCFC208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: FC208D1 | Cover: None (open unit)
S-UCFC208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: FC208D1 | Cover: Pressed steel, open end
SM-UCFC208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: FC208D1 | Cover: Pressed steel, closed end
C-UCFC208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: FC208D1 | Cover: Cast iron, open end
CM-UCFC208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: FC208D1 | Cover: Cast iron, closed end
UCFC208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: FC208D1 | Cover: None (open unit)
S-UCFC208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: FC208D1 | Cover: Pressed steel, open end
SM-UCFC208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: FC208D1 | Cover: Pressed steel, closed end
C-UCFC208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: FC208D1 | Cover: Cast iron, open end
CM-UCFC208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: FC208D1 | Cover: Cast iron, closed end
UCFC208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: FC208D1 | Cover: None (open unit)
S-UCFC208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: FC208D1 | Cover: Pressed steel, open end
SM-UCFC208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: FC208D1 | Cover: Pressed steel, closed end
C-UCFC208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: FC208D1 | Cover: Cast iron, open end
CM-UCFC208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: FC208D1 | Cover: Cast iron, closed end
UCFC209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: FC209D1 | Cover: None (open unit)
S-UCFC209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: FC209D1 | Cover: Pressed steel, open end
SM-UCFC209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: FC209D1 | Cover: Pressed steel, closed end
C-UCFC209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: FC209D1 | Cover: Cast iron, open end
CM-UCFC209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: FC209D1 | Cover: Cast iron, closed end
UCFC209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: FC209D1 | Cover: None (open unit)
S-UCFC209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: FC209D1 | Cover: Pressed steel, open end
SM-UCFC209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: FC209D1 | Cover: Pressed steel, closed end
C-UCFC209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: FC209D1 | Cover: Cast iron, open end
CM-UCFC209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: FC209D1 | Cover: Cast iron, closed end
UCFC209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: FC209D1 | Cover: None (open unit)
S-UCFC209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: FC209D1 | Cover: Pressed steel, open end
SM-UCFC209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: FC209D1 | Cover: Pressed steel, closed end
C-UCFC209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: FC209D1 | Cover: Cast iron, open end
CM-UCFC209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: FC209D1 | Cover: Cast iron, closed end
UCFC209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: FC209D1 | Cover: None (open unit)
S-UCFC209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: FC209D1 | Cover: Pressed steel, open end
SM-UCFC209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: FC209D1 | Cover: Pressed steel, closed end
C-UCFC209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: FC209D1 | Cover: Cast iron, open end
CM-UCFC209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: FC209D1 | Cover: Cast iron, closed end
UCFC210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: FC210D1 | Cover: None (open unit)
S-UCFC210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: FC210D1 | Cover: Pressed steel, open end
SM-UCFC210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: FC210D1 | Cover: Pressed steel, closed end
C-UCFC210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: FC210D1 | Cover: Cast iron, open end
CM-UCFC210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: FC210D1 | Cover: Cast iron, closed end
UCFC210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FC210D1 | Cover: None (open unit)
S-UCFC210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FC210D1 | Cover: Pressed steel, open end
SM-UCFC210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FC210D1 | Cover: Pressed steel, closed end
C-UCFC210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FC210D1 | Cover: Cast iron, open end
CM-UCFC210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FC210D1 | Cover: Cast iron, closed end
UCFC210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: FC210D1 | Cover: None (open unit)
S-UCFC210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: FC210D1 | Cover: Pressed steel, open end
SM-UCFC210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: FC210D1 | Cover: Pressed steel, closed end
C-UCFC210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: FC210D1 | Cover: Cast iron, open end
CM-UCFC210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: FC210D1 | Cover: Cast iron, closed end
UCFC210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: FC210D1 | Cover: None (open unit)
S-UCFC210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: FC210D1 | Cover: Pressed steel, open end
SM-UCFC210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: FC210D1 | Cover: Pressed steel, closed end
C-UCFC210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: FC210D1 | Cover: Cast iron, open end
CM-UCFC210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: FC210D1 | Cover: Cast iron, closed end
UCFC210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: FC210D1 | Cover: None (open unit)
S-UCFC210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: FC210D1 | Cover: Pressed steel, open end
SM-UCFC210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: FC210D1 | Cover: Pressed steel, closed end
C-UCFC210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: FC210D1 | Cover: Cast iron, open end
CM-UCFC210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: FC210D1 | Cover: Cast iron, closed end
UCFC211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: FC211D1 | Cover: None (open unit)
S-UCFC211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: FC211D1 | Cover: Pressed steel, open end
SM-UCFC211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: FC211D1 | Cover: Pressed steel, closed end
C-UCFC211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: FC211D1 | Cover: Cast iron, open end
CM-UCFC211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: FC211D1 | Cover: Cast iron, closed end
UCFC211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FC211D1 | Cover: None (open unit)
S-UCFC211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FC211D1 | Cover: Pressed steel, open end
SM-UCFC211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FC211D1 | Cover: Pressed steel, closed end
C-UCFC211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FC211D1 | Cover: Cast iron, open end
CM-UCFC211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FC211D1 | Cover: Cast iron, closed end
UCFC211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: FC211D1 | Cover: None (open unit)
S-UCFC211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: FC211D1 | Cover: Pressed steel, open end
SM-UCFC211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: FC211D1 | Cover: Pressed steel, closed end
C-UCFC211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: FC211D1 | Cover: Cast iron, open end
CM-UCFC211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: FC211D1 | Cover: Cast iron, closed end
UCFC211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: FC211D1 | Cover: None (open unit)
S-UCFC211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: FC211D1 | Cover: Pressed steel, open end
SM-UCFC211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: FC211D1 | Cover: Pressed steel, closed end
C-UCFC211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: FC211D1 | Cover: Cast iron, open end
CM-UCFC211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: FC211D1 | Cover: Cast iron, closed end
UCFC211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: FC211D1 | Cover: None (open unit)
S-UCFC211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: FC211D1 | Cover: Pressed steel, open end
SM-UCFC211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: FC211D1 | Cover: Pressed steel, closed end
C-UCFC211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: FC211D1 | Cover: Cast iron, open end
CM-UCFC211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: FC211D1 | Cover: Cast iron, closed end
UCFC212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: FC212D1 | Cover: None (open unit)
S-UCFC212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: FC212D1 | Cover: Pressed steel, open end
SM-UCFC212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: FC212D1 | Cover: Pressed steel, closed end
C-UCFC212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: FC212D1 | Cover: Cast iron, open end
CM-UCFC212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: FC212D1 | Cover: Cast iron, closed end
UCFC212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FC212D1 | Cover: None (open unit)
S-UCFC212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FC212D1 | Cover: Pressed steel, open end
SM-UCFC212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FC212D1 | Cover: Pressed steel, closed end
C-UCFC212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FC212D1 | Cover: Cast iron, open end
CM-UCFC212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FC212D1 | Cover: Cast iron, closed end
UCFC212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FC212D1 | Cover: None (open unit)
S-UCFC212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FC212D1 | Cover: Pressed steel, open end
SM-UCFC212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FC212D1 | Cover: Pressed steel, closed end
C-UCFC212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FC212D1 | Cover: Cast iron, open end
CM-UCFC212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FC212D1 | Cover: Cast iron, closed end
UCFC212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: FC212D1 | Cover: None (open unit)
S-UCFC212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: FC212D1 | Cover: Pressed steel, open end
SM-UCFC212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: FC212D1 | Cover: Pressed steel, closed end
C-UCFC212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: FC212D1 | Cover: Cast iron, open end
CM-UCFC212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: FC212D1 | Cover: Cast iron, closed end
UCFC212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: FC212D1 | Cover: None (open unit)
S-UCFC212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: FC212D1 | Cover: Pressed steel, open end
SM-UCFC212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: FC212D1 | Cover: Pressed steel, closed end
C-UCFC212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: FC212D1 | Cover: Cast iron, open end
CM-UCFC212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: FC212D1 | Cover: Cast iron, closed end
UCFC213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: FC213D1 | Cover: None (open unit)
S-UCFC213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: FC213D1 | Cover: Pressed steel, open end
SM-UCFC213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: FC213D1 | Cover: Pressed steel, closed end
C-UCFC213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: FC213D1 | Cover: Cast iron, open end
CM-UCFC213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: FC213D1 | Cover: Cast iron, closed end
UCFC213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: FC213D1 | Cover: None (open unit)
S-UCFC213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: FC213D1 | Cover: Pressed steel, open end
SM-UCFC213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: FC213D1 | Cover: Pressed steel, closed end
C-UCFC213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: FC213D1 | Cover: Cast iron, open end
CM-UCFC213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: FC213D1 | Cover: Cast iron, closed end
UCFC213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: FC213D1 | Cover: None (open unit)
S-UCFC213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: FC213D1 | Cover: Pressed steel, open end
SM-UCFC213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: FC213D1 | Cover: Pressed steel, closed end
C-UCFC213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: FC213D1 | Cover: Cast iron, open end
CM-UCFC213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: FC213D1 | Cover: Cast iron, closed end
UCFC214D1 Shaft: 70 mm | Insert bearing: UC214D1 | Housing: FC214D1 | Cover: None (open unit)
C-UCFC214D1 Shaft: 70 mm | Insert bearing: UC214D1 | Housing: FC214D1 | Cover: Cast iron, open end
CM-UCFC214D1 Shaft: 70 mm | Insert bearing: UC214D1 | Housing: FC214D1 | Cover: Cast iron, closed end
UCFC214-210D1 Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: FC214D1 | Cover: None (open unit)
C-UCFC214-210D1 Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: FC214D1 | Cover: Cast iron, open end
CM-UCFC214-210D1 Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: FC214D1 | Cover: Cast iron, closed end
UCFC214-211D1 Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: FC214D1 | Cover: None (open unit)
C-UCFC214-211D1 Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: FC214D1 | Cover: Cast iron, open end
CM-UCFC214-211D1 Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: FC214D1 | Cover: Cast iron, closed end
UCFC214-212D1 Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: FC214D1 | Cover: None (open unit)
C-UCFC214-212D1 Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: FC214D1 | Cover: Cast iron, open end
CM-UCFC214-212D1 Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: FC214D1 | Cover: Cast iron, closed end
UCFC215D1 Shaft: 75 mm | Insert bearing: UC215D1 | Housing: FC215D1 | Cover: None (open unit)
C-UCFC215D1 Shaft: 75 mm | Insert bearing: UC215D1 | Housing: FC215D1 | Cover: Cast iron, open end
CM-UCFC215D1 Shaft: 75 mm | Insert bearing: UC215D1 | Housing: FC215D1 | Cover: Cast iron, closed end
UCFC215-213D1 Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: FC215D1 | Cover: None (open unit)
C-UCFC215-213D1 Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: FC215D1 | Cover: Cast iron, open end
CM-UCFC215-213D1 Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: FC215D1 | Cover: Cast iron, closed end
UCFC215-214D1 Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: FC215D1 | Cover: None (open unit)
C-UCFC215-214D1 Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: FC215D1 | Cover: Cast iron, open end
CM-UCFC215-214D1 Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: FC215D1 | Cover: Cast iron, closed end
UCFC215-215D1 Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: FC215D1 | Cover: None (open unit)
C-UCFC215-215D1 Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: FC215D1 | Cover: Cast iron, open end
CM-UCFC215-215D1 Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: FC215D1 | Cover: Cast iron, closed end
UCFC215-300D1 Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: FC215D1 | Cover: None (open unit)
C-UCFC215-300D1 Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: FC215D1 | Cover: Cast iron, open end
CM-UCFC215-300D1 Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: FC215D1 | Cover: Cast iron, closed end
UCFC216D1 Shaft: 80 mm | Insert bearing: UC216D1 | Housing: FC216D1 | Cover: None (open unit)
C-UCFC216D1 Shaft: 80 mm | Insert bearing: UC216D1 | Housing: FC216D1 | Cover: Cast iron, open end
CM-UCFC216D1 Shaft: 80 mm | Insert bearing: UC216D1 | Housing: FC216D1 | Cover: Cast iron, closed end
UCFC216-301D1 Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: FC216D1 | Cover: None (open unit)
C-UCFC216-301D1 Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: FC216D1 | Cover: Cast iron, open end
CM-UCFC216-301D1 Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: FC216D1 | Cover: Cast iron, closed end
UCFC216-302D1 Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: FC216D1 | Cover: None (open unit)
C-UCFC216-302D1 Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: FC216D1 | Cover: Cast iron, open end
CM-UCFC216-302D1 Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: FC216D1 | Cover: Cast iron, closed end
UCFC216-303D1 Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: FC216D1 | Cover: None (open unit)
C-UCFC216-303D1 Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: FC216D1 | Cover: Cast iron, open end
CM-UCFC216-303D1 Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: FC216D1 | Cover: Cast iron, closed end
UCFC217D1 Shaft: 85 mm | Insert bearing: UC217D1 | Housing: FC217D1 | Cover: None (open unit)
C-UCFC217D1 Shaft: 85 mm | Insert bearing: UC217D1 | Housing: FC217D1 | Cover: Cast iron, open end
CM-UCFC217D1 Shaft: 85 mm | Insert bearing: UC217D1 | Housing: FC217D1 | Cover: Cast iron, closed end
UCFC217-304D1 Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: FC217D1 | Cover: None (open unit)
C-UCFC217-304D1 Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: FC217D1 | Cover: Cast iron, open end
CM-UCFC217-304D1 Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: FC217D1 | Cover: Cast iron, closed end
UCFC217-305D1 Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: FC217D1 | Cover: None (open unit)
C-UCFC217-305D1 Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: FC217D1 | Cover: Cast iron, open end
CM-UCFC217-305D1 Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: FC217D1 | Cover: Cast iron, closed end
UCFC217-307D1 Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: FC217D1 | Cover: None (open unit)
C-UCFC217-307D1 Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: FC217D1 | Cover: Cast iron, open end
CM-UCFC217-307D1 Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: FC217D1 | Cover: Cast iron, closed end
UCFC218D1 Shaft: 90 mm | Insert bearing: UC218D1 | Housing: FC218D1 | Cover: None (open unit)
C-UCFC218D1 Shaft: 90 mm | Insert bearing: UC218D1 | Housing: FC218D1 | Cover: Cast iron, open end
CM-UCFC218D1 Shaft: 90 mm | Insert bearing: UC218D1 | Housing: FC218D1 | Cover: Cast iron, closed end
UCFC218-308D1 Shaft: 3-1/2 in | Insert bearing: UC218-308D1 | Housing: FC218D1 | Cover: None (open unit)
C-UCFC218-308D1 Shaft: 3-1/2 in | Insert bearing: UC218-308D1 | Housing: FC218D1 | Cover: Cast iron, open end
CM-UCFC218-308D1 Shaft: 3-1/2 in | Insert bearing: UC218-308D1 | Housing: FC218D1 | Cover: Cast iron, closed end
Mounted Bearing UnitsNTN
300 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN UCFC2 Round Flanged Units, Cast Housing w/ Spigot

Brand NTN·Mounted Bearing Units

Available part numbers (300)

UCFC201D1, S-UCFC201D1, SM-UCFC201D1, C-UCFC201D1, CM-UCFC201D1, UCFC201-008D1, S-UCFC201-008D1, SM-UCFC201-008D1, UCFC202D1, S-UCFC202D1 + 290 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCFC201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
UCFC202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: FC204D1 | Cover: None (open unit)
S-UCFC204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: FC204D1 | Cover: Pressed steel, open end
SM-UCFC204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: FC204D1 | Cover: Pressed steel, closed end
C-UCFC204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: FC204D1 | Cover: Cast iron, open end
CM-UCFC204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: FC204D1 | Cover: Cast iron, closed end
UCFC205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: FC205D1 | Cover: None (open unit)
S-UCFC205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: FC205D1 | Cover: Pressed steel, open end
SM-UCFC205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: FC205D1 | Cover: Pressed steel, closed end
C-UCFC205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: FC205D1 | Cover: Cast iron, open end
CM-UCFC205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: FC205D1 | Cover: Cast iron, closed end
UCFC205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: FC205D1 | Cover: None (open unit)
S-UCFC205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: FC205D1 | Cover: Pressed steel, open end
SM-UCFC205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: FC205D1 | Cover: Pressed steel, closed end
C-UCFC205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: FC205D1 | Cover: Cast iron, open end
CM-UCFC205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: FC205D1 | Cover: Cast iron, closed end
UCFC205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: FC205D1 | Cover: None (open unit)
S-UCFC205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: FC205D1 | Cover: Pressed steel, open end
SM-UCFC205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: FC205D1 | Cover: Pressed steel, closed end
C-UCFC205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: FC205D1 | Cover: Cast iron, open end
CM-UCFC205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: FC205D1 | Cover: Cast iron, closed end
UCFC205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: FC205D1 | Cover: None (open unit)
S-UCFC205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: FC205D1 | Cover: Pressed steel, open end
SM-UCFC205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: FC205D1 | Cover: Pressed steel, closed end
C-UCFC205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: FC205D1 | Cover: Cast iron, open end
CM-UCFC205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: FC205D1 | Cover: Cast iron, closed end
UCFC205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: FC205D1 | Cover: None (open unit)
S-UCFC205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: FC205D1 | Cover: Pressed steel, open end
SM-UCFC205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: FC205D1 | Cover: Pressed steel, closed end
C-UCFC205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: FC205D1 | Cover: Cast iron, open end
CM-UCFC205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: FC205D1 | Cover: Cast iron, closed end
UCFC206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: FC206D1 | Cover: None (open unit)
S-UCFC206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: FC206D1 | Cover: Pressed steel, open end
SM-UCFC206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: FC206D1 | Cover: Pressed steel, closed end
C-UCFC206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: FC206D1 | Cover: Cast iron, open end
CM-UCFC206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: FC206D1 | Cover: Cast iron, closed end
UCFC206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: FC206D1 | Cover: None (open unit)
S-UCFC206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: FC206D1 | Cover: Pressed steel, open end
SM-UCFC206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: FC206D1 | Cover: Pressed steel, closed end
C-UCFC206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: FC206D1 | Cover: Cast iron, open end
CM-UCFC206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: FC206D1 | Cover: Cast iron, closed end
UCFC206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: FC206D1 | Cover: None (open unit)
S-UCFC206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: FC206D1 | Cover: Pressed steel, open end
SM-UCFC206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: FC206D1 | Cover: Pressed steel, closed end
C-UCFC206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: FC206D1 | Cover: Cast iron, open end
CM-UCFC206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: FC206D1 | Cover: Cast iron, closed end
UCFC206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: FC206D1 | Cover: None (open unit)
S-UCFC206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: FC206D1 | Cover: Pressed steel, open end
SM-UCFC206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: FC206D1 | Cover: Pressed steel, closed end
C-UCFC206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: FC206D1 | Cover: Cast iron, open end
CM-UCFC206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: FC206D1 | Cover: Cast iron, closed end
UCFC206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: FC206D1 | Cover: None (open unit)
S-UCFC206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: FC206D1 | Cover: Pressed steel, open end
SM-UCFC206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: FC206D1 | Cover: Pressed steel, closed end
C-UCFC206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: FC206D1 | Cover: Cast iron, open end
CM-UCFC206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: FC206D1 | Cover: Cast iron, closed end
UCFC207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: FC207D1 | Cover: None (open unit)
S-UCFC207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: FC207D1 | Cover: Pressed steel, open end
SM-UCFC207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: FC207D1 | Cover: Pressed steel, closed end
C-UCFC207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: FC207D1 | Cover: Cast iron, open end
CM-UCFC207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: FC207D1 | Cover: Cast iron, closed end
UCFC207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FC207D1 | Cover: None (open unit)
S-UCFC207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FC207D1 | Cover: Pressed steel, open end
SM-UCFC207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FC207D1 | Cover: Pressed steel, closed end
C-UCFC207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FC207D1 | Cover: Cast iron, open end
CM-UCFC207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FC207D1 | Cover: Cast iron, closed end
UCFC207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: FC207D1 | Cover: None (open unit)
S-UCFC207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: FC207D1 | Cover: Pressed steel, open end
SM-UCFC207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: FC207D1 | Cover: Pressed steel, closed end
C-UCFC207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: FC207D1 | Cover: Cast iron, open end
CM-UCFC207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: FC207D1 | Cover: Cast iron, closed end
UCFC207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: FC207D1 | Cover: None (open unit)
S-UCFC207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: FC207D1 | Cover: Pressed steel, open end
SM-UCFC207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: FC207D1 | Cover: Pressed steel, closed end
C-UCFC207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: FC207D1 | Cover: Cast iron, open end
CM-UCFC207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: FC207D1 | Cover: Cast iron, closed end
UCFC207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: FC207D1 | Cover: None (open unit)
S-UCFC207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: FC207D1 | Cover: Pressed steel, open end
SM-UCFC207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: FC207D1 | Cover: Pressed steel, closed end
C-UCFC207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: FC207D1 | Cover: Cast iron, open end
CM-UCFC207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: FC207D1 | Cover: Cast iron, closed end
UCFC208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: FC208D1 | Cover: None (open unit)
S-UCFC208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: FC208D1 | Cover: Pressed steel, open end
SM-UCFC208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: FC208D1 | Cover: Pressed steel, closed end
C-UCFC208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: FC208D1 | Cover: Cast iron, open end
CM-UCFC208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: FC208D1 | Cover: Cast iron, closed end
UCFC208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: FC208D1 | Cover: None (open unit)
S-UCFC208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: FC208D1 | Cover: Pressed steel, open end
SM-UCFC208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: FC208D1 | Cover: Pressed steel, closed end
C-UCFC208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: FC208D1 | Cover: Cast iron, open end
CM-UCFC208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: FC208D1 | Cover: Cast iron, closed end
UCFC208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: FC208D1 | Cover: None (open unit)
S-UCFC208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: FC208D1 | Cover: Pressed steel, open end
SM-UCFC208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: FC208D1 | Cover: Pressed steel, closed end
C-UCFC208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: FC208D1 | Cover: Cast iron, open end
CM-UCFC208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: FC208D1 | Cover: Cast iron, closed end
UCFC209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: FC209D1 | Cover: None (open unit)
S-UCFC209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: FC209D1 | Cover: Pressed steel, open end
SM-UCFC209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: FC209D1 | Cover: Pressed steel, closed end
C-UCFC209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: FC209D1 | Cover: Cast iron, open end
CM-UCFC209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: FC209D1 | Cover: Cast iron, closed end
UCFC209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: FC209D1 | Cover: None (open unit)
S-UCFC209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: FC209D1 | Cover: Pressed steel, open end
SM-UCFC209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: FC209D1 | Cover: Pressed steel, closed end
C-UCFC209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: FC209D1 | Cover: Cast iron, open end
CM-UCFC209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: FC209D1 | Cover: Cast iron, closed end
UCFC209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: FC209D1 | Cover: None (open unit)
S-UCFC209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: FC209D1 | Cover: Pressed steel, open end
SM-UCFC209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: FC209D1 | Cover: Pressed steel, closed end
C-UCFC209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: FC209D1 | Cover: Cast iron, open end
CM-UCFC209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: FC209D1 | Cover: Cast iron, closed end
UCFC209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: FC209D1 | Cover: None (open unit)
S-UCFC209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: FC209D1 | Cover: Pressed steel, open end
SM-UCFC209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: FC209D1 | Cover: Pressed steel, closed end
C-UCFC209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: FC209D1 | Cover: Cast iron, open end
CM-UCFC209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: FC209D1 | Cover: Cast iron, closed end
UCFC210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: FC210D1 | Cover: None (open unit)
S-UCFC210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: FC210D1 | Cover: Pressed steel, open end
SM-UCFC210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: FC210D1 | Cover: Pressed steel, closed end
C-UCFC210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: FC210D1 | Cover: Cast iron, open end
CM-UCFC210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: FC210D1 | Cover: Cast iron, closed end
UCFC210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FC210D1 | Cover: None (open unit)
S-UCFC210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FC210D1 | Cover: Pressed steel, open end
SM-UCFC210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FC210D1 | Cover: Pressed steel, closed end
C-UCFC210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FC210D1 | Cover: Cast iron, open end
CM-UCFC210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FC210D1 | Cover: Cast iron, closed end
UCFC210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: FC210D1 | Cover: None (open unit)
S-UCFC210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: FC210D1 | Cover: Pressed steel, open end
SM-UCFC210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: FC210D1 | Cover: Pressed steel, closed end
C-UCFC210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: FC210D1 | Cover: Cast iron, open end
CM-UCFC210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: FC210D1 | Cover: Cast iron, closed end
UCFC210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: FC210D1 | Cover: None (open unit)
S-UCFC210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: FC210D1 | Cover: Pressed steel, open end
SM-UCFC210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: FC210D1 | Cover: Pressed steel, closed end
C-UCFC210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: FC210D1 | Cover: Cast iron, open end
CM-UCFC210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: FC210D1 | Cover: Cast iron, closed end
UCFC210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: FC210D1 | Cover: None (open unit)
S-UCFC210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: FC210D1 | Cover: Pressed steel, open end
SM-UCFC210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: FC210D1 | Cover: Pressed steel, closed end
C-UCFC210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: FC210D1 | Cover: Cast iron, open end
CM-UCFC210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: FC210D1 | Cover: Cast iron, closed end
UCFC211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: FC211D1 | Cover: None (open unit)
S-UCFC211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: FC211D1 | Cover: Pressed steel, open end
SM-UCFC211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: FC211D1 | Cover: Pressed steel, closed end
C-UCFC211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: FC211D1 | Cover: Cast iron, open end
CM-UCFC211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: FC211D1 | Cover: Cast iron, closed end
UCFC211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FC211D1 | Cover: None (open unit)
S-UCFC211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FC211D1 | Cover: Pressed steel, open end
SM-UCFC211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FC211D1 | Cover: Pressed steel, closed end
C-UCFC211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FC211D1 | Cover: Cast iron, open end
CM-UCFC211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FC211D1 | Cover: Cast iron, closed end
UCFC211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: FC211D1 | Cover: None (open unit)
S-UCFC211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: FC211D1 | Cover: Pressed steel, open end
SM-UCFC211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: FC211D1 | Cover: Pressed steel, closed end
C-UCFC211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: FC211D1 | Cover: Cast iron, open end
CM-UCFC211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: FC211D1 | Cover: Cast iron, closed end
UCFC211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: FC211D1 | Cover: None (open unit)
S-UCFC211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: FC211D1 | Cover: Pressed steel, open end
SM-UCFC211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: FC211D1 | Cover: Pressed steel, closed end
C-UCFC211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: FC211D1 | Cover: Cast iron, open end
CM-UCFC211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: FC211D1 | Cover: Cast iron, closed end
UCFC211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: FC211D1 | Cover: None (open unit)
S-UCFC211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: FC211D1 | Cover: Pressed steel, open end
SM-UCFC211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: FC211D1 | Cover: Pressed steel, closed end
C-UCFC211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: FC211D1 | Cover: Cast iron, open end
CM-UCFC211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: FC211D1 | Cover: Cast iron, closed end
UCFC212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: FC212D1 | Cover: None (open unit)
S-UCFC212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: FC212D1 | Cover: Pressed steel, open end
SM-UCFC212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: FC212D1 | Cover: Pressed steel, closed end
C-UCFC212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: FC212D1 | Cover: Cast iron, open end
CM-UCFC212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: FC212D1 | Cover: Cast iron, closed end
UCFC212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FC212D1 | Cover: None (open unit)
S-UCFC212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FC212D1 | Cover: Pressed steel, open end
SM-UCFC212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FC212D1 | Cover: Pressed steel, closed end
C-UCFC212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FC212D1 | Cover: Cast iron, open end
CM-UCFC212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FC212D1 | Cover: Cast iron, closed end
UCFC212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FC212D1 | Cover: None (open unit)
S-UCFC212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FC212D1 | Cover: Pressed steel, open end
SM-UCFC212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FC212D1 | Cover: Pressed steel, closed end
C-UCFC212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FC212D1 | Cover: Cast iron, open end
CM-UCFC212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FC212D1 | Cover: Cast iron, closed end
UCFC212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: FC212D1 | Cover: None (open unit)
S-UCFC212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: FC212D1 | Cover: Pressed steel, open end
SM-UCFC212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: FC212D1 | Cover: Pressed steel, closed end
C-UCFC212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: FC212D1 | Cover: Cast iron, open end
CM-UCFC212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: FC212D1 | Cover: Cast iron, closed end
UCFC212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: FC212D1 | Cover: None (open unit)
S-UCFC212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: FC212D1 | Cover: Pressed steel, open end
SM-UCFC212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: FC212D1 | Cover: Pressed steel, closed end
C-UCFC212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: FC212D1 | Cover: Cast iron, open end
CM-UCFC212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: FC212D1 | Cover: Cast iron, closed end
UCFC213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: FC213D1 | Cover: None (open unit)
S-UCFC213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: FC213D1 | Cover: Pressed steel, open end
SM-UCFC213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: FC213D1 | Cover: Pressed steel, closed end
C-UCFC213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: FC213D1 | Cover: Cast iron, open end
CM-UCFC213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: FC213D1 | Cover: Cast iron, closed end
UCFC213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: FC213D1 | Cover: None (open unit)
S-UCFC213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: FC213D1 | Cover: Pressed steel, open end
SM-UCFC213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: FC213D1 | Cover: Pressed steel, closed end
C-UCFC213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: FC213D1 | Cover: Cast iron, open end
CM-UCFC213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: FC213D1 | Cover: Cast iron, closed end
UCFC213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: FC213D1 | Cover: None (open unit)
S-UCFC213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: FC213D1 | Cover: Pressed steel, open end
SM-UCFC213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: FC213D1 | Cover: Pressed steel, closed end
C-UCFC213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: FC213D1 | Cover: Cast iron, open end
CM-UCFC213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: FC213D1 | Cover: Cast iron, closed end
UCFC214D1Shaft: 70 mm | Insert bearing: UC214D1 | Housing: FC214D1 | Cover: None (open unit)
C-UCFC214D1Shaft: 70 mm | Insert bearing: UC214D1 | Housing: FC214D1 | Cover: Cast iron, open end
CM-UCFC214D1Shaft: 70 mm | Insert bearing: UC214D1 | Housing: FC214D1 | Cover: Cast iron, closed end
UCFC214-210D1Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: FC214D1 | Cover: None (open unit)
C-UCFC214-210D1Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: FC214D1 | Cover: Cast iron, open end
CM-UCFC214-210D1Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: FC214D1 | Cover: Cast iron, closed end
UCFC214-211D1Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: FC214D1 | Cover: None (open unit)
C-UCFC214-211D1Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: FC214D1 | Cover: Cast iron, open end
CM-UCFC214-211D1Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: FC214D1 | Cover: Cast iron, closed end
UCFC214-212D1Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: FC214D1 | Cover: None (open unit)
C-UCFC214-212D1Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: FC214D1 | Cover: Cast iron, open end
CM-UCFC214-212D1Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: FC214D1 | Cover: Cast iron, closed end
UCFC215D1Shaft: 75 mm | Insert bearing: UC215D1 | Housing: FC215D1 | Cover: None (open unit)
C-UCFC215D1Shaft: 75 mm | Insert bearing: UC215D1 | Housing: FC215D1 | Cover: Cast iron, open end
CM-UCFC215D1Shaft: 75 mm | Insert bearing: UC215D1 | Housing: FC215D1 | Cover: Cast iron, closed end
UCFC215-213D1Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: FC215D1 | Cover: None (open unit)
C-UCFC215-213D1Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: FC215D1 | Cover: Cast iron, open end
CM-UCFC215-213D1Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: FC215D1 | Cover: Cast iron, closed end
UCFC215-214D1Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: FC215D1 | Cover: None (open unit)
C-UCFC215-214D1Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: FC215D1 | Cover: Cast iron, open end
CM-UCFC215-214D1Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: FC215D1 | Cover: Cast iron, closed end
UCFC215-215D1Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: FC215D1 | Cover: None (open unit)
C-UCFC215-215D1Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: FC215D1 | Cover: Cast iron, open end
CM-UCFC215-215D1Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: FC215D1 | Cover: Cast iron, closed end
UCFC215-300D1Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: FC215D1 | Cover: None (open unit)
C-UCFC215-300D1Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: FC215D1 | Cover: Cast iron, open end
CM-UCFC215-300D1Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: FC215D1 | Cover: Cast iron, closed end
UCFC216D1Shaft: 80 mm | Insert bearing: UC216D1 | Housing: FC216D1 | Cover: None (open unit)
C-UCFC216D1Shaft: 80 mm | Insert bearing: UC216D1 | Housing: FC216D1 | Cover: Cast iron, open end
CM-UCFC216D1Shaft: 80 mm | Insert bearing: UC216D1 | Housing: FC216D1 | Cover: Cast iron, closed end
UCFC216-301D1Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: FC216D1 | Cover: None (open unit)
C-UCFC216-301D1Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: FC216D1 | Cover: Cast iron, open end
CM-UCFC216-301D1Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: FC216D1 | Cover: Cast iron, closed end
UCFC216-302D1Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: FC216D1 | Cover: None (open unit)
C-UCFC216-302D1Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: FC216D1 | Cover: Cast iron, open end
CM-UCFC216-302D1Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: FC216D1 | Cover: Cast iron, closed end
UCFC216-303D1Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: FC216D1 | Cover: None (open unit)
C-UCFC216-303D1Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: FC216D1 | Cover: Cast iron, open end
CM-UCFC216-303D1Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: FC216D1 | Cover: Cast iron, closed end
UCFC217D1Shaft: 85 mm | Insert bearing: UC217D1 | Housing: FC217D1 | Cover: None (open unit)
C-UCFC217D1Shaft: 85 mm | Insert bearing: UC217D1 | Housing: FC217D1 | Cover: Cast iron, open end
CM-UCFC217D1Shaft: 85 mm | Insert bearing: UC217D1 | Housing: FC217D1 | Cover: Cast iron, closed end
UCFC217-304D1Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: FC217D1 | Cover: None (open unit)
C-UCFC217-304D1Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: FC217D1 | Cover: Cast iron, open end
CM-UCFC217-304D1Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: FC217D1 | Cover: Cast iron, closed end
UCFC217-305D1Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: FC217D1 | Cover: None (open unit)
C-UCFC217-305D1Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: FC217D1 | Cover: Cast iron, open end
CM-UCFC217-305D1Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: FC217D1 | Cover: Cast iron, closed end
UCFC217-307D1Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: FC217D1 | Cover: None (open unit)
C-UCFC217-307D1Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: FC217D1 | Cover: Cast iron, open end
CM-UCFC217-307D1Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: FC217D1 | Cover: Cast iron, closed end
UCFC218D1Shaft: 90 mm | Insert bearing: UC218D1 | Housing: FC218D1 | Cover: None (open unit)
C-UCFC218D1Shaft: 90 mm | Insert bearing: UC218D1 | Housing: FC218D1 | Cover: Cast iron, open end
CM-UCFC218D1Shaft: 90 mm | Insert bearing: UC218D1 | Housing: FC218D1 | Cover: Cast iron, closed end
UCFC218-308D1Shaft: 3-1/2 in | Insert bearing: UC218-308D1 | Housing: FC218D1 | Cover: None (open unit)
C-UCFC218-308D1Shaft: 3-1/2 in | Insert bearing: UC218-308D1 | Housing: FC218D1 | Cover: Cast iron, open end
CM-UCFC218-308D1Shaft: 3-1/2 in | Insert bearing: UC218-308D1 | Housing: FC218D1 | Cover: Cast iron, closed end

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
