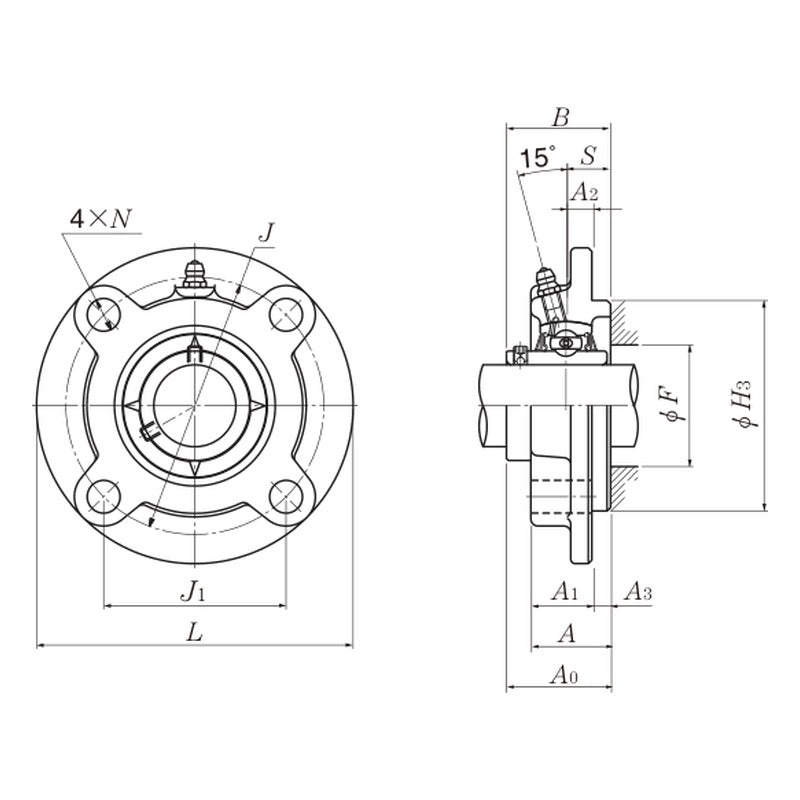

NTN UCFCX Round Flanged Units, Cast Housing w/ Spigot

NTN UCFCX Round Flanged Units, Cast Housing w/ Spigot

NTN UCFCX series round flanged units cast housing with spigot joint, set screw locking type, for shafts 25-100 mm and inch sizes.

Key features

  • Round flanged units cast housing with spigot joint with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • D1 suffix: relubricatable design

Specifications

Series UCFCX
Unit type Round flanged units cast housing with spigot joint
Shaft range 25-100 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 156-161
UCFCX05D1 Shaft: 25 mm | Insert bearing: UCX05D1 | Housing: FCX05D1
UCFCX05-013D1 Shaft: 13/16 in | Insert bearing: UCX05-013D1 | Housing: FCX05D1
UCFCX05-014D1 Shaft: 7/8 in | Insert bearing: UCX05-014D1 | Housing: FCX05D1
UCFCX05-015D1 Shaft: 15/16 in | Insert bearing: UCX05-015D1 | Housing: FCX05D1
UCFCX05-100D1 Shaft: 1 in | Insert bearing: UCX05-100D1 | Housing: FCX05D1
UCFCX06D1 Shaft: 30 mm | Insert bearing: UCX06D1 | Housing: FCX06D1
UCFCX06-101D1 Shaft: 1-1/16 in | Insert bearing: UCX06-101D1 | Housing: FCX06D1
UCFCX06-102D1 Shaft: 1-1/8 in | Insert bearing: UCX06-102D1 | Housing: FCX06D1
UCFCX06-103D1 Shaft: 1-3/16 in | Insert bearing: UCX06-103D1 | Housing: FCX06D1
UCFCX06-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FCX06D1
UCFCX07D1 Shaft: 35 mm | Insert bearing: UCX07D1 | Housing: FCX07D1
UCFCX07-105D1 Shaft: 1-5/16 in | Insert bearing: UCX07-105D1 | Housing: FCX07D1
UCFCX07-106D1 Shaft: 1-3/8 in | Insert bearing: UCX07-106D1 | Housing: FCX07D1
UCFCX07-107D1 Shaft: 1-7/16 in | Insert bearing: UCX07-107D1 | Housing: FCX07D1
UCFCX08D1 Shaft: 40 mm | Insert bearing: UCX08D1 | Housing: FCX08D1
UCFCX08-108D1 Shaft: 1-1/2 in | Insert bearing: UCX08-108D1 | Housing: FCX08D1
UCFCX08-109D1 Shaft: 1-9/16 in | Insert bearing: UCX08-109D1 | Housing: FCX08D1
UCFCX09D1 Shaft: 45 mm | Insert bearing: UCX09D1 | Housing: FCX09D1
UCFCX09-110D1 Shaft: 1-5/8 in | Insert bearing: UCX09-110D1 | Housing: FCX09D1
UCFCX09-111D1 Shaft: 1-11/16 in | Insert bearing: UCX09-111D1 | Housing: FCX09D1
UCFCX09-112D1 Shaft: 1-3/4 in | Insert bearing: UCX09-112D1 | Housing: FCX09D1
UCFCX09-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FCX09D1
UCFCX10D1 Shaft: 50 mm | Insert bearing: UCX10D1 | Housing: FCX10D1
UCFCX10-114D1 Shaft: 1-7/8 in | Insert bearing: UCX10-114D1 | Housing: FCX10D1
UCFCX10-115D1 Shaft: 1-15/16 in | Insert bearing: UCX10-115D1 | Housing: FCX10D1
UCFCX10-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: FCX10D1
UCFCX11D1 Shaft: 55 mm | Insert bearing: UCX11D1 | Housing: FCX11D1
UCFCX11-201D1 Shaft: 2-1/16 in | Insert bearing: UCX11-201D1 | Housing: FCX11D1
UCFCX11-202D1 Shaft: 2-1/8 in | Insert bearing: UCX11-202D1 | Housing: FCX11D1
UCFCX11-203D1 Shaft: 2-3/16 in | Insert bearing: UCX11-203D1 | Housing: FCX11D1
UCFCX11-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: FCX11D1
UCFCX11-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: FCX11D1
UCFCX12D1 Shaft: 60 mm | Insert bearing: UCX12D1 | Housing: FCX12D1
UCFCX12-206D1 Shaft: 2-3/8 in | Insert bearing: UCX12-206D1 | Housing: FCX12D1
UCFCX12-207D1 Shaft: 2-7/16 in | Insert bearing: UCX12-207D1 | Housing: FCX12D1
UCFCX13D1 Shaft: 65 mm | Insert bearing: UCX13D1 | Housing: FCX13D1
UCFCX13-208D1 Shaft: 2-1/2 in | Insert bearing: UCX13-208D1 | Housing: FCX13D1
UCFCX13-209D1 Shaft: 2-9/16 in | Insert bearing: UCX13-209D1 | Housing: FCX13D1
UCFCX14D1 Shaft: 70 mm | Insert bearing: UCX14D1 | Housing: FCX14D1
UCFCX14-210D1 Shaft: 2-5/8 in | Insert bearing: UCX14-210D1 | Housing: FCX14D1
UCFCX14-211D1 Shaft: 2-11/16 in | Insert bearing: UCX14-211D1 | Housing: FCX14D1
UCFCX14-212D1 Shaft: 2-3/4 in | Insert bearing: UCX14-212D1 | Housing: FCX14D1
UCFCX15D1 Shaft: 75 mm | Insert bearing: UCX15D1 | Housing: FCX15D1
UCFCX15-213D1 Shaft: 2-13/16 in | Insert bearing: UCX15-213D1 | Housing: FCX15D1
UCFCX15-214D1 Shaft: 2-7/8 in | Insert bearing: UCX15-214D1 | Housing: FCX15D1
UCFCX15-215D1 Shaft: 2-15/16 in | Insert bearing: UCX15-215D1 | Housing: FCX15D1
UCFCX15-300D1 Shaft: 3 in | Insert bearing: UCX15-300D1 | Housing: FCX15D1
UCFCX16D1 Shaft: 80 mm | Insert bearing: UCX16D1 | Housing: FCX16D1
UCFCX16-301D1 Shaft: 3-1/16 in | Insert bearing: UCX16-301D1 | Housing: FCX16D1
UCFCX16-302D1 Shaft: 3-1/8 in | Insert bearing: UCX16-302D1 | Housing: FCX16D1
UCFCX16-303D1 Shaft: 3-3/16 in | Insert bearing: UCX16-303D1 | Housing: FCX16D1
UCFCX16-304D1 Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: FCX16D1
UCFCX17D1 Shaft: 85 mm | Insert bearing: UCX17D1 | Housing: FCX17D1
UCFCX17-305D1 Shaft: 3-5/16 in | Insert bearing: UCX17-305D1 | Housing: FCX17D1
UCFCX17-307D1 Shaft: 3-7/16 in | Insert bearing: UCX17-307D1 | Housing: FCX17D1
UCFCX18D1 Shaft: 90 mm | Insert bearing: UCX18D1 | Housing: FCX18D1
UCFCX18-307D1 Shaft: 3-7/16 in | Insert bearing: UCX18-307D1 | Housing: FCX18D1
UCFCX18-308D1 Shaft: 3-1/2 in | Insert bearing: UCX18-308D1 | Housing: FCX18D1
UCFCX20D1 Shaft: 100 mm | Insert bearing: UCX20D1 | Housing: FCX20D1
UCFCX20-313D1 Shaft: 3-13/16 in | Insert bearing: UCX20-313D1 | Housing: FCX20D1
UCFCX20-314D1 Shaft: 3-7/8 in | Insert bearing: UCX20-314D1 | Housing: FCX20D1
UCFCX20-315D1 Shaft: 3-15/16 in | Insert bearing: UCX20-315D1 | Housing: FCX20D1
UCFCX20-400D1 Shaft: 4 in | Insert bearing: UCX20-400D1 | Housing: FCX20D1
Mounted Bearing UnitsNTN
63 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN UCFCX Round Flanged Units, Cast Housing w/ Spigot

Brand NTN·Mounted Bearing Units

Available part numbers (63)

UCFCX05D1, UCFCX05-013D1, UCFCX05-014D1, UCFCX05-015D1, UCFCX05-100D1, UCFCX06D1, UCFCX06-101D1, UCFCX06-102D1, UCFCX06-103D1, UCFCX06-104D1 + 53 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
