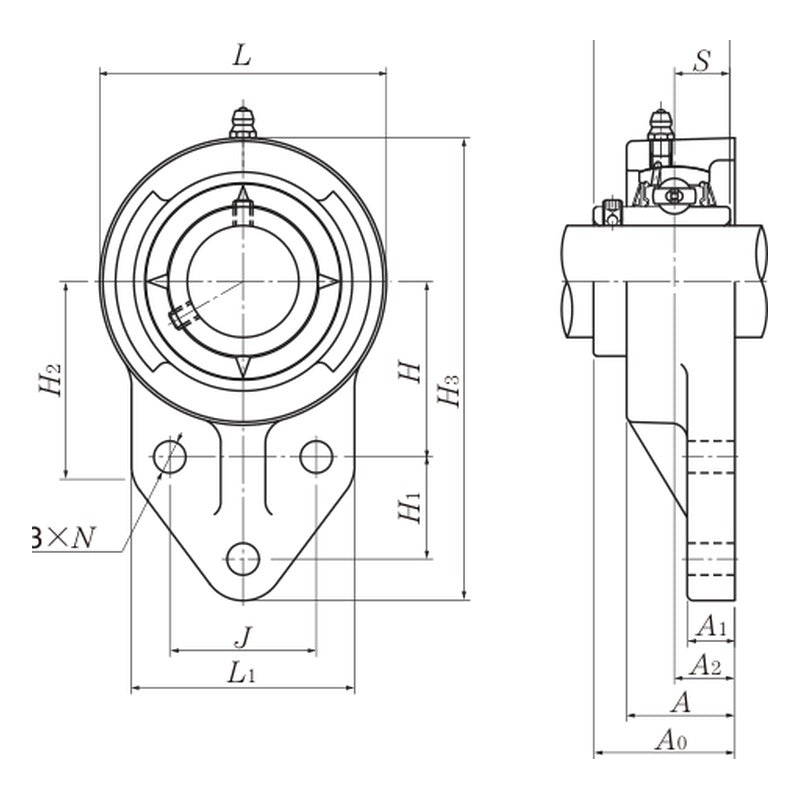

NTN UCFH2 Modified Flanged Units, Cast Housing

NTN UCFH2 Modified Flanged Units, Cast Housing

NTN UCFH2 series modified flanged units cast housing, set screw locking type, for shafts 12-50 mm and inch sizes.

Key features

  • Modified flanged units cast housing with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • D1 suffix: relubricatable design

Specifications

Series UCFH2
Unit type Modified flanged units cast housing
Shaft range 12-50 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 190-193
UCFH201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: FH204D1
UCFH201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: FH204D1
UCFH202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: FH204D1
UCFH202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: FH204D1
UCFH202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: FH204D1
UCFH203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: FH204D1
UCFH203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: FH204D1
UCFH204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: FH204D1
UCFH204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: FH204D1
UCFH205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: FH205D1
UCFH205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: FH205D1
UCFH205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: FH205D1
UCFH205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: FH205D1
UCFH205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: FH205D1
UCFH206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: FH206D1
UCFH206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: FH206D1
UCFH206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: FH206D1
UCFH206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: FH206D1
UCFH206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: FH206D1
UCFH207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: FH207D1
UCFH207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FH207D1
UCFH207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: FH207D1
UCFH207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: FH207D1
UCFH207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: FH207D1
UCFH208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: FH208D1
UCFH208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: FH208D1
UCFH208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: FH208D1
UCFH209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: FH209D1
UCFH209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: FH209D1
UCFH209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: FH209D1
UCFH209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: FH209D1
UCFH210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: FH210D1
UCFH210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FH210D1
UCFH210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: FH210D1
UCFH210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: FH210D1
UCFH210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: FH210D1
Mounted Bearing UnitsNTN
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN UCFH2 Modified Flanged Units, Cast Housing

Brand NTN·Mounted Bearing Units

Available part numbers (36)

UCFH201D1, UCFH201-008D1, UCFH202D1, UCFH202-009D1, UCFH202-010D1, UCFH203D1, UCFH203-011D1, UCFH204D1, UCFH204-012D1, UCFH205D1 + 26 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCFH201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: FH204D1
UCFH201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: FH204D1
UCFH202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: FH204D1
UCFH202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: FH204D1
UCFH202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: FH204D1
UCFH203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: FH204D1
UCFH203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: FH204D1
UCFH204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: FH204D1
UCFH204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: FH204D1
UCFH205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: FH205D1
UCFH205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: FH205D1
UCFH205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: FH205D1
UCFH205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: FH205D1
UCFH205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: FH205D1
UCFH206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: FH206D1
UCFH206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: FH206D1
UCFH206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: FH206D1
UCFH206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: FH206D1
UCFH206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: FH206D1
UCFH207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: FH207D1
UCFH207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: FH207D1
UCFH207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: FH207D1
UCFH207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: FH207D1
UCFH207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: FH207D1
UCFH208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: FH208D1
UCFH208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: FH208D1
UCFH208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: FH208D1
UCFH209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: FH209D1
UCFH209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: FH209D1
UCFH209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: FH209D1
UCFH209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: FH209D1
UCFH210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: FH210D1
UCFH210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: FH210D1
UCFH210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: FH210D1
UCFH210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: FH210D1
UCFH210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: FH210D1
