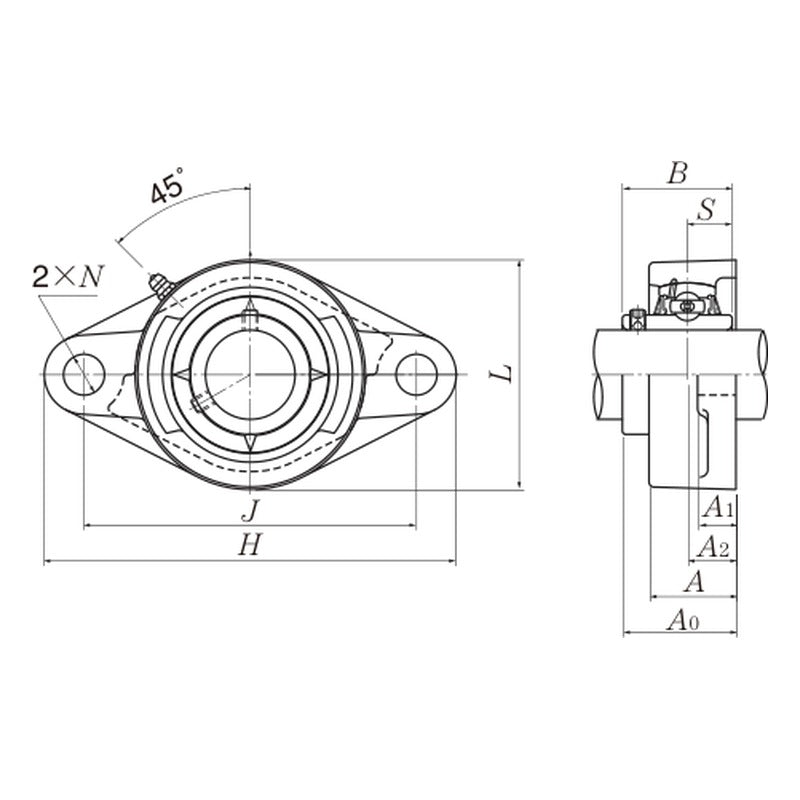

NTN UCFL3 Rhombus Flanged Units, Cast Housing

NTN UCFL3 Rhombus Flanged Units, Cast Housing

NTN UCFL3 series rhombus flanged units cast housing, set screw locking type, for shafts 25-140 mm and inch sizes.

Key features

  • Rhombus flanged units cast housing with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • D1 suffix: relubricatable design
  • Dust cover options: S/SM pressed steel and C/CM cast iron covers (open / closed end) where listed

Specifications

Series UCFL3
Unit type Rhombus flanged units cast housing
Shaft range 25-140 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 170-175
UCFL305D1 Shaft: 25 mm | Insert bearing: UC305D1 | Housing: FL305D1 | Cover: None (open unit)
C-UCFL305D1 Shaft: 25 mm | Insert bearing: UC305D1 | Housing: FL305D1 | Cover: Cast iron, open end
CM-UCFL305D1 Shaft: 25 mm | Insert bearing: UC305D1 | Housing: FL305D1 | Cover: Cast iron, closed end
UCFL305-013D1 Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: FL305D1 | Cover: None (open unit)
C-UCFL305-013D1 Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: FL305D1 | Cover: Cast iron, open end
CM-UCFL305-013D1 Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: FL305D1 | Cover: Cast iron, closed end
UCFL305-014D1 Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: FL305D1 | Cover: None (open unit)
C-UCFL305-014D1 Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: FL305D1 | Cover: Cast iron, open end
CM-UCFL305-014D1 Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: FL305D1 | Cover: Cast iron, closed end
UCFL305-015D1 Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: FL305D1 | Cover: None (open unit)
C-UCFL305-015D1 Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: FL305D1 | Cover: Cast iron, open end
CM-UCFL305-015D1 Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: FL305D1 | Cover: Cast iron, closed end
UCFL305-100D1 Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: FL305D1 | Cover: None (open unit)
C-UCFL305-100D1 Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: FL305D1 | Cover: Cast iron, open end
CM-UCFL305-100D1 Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: FL305D1 | Cover: Cast iron, closed end
UCFL306D1 Shaft: 30 mm | Insert bearing: UC306D1 | Housing: FL306D1 | Cover: None (open unit)
C-UCFL306D1 Shaft: 30 mm | Insert bearing: UC306D1 | Housing: FL306D1 | Cover: Cast iron, open end
CM-UCFL306D1 Shaft: 30 mm | Insert bearing: UC306D1 | Housing: FL306D1 | Cover: Cast iron, closed end
UCFL306-101D1 Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: FL306D1 | Cover: None (open unit)
C-UCFL306-101D1 Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: FL306D1 | Cover: Cast iron, open end
CM-UCFL306-101D1 Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: FL306D1 | Cover: Cast iron, closed end
UCFL306-102D1 Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: FL306D1 | Cover: None (open unit)
C-UCFL306-102D1 Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: FL306D1 | Cover: Cast iron, open end
CM-UCFL306-102D1 Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: FL306D1 | Cover: Cast iron, closed end
UCFL306-103D1 Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: FL306D1 | Cover: None (open unit)
C-UCFL306-103D1 Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: FL306D1 | Cover: Cast iron, open end
CM-UCFL306-103D1 Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: FL306D1 | Cover: Cast iron, closed end
UCFL307D1 Shaft: 35 mm | Insert bearing: UC307D1 | Housing: FL307D1 | Cover: None (open unit)
C-UCFL307D1 Shaft: 35 mm | Insert bearing: UC307D1 | Housing: FL307D1 | Cover: Cast iron, open end
CM-UCFL307D1 Shaft: 35 mm | Insert bearing: UC307D1 | Housing: FL307D1 | Cover: Cast iron, closed end
UCFL307-104D1 Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: FL307D1 | Cover: None (open unit)
C-UCFL307-104D1 Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: FL307D1 | Cover: Cast iron, open end
CM-UCFL307-104D1 Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: FL307D1 | Cover: Cast iron, closed end
UCFL307-105D1 Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: FL307D1 | Cover: None (open unit)
C-UCFL307-105D1 Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: FL307D1 | Cover: Cast iron, open end
CM-UCFL307-105D1 Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: FL307D1 | Cover: Cast iron, closed end
UCFL307-106D1 Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: FL307D1 | Cover: None (open unit)
C-UCFL307-106D1 Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: FL307D1 | Cover: Cast iron, open end
CM-UCFL307-106D1 Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: FL307D1 | Cover: Cast iron, closed end
UCFL307-107D1 Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: FL307D1 | Cover: None (open unit)
C-UCFL307-107D1 Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: FL307D1 | Cover: Cast iron, open end
CM-UCFL307-107D1 Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: FL307D1 | Cover: Cast iron, closed end
UCFL308D1 Shaft: 40 mm | Insert bearing: UC308D1 | Housing: FL308D1 | Cover: None (open unit)
C-UCFL308D1 Shaft: 40 mm | Insert bearing: UC308D1 | Housing: FL308D1 | Cover: Cast iron, open end
CM-UCFL308D1 Shaft: 40 mm | Insert bearing: UC308D1 | Housing: FL308D1 | Cover: Cast iron, closed end
UCFL308-108D1 Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: FL308D1 | Cover: None (open unit)
C-UCFL308-108D1 Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: FL308D1 | Cover: Cast iron, open end
CM-UCFL308-108D1 Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: FL308D1 | Cover: Cast iron, closed end
UCFL308-109D1 Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: FL308D1 | Cover: None (open unit)
C-UCFL308-109D1 Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: FL308D1 | Cover: Cast iron, open end
CM-UCFL308-109D1 Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: FL308D1 | Cover: Cast iron, closed end
UCFL309D1 Shaft: 45 mm | Insert bearing: UC309D1 | Housing: FL309D1 | Cover: None (open unit)
C-UCFL309D1 Shaft: 45 mm | Insert bearing: UC309D1 | Housing: FL309D1 | Cover: Cast iron, open end
CM-UCFL309D1 Shaft: 45 mm | Insert bearing: UC309D1 | Housing: FL309D1 | Cover: Cast iron, closed end
UCFL309-110D1 Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: FL309D1 | Cover: None (open unit)
C-UCFL309-110D1 Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: FL309D1 | Cover: Cast iron, open end
CM-UCFL309-110D1 Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: FL309D1 | Cover: Cast iron, closed end
UCFL309-111D1 Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: FL309D1 | Cover: None (open unit)
C-UCFL309-111D1 Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: FL309D1 | Cover: Cast iron, open end
CM-UCFL309-111D1 Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: FL309D1 | Cover: Cast iron, closed end
UCFL309-112D1 Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: FL309D1 | Cover: None (open unit)
C-UCFL309-112D1 Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: FL309D1 | Cover: Cast iron, open end
CM-UCFL309-112D1 Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: FL309D1 | Cover: Cast iron, closed end
UCFL310D1 Shaft: 50 mm | Insert bearing: UC310D1 | Housing: FL310D1 | Cover: None (open unit)
C-UCFL310D1 Shaft: 50 mm | Insert bearing: UC310D1 | Housing: FL310D1 | Cover: Cast iron, open end
CM-UCFL310D1 Shaft: 50 mm | Insert bearing: UC310D1 | Housing: FL310D1 | Cover: Cast iron, closed end
UCFL310-113D1 Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: FL310D1 | Cover: None (open unit)
C-UCFL310-113D1 Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: FL310D1 | Cover: Cast iron, open end
CM-UCFL310-113D1 Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: FL310D1 | Cover: Cast iron, closed end
UCFL310-114D1 Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: FL310D1 | Cover: None (open unit)
C-UCFL310-114D1 Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: FL310D1 | Cover: Cast iron, open end
CM-UCFL310-114D1 Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: FL310D1 | Cover: Cast iron, closed end
UCFL310-115D1 Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: FL310D1 | Cover: None (open unit)
C-UCFL310-115D1 Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: FL310D1 | Cover: Cast iron, open end
CM-UCFL310-115D1 Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: FL310D1 | Cover: Cast iron, closed end
UCFL311D1 Shaft: 55 mm | Insert bearing: UC311D1 | Housing: FL311D1 | Cover: None (open unit)
C-UCFL311D1 Shaft: 55 mm | Insert bearing: UC311D1 | Housing: FL311D1 | Cover: Cast iron, open end
CM-UCFL311D1 Shaft: 55 mm | Insert bearing: UC311D1 | Housing: FL311D1 | Cover: Cast iron, closed end
UCFL311-200D1 Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: FL311D1 | Cover: None (open unit)
C-UCFL311-200D1 Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: FL311D1 | Cover: Cast iron, open end
CM-UCFL311-200D1 Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: FL311D1 | Cover: Cast iron, closed end
UCFL311-201D1 Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: FL311D1 | Cover: None (open unit)
C-UCFL311-201D1 Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: FL311D1 | Cover: Cast iron, open end
CM-UCFL311-201D1 Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: FL311D1 | Cover: Cast iron, closed end
UCFL311-202D1 Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: FL311D1 | Cover: None (open unit)
C-UCFL311-202D1 Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: FL311D1 | Cover: Cast iron, open end
CM-UCFL311-202D1 Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: FL311D1 | Cover: Cast iron, closed end
UCFL311-203D1 Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: FL311D1 | Cover: None (open unit)
C-UCFL311-203D1 Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: FL311D1 | Cover: Cast iron, open end
CM-UCFL311-203D1 Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: FL311D1 | Cover: Cast iron, closed end
UCFL312D1 Shaft: 60 mm | Insert bearing: UC312D1 | Housing: FL312D1 | Cover: None (open unit)
C-UCFL312D1 Shaft: 60 mm | Insert bearing: UC312D1 | Housing: FL312D1 | Cover: Cast iron, open end
CM-UCFL312D1 Shaft: 60 mm | Insert bearing: UC312D1 | Housing: FL312D1 | Cover: Cast iron, closed end
UCFL312-204D1 Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: FL312D1 | Cover: None (open unit)
C-UCFL312-204D1 Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: FL312D1 | Cover: Cast iron, open end
CM-UCFL312-204D1 Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: FL312D1 | Cover: Cast iron, closed end
UCFL312-205D1 Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: FL312D1 | Cover: None (open unit)
C-UCFL312-205D1 Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: FL312D1 | Cover: Cast iron, open end
CM-UCFL312-205D1 Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: FL312D1 | Cover: Cast iron, closed end
UCFL312-206D1 Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: FL312D1 | Cover: None (open unit)
C-UCFL312-206D1 Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: FL312D1 | Cover: Cast iron, open end
CM-UCFL312-206D1 Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: FL312D1 | Cover: Cast iron, closed end
UCFL312-207D1 Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: FL312D1 | Cover: None (open unit)
C-UCFL312-207D1 Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: FL312D1 | Cover: Cast iron, open end
CM-UCFL312-207D1 Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: FL312D1 | Cover: Cast iron, closed end
UCFL313D1 Shaft: 65 mm | Insert bearing: UC313D1 | Housing: FL313D1 | Cover: None (open unit)
C-UCFL313D1 Shaft: 65 mm | Insert bearing: UC313D1 | Housing: FL313D1 | Cover: Cast iron, open end
CM-UCFL313D1 Shaft: 65 mm | Insert bearing: UC313D1 | Housing: FL313D1 | Cover: Cast iron, closed end
UCFL313-208D1 Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: FL313D1 | Cover: None (open unit)
C-UCFL313-208D1 Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: FL313D1 | Cover: Cast iron, open end
CM-UCFL313-208D1 Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: FL313D1 | Cover: Cast iron, closed end
UCFL313-209D1 Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: FL313D1 | Cover: None (open unit)
C-UCFL313-209D1 Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: FL313D1 | Cover: Cast iron, open end
CM-UCFL313-209D1 Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: FL313D1 | Cover: Cast iron, closed end
UCFL314D1 Shaft: 70 mm | Insert bearing: UC314D1 | Housing: FL314D1 | Cover: None (open unit)
C-UCFL314D1 Shaft: 70 mm | Insert bearing: UC314D1 | Housing: FL314D1 | Cover: Cast iron, open end
CM-UCFL314D1 Shaft: 70 mm | Insert bearing: UC314D1 | Housing: FL314D1 | Cover: Cast iron, closed end
UCFL314-210D1 Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: FL314D1 | Cover: None (open unit)
C-UCFL314-210D1 Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: FL314D1 | Cover: Cast iron, open end
CM-UCFL314-210D1 Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: FL314D1 | Cover: Cast iron, closed end
UCFL314-211D1 Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: FL314D1 | Cover: None (open unit)
C-UCFL314-211D1 Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: FL314D1 | Cover: Cast iron, open end
CM-UCFL314-211D1 Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: FL314D1 | Cover: Cast iron, closed end
UCFL314-212D1 Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: FL314D1 | Cover: None (open unit)
C-UCFL314-212D1 Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: FL314D1 | Cover: Cast iron, open end
CM-UCFL314-212D1 Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: FL314D1 | Cover: Cast iron, closed end
UCFL315D1 Shaft: 75 mm | Insert bearing: UC315D1 | Housing: FL315D1 | Cover: None (open unit)
C-UCFL315D1 Shaft: 75 mm | Insert bearing: UC315D1 | Housing: FL315D1 | Cover: Cast iron, open end
CM-UCFL315D1 Shaft: 75 mm | Insert bearing: UC315D1 | Housing: FL315D1 | Cover: Cast iron, closed end
UCFL315-213D1 Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: FL315D1 | Cover: None (open unit)
C-UCFL315-213D1 Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: FL315D1 | Cover: Cast iron, open end
CM-UCFL315-213D1 Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: FL315D1 | Cover: Cast iron, closed end
UCFL315-214D1 Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: FL315D1 | Cover: None (open unit)
C-UCFL315-214D1 Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: FL315D1 | Cover: Cast iron, open end
CM-UCFL315-214D1 Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: FL315D1 | Cover: Cast iron, closed end
UCFL315-215D1 Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: FL315D1 | Cover: None (open unit)
C-UCFL315-215D1 Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: FL315D1 | Cover: Cast iron, open end
CM-UCFL315-215D1 Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: FL315D1 | Cover: Cast iron, closed end
UCFL315-300D1 Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: FL315D1 | Cover: None (open unit)
C-UCFL315-300D1 Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: FL315D1 | Cover: Cast iron, open end
CM-UCFL315-300D1 Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: FL315D1 | Cover: Cast iron, closed end
UCFL316D1 Shaft: 80 mm | Insert bearing: UC316D1 | Housing: FL316D1 | Cover: None (open unit)
C-UCFL316D1 Shaft: 80 mm | Insert bearing: UC316D1 | Housing: FL316D1 | Cover: Cast iron, open end
CM-UCFL316D1 Shaft: 80 mm | Insert bearing: UC316D1 | Housing: FL316D1 | Cover: Cast iron, closed end
UCFL316-301D1 Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: FL316D1 | Cover: None (open unit)
C-UCFL316-301D1 Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: FL316D1 | Cover: Cast iron, open end
CM-UCFL316-301D1 Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: FL316D1 | Cover: Cast iron, closed end
UCFL316-302D1 Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: FL316D1 | Cover: None (open unit)
C-UCFL316-302D1 Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: FL316D1 | Cover: Cast iron, open end
CM-UCFL316-302D1 Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: FL316D1 | Cover: Cast iron, closed end
UCFL316-303D1 Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: FL316D1 | Cover: None (open unit)
C-UCFL316-303D1 Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: FL316D1 | Cover: Cast iron, open end
CM-UCFL316-303D1 Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: FL316D1 | Cover: Cast iron, closed end
UCFL317D1 Shaft: 85 mm | Insert bearing: UC317D1 | Housing: FL317D1 | Cover: None (open unit)
C-UCFL317D1 Shaft: 85 mm | Insert bearing: UC317D1 | Housing: FL317D1 | Cover: Cast iron, open end
CM-UCFL317D1 Shaft: 85 mm | Insert bearing: UC317D1 | Housing: FL317D1 | Cover: Cast iron, closed end
UCFL317-304D1 Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: FL317D1 | Cover: None (open unit)
C-UCFL317-304D1 Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: FL317D1 | Cover: Cast iron, open end
CM-UCFL317-304D1 Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: FL317D1 | Cover: Cast iron, closed end
UCFL317-305D1 Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: FL317D1 | Cover: None (open unit)
C-UCFL317-305D1 Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: FL317D1 | Cover: Cast iron, open end
CM-UCFL317-305D1 Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: FL317D1 | Cover: Cast iron, closed end
UCFL317-307D1 Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: FL317D1 | Cover: None (open unit)
C-UCFL317-307D1 Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: FL317D1 | Cover: Cast iron, open end
CM-UCFL317-307D1 Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: FL317D1 | Cover: Cast iron, closed end
UCFL318D1 Shaft: 90 mm | Insert bearing: UC318D1 | Housing: FL318D1 | Cover: None (open unit)
C-UCFL318D1 Shaft: 90 mm | Insert bearing: UC318D1 | Housing: FL318D1 | Cover: Cast iron, open end
CM-UCFL318D1 Shaft: 90 mm | Insert bearing: UC318D1 | Housing: FL318D1 | Cover: Cast iron, closed end
UCFL318-307D1 Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: FL318D1 | Cover: None (open unit)
C-UCFL318-307D1 Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: FL318D1 | Cover: Cast iron, open end
CM-UCFL318-307D1 Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: FL318D1 | Cover: Cast iron, closed end
UCFL318-308D1 Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: FL318D1 | Cover: None (open unit)
C-UCFL318-308D1 Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: FL318D1 | Cover: Cast iron, open end
CM-UCFL318-308D1 Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: FL318D1 | Cover: Cast iron, closed end
UCFL319D1 Shaft: 95 mm | Insert bearing: UC319D1 | Housing: FL319D1 | Cover: None (open unit)
C-UCFL319D1 Shaft: 95 mm | Insert bearing: UC319D1 | Housing: FL319D1 | Cover: Cast iron, open end
CM-UCFL319D1 Shaft: 95 mm | Insert bearing: UC319D1 | Housing: FL319D1 | Cover: Cast iron, closed end
UCFL319-310D1 Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: FL319D1 | Cover: None (open unit)
C-UCFL319-310D1 Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: FL319D1 | Cover: Cast iron, open end
CM-UCFL319-310D1 Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: FL319D1 | Cover: Cast iron, closed end
UCFL319-311D1 Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: FL319D1 | Cover: None (open unit)
C-UCFL319-311D1 Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: FL319D1 | Cover: Cast iron, open end
CM-UCFL319-311D1 Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: FL319D1 | Cover: Cast iron, closed end
UCFL319-312D1 Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: FL319D1 | Cover: None (open unit)
C-UCFL319-312D1 Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: FL319D1 | Cover: Cast iron, open end
CM-UCFL319-312D1 Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: FL319D1 | Cover: Cast iron, closed end
UCFL320D1 Shaft: 100 mm | Insert bearing: UC320D1 | Housing: FL320D1 | Cover: None (open unit)
C-UCFL320D1 Shaft: 100 mm | Insert bearing: UC320D1 | Housing: FL320D1 | Cover: Cast iron, open end
CM-UCFL320D1 Shaft: 100 mm | Insert bearing: UC320D1 | Housing: FL320D1 | Cover: Cast iron, closed end
UCFL320-313D1 Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: FL320D1 | Cover: None (open unit)
C-UCFL320-313D1 Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: FL320D1 | Cover: Cast iron, open end
CM-UCFL320-313D1 Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: FL320D1 | Cover: Cast iron, closed end
UCFL320-314D1 Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: FL320D1 | Cover: None (open unit)
C-UCFL320-314D1 Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: FL320D1 | Cover: Cast iron, open end
CM-UCFL320-314D1 Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: FL320D1 | Cover: Cast iron, closed end
UCFL320-315D1 Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: FL320D1 | Cover: None (open unit)
C-UCFL320-315D1 Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: FL320D1 | Cover: Cast iron, open end
CM-UCFL320-315D1 Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: FL320D1 | Cover: Cast iron, closed end
UCFL320-400D1 Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: FL320D1 | Cover: None (open unit)
C-UCFL320-400D1 Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: FL320D1 | Cover: Cast iron, open end
CM-UCFL320-400D1 Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: FL320D1 | Cover: Cast iron, closed end
UCFL321D1 Shaft: 105 mm | Insert bearing: UC321D1 | Housing: FL321D1 | Cover: None (open unit)
C-UCFL321D1 Shaft: 105 mm | Insert bearing: UC321D1 | Housing: FL321D1 | Cover: Cast iron, open end
CM-UCFL321D1 Shaft: 105 mm | Insert bearing: UC321D1 | Housing: FL321D1 | Cover: Cast iron, closed end
UCFL322D1 Shaft: 110 mm | Insert bearing: UC322D1 | Housing: FL322D1 | Cover: None (open unit)
C-UCFL322D1 Shaft: 110 mm | Insert bearing: UC322D1 | Housing: FL322D1 | Cover: Cast iron, open end
CM-UCFL322D1 Shaft: 110 mm | Insert bearing: UC322D1 | Housing: FL322D1 | Cover: Cast iron, closed end
UCFL324D1 Shaft: 120 mm | Insert bearing: UC324D1 | Housing: FL324D1 | Cover: None (open unit)
C-UCFL324D1 Shaft: 120 mm | Insert bearing: UC324D1 | Housing: FL324D1 | Cover: Cast iron, open end
CM-UCFL324D1 Shaft: 120 mm | Insert bearing: UC324D1 | Housing: FL324D1 | Cover: Cast iron, closed end
UCFL326D1 Shaft: 130 mm | Insert bearing: UC326D1 | Housing: FL326D1 | Cover: None (open unit)
C-UCFL326D1 Shaft: 130 mm | Insert bearing: UC326D1 | Housing: FL326D1 | Cover: Cast iron, open end
CM-UCFL326D1 Shaft: 130 mm | Insert bearing: UC326D1 | Housing: FL326D1 | Cover: Cast iron, closed end
UCFL328D1 Shaft: 140 mm | Insert bearing: UC328D1 | Housing: FL328D1 | Cover: None (open unit)
C-UCFL328D1 Shaft: 140 mm | Insert bearing: UC328D1 | Housing: FL328D1 | Cover: Cast iron, open end
CM-UCFL328D1 Shaft: 140 mm | Insert bearing: UC328D1 | Housing: FL328D1 | Cover: Cast iron, closed end
Mounted Bearing UnitsNTN
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN UCFL3 Rhombus Flanged Units, Cast Housing

Brand NTN·Mounted Bearing Units

Available part numbers (216)

UCFL305D1, C-UCFL305D1, CM-UCFL305D1, UCFL305-013D1, C-UCFL305-013D1, CM-UCFL305-013D1, UCFL305-014D1, C-UCFL305-014D1, CM-UCFL305-014D1, UCFL305-015D1 + 206 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCFL305D1Shaft: 25 mm | Insert bearing: UC305D1 | Housing: FL305D1 | Cover: None (open unit)
C-UCFL305D1Shaft: 25 mm | Insert bearing: UC305D1 | Housing: FL305D1 | Cover: Cast iron, open end
CM-UCFL305D1Shaft: 25 mm | Insert bearing: UC305D1 | Housing: FL305D1 | Cover: Cast iron, closed end
UCFL305-013D1Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: FL305D1 | Cover: None (open unit)
C-UCFL305-013D1Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: FL305D1 | Cover: Cast iron, open end
CM-UCFL305-013D1Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: FL305D1 | Cover: Cast iron, closed end
UCFL305-014D1Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: FL305D1 | Cover: None (open unit)
C-UCFL305-014D1Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: FL305D1 | Cover: Cast iron, open end
CM-UCFL305-014D1Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: FL305D1 | Cover: Cast iron, closed end
UCFL305-015D1Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: FL305D1 | Cover: None (open unit)
C-UCFL305-015D1Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: FL305D1 | Cover: Cast iron, open end
CM-UCFL305-015D1Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: FL305D1 | Cover: Cast iron, closed end
UCFL305-100D1Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: FL305D1 | Cover: None (open unit)
C-UCFL305-100D1Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: FL305D1 | Cover: Cast iron, open end
CM-UCFL305-100D1Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: FL305D1 | Cover: Cast iron, closed end
UCFL306D1Shaft: 30 mm | Insert bearing: UC306D1 | Housing: FL306D1 | Cover: None (open unit)
C-UCFL306D1Shaft: 30 mm | Insert bearing: UC306D1 | Housing: FL306D1 | Cover: Cast iron, open end
CM-UCFL306D1Shaft: 30 mm | Insert bearing: UC306D1 | Housing: FL306D1 | Cover: Cast iron, closed end
UCFL306-101D1Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: FL306D1 | Cover: None (open unit)
C-UCFL306-101D1Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: FL306D1 | Cover: Cast iron, open end
CM-UCFL306-101D1Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: FL306D1 | Cover: Cast iron, closed end
UCFL306-102D1Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: FL306D1 | Cover: None (open unit)
C-UCFL306-102D1Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: FL306D1 | Cover: Cast iron, open end
CM-UCFL306-102D1Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: FL306D1 | Cover: Cast iron, closed end
UCFL306-103D1Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: FL306D1 | Cover: None (open unit)
C-UCFL306-103D1Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: FL306D1 | Cover: Cast iron, open end
CM-UCFL306-103D1Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: FL306D1 | Cover: Cast iron, closed end
UCFL307D1Shaft: 35 mm | Insert bearing: UC307D1 | Housing: FL307D1 | Cover: None (open unit)
C-UCFL307D1Shaft: 35 mm | Insert bearing: UC307D1 | Housing: FL307D1 | Cover: Cast iron, open end
CM-UCFL307D1Shaft: 35 mm | Insert bearing: UC307D1 | Housing: FL307D1 | Cover: Cast iron, closed end
UCFL307-104D1Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: FL307D1 | Cover: None (open unit)
C-UCFL307-104D1Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: FL307D1 | Cover: Cast iron, open end
CM-UCFL307-104D1Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: FL307D1 | Cover: Cast iron, closed end
UCFL307-105D1Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: FL307D1 | Cover: None (open unit)
C-UCFL307-105D1Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: FL307D1 | Cover: Cast iron, open end
CM-UCFL307-105D1Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: FL307D1 | Cover: Cast iron, closed end
UCFL307-106D1Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: FL307D1 | Cover: None (open unit)
C-UCFL307-106D1Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: FL307D1 | Cover: Cast iron, open end
CM-UCFL307-106D1Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: FL307D1 | Cover: Cast iron, closed end
UCFL307-107D1Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: FL307D1 | Cover: None (open unit)
C-UCFL307-107D1Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: FL307D1 | Cover: Cast iron, open end
CM-UCFL307-107D1Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: FL307D1 | Cover: Cast iron, closed end
UCFL308D1Shaft: 40 mm | Insert bearing: UC308D1 | Housing: FL308D1 | Cover: None (open unit)
C-UCFL308D1Shaft: 40 mm | Insert bearing: UC308D1 | Housing: FL308D1 | Cover: Cast iron, open end
CM-UCFL308D1Shaft: 40 mm | Insert bearing: UC308D1 | Housing: FL308D1 | Cover: Cast iron, closed end
UCFL308-108D1Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: FL308D1 | Cover: None (open unit)
C-UCFL308-108D1Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: FL308D1 | Cover: Cast iron, open end
CM-UCFL308-108D1Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: FL308D1 | Cover: Cast iron, closed end
UCFL308-109D1Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: FL308D1 | Cover: None (open unit)
C-UCFL308-109D1Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: FL308D1 | Cover: Cast iron, open end
CM-UCFL308-109D1Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: FL308D1 | Cover: Cast iron, closed end
UCFL309D1Shaft: 45 mm | Insert bearing: UC309D1 | Housing: FL309D1 | Cover: None (open unit)
C-UCFL309D1Shaft: 45 mm | Insert bearing: UC309D1 | Housing: FL309D1 | Cover: Cast iron, open end
CM-UCFL309D1Shaft: 45 mm | Insert bearing: UC309D1 | Housing: FL309D1 | Cover: Cast iron, closed end
UCFL309-110D1Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: FL309D1 | Cover: None (open unit)
C-UCFL309-110D1Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: FL309D1 | Cover: Cast iron, open end
CM-UCFL309-110D1Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: FL309D1 | Cover: Cast iron, closed end
UCFL309-111D1Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: FL309D1 | Cover: None (open unit)
C-UCFL309-111D1Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: FL309D1 | Cover: Cast iron, open end
CM-UCFL309-111D1Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: FL309D1 | Cover: Cast iron, closed end
UCFL309-112D1Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: FL309D1 | Cover: None (open unit)
C-UCFL309-112D1Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: FL309D1 | Cover: Cast iron, open end
CM-UCFL309-112D1Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: FL309D1 | Cover: Cast iron, closed end
UCFL310D1Shaft: 50 mm | Insert bearing: UC310D1 | Housing: FL310D1 | Cover: None (open unit)
C-UCFL310D1Shaft: 50 mm | Insert bearing: UC310D1 | Housing: FL310D1 | Cover: Cast iron, open end
CM-UCFL310D1Shaft: 50 mm | Insert bearing: UC310D1 | Housing: FL310D1 | Cover: Cast iron, closed end
UCFL310-113D1Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: FL310D1 | Cover: None (open unit)
C-UCFL310-113D1Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: FL310D1 | Cover: Cast iron, open end
CM-UCFL310-113D1Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: FL310D1 | Cover: Cast iron, closed end
UCFL310-114D1Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: FL310D1 | Cover: None (open unit)
C-UCFL310-114D1Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: FL310D1 | Cover: Cast iron, open end
CM-UCFL310-114D1Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: FL310D1 | Cover: Cast iron, closed end
UCFL310-115D1Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: FL310D1 | Cover: None (open unit)
C-UCFL310-115D1Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: FL310D1 | Cover: Cast iron, open end
CM-UCFL310-115D1Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: FL310D1 | Cover: Cast iron, closed end
UCFL311D1Shaft: 55 mm | Insert bearing: UC311D1 | Housing: FL311D1 | Cover: None (open unit)
C-UCFL311D1Shaft: 55 mm | Insert bearing: UC311D1 | Housing: FL311D1 | Cover: Cast iron, open end
CM-UCFL311D1Shaft: 55 mm | Insert bearing: UC311D1 | Housing: FL311D1 | Cover: Cast iron, closed end
UCFL311-200D1Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: FL311D1 | Cover: None (open unit)
C-UCFL311-200D1Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: FL311D1 | Cover: Cast iron, open end
CM-UCFL311-200D1Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: FL311D1 | Cover: Cast iron, closed end
UCFL311-201D1Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: FL311D1 | Cover: None (open unit)
C-UCFL311-201D1Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: FL311D1 | Cover: Cast iron, open end
CM-UCFL311-201D1Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: FL311D1 | Cover: Cast iron, closed end
UCFL311-202D1Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: FL311D1 | Cover: None (open unit)
C-UCFL311-202D1Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: FL311D1 | Cover: Cast iron, open end
CM-UCFL311-202D1Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: FL311D1 | Cover: Cast iron, closed end
UCFL311-203D1Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: FL311D1 | Cover: None (open unit)
C-UCFL311-203D1Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: FL311D1 | Cover: Cast iron, open end
CM-UCFL311-203D1Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: FL311D1 | Cover: Cast iron, closed end
UCFL312D1Shaft: 60 mm | Insert bearing: UC312D1 | Housing: FL312D1 | Cover: None (open unit)
C-UCFL312D1Shaft: 60 mm | Insert bearing: UC312D1 | Housing: FL312D1 | Cover: Cast iron, open end
CM-UCFL312D1Shaft: 60 mm | Insert bearing: UC312D1 | Housing: FL312D1 | Cover: Cast iron, closed end
UCFL312-204D1Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: FL312D1 | Cover: None (open unit)
C-UCFL312-204D1Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: FL312D1 | Cover: Cast iron, open end
CM-UCFL312-204D1Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: FL312D1 | Cover: Cast iron, closed end
UCFL312-205D1Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: FL312D1 | Cover: None (open unit)
C-UCFL312-205D1Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: FL312D1 | Cover: Cast iron, open end
CM-UCFL312-205D1Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: FL312D1 | Cover: Cast iron, closed end
UCFL312-206D1Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: FL312D1 | Cover: None (open unit)
C-UCFL312-206D1Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: FL312D1 | Cover: Cast iron, open end
CM-UCFL312-206D1Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: FL312D1 | Cover: Cast iron, closed end
UCFL312-207D1Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: FL312D1 | Cover: None (open unit)
C-UCFL312-207D1Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: FL312D1 | Cover: Cast iron, open end
CM-UCFL312-207D1Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: FL312D1 | Cover: Cast iron, closed end
UCFL313D1Shaft: 65 mm | Insert bearing: UC313D1 | Housing: FL313D1 | Cover: None (open unit)
C-UCFL313D1Shaft: 65 mm | Insert bearing: UC313D1 | Housing: FL313D1 | Cover: Cast iron, open end
CM-UCFL313D1Shaft: 65 mm | Insert bearing: UC313D1 | Housing: FL313D1 | Cover: Cast iron, closed end
UCFL313-208D1Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: FL313D1 | Cover: None (open unit)
C-UCFL313-208D1Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: FL313D1 | Cover: Cast iron, open end
CM-UCFL313-208D1Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: FL313D1 | Cover: Cast iron, closed end
UCFL313-209D1Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: FL313D1 | Cover: None (open unit)
C-UCFL313-209D1Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: FL313D1 | Cover: Cast iron, open end
CM-UCFL313-209D1Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: FL313D1 | Cover: Cast iron, closed end
UCFL314D1Shaft: 70 mm | Insert bearing: UC314D1 | Housing: FL314D1 | Cover: None (open unit)
C-UCFL314D1Shaft: 70 mm | Insert bearing: UC314D1 | Housing: FL314D1 | Cover: Cast iron, open end
CM-UCFL314D1Shaft: 70 mm | Insert bearing: UC314D1 | Housing: FL314D1 | Cover: Cast iron, closed end
UCFL314-210D1Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: FL314D1 | Cover: None (open unit)
C-UCFL314-210D1Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: FL314D1 | Cover: Cast iron, open end
CM-UCFL314-210D1Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: FL314D1 | Cover: Cast iron, closed end
UCFL314-211D1Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: FL314D1 | Cover: None (open unit)
C-UCFL314-211D1Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: FL314D1 | Cover: Cast iron, open end
CM-UCFL314-211D1Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: FL314D1 | Cover: Cast iron, closed end
UCFL314-212D1Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: FL314D1 | Cover: None (open unit)
C-UCFL314-212D1Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: FL314D1 | Cover: Cast iron, open end
CM-UCFL314-212D1Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: FL314D1 | Cover: Cast iron, closed end
UCFL315D1Shaft: 75 mm | Insert bearing: UC315D1 | Housing: FL315D1 | Cover: None (open unit)
C-UCFL315D1Shaft: 75 mm | Insert bearing: UC315D1 | Housing: FL315D1 | Cover: Cast iron, open end
CM-UCFL315D1Shaft: 75 mm | Insert bearing: UC315D1 | Housing: FL315D1 | Cover: Cast iron, closed end
UCFL315-213D1Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: FL315D1 | Cover: None (open unit)
C-UCFL315-213D1Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: FL315D1 | Cover: Cast iron, open end
CM-UCFL315-213D1Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: FL315D1 | Cover: Cast iron, closed end
UCFL315-214D1Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: FL315D1 | Cover: None (open unit)
C-UCFL315-214D1Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: FL315D1 | Cover: Cast iron, open end
CM-UCFL315-214D1Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: FL315D1 | Cover: Cast iron, closed end
UCFL315-215D1Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: FL315D1 | Cover: None (open unit)
C-UCFL315-215D1Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: FL315D1 | Cover: Cast iron, open end
CM-UCFL315-215D1Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: FL315D1 | Cover: Cast iron, closed end
UCFL315-300D1Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: FL315D1 | Cover: None (open unit)
C-UCFL315-300D1Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: FL315D1 | Cover: Cast iron, open end
CM-UCFL315-300D1Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: FL315D1 | Cover: Cast iron, closed end
UCFL316D1Shaft: 80 mm | Insert bearing: UC316D1 | Housing: FL316D1 | Cover: None (open unit)
C-UCFL316D1Shaft: 80 mm | Insert bearing: UC316D1 | Housing: FL316D1 | Cover: Cast iron, open end
CM-UCFL316D1Shaft: 80 mm | Insert bearing: UC316D1 | Housing: FL316D1 | Cover: Cast iron, closed end
UCFL316-301D1Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: FL316D1 | Cover: None (open unit)
C-UCFL316-301D1Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: FL316D1 | Cover: Cast iron, open end
CM-UCFL316-301D1Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: FL316D1 | Cover: Cast iron, closed end
UCFL316-302D1Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: FL316D1 | Cover: None (open unit)
C-UCFL316-302D1Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: FL316D1 | Cover: Cast iron, open end
CM-UCFL316-302D1Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: FL316D1 | Cover: Cast iron, closed end
UCFL316-303D1Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: FL316D1 | Cover: None (open unit)
C-UCFL316-303D1Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: FL316D1 | Cover: Cast iron, open end
CM-UCFL316-303D1Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: FL316D1 | Cover: Cast iron, closed end
UCFL317D1Shaft: 85 mm | Insert bearing: UC317D1 | Housing: FL317D1 | Cover: None (open unit)
C-UCFL317D1Shaft: 85 mm | Insert bearing: UC317D1 | Housing: FL317D1 | Cover: Cast iron, open end
CM-UCFL317D1Shaft: 85 mm | Insert bearing: UC317D1 | Housing: FL317D1 | Cover: Cast iron, closed end
UCFL317-304D1Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: FL317D1 | Cover: None (open unit)
C-UCFL317-304D1Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: FL317D1 | Cover: Cast iron, open end
CM-UCFL317-304D1Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: FL317D1 | Cover: Cast iron, closed end
UCFL317-305D1Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: FL317D1 | Cover: None (open unit)
C-UCFL317-305D1Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: FL317D1 | Cover: Cast iron, open end
CM-UCFL317-305D1Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: FL317D1 | Cover: Cast iron, closed end
UCFL317-307D1Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: FL317D1 | Cover: None (open unit)
C-UCFL317-307D1Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: FL317D1 | Cover: Cast iron, open end
CM-UCFL317-307D1Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: FL317D1 | Cover: Cast iron, closed end
UCFL318D1Shaft: 90 mm | Insert bearing: UC318D1 | Housing: FL318D1 | Cover: None (open unit)
C-UCFL318D1Shaft: 90 mm | Insert bearing: UC318D1 | Housing: FL318D1 | Cover: Cast iron, open end
CM-UCFL318D1Shaft: 90 mm | Insert bearing: UC318D1 | Housing: FL318D1 | Cover: Cast iron, closed end
UCFL318-307D1Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: FL318D1 | Cover: None (open unit)
C-UCFL318-307D1Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: FL318D1 | Cover: Cast iron, open end
CM-UCFL318-307D1Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: FL318D1 | Cover: Cast iron, closed end
UCFL318-308D1Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: FL318D1 | Cover: None (open unit)
C-UCFL318-308D1Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: FL318D1 | Cover: Cast iron, open end
CM-UCFL318-308D1Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: FL318D1 | Cover: Cast iron, closed end
UCFL319D1Shaft: 95 mm | Insert bearing: UC319D1 | Housing: FL319D1 | Cover: None (open unit)
C-UCFL319D1Shaft: 95 mm | Insert bearing: UC319D1 | Housing: FL319D1 | Cover: Cast iron, open end
CM-UCFL319D1Shaft: 95 mm | Insert bearing: UC319D1 | Housing: FL319D1 | Cover: Cast iron, closed end
UCFL319-310D1Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: FL319D1 | Cover: None (open unit)
C-UCFL319-310D1Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: FL319D1 | Cover: Cast iron, open end
CM-UCFL319-310D1Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: FL319D1 | Cover: Cast iron, closed end
UCFL319-311D1Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: FL319D1 | Cover: None (open unit)
C-UCFL319-311D1Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: FL319D1 | Cover: Cast iron, open end
CM-UCFL319-311D1Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: FL319D1 | Cover: Cast iron, closed end
UCFL319-312D1Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: FL319D1 | Cover: None (open unit)
C-UCFL319-312D1Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: FL319D1 | Cover: Cast iron, open end
CM-UCFL319-312D1Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: FL319D1 | Cover: Cast iron, closed end
UCFL320D1Shaft: 100 mm | Insert bearing: UC320D1 | Housing: FL320D1 | Cover: None (open unit)
C-UCFL320D1Shaft: 100 mm | Insert bearing: UC320D1 | Housing: FL320D1 | Cover: Cast iron, open end
CM-UCFL320D1Shaft: 100 mm | Insert bearing: UC320D1 | Housing: FL320D1 | Cover: Cast iron, closed end
UCFL320-313D1Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: FL320D1 | Cover: None (open unit)
C-UCFL320-313D1Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: FL320D1 | Cover: Cast iron, open end
CM-UCFL320-313D1Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: FL320D1 | Cover: Cast iron, closed end
UCFL320-314D1Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: FL320D1 | Cover: None (open unit)
C-UCFL320-314D1Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: FL320D1 | Cover: Cast iron, open end
CM-UCFL320-314D1Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: FL320D1 | Cover: Cast iron, closed end
UCFL320-315D1Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: FL320D1 | Cover: None (open unit)
C-UCFL320-315D1Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: FL320D1 | Cover: Cast iron, open end
CM-UCFL320-315D1Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: FL320D1 | Cover: Cast iron, closed end
UCFL320-400D1Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: FL320D1 | Cover: None (open unit)
C-UCFL320-400D1Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: FL320D1 | Cover: Cast iron, open end
CM-UCFL320-400D1Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: FL320D1 | Cover: Cast iron, closed end
UCFL321D1Shaft: 105 mm | Insert bearing: UC321D1 | Housing: FL321D1 | Cover: None (open unit)
C-UCFL321D1Shaft: 105 mm | Insert bearing: UC321D1 | Housing: FL321D1 | Cover: Cast iron, open end
CM-UCFL321D1Shaft: 105 mm | Insert bearing: UC321D1 | Housing: FL321D1 | Cover: Cast iron, closed end
UCFL322D1Shaft: 110 mm | Insert bearing: UC322D1 | Housing: FL322D1 | Cover: None (open unit)
C-UCFL322D1Shaft: 110 mm | Insert bearing: UC322D1 | Housing: FL322D1 | Cover: Cast iron, open end
CM-UCFL322D1Shaft: 110 mm | Insert bearing: UC322D1 | Housing: FL322D1 | Cover: Cast iron, closed end
UCFL324D1Shaft: 120 mm | Insert bearing: UC324D1 | Housing: FL324D1 | Cover: None (open unit)
C-UCFL324D1Shaft: 120 mm | Insert bearing: UC324D1 | Housing: FL324D1 | Cover: Cast iron, open end
CM-UCFL324D1Shaft: 120 mm | Insert bearing: UC324D1 | Housing: FL324D1 | Cover: Cast iron, closed end
UCFL326D1Shaft: 130 mm | Insert bearing: UC326D1 | Housing: FL326D1 | Cover: None (open unit)
C-UCFL326D1Shaft: 130 mm | Insert bearing: UC326D1 | Housing: FL326D1 | Cover: Cast iron, open end
CM-UCFL326D1Shaft: 130 mm | Insert bearing: UC326D1 | Housing: FL326D1 | Cover: Cast iron, closed end
UCFL328D1Shaft: 140 mm | Insert bearing: UC328D1 | Housing: FL328D1 | Cover: None (open unit)
C-UCFL328D1Shaft: 140 mm | Insert bearing: UC328D1 | Housing: FL328D1 | Cover: Cast iron, open end
CM-UCFL328D1Shaft: 140 mm | Insert bearing: UC328D1 | Housing: FL328D1 | Cover: Cast iron, closed end

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
