• NTN UCHB2 Hanger Units, Cast Housing
1 1

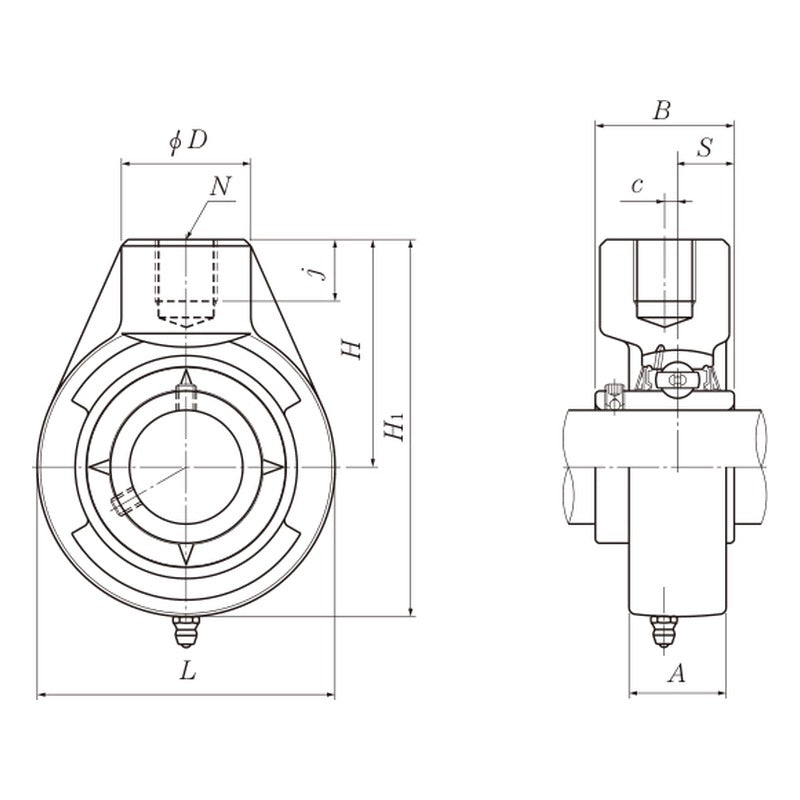

NTN UCHB2 Hanger Units, Cast Housing

NTN UCHB2 Hanger Units, Cast Housing

NTN UCHB2 series hanger units cast housing, set screw locking type, for shafts 12-65 mm and inch sizes.

Key features

  • Hanger units cast housing with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • D1 suffix: relubricatable design

Specifications

Series UCHB2
Unit type Hanger units cast housing
Shaft range 12-65 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 208-211
UCHB201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: HB204D1
UCHB201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: HB204D1
UCHB202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: HB204D1
UCHB202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: HB204D1
UCHB202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: HB204D1
UCHB203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: HB204D1
UCHB203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: HB204D1
UCHB204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: HB204D1
UCHB204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: HB204D1
UCHB205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: HB205D1
UCHB205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: HB205D1
UCHB205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: HB205D1
UCHB205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: HB205D1
UCHB205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: HB205D1
UCHB206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: HB206D1
UCHB206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: HB206D1
UCHB206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: HB206D1
UCHB206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: HB206D1
UCHB206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: HB206D1
UCHB207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: HB207D1
UCHB207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: HB207D1
UCHB207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: HB207D1
UCHB207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: HB207D1
UCHB207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: HB207D1
UCHB208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: HB208D1
UCHB208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: HB208D1
UCHB208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: HB208D1
UCHB209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: HB209D1
UCHB209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: HB209D1
UCHB209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: HB209D1
UCHB209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: HB209D1
UCHB210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: HB210D1
UCHB210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: HB210D1
UCHB210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: HB210D1
UCHB210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: HB210D1
UCHB210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: HB210D1
UCHB211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: HB211D1
UCHB211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: HB211D1
UCHB211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: HB211D1
UCHB211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: HB211D1
UCHB211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: HB211D1
UCHB212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: HB212D1
UCHB212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: HB212D1
UCHB212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: HB212D1
UCHB212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: HB212D1
UCHB212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: HB212D1
UCHB213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: HB213D1
UCHB213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: HB213D1
Mounted Bearing UnitsNTN
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN UCHB2 Hanger Units, Cast Housing

Brand NTN·Mounted Bearing Units

Available part numbers (48)

UCHB201D1, UCHB201-008D1, UCHB202D1, UCHB202-009D1, UCHB202-010D1, UCHB203D1, UCHB203-011D1, UCHB204D1, UCHB204-012D1, UCHB205D1 + 38 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCHB201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: HB204D1
UCHB201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: HB204D1
UCHB202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: HB204D1
UCHB202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: HB204D1
UCHB202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: HB204D1
UCHB203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: HB204D1
UCHB203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: HB204D1
UCHB204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: HB204D1
UCHB204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: HB204D1
UCHB205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: HB205D1
UCHB205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: HB205D1
UCHB205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: HB205D1
UCHB205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: HB205D1
UCHB205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: HB205D1
UCHB206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: HB206D1
UCHB206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: HB206D1
UCHB206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: HB206D1
UCHB206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: HB206D1
UCHB206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: HB206D1
UCHB207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: HB207D1
UCHB207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: HB207D1
UCHB207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: HB207D1
UCHB207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: HB207D1
UCHB207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: HB207D1
UCHB208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: HB208D1
UCHB208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: HB208D1
UCHB208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: HB208D1
UCHB209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: HB209D1
UCHB209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: HB209D1
UCHB209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: HB209D1
UCHB209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: HB209D1
UCHB210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: HB210D1
UCHB210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: HB210D1
UCHB210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: HB210D1
UCHB210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: HB210D1
UCHB210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: HB210D1
UCHB211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: HB211D1
UCHB211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: HB211D1
UCHB211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: HB211D1
UCHB211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: HB211D1
UCHB211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: HB211D1
UCHB212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: HB212D1
UCHB212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: HB212D1
UCHB212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: HB212D1
UCHB212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: HB212D1
UCHB212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: HB212D1
UCHB213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: HB213D1
UCHB213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: HB213D1
