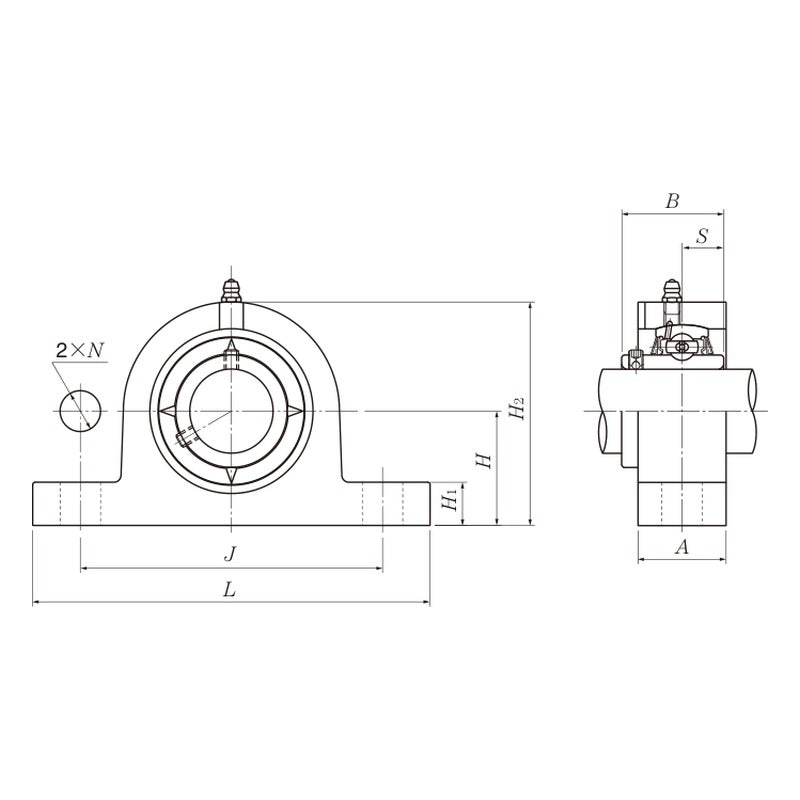

NTN UCPG3 Pillow Block Units (Steel Series)

NTN UCPG3 series pillow blocks (steel series), set screw locking type, for shafts 25-140 mm.

Key features

Pillow blocks (Steel series) with UC type insert bearing, set screw locking
Insert bearing has spherical outside diameter for initial misalignment compensation
Metric bores
D1 suffix: relubricatable design

Specifications

Series	UCPG3
Unit type	Pillow blocks (Steel series)
Shaft range	25-140 mm
Locking	Set screw
Brand	NTN
Source	NTN NTN Bearing Units Dimension Table, p. 86-87

UCPG305D1		Shaft: 25 mm \| Insert bearing: UC305D1 \| Housing: PG305D1
UCPG306D1		Shaft: 30 mm \| Insert bearing: UC306D1 \| Housing: PG306D1
UCPG307D1		Shaft: 35 mm \| Insert bearing: UC307D1 \| Housing: PG307D1
UCPG308D1		Shaft: 40 mm \| Insert bearing: UC308D1 \| Housing: PG308D1
UCPG309D1		Shaft: 45 mm \| Insert bearing: UC309D1 \| Housing: PG309D1
UCPG310D1		Shaft: 50 mm \| Insert bearing: UC310D1 \| Housing: PG310D1
UCPG311D1		Shaft: 55 mm \| Insert bearing: UC311D1 \| Housing: PG311D1
UCPG312D1		Shaft: 60 mm \| Insert bearing: UC312D1 \| Housing: PG312D1
UCPG313D1		Shaft: 65 mm \| Insert bearing: UC313D1 \| Housing: PG313D1
UCPG314D1		Shaft: 70 mm \| Insert bearing: UC314D1 \| Housing: PG314D1
UCPG315D1		Shaft: 75 mm \| Insert bearing: UC315D1 \| Housing: PG315D1
UCPG316D1		Shaft: 80 mm \| Insert bearing: UC316D1 \| Housing: PG316D1
UCPG317D1		Shaft: 85 mm \| Insert bearing: UC317D1 \| Housing: PG317D1
UCPG318D1		Shaft: 90 mm \| Insert bearing: UC318D1 \| Housing: PG318D1
UCPG319D1		Shaft: 95 mm \| Insert bearing: UC319D1 \| Housing: PG319D1
UCPG320D1		Shaft: 100 mm \| Insert bearing: UC320D1 \| Housing: PG320D1
UCPG321D1		Shaft: 105 mm \| Insert bearing: UC321D1 \| Housing: PG321D1
UCPG322D1		Shaft: 110 mm \| Insert bearing: UC322D1 \| Housing: PG322D1
UCPG324D1		Shaft: 120 mm \| Insert bearing: UC324D1 \| Housing: PG324D1
UCPG326D1		Shaft: 130 mm \| Insert bearing: UC326D1 \| Housing: PG326D1
UCPG328D1		Shaft: 140 mm \| Insert bearing: UC328D1 \| Housing: PG328D1

Mounted Bearing UnitsNTN

21 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN UCPG3 Pillow Block Units (Steel Series)

Brand NTN·Mounted Bearing Units

Available part numbers (21)

UCPG305D1, UCPG306D1, UCPG307D1, UCPG308D1, UCPG309D1, UCPG310D1, UCPG311D1, UCPG312D1, UCPG313D1, UCPG314D1 + 11 more — see full table ↓
