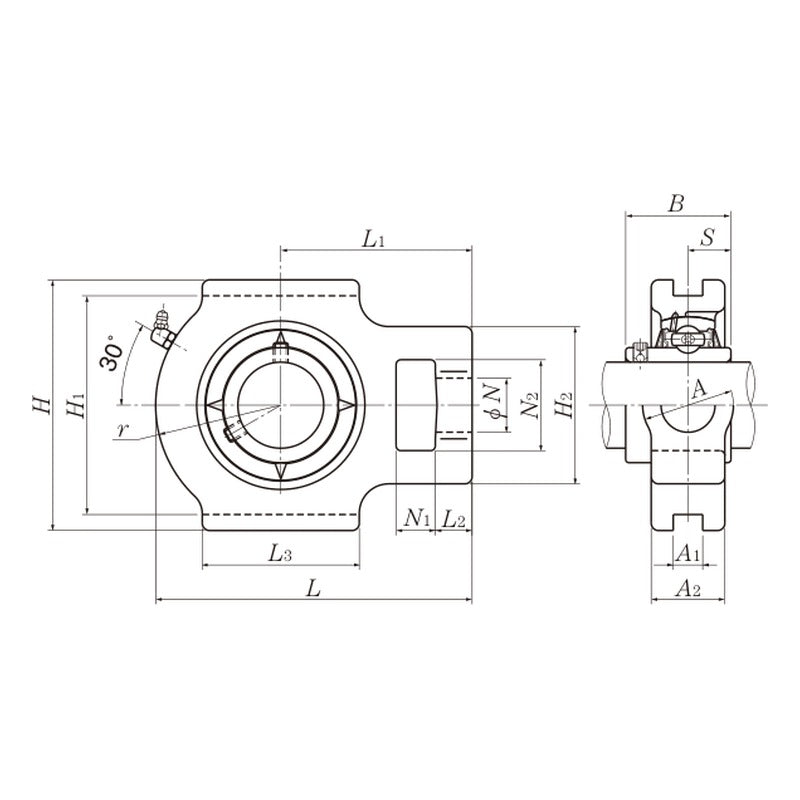

NTN UCT2 Take-Up Units, Cast Housing

NTN UCT2 Take-Up Units, Cast Housing

NTN UCT2 series take-up units cast housing, set screw locking type, for shafts 12-85 mm and inch sizes.

Key features

  • Take-up units cast housing with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • D1 suffix: relubricatable design
  • Dust cover options: S/SM pressed steel and C/CM cast iron covers (open / closed end) where listed

Specifications

Series UCT2
Unit type Take-up units cast housing
Shaft range 12-85 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 212-217
UCT201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT201D1 Shaft: 12 mm | Insert bearing: UC201D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT201-008D1 Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT202D1 Shaft: 15 mm | Insert bearing: UC202D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT202-009D1 Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT202-010D1 Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT203D1 Shaft: 17 mm | Insert bearing: UC203D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT203-011D1 Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT204D1 Shaft: 20 mm | Insert bearing: UC204D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT204-012D1 Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: T205D1 | Cover: None (open unit)
S-UCT205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: T205D1 | Cover: Pressed steel, open end
SM-UCT205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: T205D1 | Cover: Pressed steel, closed end
C-UCT205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: T205D1 | Cover: Cast iron, open end
CM-UCT205D1 Shaft: 25 mm | Insert bearing: UC205D1 | Housing: T205D1 | Cover: Cast iron, closed end
UCT205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: T205D1 | Cover: None (open unit)
S-UCT205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: T205D1 | Cover: Pressed steel, open end
SM-UCT205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: T205D1 | Cover: Pressed steel, closed end
C-UCT205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: T205D1 | Cover: Cast iron, open end
CM-UCT205-013D1 Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: T205D1 | Cover: Cast iron, closed end
UCT205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: T205D1 | Cover: None (open unit)
S-UCT205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: T205D1 | Cover: Pressed steel, open end
SM-UCT205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: T205D1 | Cover: Pressed steel, closed end
C-UCT205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: T205D1 | Cover: Cast iron, open end
CM-UCT205-014D1 Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: T205D1 | Cover: Cast iron, closed end
UCT205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: T205D1 | Cover: None (open unit)
S-UCT205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: T205D1 | Cover: Pressed steel, open end
SM-UCT205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: T205D1 | Cover: Pressed steel, closed end
C-UCT205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: T205D1 | Cover: Cast iron, open end
CM-UCT205-015D1 Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: T205D1 | Cover: Cast iron, closed end
UCT205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: T205D1 | Cover: None (open unit)
S-UCT205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: T205D1 | Cover: Pressed steel, open end
SM-UCT205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: T205D1 | Cover: Pressed steel, closed end
C-UCT205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: T205D1 | Cover: Cast iron, open end
CM-UCT205-100D1 Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: T205D1 | Cover: Cast iron, closed end
UCT206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: T206D1 | Cover: None (open unit)
S-UCT206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: T206D1 | Cover: Pressed steel, open end
SM-UCT206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: T206D1 | Cover: Pressed steel, closed end
C-UCT206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: T206D1 | Cover: Cast iron, open end
CM-UCT206D1 Shaft: 30 mm | Insert bearing: UC206D1 | Housing: T206D1 | Cover: Cast iron, closed end
UCT206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: T206D1 | Cover: None (open unit)
S-UCT206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: T206D1 | Cover: Pressed steel, open end
SM-UCT206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: T206D1 | Cover: Pressed steel, closed end
C-UCT206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: T206D1 | Cover: Cast iron, open end
CM-UCT206-101D1 Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: T206D1 | Cover: Cast iron, closed end
UCT206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: T206D1 | Cover: None (open unit)
S-UCT206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: T206D1 | Cover: Pressed steel, open end
SM-UCT206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: T206D1 | Cover: Pressed steel, closed end
C-UCT206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: T206D1 | Cover: Cast iron, open end
CM-UCT206-102D1 Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: T206D1 | Cover: Cast iron, closed end
UCT206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: T206D1 | Cover: None (open unit)
S-UCT206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: T206D1 | Cover: Pressed steel, open end
SM-UCT206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: T206D1 | Cover: Pressed steel, closed end
C-UCT206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: T206D1 | Cover: Cast iron, open end
CM-UCT206-103D1 Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: T206D1 | Cover: Cast iron, closed end
UCT206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: T206D1 | Cover: None (open unit)
S-UCT206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: T206D1 | Cover: Pressed steel, open end
SM-UCT206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: T206D1 | Cover: Pressed steel, closed end
C-UCT206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: T206D1 | Cover: Cast iron, open end
CM-UCT206-104D1 Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: T206D1 | Cover: Cast iron, closed end
UCT207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: T207D1 | Cover: None (open unit)
S-UCT207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: T207D1 | Cover: Pressed steel, open end
SM-UCT207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: T207D1 | Cover: Pressed steel, closed end
C-UCT207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: T207D1 | Cover: Cast iron, open end
CM-UCT207D1 Shaft: 35 mm | Insert bearing: UC207D1 | Housing: T207D1 | Cover: Cast iron, closed end
UCT207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: T207D1 | Cover: None (open unit)
S-UCT207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: T207D1 | Cover: Pressed steel, open end
SM-UCT207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: T207D1 | Cover: Pressed steel, closed end
C-UCT207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: T207D1 | Cover: Cast iron, open end
CM-UCT207-104D1 Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: T207D1 | Cover: Cast iron, closed end
UCT207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: T207D1 | Cover: None (open unit)
S-UCT207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: T207D1 | Cover: Pressed steel, open end
SM-UCT207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: T207D1 | Cover: Pressed steel, closed end
C-UCT207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: T207D1 | Cover: Cast iron, open end
CM-UCT207-105D1 Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: T207D1 | Cover: Cast iron, closed end
UCT207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: T207D1 | Cover: None (open unit)
S-UCT207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: T207D1 | Cover: Pressed steel, open end
SM-UCT207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: T207D1 | Cover: Pressed steel, closed end
C-UCT207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: T207D1 | Cover: Cast iron, open end
CM-UCT207-106D1 Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: T207D1 | Cover: Cast iron, closed end
UCT207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: T207D1 | Cover: None (open unit)
S-UCT207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: T207D1 | Cover: Pressed steel, open end
SM-UCT207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: T207D1 | Cover: Pressed steel, closed end
C-UCT207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: T207D1 | Cover: Cast iron, open end
CM-UCT207-107D1 Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: T207D1 | Cover: Cast iron, closed end
UCT208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: T208D1 | Cover: None (open unit)
S-UCT208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: T208D1 | Cover: Pressed steel, open end
SM-UCT208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: T208D1 | Cover: Pressed steel, closed end
C-UCT208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: T208D1 | Cover: Cast iron, open end
CM-UCT208D1 Shaft: 40 mm | Insert bearing: UC208D1 | Housing: T208D1 | Cover: Cast iron, closed end
UCT208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: T208D1 | Cover: None (open unit)
S-UCT208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: T208D1 | Cover: Pressed steel, open end
SM-UCT208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: T208D1 | Cover: Pressed steel, closed end
C-UCT208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: T208D1 | Cover: Cast iron, open end
CM-UCT208-108D1 Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: T208D1 | Cover: Cast iron, closed end
UCT208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: T208D1 | Cover: None (open unit)
S-UCT208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: T208D1 | Cover: Pressed steel, open end
SM-UCT208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: T208D1 | Cover: Pressed steel, closed end
C-UCT208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: T208D1 | Cover: Cast iron, open end
CM-UCT208-109D1 Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: T208D1 | Cover: Cast iron, closed end
UCT209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: T209D1 | Cover: None (open unit)
S-UCT209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: T209D1 | Cover: Pressed steel, open end
SM-UCT209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: T209D1 | Cover: Pressed steel, closed end
C-UCT209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: T209D1 | Cover: Cast iron, open end
CM-UCT209D1 Shaft: 45 mm | Insert bearing: UC209D1 | Housing: T209D1 | Cover: Cast iron, closed end
UCT209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: T209D1 | Cover: None (open unit)
S-UCT209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: T209D1 | Cover: Pressed steel, open end
SM-UCT209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: T209D1 | Cover: Pressed steel, closed end
C-UCT209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: T209D1 | Cover: Cast iron, open end
CM-UCT209-110D1 Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: T209D1 | Cover: Cast iron, closed end
UCT209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: T209D1 | Cover: None (open unit)
S-UCT209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: T209D1 | Cover: Pressed steel, open end
SM-UCT209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: T209D1 | Cover: Pressed steel, closed end
C-UCT209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: T209D1 | Cover: Cast iron, open end
CM-UCT209-111D1 Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: T209D1 | Cover: Cast iron, closed end
UCT209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: T209D1 | Cover: None (open unit)
S-UCT209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: T209D1 | Cover: Pressed steel, open end
SM-UCT209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: T209D1 | Cover: Pressed steel, closed end
C-UCT209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: T209D1 | Cover: Cast iron, open end
CM-UCT209-112D1 Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: T209D1 | Cover: Cast iron, closed end
UCT210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: T210D1 | Cover: None (open unit)
S-UCT210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: T210D1 | Cover: Pressed steel, open end
SM-UCT210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: T210D1 | Cover: Pressed steel, closed end
C-UCT210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: T210D1 | Cover: Cast iron, open end
CM-UCT210D1 Shaft: 50 mm | Insert bearing: UC210D1 | Housing: T210D1 | Cover: Cast iron, closed end
UCT210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: T210D1 | Cover: None (open unit)
S-UCT210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: T210D1 | Cover: Pressed steel, open end
SM-UCT210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: T210D1 | Cover: Pressed steel, closed end
C-UCT210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: T210D1 | Cover: Cast iron, open end
CM-UCT210-113D1 Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: T210D1 | Cover: Cast iron, closed end
UCT210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: T210D1 | Cover: None (open unit)
S-UCT210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: T210D1 | Cover: Pressed steel, open end
SM-UCT210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: T210D1 | Cover: Pressed steel, closed end
C-UCT210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: T210D1 | Cover: Cast iron, open end
CM-UCT210-114D1 Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: T210D1 | Cover: Cast iron, closed end
UCT210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: T210D1 | Cover: None (open unit)
S-UCT210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: T210D1 | Cover: Pressed steel, open end
SM-UCT210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: T210D1 | Cover: Pressed steel, closed end
C-UCT210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: T210D1 | Cover: Cast iron, open end
CM-UCT210-115D1 Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: T210D1 | Cover: Cast iron, closed end
UCT210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: T210D1 | Cover: None (open unit)
S-UCT210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: T210D1 | Cover: Pressed steel, open end
SM-UCT210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: T210D1 | Cover: Pressed steel, closed end
C-UCT210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: T210D1 | Cover: Cast iron, open end
CM-UCT210-200D1 Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: T210D1 | Cover: Cast iron, closed end
UCT211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: T211D1 | Cover: None (open unit)
S-UCT211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: T211D1 | Cover: Pressed steel, open end
SM-UCT211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: T211D1 | Cover: Pressed steel, closed end
C-UCT211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: T211D1 | Cover: Cast iron, open end
CM-UCT211D1 Shaft: 55 mm | Insert bearing: UC211D1 | Housing: T211D1 | Cover: Cast iron, closed end
UCT211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: T211D1 | Cover: None (open unit)
S-UCT211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: T211D1 | Cover: Pressed steel, open end
SM-UCT211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: T211D1 | Cover: Pressed steel, closed end
C-UCT211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: T211D1 | Cover: Cast iron, open end
CM-UCT211-200D1 Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: T211D1 | Cover: Cast iron, closed end
UCT211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: T211D1 | Cover: None (open unit)
S-UCT211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: T211D1 | Cover: Pressed steel, open end
SM-UCT211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: T211D1 | Cover: Pressed steel, closed end
C-UCT211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: T211D1 | Cover: Cast iron, open end
CM-UCT211-201D1 Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: T211D1 | Cover: Cast iron, closed end
UCT211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: T211D1 | Cover: None (open unit)
S-UCT211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: T211D1 | Cover: Pressed steel, open end
SM-UCT211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: T211D1 | Cover: Pressed steel, closed end
C-UCT211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: T211D1 | Cover: Cast iron, open end
CM-UCT211-202D1 Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: T211D1 | Cover: Cast iron, closed end
UCT211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: T211D1 | Cover: None (open unit)
S-UCT211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: T211D1 | Cover: Pressed steel, open end
SM-UCT211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: T211D1 | Cover: Pressed steel, closed end
C-UCT211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: T211D1 | Cover: Cast iron, open end
CM-UCT211-203D1 Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: T211D1 | Cover: Cast iron, closed end
UCT212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: T212D1 | Cover: None (open unit)
S-UCT212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: T212D1 | Cover: Pressed steel, open end
SM-UCT212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: T212D1 | Cover: Pressed steel, closed end
C-UCT212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: T212D1 | Cover: Cast iron, open end
CM-UCT212D1 Shaft: 60 mm | Insert bearing: UC212D1 | Housing: T212D1 | Cover: Cast iron, closed end
UCT212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: T212D1 | Cover: None (open unit)
S-UCT212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: T212D1 | Cover: Pressed steel, open end
SM-UCT212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: T212D1 | Cover: Pressed steel, closed end
C-UCT212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: T212D1 | Cover: Cast iron, open end
CM-UCT212-204D1 Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: T212D1 | Cover: Cast iron, closed end
UCT212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: T212D1 | Cover: None (open unit)
S-UCT212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: T212D1 | Cover: Pressed steel, open end
SM-UCT212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: T212D1 | Cover: Pressed steel, closed end
C-UCT212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: T212D1 | Cover: Cast iron, open end
CM-UCT212-205D1 Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: T212D1 | Cover: Cast iron, closed end
UCT212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: T212D1 | Cover: None (open unit)
S-UCT212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: T212D1 | Cover: Pressed steel, open end
SM-UCT212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: T212D1 | Cover: Pressed steel, closed end
C-UCT212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: T212D1 | Cover: Cast iron, open end
CM-UCT212-206D1 Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: T212D1 | Cover: Cast iron, closed end
UCT212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: T212D1 | Cover: None (open unit)
S-UCT212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: T212D1 | Cover: Pressed steel, open end
SM-UCT212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: T212D1 | Cover: Pressed steel, closed end
C-UCT212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: T212D1 | Cover: Cast iron, open end
CM-UCT212-207D1 Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: T212D1 | Cover: Cast iron, closed end
UCT213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: T213D1 | Cover: None (open unit)
S-UCT213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: T213D1 | Cover: Pressed steel, open end
SM-UCT213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: T213D1 | Cover: Pressed steel, closed end
C-UCT213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: T213D1 | Cover: Cast iron, open end
CM-UCT213D1 Shaft: 65 mm | Insert bearing: UC213D1 | Housing: T213D1 | Cover: Cast iron, closed end
UCT213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: T213D1 | Cover: None (open unit)
S-UCT213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: T213D1 | Cover: Pressed steel, open end
SM-UCT213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: T213D1 | Cover: Pressed steel, closed end
C-UCT213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: T213D1 | Cover: Cast iron, open end
CM-UCT213-208D1 Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: T213D1 | Cover: Cast iron, closed end
UCT213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: T213D1 | Cover: None (open unit)
S-UCT213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: T213D1 | Cover: Pressed steel, open end
SM-UCT213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: T213D1 | Cover: Pressed steel, closed end
C-UCT213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: T213D1 | Cover: Cast iron, open end
CM-UCT213-209D1 Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: T213D1 | Cover: Cast iron, closed end
UCT214D1 Shaft: 70 mm | Insert bearing: UC214D1 | Housing: T214D1 | Cover: None (open unit)
C-UCT214D1 Shaft: 70 mm | Insert bearing: UC214D1 | Housing: T214D1 | Cover: Cast iron, open end
CM-UCT214D1 Shaft: 70 mm | Insert bearing: UC214D1 | Housing: T214D1 | Cover: Cast iron, closed end
UCT214-210D1 Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: T214D1 | Cover: None (open unit)
C-UCT214-210D1 Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: T214D1 | Cover: Cast iron, open end
CM-UCT214-210D1 Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: T214D1 | Cover: Cast iron, closed end
UCT214-211D1 Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: T214D1 | Cover: None (open unit)
C-UCT214-211D1 Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: T214D1 | Cover: Cast iron, open end
CM-UCT214-211D1 Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: T214D1 | Cover: Cast iron, closed end
UCT214-212D1 Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: T214D1 | Cover: None (open unit)
C-UCT214-212D1 Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: T214D1 | Cover: Cast iron, open end
CM-UCT214-212D1 Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: T214D1 | Cover: Cast iron, closed end
UCT215D1 Shaft: 75 mm | Insert bearing: UC215D1 | Housing: T215D1 | Cover: None (open unit)
C-UCT215D1 Shaft: 75 mm | Insert bearing: UC215D1 | Housing: T215D1 | Cover: Cast iron, open end
CM-UCT215D1 Shaft: 75 mm | Insert bearing: UC215D1 | Housing: T215D1 | Cover: Cast iron, closed end
UCT215-213D1 Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: T215D1 | Cover: None (open unit)
C-UCT215-213D1 Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: T215D1 | Cover: Cast iron, open end
CM-UCT215-213D1 Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: T215D1 | Cover: Cast iron, closed end
UCT215-214D1 Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: T215D1 | Cover: None (open unit)
C-UCT215-214D1 Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: T215D1 | Cover: Cast iron, open end
CM-UCT215-214D1 Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: T215D1 | Cover: Cast iron, closed end
UCT215-215D1 Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: T215D1 | Cover: None (open unit)
C-UCT215-215D1 Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: T215D1 | Cover: Cast iron, open end
CM-UCT215-215D1 Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: T215D1 | Cover: Cast iron, closed end
UCT215-300D1 Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: T215D1 | Cover: None (open unit)
C-UCT215-300D1 Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: T215D1 | Cover: Cast iron, open end
CM-UCT215-300D1 Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: T215D1 | Cover: Cast iron, closed end
UCT216D1 Shaft: 80 mm | Insert bearing: UC216D1 | Housing: T216D1 | Cover: None (open unit)
C-UCT216D1 Shaft: 80 mm | Insert bearing: UC216D1 | Housing: T216D1 | Cover: Cast iron, open end
CM-UCT216D1 Shaft: 80 mm | Insert bearing: UC216D1 | Housing: T216D1 | Cover: Cast iron, closed end
UCT216-301D1 Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: T216D1 | Cover: None (open unit)
C-UCT216-301D1 Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: T216D1 | Cover: Cast iron, open end
CM-UCT216-301D1 Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: T216D1 | Cover: Cast iron, closed end
UCT216-302D1 Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: T216D1 | Cover: None (open unit)
C-UCT216-302D1 Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: T216D1 | Cover: Cast iron, open end
CM-UCT216-302D1 Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: T216D1 | Cover: Cast iron, closed end
UCT216-303D1 Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: T216D1 | Cover: None (open unit)
C-UCT216-303D1 Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: T216D1 | Cover: Cast iron, open end
CM-UCT216-303D1 Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: T216D1 | Cover: Cast iron, closed end
UCT217D1 Shaft: 85 mm | Insert bearing: UC217D1 | Housing: T217D1 | Cover: None (open unit)
C-UCT217D1 Shaft: 85 mm | Insert bearing: UC217D1 | Housing: T217D1 | Cover: Cast iron, open end
CM-UCT217D1 Shaft: 85 mm | Insert bearing: UC217D1 | Housing: T217D1 | Cover: Cast iron, closed end
UCT217-304D1 Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: T217D1 | Cover: None (open unit)
C-UCT217-304D1 Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: T217D1 | Cover: Cast iron, open end
CM-UCT217-304D1 Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: T217D1 | Cover: Cast iron, closed end
UCT217-305D1 Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: T217D1 | Cover: None (open unit)
C-UCT217-305D1 Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: T217D1 | Cover: Cast iron, open end
CM-UCT217-305D1 Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: T217D1 | Cover: Cast iron, closed end
UCT217-307D1 Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: T217D1 | Cover: None (open unit)
C-UCT217-307D1 Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: T217D1 | Cover: Cast iron, open end
CM-UCT217-307D1 Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: T217D1 | Cover: Cast iron, closed end
Mounted Bearing UnitsNTN
296 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN UCT2 Take-Up Units, Cast Housing

Brand NTN·Mounted Bearing Units

Available part numbers (296)

UCT201D1, S-UCT201D1, SM-UCT201D1, C-UCT201D1, CM-UCT201D1, UCT201-008D1, S-UCT201-008D1, SM-UCT201-008D1, C-UCT201-008D1, CM-UCT201-008D1 + 286 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCT201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT201D1Shaft: 12 mm | Insert bearing: UC201D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT201-008D1Shaft: 1/2 in | Insert bearing: UC201-008D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT202D1Shaft: 15 mm | Insert bearing: UC202D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT202-009D1Shaft: 9/16 in | Insert bearing: UC202-009D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT202-010D1Shaft: 5/8 in | Insert bearing: UC202-010D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT203D1Shaft: 17 mm | Insert bearing: UC203D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT203-011D1Shaft: 11/16 in | Insert bearing: UC203-011D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT204D1Shaft: 20 mm | Insert bearing: UC204D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: T204D1 | Cover: None (open unit)
S-UCT204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: T204D1 | Cover: Pressed steel, open end
SM-UCT204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: T204D1 | Cover: Pressed steel, closed end
C-UCT204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: T204D1 | Cover: Cast iron, open end
CM-UCT204-012D1Shaft: 3/4 in | Insert bearing: UC204-012D1 | Housing: T204D1 | Cover: Cast iron, closed end
UCT205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: T205D1 | Cover: None (open unit)
S-UCT205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: T205D1 | Cover: Pressed steel, open end
SM-UCT205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: T205D1 | Cover: Pressed steel, closed end
C-UCT205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: T205D1 | Cover: Cast iron, open end
CM-UCT205D1Shaft: 25 mm | Insert bearing: UC205D1 | Housing: T205D1 | Cover: Cast iron, closed end
UCT205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: T205D1 | Cover: None (open unit)
S-UCT205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: T205D1 | Cover: Pressed steel, open end
SM-UCT205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: T205D1 | Cover: Pressed steel, closed end
C-UCT205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: T205D1 | Cover: Cast iron, open end
CM-UCT205-013D1Shaft: 13/16 in | Insert bearing: UC205-013D1 | Housing: T205D1 | Cover: Cast iron, closed end
UCT205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: T205D1 | Cover: None (open unit)
S-UCT205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: T205D1 | Cover: Pressed steel, open end
SM-UCT205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: T205D1 | Cover: Pressed steel, closed end
C-UCT205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: T205D1 | Cover: Cast iron, open end
CM-UCT205-014D1Shaft: 7/8 in | Insert bearing: UC205-014D1 | Housing: T205D1 | Cover: Cast iron, closed end
UCT205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: T205D1 | Cover: None (open unit)
S-UCT205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: T205D1 | Cover: Pressed steel, open end
SM-UCT205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: T205D1 | Cover: Pressed steel, closed end
C-UCT205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: T205D1 | Cover: Cast iron, open end
CM-UCT205-015D1Shaft: 15/16 in | Insert bearing: UC205-015D1 | Housing: T205D1 | Cover: Cast iron, closed end
UCT205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: T205D1 | Cover: None (open unit)
S-UCT205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: T205D1 | Cover: Pressed steel, open end
SM-UCT205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: T205D1 | Cover: Pressed steel, closed end
C-UCT205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: T205D1 | Cover: Cast iron, open end
CM-UCT205-100D1Shaft: 1 in | Insert bearing: UC205-100D1 | Housing: T205D1 | Cover: Cast iron, closed end
UCT206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: T206D1 | Cover: None (open unit)
S-UCT206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: T206D1 | Cover: Pressed steel, open end
SM-UCT206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: T206D1 | Cover: Pressed steel, closed end
C-UCT206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: T206D1 | Cover: Cast iron, open end
CM-UCT206D1Shaft: 30 mm | Insert bearing: UC206D1 | Housing: T206D1 | Cover: Cast iron, closed end
UCT206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: T206D1 | Cover: None (open unit)
S-UCT206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: T206D1 | Cover: Pressed steel, open end
SM-UCT206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: T206D1 | Cover: Pressed steel, closed end
C-UCT206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: T206D1 | Cover: Cast iron, open end
CM-UCT206-101D1Shaft: 1-1/16 in | Insert bearing: UC206-101D1 | Housing: T206D1 | Cover: Cast iron, closed end
UCT206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: T206D1 | Cover: None (open unit)
S-UCT206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: T206D1 | Cover: Pressed steel, open end
SM-UCT206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: T206D1 | Cover: Pressed steel, closed end
C-UCT206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: T206D1 | Cover: Cast iron, open end
CM-UCT206-102D1Shaft: 1-1/8 in | Insert bearing: UC206-102D1 | Housing: T206D1 | Cover: Cast iron, closed end
UCT206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: T206D1 | Cover: None (open unit)
S-UCT206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: T206D1 | Cover: Pressed steel, open end
SM-UCT206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: T206D1 | Cover: Pressed steel, closed end
C-UCT206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: T206D1 | Cover: Cast iron, open end
CM-UCT206-103D1Shaft: 1-3/16 in | Insert bearing: UC206-103D1 | Housing: T206D1 | Cover: Cast iron, closed end
UCT206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: T206D1 | Cover: None (open unit)
S-UCT206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: T206D1 | Cover: Pressed steel, open end
SM-UCT206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: T206D1 | Cover: Pressed steel, closed end
C-UCT206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: T206D1 | Cover: Cast iron, open end
CM-UCT206-104D1Shaft: 1-1/4 in | Insert bearing: UC206-104D1 | Housing: T206D1 | Cover: Cast iron, closed end
UCT207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: T207D1 | Cover: None (open unit)
S-UCT207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: T207D1 | Cover: Pressed steel, open end
SM-UCT207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: T207D1 | Cover: Pressed steel, closed end
C-UCT207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: T207D1 | Cover: Cast iron, open end
CM-UCT207D1Shaft: 35 mm | Insert bearing: UC207D1 | Housing: T207D1 | Cover: Cast iron, closed end
UCT207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: T207D1 | Cover: None (open unit)
S-UCT207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: T207D1 | Cover: Pressed steel, open end
SM-UCT207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: T207D1 | Cover: Pressed steel, closed end
C-UCT207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: T207D1 | Cover: Cast iron, open end
CM-UCT207-104D1Shaft: 1-1/4 in | Insert bearing: UC207-104D1 | Housing: T207D1 | Cover: Cast iron, closed end
UCT207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: T207D1 | Cover: None (open unit)
S-UCT207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: T207D1 | Cover: Pressed steel, open end
SM-UCT207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: T207D1 | Cover: Pressed steel, closed end
C-UCT207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: T207D1 | Cover: Cast iron, open end
CM-UCT207-105D1Shaft: 1-5/16 in | Insert bearing: UC207-105D1 | Housing: T207D1 | Cover: Cast iron, closed end
UCT207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: T207D1 | Cover: None (open unit)
S-UCT207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: T207D1 | Cover: Pressed steel, open end
SM-UCT207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: T207D1 | Cover: Pressed steel, closed end
C-UCT207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: T207D1 | Cover: Cast iron, open end
CM-UCT207-106D1Shaft: 1-3/8 in | Insert bearing: UC207-106D1 | Housing: T207D1 | Cover: Cast iron, closed end
UCT207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: T207D1 | Cover: None (open unit)
S-UCT207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: T207D1 | Cover: Pressed steel, open end
SM-UCT207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: T207D1 | Cover: Pressed steel, closed end
C-UCT207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: T207D1 | Cover: Cast iron, open end
CM-UCT207-107D1Shaft: 1-7/16 in | Insert bearing: UC207-107D1 | Housing: T207D1 | Cover: Cast iron, closed end
UCT208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: T208D1 | Cover: None (open unit)
S-UCT208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: T208D1 | Cover: Pressed steel, open end
SM-UCT208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: T208D1 | Cover: Pressed steel, closed end
C-UCT208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: T208D1 | Cover: Cast iron, open end
CM-UCT208D1Shaft: 40 mm | Insert bearing: UC208D1 | Housing: T208D1 | Cover: Cast iron, closed end
UCT208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: T208D1 | Cover: None (open unit)
S-UCT208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: T208D1 | Cover: Pressed steel, open end
SM-UCT208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: T208D1 | Cover: Pressed steel, closed end
C-UCT208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: T208D1 | Cover: Cast iron, open end
CM-UCT208-108D1Shaft: 1-1/2 in | Insert bearing: UC208-108D1 | Housing: T208D1 | Cover: Cast iron, closed end
UCT208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: T208D1 | Cover: None (open unit)
S-UCT208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: T208D1 | Cover: Pressed steel, open end
SM-UCT208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: T208D1 | Cover: Pressed steel, closed end
C-UCT208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: T208D1 | Cover: Cast iron, open end
CM-UCT208-109D1Shaft: 1-9/16 in | Insert bearing: UC208-109D1 | Housing: T208D1 | Cover: Cast iron, closed end
UCT209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: T209D1 | Cover: None (open unit)
S-UCT209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: T209D1 | Cover: Pressed steel, open end
SM-UCT209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: T209D1 | Cover: Pressed steel, closed end
C-UCT209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: T209D1 | Cover: Cast iron, open end
CM-UCT209D1Shaft: 45 mm | Insert bearing: UC209D1 | Housing: T209D1 | Cover: Cast iron, closed end
UCT209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: T209D1 | Cover: None (open unit)
S-UCT209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: T209D1 | Cover: Pressed steel, open end
SM-UCT209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: T209D1 | Cover: Pressed steel, closed end
C-UCT209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: T209D1 | Cover: Cast iron, open end
CM-UCT209-110D1Shaft: 1-5/8 in | Insert bearing: UC209-110D1 | Housing: T209D1 | Cover: Cast iron, closed end
UCT209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: T209D1 | Cover: None (open unit)
S-UCT209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: T209D1 | Cover: Pressed steel, open end
SM-UCT209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: T209D1 | Cover: Pressed steel, closed end
C-UCT209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: T209D1 | Cover: Cast iron, open end
CM-UCT209-111D1Shaft: 1-11/16 in | Insert bearing: UC209-111D1 | Housing: T209D1 | Cover: Cast iron, closed end
UCT209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: T209D1 | Cover: None (open unit)
S-UCT209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: T209D1 | Cover: Pressed steel, open end
SM-UCT209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: T209D1 | Cover: Pressed steel, closed end
C-UCT209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: T209D1 | Cover: Cast iron, open end
CM-UCT209-112D1Shaft: 1-3/4 in | Insert bearing: UC209-112D1 | Housing: T209D1 | Cover: Cast iron, closed end
UCT210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: T210D1 | Cover: None (open unit)
S-UCT210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: T210D1 | Cover: Pressed steel, open end
SM-UCT210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: T210D1 | Cover: Pressed steel, closed end
C-UCT210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: T210D1 | Cover: Cast iron, open end
CM-UCT210D1Shaft: 50 mm | Insert bearing: UC210D1 | Housing: T210D1 | Cover: Cast iron, closed end
UCT210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: T210D1 | Cover: None (open unit)
S-UCT210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: T210D1 | Cover: Pressed steel, open end
SM-UCT210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: T210D1 | Cover: Pressed steel, closed end
C-UCT210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: T210D1 | Cover: Cast iron, open end
CM-UCT210-113D1Shaft: 1-13/16 in | Insert bearing: UC210-113D1 | Housing: T210D1 | Cover: Cast iron, closed end
UCT210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: T210D1 | Cover: None (open unit)
S-UCT210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: T210D1 | Cover: Pressed steel, open end
SM-UCT210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: T210D1 | Cover: Pressed steel, closed end
C-UCT210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: T210D1 | Cover: Cast iron, open end
CM-UCT210-114D1Shaft: 1-7/8 in | Insert bearing: UC210-114D1 | Housing: T210D1 | Cover: Cast iron, closed end
UCT210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: T210D1 | Cover: None (open unit)
S-UCT210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: T210D1 | Cover: Pressed steel, open end
SM-UCT210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: T210D1 | Cover: Pressed steel, closed end
C-UCT210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: T210D1 | Cover: Cast iron, open end
CM-UCT210-115D1Shaft: 1-15/16 in | Insert bearing: UC210-115D1 | Housing: T210D1 | Cover: Cast iron, closed end
UCT210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: T210D1 | Cover: None (open unit)
S-UCT210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: T210D1 | Cover: Pressed steel, open end
SM-UCT210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: T210D1 | Cover: Pressed steel, closed end
C-UCT210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: T210D1 | Cover: Cast iron, open end
CM-UCT210-200D1Shaft: 2 in | Insert bearing: UC210-200D1 | Housing: T210D1 | Cover: Cast iron, closed end
UCT211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: T211D1 | Cover: None (open unit)
S-UCT211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: T211D1 | Cover: Pressed steel, open end
SM-UCT211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: T211D1 | Cover: Pressed steel, closed end
C-UCT211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: T211D1 | Cover: Cast iron, open end
CM-UCT211D1Shaft: 55 mm | Insert bearing: UC211D1 | Housing: T211D1 | Cover: Cast iron, closed end
UCT211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: T211D1 | Cover: None (open unit)
S-UCT211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: T211D1 | Cover: Pressed steel, open end
SM-UCT211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: T211D1 | Cover: Pressed steel, closed end
C-UCT211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: T211D1 | Cover: Cast iron, open end
CM-UCT211-200D1Shaft: 2 in | Insert bearing: UC211-200D1 | Housing: T211D1 | Cover: Cast iron, closed end
UCT211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: T211D1 | Cover: None (open unit)
S-UCT211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: T211D1 | Cover: Pressed steel, open end
SM-UCT211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: T211D1 | Cover: Pressed steel, closed end
C-UCT211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: T211D1 | Cover: Cast iron, open end
CM-UCT211-201D1Shaft: 2-1/16 in | Insert bearing: UC211-201D1 | Housing: T211D1 | Cover: Cast iron, closed end
UCT211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: T211D1 | Cover: None (open unit)
S-UCT211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: T211D1 | Cover: Pressed steel, open end
SM-UCT211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: T211D1 | Cover: Pressed steel, closed end
C-UCT211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: T211D1 | Cover: Cast iron, open end
CM-UCT211-202D1Shaft: 2-1/8 in | Insert bearing: UC211-202D1 | Housing: T211D1 | Cover: Cast iron, closed end
UCT211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: T211D1 | Cover: None (open unit)
S-UCT211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: T211D1 | Cover: Pressed steel, open end
SM-UCT211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: T211D1 | Cover: Pressed steel, closed end
C-UCT211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: T211D1 | Cover: Cast iron, open end
CM-UCT211-203D1Shaft: 2-3/16 in | Insert bearing: UC211-203D1 | Housing: T211D1 | Cover: Cast iron, closed end
UCT212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: T212D1 | Cover: None (open unit)
S-UCT212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: T212D1 | Cover: Pressed steel, open end
SM-UCT212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: T212D1 | Cover: Pressed steel, closed end
C-UCT212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: T212D1 | Cover: Cast iron, open end
CM-UCT212D1Shaft: 60 mm | Insert bearing: UC212D1 | Housing: T212D1 | Cover: Cast iron, closed end
UCT212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: T212D1 | Cover: None (open unit)
S-UCT212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: T212D1 | Cover: Pressed steel, open end
SM-UCT212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: T212D1 | Cover: Pressed steel, closed end
C-UCT212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: T212D1 | Cover: Cast iron, open end
CM-UCT212-204D1Shaft: 2-1/4 in | Insert bearing: UC212-204D1 | Housing: T212D1 | Cover: Cast iron, closed end
UCT212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: T212D1 | Cover: None (open unit)
S-UCT212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: T212D1 | Cover: Pressed steel, open end
SM-UCT212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: T212D1 | Cover: Pressed steel, closed end
C-UCT212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: T212D1 | Cover: Cast iron, open end
CM-UCT212-205D1Shaft: 2-5/16 in | Insert bearing: UC212-205D1 | Housing: T212D1 | Cover: Cast iron, closed end
UCT212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: T212D1 | Cover: None (open unit)
S-UCT212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: T212D1 | Cover: Pressed steel, open end
SM-UCT212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: T212D1 | Cover: Pressed steel, closed end
C-UCT212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: T212D1 | Cover: Cast iron, open end
CM-UCT212-206D1Shaft: 2-3/8 in | Insert bearing: UC212-206D1 | Housing: T212D1 | Cover: Cast iron, closed end
UCT212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: T212D1 | Cover: None (open unit)
S-UCT212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: T212D1 | Cover: Pressed steel, open end
SM-UCT212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: T212D1 | Cover: Pressed steel, closed end
C-UCT212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: T212D1 | Cover: Cast iron, open end
CM-UCT212-207D1Shaft: 2-7/16 in | Insert bearing: UC212-207D1 | Housing: T212D1 | Cover: Cast iron, closed end
UCT213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: T213D1 | Cover: None (open unit)
S-UCT213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: T213D1 | Cover: Pressed steel, open end
SM-UCT213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: T213D1 | Cover: Pressed steel, closed end
C-UCT213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: T213D1 | Cover: Cast iron, open end
CM-UCT213D1Shaft: 65 mm | Insert bearing: UC213D1 | Housing: T213D1 | Cover: Cast iron, closed end
UCT213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: T213D1 | Cover: None (open unit)
S-UCT213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: T213D1 | Cover: Pressed steel, open end
SM-UCT213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: T213D1 | Cover: Pressed steel, closed end
C-UCT213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: T213D1 | Cover: Cast iron, open end
CM-UCT213-208D1Shaft: 2-1/2 in | Insert bearing: UC213-208D1 | Housing: T213D1 | Cover: Cast iron, closed end
UCT213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: T213D1 | Cover: None (open unit)
S-UCT213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: T213D1 | Cover: Pressed steel, open end
SM-UCT213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: T213D1 | Cover: Pressed steel, closed end
C-UCT213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: T213D1 | Cover: Cast iron, open end
CM-UCT213-209D1Shaft: 2-9/16 in | Insert bearing: UC213-209D1 | Housing: T213D1 | Cover: Cast iron, closed end
UCT214D1Shaft: 70 mm | Insert bearing: UC214D1 | Housing: T214D1 | Cover: None (open unit)
C-UCT214D1Shaft: 70 mm | Insert bearing: UC214D1 | Housing: T214D1 | Cover: Cast iron, open end
CM-UCT214D1Shaft: 70 mm | Insert bearing: UC214D1 | Housing: T214D1 | Cover: Cast iron, closed end
UCT214-210D1Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: T214D1 | Cover: None (open unit)
C-UCT214-210D1Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: T214D1 | Cover: Cast iron, open end
CM-UCT214-210D1Shaft: 2-5/8 in | Insert bearing: UC214-210D1 | Housing: T214D1 | Cover: Cast iron, closed end
UCT214-211D1Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: T214D1 | Cover: None (open unit)
C-UCT214-211D1Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: T214D1 | Cover: Cast iron, open end
CM-UCT214-211D1Shaft: 2-11/16 in | Insert bearing: UC214-211D1 | Housing: T214D1 | Cover: Cast iron, closed end
UCT214-212D1Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: T214D1 | Cover: None (open unit)
C-UCT214-212D1Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: T214D1 | Cover: Cast iron, open end
CM-UCT214-212D1Shaft: 2-3/4 in | Insert bearing: UC214-212D1 | Housing: T214D1 | Cover: Cast iron, closed end
UCT215D1Shaft: 75 mm | Insert bearing: UC215D1 | Housing: T215D1 | Cover: None (open unit)
C-UCT215D1Shaft: 75 mm | Insert bearing: UC215D1 | Housing: T215D1 | Cover: Cast iron, open end
CM-UCT215D1Shaft: 75 mm | Insert bearing: UC215D1 | Housing: T215D1 | Cover: Cast iron, closed end
UCT215-213D1Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: T215D1 | Cover: None (open unit)
C-UCT215-213D1Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: T215D1 | Cover: Cast iron, open end
CM-UCT215-213D1Shaft: 2-13/16 in | Insert bearing: UC215-213D1 | Housing: T215D1 | Cover: Cast iron, closed end
UCT215-214D1Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: T215D1 | Cover: None (open unit)
C-UCT215-214D1Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: T215D1 | Cover: Cast iron, open end
CM-UCT215-214D1Shaft: 2-7/8 in | Insert bearing: UC215-214D1 | Housing: T215D1 | Cover: Cast iron, closed end
UCT215-215D1Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: T215D1 | Cover: None (open unit)
C-UCT215-215D1Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: T215D1 | Cover: Cast iron, open end
CM-UCT215-215D1Shaft: 2-15/16 in | Insert bearing: UC215-215D1 | Housing: T215D1 | Cover: Cast iron, closed end
UCT215-300D1Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: T215D1 | Cover: None (open unit)
C-UCT215-300D1Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: T215D1 | Cover: Cast iron, open end
CM-UCT215-300D1Shaft: 3 in | Insert bearing: UC215-300D1 | Housing: T215D1 | Cover: Cast iron, closed end
UCT216D1Shaft: 80 mm | Insert bearing: UC216D1 | Housing: T216D1 | Cover: None (open unit)
C-UCT216D1Shaft: 80 mm | Insert bearing: UC216D1 | Housing: T216D1 | Cover: Cast iron, open end
CM-UCT216D1Shaft: 80 mm | Insert bearing: UC216D1 | Housing: T216D1 | Cover: Cast iron, closed end
UCT216-301D1Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: T216D1 | Cover: None (open unit)
C-UCT216-301D1Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: T216D1 | Cover: Cast iron, open end
CM-UCT216-301D1Shaft: 3-1/16 in | Insert bearing: UC216-301D1 | Housing: T216D1 | Cover: Cast iron, closed end
UCT216-302D1Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: T216D1 | Cover: None (open unit)
C-UCT216-302D1Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: T216D1 | Cover: Cast iron, open end
CM-UCT216-302D1Shaft: 3-1/8 in | Insert bearing: UC216-302D1 | Housing: T216D1 | Cover: Cast iron, closed end
UCT216-303D1Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: T216D1 | Cover: None (open unit)
C-UCT216-303D1Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: T216D1 | Cover: Cast iron, open end
CM-UCT216-303D1Shaft: 3-3/16 in | Insert bearing: UC216-303D1 | Housing: T216D1 | Cover: Cast iron, closed end
UCT217D1Shaft: 85 mm | Insert bearing: UC217D1 | Housing: T217D1 | Cover: None (open unit)
C-UCT217D1Shaft: 85 mm | Insert bearing: UC217D1 | Housing: T217D1 | Cover: Cast iron, open end
CM-UCT217D1Shaft: 85 mm | Insert bearing: UC217D1 | Housing: T217D1 | Cover: Cast iron, closed end
UCT217-304D1Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: T217D1 | Cover: None (open unit)
C-UCT217-304D1Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: T217D1 | Cover: Cast iron, open end
CM-UCT217-304D1Shaft: 3-1/4 in | Insert bearing: UC217-304D1 | Housing: T217D1 | Cover: Cast iron, closed end
UCT217-305D1Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: T217D1 | Cover: None (open unit)
C-UCT217-305D1Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: T217D1 | Cover: Cast iron, open end
CM-UCT217-305D1Shaft: 3-5/16 in | Insert bearing: UC217-305D1 | Housing: T217D1 | Cover: Cast iron, closed end
UCT217-307D1Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: T217D1 | Cover: None (open unit)
C-UCT217-307D1Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: T217D1 | Cover: Cast iron, open end
CM-UCT217-307D1Shaft: 3-7/16 in | Insert bearing: UC217-307D1 | Housing: T217D1 | Cover: Cast iron, closed end

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
