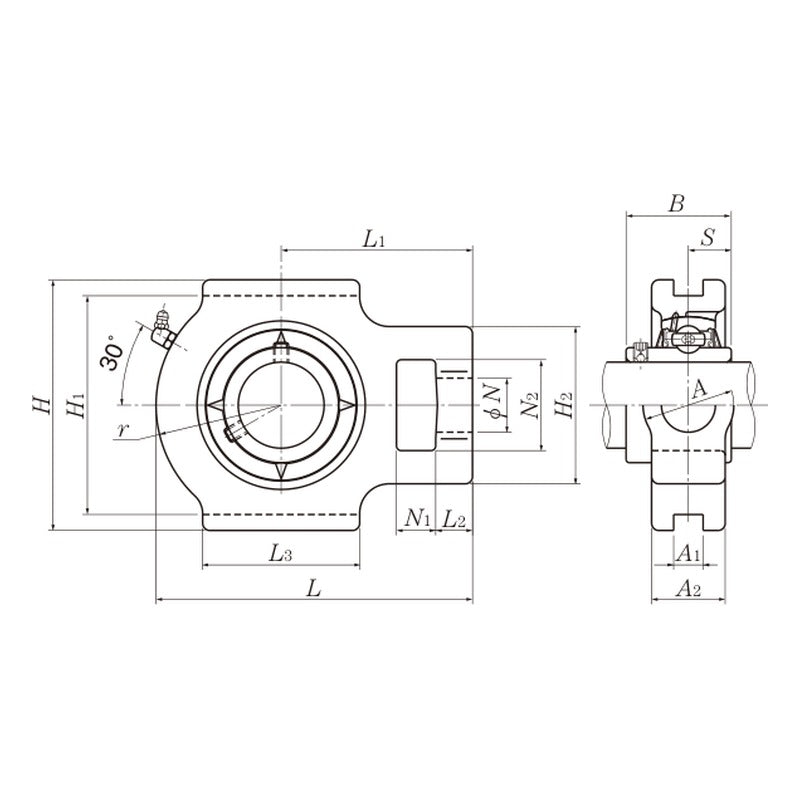

NTN UCT3 Take-Up Units, Cast Housing

NTN UCT3 Take-Up Units, Cast Housing

NTN UCT3 series take-up units cast housing, set screw locking type, for shafts 25-140 mm and inch sizes.

Key features

  • Take-up units cast housing with UC type insert bearing, set screw locking
  • Insert bearing has spherical outside diameter for initial misalignment compensation
  • Metric bores and inch bores (-XYY = whole inches and sixteenths)
  • D1 suffix: relubricatable design
  • Dust cover options: S/SM pressed steel and C/CM cast iron covers (open / closed end) where listed

Specifications

Series UCT3
Unit type Take-up units cast housing
Shaft range 25-140 mm
Locking Set screw
Brand NTN
Source NTN NTN Bearing Units Dimension Table, p. 218-223
UCT305D1 Shaft: 25 mm | Insert bearing: UC305D1 | Housing: T305D1 | Cover: None (open unit)
C-UCT305D1 Shaft: 25 mm | Insert bearing: UC305D1 | Housing: T305D1 | Cover: Cast iron, open end
CM-UCT305D1 Shaft: 25 mm | Insert bearing: UC305D1 | Housing: T305D1 | Cover: Cast iron, closed end
UCT305-013D1 Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: T305D1 | Cover: None (open unit)
C-UCT305-013D1 Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: T305D1 | Cover: Cast iron, open end
CM-UCT305-013D1 Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: T305D1 | Cover: Cast iron, closed end
UCT305-014D1 Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: T305D1 | Cover: None (open unit)
C-UCT305-014D1 Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: T305D1 | Cover: Cast iron, open end
CM-UCT305-014D1 Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: T305D1 | Cover: Cast iron, closed end
UCT305-015D1 Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: T305D1 | Cover: None (open unit)
C-UCT305-015D1 Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: T305D1 | Cover: Cast iron, open end
CM-UCT305-015D1 Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: T305D1 | Cover: Cast iron, closed end
UCT305-100D1 Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: T305D1 | Cover: None (open unit)
C-UCT305-100D1 Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: T305D1 | Cover: Cast iron, open end
CM-UCT305-100D1 Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: T305D1 | Cover: Cast iron, closed end
UCT306D1 Shaft: 30 mm | Insert bearing: UC306D1 | Housing: T306D1 | Cover: None (open unit)
C-UCT306D1 Shaft: 30 mm | Insert bearing: UC306D1 | Housing: T306D1 | Cover: Cast iron, open end
CM-UCT306D1 Shaft: 30 mm | Insert bearing: UC306D1 | Housing: T306D1 | Cover: Cast iron, closed end
UCT306-101D1 Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: T306D1 | Cover: None (open unit)
C-UCT306-101D1 Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: T306D1 | Cover: Cast iron, open end
CM-UCT306-101D1 Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: T306D1 | Cover: Cast iron, closed end
UCT306-102D1 Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: T306D1 | Cover: None (open unit)
C-UCT306-102D1 Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: T306D1 | Cover: Cast iron, open end
CM-UCT306-102D1 Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: T306D1 | Cover: Cast iron, closed end
UCT306-103D1 Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: T306D1 | Cover: None (open unit)
C-UCT306-103D1 Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: T306D1 | Cover: Cast iron, open end
CM-UCT306-103D1 Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: T306D1 | Cover: Cast iron, closed end
UCT307D1 Shaft: 35 mm | Insert bearing: UC307D1 | Housing: T307D1 | Cover: None (open unit)
C-UCT307D1 Shaft: 35 mm | Insert bearing: UC307D1 | Housing: T307D1 | Cover: Cast iron, open end
CM-UCT307D1 Shaft: 35 mm | Insert bearing: UC307D1 | Housing: T307D1 | Cover: Cast iron, closed end
UCT307-104D1 Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: T307D1 | Cover: None (open unit)
C-UCT307-104D1 Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: T307D1 | Cover: Cast iron, open end
CM-UCT307-104D1 Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: T307D1 | Cover: Cast iron, closed end
UCT307-105D1 Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: T307D1 | Cover: None (open unit)
C-UCT307-105D1 Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: T307D1 | Cover: Cast iron, open end
CM-UCT307-105D1 Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: T307D1 | Cover: Cast iron, closed end
UCT307-106D1 Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: T307D1 | Cover: None (open unit)
C-UCT307-106D1 Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: T307D1 | Cover: Cast iron, open end
CM-UCT307-106D1 Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: T307D1 | Cover: Cast iron, closed end
UCT307-107D1 Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: T307D1 | Cover: None (open unit)
C-UCT307-107D1 Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: T307D1 | Cover: Cast iron, open end
CM-UCT307-107D1 Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: T307D1 | Cover: Cast iron, closed end
UCT308D1 Shaft: 40 mm | Insert bearing: UC308D1 | Housing: T308D1 | Cover: None (open unit)
C-UCT308D1 Shaft: 40 mm | Insert bearing: UC308D1 | Housing: T308D1 | Cover: Cast iron, open end
CM-UCT308D1 Shaft: 40 mm | Insert bearing: UC308D1 | Housing: T308D1 | Cover: Cast iron, closed end
UCT308-108D1 Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: T308D1 | Cover: None (open unit)
C-UCT308-108D1 Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: T308D1 | Cover: Cast iron, open end
CM-UCT308-108D1 Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: T308D1 | Cover: Cast iron, closed end
UCT308-109D1 Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: T308D1 | Cover: None (open unit)
C-UCT308-109D1 Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: T308D1 | Cover: Cast iron, open end
CM-UCT308-109D1 Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: T308D1 | Cover: Cast iron, closed end
UCT309D1 Shaft: 45 mm | Insert bearing: UC309D1 | Housing: T309D1 | Cover: None (open unit)
C-UCT309D1 Shaft: 45 mm | Insert bearing: UC309D1 | Housing: T309D1 | Cover: Cast iron, open end
CM-UCT309D1 Shaft: 45 mm | Insert bearing: UC309D1 | Housing: T309D1 | Cover: Cast iron, closed end
UCT309-110D1 Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: T309D1 | Cover: None (open unit)
C-UCT309-110D1 Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: T309D1 | Cover: Cast iron, open end
CM-UCT309-110D1 Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: T309D1 | Cover: Cast iron, closed end
UCT309-111D1 Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: T309D1 | Cover: None (open unit)
C-UCT309-111D1 Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: T309D1 | Cover: Cast iron, open end
CM-UCT309-111D1 Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: T309D1 | Cover: Cast iron, closed end
UCT309-112D1 Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: T309D1 | Cover: None (open unit)
C-UCT309-112D1 Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: T309D1 | Cover: Cast iron, open end
CM-UCT309-112D1 Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: T309D1 | Cover: Cast iron, closed end
UCT310D1 Shaft: 50 mm | Insert bearing: UC310D1 | Housing: T310D1 | Cover: None (open unit)
C-UCT310D1 Shaft: 50 mm | Insert bearing: UC310D1 | Housing: T310D1 | Cover: Cast iron, open end
CM-UCT310D1 Shaft: 50 mm | Insert bearing: UC310D1 | Housing: T310D1 | Cover: Cast iron, closed end
UCT310-113D1 Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: T310D1 | Cover: None (open unit)
C-UCT310-113D1 Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: T310D1 | Cover: Cast iron, open end
CM-UCT310-113D1 Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: T310D1 | Cover: Cast iron, closed end
UCT310-114D1 Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: T310D1 | Cover: None (open unit)
C-UCT310-114D1 Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: T310D1 | Cover: Cast iron, open end
CM-UCT310-114D1 Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: T310D1 | Cover: Cast iron, closed end
UCT310-115D1 Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: T310D1 | Cover: None (open unit)
C-UCT310-115D1 Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: T310D1 | Cover: Cast iron, open end
CM-UCT310-115D1 Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: T310D1 | Cover: Cast iron, closed end
UCT311D1 Shaft: 55 mm | Insert bearing: UC311D1 | Housing: T311D1 | Cover: None (open unit)
C-UCT311D1 Shaft: 55 mm | Insert bearing: UC311D1 | Housing: T311D1 | Cover: Cast iron, open end
CM-UCT311D1 Shaft: 55 mm | Insert bearing: UC311D1 | Housing: T311D1 | Cover: Cast iron, closed end
UCT311-200D1 Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: T311D1 | Cover: None (open unit)
C-UCT311-200D1 Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: T311D1 | Cover: Cast iron, open end
CM-UCT311-200D1 Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: T311D1 | Cover: Cast iron, closed end
UCT311-201D1 Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: T311D1 | Cover: None (open unit)
C-UCT311-201D1 Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: T311D1 | Cover: Cast iron, open end
CM-UCT311-201D1 Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: T311D1 | Cover: Cast iron, closed end
UCT311-202D1 Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: T311D1 | Cover: None (open unit)
C-UCT311-202D1 Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: T311D1 | Cover: Cast iron, open end
CM-UCT311-202D1 Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: T311D1 | Cover: Cast iron, closed end
UCT311-203D1 Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: T311D1 | Cover: None (open unit)
C-UCT311-203D1 Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: T311D1 | Cover: Cast iron, open end
CM-UCT311-203D1 Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: T311D1 | Cover: Cast iron, closed end
UCT312D1 Shaft: 60 mm | Insert bearing: UC312D1 | Housing: T312D1 | Cover: None (open unit)
C-UCT312D1 Shaft: 60 mm | Insert bearing: UC312D1 | Housing: T312D1 | Cover: Cast iron, open end
CM-UCT312D1 Shaft: 60 mm | Insert bearing: UC312D1 | Housing: T312D1 | Cover: Cast iron, closed end
UCT312-204D1 Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: T312D1 | Cover: None (open unit)
C-UCT312-204D1 Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: T312D1 | Cover: Cast iron, open end
CM-UCT312-204D1 Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: T312D1 | Cover: Cast iron, closed end
UCT312-205D1 Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: T312D1 | Cover: None (open unit)
C-UCT312-205D1 Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: T312D1 | Cover: Cast iron, open end
CM-UCT312-205D1 Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: T312D1 | Cover: Cast iron, closed end
UCT312-206D1 Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: T312D1 | Cover: None (open unit)
C-UCT312-206D1 Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: T312D1 | Cover: Cast iron, open end
CM-UCT312-206D1 Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: T312D1 | Cover: Cast iron, closed end
UCT312-207D1 Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: T312D1 | Cover: None (open unit)
C-UCT312-207D1 Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: T312D1 | Cover: Cast iron, open end
CM-UCT312-207D1 Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: T312D1 | Cover: Cast iron, closed end
UCT313D1 Shaft: 65 mm | Insert bearing: UC313D1 | Housing: T313D1 | Cover: None (open unit)
C-UCT313D1 Shaft: 65 mm | Insert bearing: UC313D1 | Housing: T313D1 | Cover: Cast iron, open end
CM-UCT313D1 Shaft: 65 mm | Insert bearing: UC313D1 | Housing: T313D1 | Cover: Cast iron, closed end
UCT313-208D1 Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: T313D1 | Cover: None (open unit)
C-UCT313-208D1 Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: T313D1 | Cover: Cast iron, open end
CM-UCT313-208D1 Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: T313D1 | Cover: Cast iron, closed end
UCT313-209D1 Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: T313D1 | Cover: None (open unit)
C-UCT313-209D1 Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: T313D1 | Cover: Cast iron, open end
CM-UCT313-209D1 Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: T313D1 | Cover: Cast iron, closed end
UCT314D1 Shaft: 70 mm | Insert bearing: UC314D1 | Housing: T314D1 | Cover: None (open unit)
C-UCT314D1 Shaft: 70 mm | Insert bearing: UC314D1 | Housing: T314D1 | Cover: Cast iron, open end
CM-UCT314D1 Shaft: 70 mm | Insert bearing: UC314D1 | Housing: T314D1 | Cover: Cast iron, closed end
UCT314-210D1 Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: T314D1 | Cover: None (open unit)
C-UCT314-210D1 Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: T314D1 | Cover: Cast iron, open end
CM-UCT314-210D1 Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: T314D1 | Cover: Cast iron, closed end
UCT314-211D1 Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: T314D1 | Cover: None (open unit)
C-UCT314-211D1 Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: T314D1 | Cover: Cast iron, open end
CM-UCT314-211D1 Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: T314D1 | Cover: Cast iron, closed end
UCT314-212D1 Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: T314D1 | Cover: None (open unit)
C-UCT314-212D1 Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: T314D1 | Cover: Cast iron, open end
CM-UCT314-212D1 Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: T314D1 | Cover: Cast iron, closed end
UCT315D1 Shaft: 75 mm | Insert bearing: UC315D1 | Housing: T315D1 | Cover: None (open unit)
C-UCT315D1 Shaft: 75 mm | Insert bearing: UC315D1 | Housing: T315D1 | Cover: Cast iron, open end
CM-UCT315D1 Shaft: 75 mm | Insert bearing: UC315D1 | Housing: T315D1 | Cover: Cast iron, closed end
UCT315-213D1 Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: T315D1 | Cover: None (open unit)
C-UCT315-213D1 Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: T315D1 | Cover: Cast iron, open end
CM-UCT315-213D1 Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: T315D1 | Cover: Cast iron, closed end
UCT315-214D1 Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: T315D1 | Cover: None (open unit)
C-UCT315-214D1 Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: T315D1 | Cover: Cast iron, open end
CM-UCT315-214D1 Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: T315D1 | Cover: Cast iron, closed end
UCT315-215D1 Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: T315D1 | Cover: None (open unit)
C-UCT315-215D1 Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: T315D1 | Cover: Cast iron, open end
CM-UCT315-215D1 Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: T315D1 | Cover: Cast iron, closed end
UCT315-300D1 Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: T315D1 | Cover: None (open unit)
C-UCT315-300D1 Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: T315D1 | Cover: Cast iron, open end
CM-UCT315-300D1 Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: T315D1 | Cover: Cast iron, closed end
UCT316D1 Shaft: 80 mm | Insert bearing: UC316D1 | Housing: T316D1 | Cover: None (open unit)
C-UCT316D1 Shaft: 80 mm | Insert bearing: UC316D1 | Housing: T316D1 | Cover: Cast iron, open end
CM-UCT316D1 Shaft: 80 mm | Insert bearing: UC316D1 | Housing: T316D1 | Cover: Cast iron, closed end
UCT316-301D1 Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: T316D1 | Cover: None (open unit)
C-UCT316-301D1 Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: T316D1 | Cover: Cast iron, open end
CM-UCT316-301D1 Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: T316D1 | Cover: Cast iron, closed end
UCT316-302D1 Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: T316D1 | Cover: None (open unit)
C-UCT316-302D1 Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: T316D1 | Cover: Cast iron, open end
CM-UCT316-302D1 Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: T316D1 | Cover: Cast iron, closed end
UCT316-303D1 Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: T316D1 | Cover: None (open unit)
C-UCT316-303D1 Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: T316D1 | Cover: Cast iron, open end
CM-UCT316-303D1 Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: T316D1 | Cover: Cast iron, closed end
UCT317D1 Shaft: 85 mm | Insert bearing: UC317D1 | Housing: T317D1 | Cover: None (open unit)
C-UCT317D1 Shaft: 85 mm | Insert bearing: UC317D1 | Housing: T317D1 | Cover: Cast iron, open end
CM-UCT317D1 Shaft: 85 mm | Insert bearing: UC317D1 | Housing: T317D1 | Cover: Cast iron, closed end
UCT317-304D1 Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: T317D1 | Cover: None (open unit)
C-UCT317-304D1 Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: T317D1 | Cover: Cast iron, open end
CM-UCT317-304D1 Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: T317D1 | Cover: Cast iron, closed end
UCT317-305D1 Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: T317D1 | Cover: None (open unit)
C-UCT317-305D1 Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: T317D1 | Cover: Cast iron, open end
CM-UCT317-305D1 Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: T317D1 | Cover: Cast iron, closed end
UCT317-307D1 Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: T317D1 | Cover: None (open unit)
C-UCT317-307D1 Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: T317D1 | Cover: Cast iron, open end
CM-UCT317-307D1 Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: T317D1 | Cover: Cast iron, closed end
UCT318D1 Shaft: 90 mm | Insert bearing: UC318D1 | Housing: T318D1 | Cover: None (open unit)
C-UCT318D1 Shaft: 90 mm | Insert bearing: UC318D1 | Housing: T318D1 | Cover: Cast iron, open end
CM-UCT318D1 Shaft: 90 mm | Insert bearing: UC318D1 | Housing: T318D1 | Cover: Cast iron, closed end
UCT318-307D1 Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: T318D1 | Cover: None (open unit)
C-UCT318-307D1 Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: T318D1 | Cover: Cast iron, open end
CM-UCT318-307D1 Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: T318D1 | Cover: Cast iron, closed end
UCT318-308D1 Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: T318D1 | Cover: None (open unit)
C-UCT318-308D1 Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: T318D1 | Cover: Cast iron, open end
CM-UCT318-308D1 Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: T318D1 | Cover: Cast iron, closed end
UCT319D1 Shaft: 95 mm | Insert bearing: UC319D1 | Housing: T319D1 | Cover: None (open unit)
C-UCT319D1 Shaft: 95 mm | Insert bearing: UC319D1 | Housing: T319D1 | Cover: Cast iron, open end
CM-UCT319D1 Shaft: 95 mm | Insert bearing: UC319D1 | Housing: T319D1 | Cover: Cast iron, closed end
UCT319-310D1 Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: T319D1 | Cover: None (open unit)
C-UCT319-310D1 Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: T319D1 | Cover: Cast iron, open end
CM-UCT319-310D1 Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: T319D1 | Cover: Cast iron, closed end
UCT319-311D1 Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: T319D1 | Cover: None (open unit)
C-UCT319-311D1 Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: T319D1 | Cover: Cast iron, open end
CM-UCT319-311D1 Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: T319D1 | Cover: Cast iron, closed end
UCT319-312D1 Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: T319D1 | Cover: None (open unit)
C-UCT319-312D1 Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: T319D1 | Cover: Cast iron, open end
CM-UCT319-312D1 Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: T319D1 | Cover: Cast iron, closed end
UCT320D1 Shaft: 100 mm | Insert bearing: UC320D1 | Housing: T320D1 | Cover: None (open unit)
C-UCT320D1 Shaft: 100 mm | Insert bearing: UC320D1 | Housing: T320D1 | Cover: Cast iron, open end
CM-UCT320D1 Shaft: 100 mm | Insert bearing: UC320D1 | Housing: T320D1 | Cover: Cast iron, closed end
UCT320-313D1 Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: T320D1 | Cover: None (open unit)
C-UCT320-313D1 Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: T320D1 | Cover: Cast iron, open end
CM-UCT320-313D1 Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: T320D1 | Cover: Cast iron, closed end
UCT320-314D1 Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: T320D1 | Cover: None (open unit)
C-UCT320-314D1 Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: T320D1 | Cover: Cast iron, open end
CM-UCT320-314D1 Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: T320D1 | Cover: Cast iron, closed end
UCT320-315D1 Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: T320D1 | Cover: None (open unit)
C-UCT320-315D1 Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: T320D1 | Cover: Cast iron, open end
CM-UCT320-315D1 Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: T320D1 | Cover: Cast iron, closed end
UCT320-400D1 Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: T320D1 | Cover: None (open unit)
C-UCT320-400D1 Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: T320D1 | Cover: Cast iron, open end
CM-UCT320-400D1 Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: T320D1 | Cover: Cast iron, closed end
UCT321D1 Shaft: 105 mm | Insert bearing: - | Housing: T321D1 | Cover: None (open unit)
C-UCT321D1 Shaft: 105 mm | Insert bearing: - | Housing: T321D1 | Cover: Cast iron, open end
CM-UCT321D1 Shaft: 105 mm | Insert bearing: - | Housing: T321D1 | Cover: Cast iron, closed end
UCT322D1 Shaft: 110 mm | Insert bearing: - | Housing: T322D1 | Cover: None (open unit)
C-UCT322D1 Shaft: 110 mm | Insert bearing: - | Housing: T322D1 | Cover: Cast iron, open end
CM-UCT322D1 Shaft: 110 mm | Insert bearing: - | Housing: T322D1 | Cover: Cast iron, closed end
UCT324D1 Shaft: 120 mm | Insert bearing: - | Housing: T324D1 | Cover: None (open unit)
C-UCT324D1 Shaft: 120 mm | Insert bearing: - | Housing: T324D1 | Cover: Cast iron, open end
CM-UCT324D1 Shaft: 120 mm | Insert bearing: - | Housing: T324D1 | Cover: Cast iron, closed end
UCT326D1 Shaft: 130 mm | Insert bearing: - | Housing: T326D1 | Cover: None (open unit)
C-UCT326D1 Shaft: 130 mm | Insert bearing: - | Housing: T326D1 | Cover: Cast iron, open end
CM-UCT326D1 Shaft: 130 mm | Insert bearing: - | Housing: T326D1 | Cover: Cast iron, closed end
UCT328D1 Shaft: 140 mm | Insert bearing: - | Housing: T328D1 | Cover: None (open unit)
C-UCT328D1 Shaft: 140 mm | Insert bearing: - | Housing: T328D1 | Cover: Cast iron, open end
CM-UCT328D1 Shaft: 140 mm | Insert bearing: - | Housing: T328D1 | Cover: Cast iron, closed end
Mounted Bearing UnitsNTN
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NTN UCT3 Take-Up Units, Cast Housing

Brand NTN·Mounted Bearing Units

Available part numbers (216)

UCT305D1, C-UCT305D1, CM-UCT305D1, UCT305-013D1, C-UCT305-013D1, CM-UCT305-013D1, UCT305-014D1, C-UCT305-014D1, CM-UCT305-014D1, UCT305-015D1 + 206 more — see full table ↓

How to order

Send the NTN part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCT305D1Shaft: 25 mm | Insert bearing: UC305D1 | Housing: T305D1 | Cover: None (open unit)
C-UCT305D1Shaft: 25 mm | Insert bearing: UC305D1 | Housing: T305D1 | Cover: Cast iron, open end
CM-UCT305D1Shaft: 25 mm | Insert bearing: UC305D1 | Housing: T305D1 | Cover: Cast iron, closed end
UCT305-013D1Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: T305D1 | Cover: None (open unit)
C-UCT305-013D1Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: T305D1 | Cover: Cast iron, open end
CM-UCT305-013D1Shaft: 13/16 in | Insert bearing: UC305-013D1 | Housing: T305D1 | Cover: Cast iron, closed end
UCT305-014D1Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: T305D1 | Cover: None (open unit)
C-UCT305-014D1Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: T305D1 | Cover: Cast iron, open end
CM-UCT305-014D1Shaft: 7/8 in | Insert bearing: UC305-014D1 | Housing: T305D1 | Cover: Cast iron, closed end
UCT305-015D1Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: T305D1 | Cover: None (open unit)
C-UCT305-015D1Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: T305D1 | Cover: Cast iron, open end
CM-UCT305-015D1Shaft: 15/16 in | Insert bearing: UC305-015D1 | Housing: T305D1 | Cover: Cast iron, closed end
UCT305-100D1Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: T305D1 | Cover: None (open unit)
C-UCT305-100D1Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: T305D1 | Cover: Cast iron, open end
CM-UCT305-100D1Shaft: 1 in | Insert bearing: UC305-100D1 | Housing: T305D1 | Cover: Cast iron, closed end
UCT306D1Shaft: 30 mm | Insert bearing: UC306D1 | Housing: T306D1 | Cover: None (open unit)
C-UCT306D1Shaft: 30 mm | Insert bearing: UC306D1 | Housing: T306D1 | Cover: Cast iron, open end
CM-UCT306D1Shaft: 30 mm | Insert bearing: UC306D1 | Housing: T306D1 | Cover: Cast iron, closed end
UCT306-101D1Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: T306D1 | Cover: None (open unit)
C-UCT306-101D1Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: T306D1 | Cover: Cast iron, open end
CM-UCT306-101D1Shaft: 1-1/16 in | Insert bearing: UC306-101D1 | Housing: T306D1 | Cover: Cast iron, closed end
UCT306-102D1Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: T306D1 | Cover: None (open unit)
C-UCT306-102D1Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: T306D1 | Cover: Cast iron, open end
CM-UCT306-102D1Shaft: 1-1/8 in | Insert bearing: UC306-102D1 | Housing: T306D1 | Cover: Cast iron, closed end
UCT306-103D1Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: T306D1 | Cover: None (open unit)
C-UCT306-103D1Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: T306D1 | Cover: Cast iron, open end
CM-UCT306-103D1Shaft: 1-3/16 in | Insert bearing: UC306-103D1 | Housing: T306D1 | Cover: Cast iron, closed end
UCT307D1Shaft: 35 mm | Insert bearing: UC307D1 | Housing: T307D1 | Cover: None (open unit)
C-UCT307D1Shaft: 35 mm | Insert bearing: UC307D1 | Housing: T307D1 | Cover: Cast iron, open end
CM-UCT307D1Shaft: 35 mm | Insert bearing: UC307D1 | Housing: T307D1 | Cover: Cast iron, closed end
UCT307-104D1Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: T307D1 | Cover: None (open unit)
C-UCT307-104D1Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: T307D1 | Cover: Cast iron, open end
CM-UCT307-104D1Shaft: 1-1/4 in | Insert bearing: UC307-104D1 | Housing: T307D1 | Cover: Cast iron, closed end
UCT307-105D1Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: T307D1 | Cover: None (open unit)
C-UCT307-105D1Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: T307D1 | Cover: Cast iron, open end
CM-UCT307-105D1Shaft: 1-5/16 in | Insert bearing: UC307-105D1 | Housing: T307D1 | Cover: Cast iron, closed end
UCT307-106D1Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: T307D1 | Cover: None (open unit)
C-UCT307-106D1Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: T307D1 | Cover: Cast iron, open end
CM-UCT307-106D1Shaft: 1-3/8 in | Insert bearing: UC307-106D1 | Housing: T307D1 | Cover: Cast iron, closed end
UCT307-107D1Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: T307D1 | Cover: None (open unit)
C-UCT307-107D1Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: T307D1 | Cover: Cast iron, open end
CM-UCT307-107D1Shaft: 1-7/16 in | Insert bearing: UC307-107D1 | Housing: T307D1 | Cover: Cast iron, closed end
UCT308D1Shaft: 40 mm | Insert bearing: UC308D1 | Housing: T308D1 | Cover: None (open unit)
C-UCT308D1Shaft: 40 mm | Insert bearing: UC308D1 | Housing: T308D1 | Cover: Cast iron, open end
CM-UCT308D1Shaft: 40 mm | Insert bearing: UC308D1 | Housing: T308D1 | Cover: Cast iron, closed end
UCT308-108D1Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: T308D1 | Cover: None (open unit)
C-UCT308-108D1Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: T308D1 | Cover: Cast iron, open end
CM-UCT308-108D1Shaft: 1-1/2 in | Insert bearing: UC308-108D1 | Housing: T308D1 | Cover: Cast iron, closed end
UCT308-109D1Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: T308D1 | Cover: None (open unit)
C-UCT308-109D1Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: T308D1 | Cover: Cast iron, open end
CM-UCT308-109D1Shaft: 1-9/16 in | Insert bearing: UC308-109D1 | Housing: T308D1 | Cover: Cast iron, closed end
UCT309D1Shaft: 45 mm | Insert bearing: UC309D1 | Housing: T309D1 | Cover: None (open unit)
C-UCT309D1Shaft: 45 mm | Insert bearing: UC309D1 | Housing: T309D1 | Cover: Cast iron, open end
CM-UCT309D1Shaft: 45 mm | Insert bearing: UC309D1 | Housing: T309D1 | Cover: Cast iron, closed end
UCT309-110D1Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: T309D1 | Cover: None (open unit)
C-UCT309-110D1Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: T309D1 | Cover: Cast iron, open end
CM-UCT309-110D1Shaft: 1-5/8 in | Insert bearing: UC309-110D1 | Housing: T309D1 | Cover: Cast iron, closed end
UCT309-111D1Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: T309D1 | Cover: None (open unit)
C-UCT309-111D1Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: T309D1 | Cover: Cast iron, open end
CM-UCT309-111D1Shaft: 1-11/16 in | Insert bearing: UC309-111D1 | Housing: T309D1 | Cover: Cast iron, closed end
UCT309-112D1Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: T309D1 | Cover: None (open unit)
C-UCT309-112D1Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: T309D1 | Cover: Cast iron, open end
CM-UCT309-112D1Shaft: 1-3/4 in | Insert bearing: UC309-112D1 | Housing: T309D1 | Cover: Cast iron, closed end
UCT310D1Shaft: 50 mm | Insert bearing: UC310D1 | Housing: T310D1 | Cover: None (open unit)
C-UCT310D1Shaft: 50 mm | Insert bearing: UC310D1 | Housing: T310D1 | Cover: Cast iron, open end
CM-UCT310D1Shaft: 50 mm | Insert bearing: UC310D1 | Housing: T310D1 | Cover: Cast iron, closed end
UCT310-113D1Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: T310D1 | Cover: None (open unit)
C-UCT310-113D1Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: T310D1 | Cover: Cast iron, open end
CM-UCT310-113D1Shaft: 1-13/16 in | Insert bearing: UC310-113D1 | Housing: T310D1 | Cover: Cast iron, closed end
UCT310-114D1Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: T310D1 | Cover: None (open unit)
C-UCT310-114D1Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: T310D1 | Cover: Cast iron, open end
CM-UCT310-114D1Shaft: 1-7/8 in | Insert bearing: UC310-114D1 | Housing: T310D1 | Cover: Cast iron, closed end
UCT310-115D1Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: T310D1 | Cover: None (open unit)
C-UCT310-115D1Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: T310D1 | Cover: Cast iron, open end
CM-UCT310-115D1Shaft: 1-15/16 in | Insert bearing: UC310-115D1 | Housing: T310D1 | Cover: Cast iron, closed end
UCT311D1Shaft: 55 mm | Insert bearing: UC311D1 | Housing: T311D1 | Cover: None (open unit)
C-UCT311D1Shaft: 55 mm | Insert bearing: UC311D1 | Housing: T311D1 | Cover: Cast iron, open end
CM-UCT311D1Shaft: 55 mm | Insert bearing: UC311D1 | Housing: T311D1 | Cover: Cast iron, closed end
UCT311-200D1Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: T311D1 | Cover: None (open unit)
C-UCT311-200D1Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: T311D1 | Cover: Cast iron, open end
CM-UCT311-200D1Shaft: 2 in | Insert bearing: UC311-200D1 | Housing: T311D1 | Cover: Cast iron, closed end
UCT311-201D1Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: T311D1 | Cover: None (open unit)
C-UCT311-201D1Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: T311D1 | Cover: Cast iron, open end
CM-UCT311-201D1Shaft: 2-1/16 in | Insert bearing: UC311-201D1 | Housing: T311D1 | Cover: Cast iron, closed end
UCT311-202D1Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: T311D1 | Cover: None (open unit)
C-UCT311-202D1Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: T311D1 | Cover: Cast iron, open end
CM-UCT311-202D1Shaft: 2-1/8 in | Insert bearing: UC311-202D1 | Housing: T311D1 | Cover: Cast iron, closed end
UCT311-203D1Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: T311D1 | Cover: None (open unit)
C-UCT311-203D1Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: T311D1 | Cover: Cast iron, open end
CM-UCT311-203D1Shaft: 2-3/16 in | Insert bearing: UC311-203D1 | Housing: T311D1 | Cover: Cast iron, closed end
UCT312D1Shaft: 60 mm | Insert bearing: UC312D1 | Housing: T312D1 | Cover: None (open unit)
C-UCT312D1Shaft: 60 mm | Insert bearing: UC312D1 | Housing: T312D1 | Cover: Cast iron, open end
CM-UCT312D1Shaft: 60 mm | Insert bearing: UC312D1 | Housing: T312D1 | Cover: Cast iron, closed end
UCT312-204D1Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: T312D1 | Cover: None (open unit)
C-UCT312-204D1Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: T312D1 | Cover: Cast iron, open end
CM-UCT312-204D1Shaft: 2-1/4 in | Insert bearing: UC312-204D1 | Housing: T312D1 | Cover: Cast iron, closed end
UCT312-205D1Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: T312D1 | Cover: None (open unit)
C-UCT312-205D1Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: T312D1 | Cover: Cast iron, open end
CM-UCT312-205D1Shaft: 2-5/16 in | Insert bearing: UC312-205D1 | Housing: T312D1 | Cover: Cast iron, closed end
UCT312-206D1Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: T312D1 | Cover: None (open unit)
C-UCT312-206D1Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: T312D1 | Cover: Cast iron, open end
CM-UCT312-206D1Shaft: 2-3/8 in | Insert bearing: UC312-206D1 | Housing: T312D1 | Cover: Cast iron, closed end
UCT312-207D1Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: T312D1 | Cover: None (open unit)
C-UCT312-207D1Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: T312D1 | Cover: Cast iron, open end
CM-UCT312-207D1Shaft: 2-7/16 in | Insert bearing: UC312-207D1 | Housing: T312D1 | Cover: Cast iron, closed end
UCT313D1Shaft: 65 mm | Insert bearing: UC313D1 | Housing: T313D1 | Cover: None (open unit)
C-UCT313D1Shaft: 65 mm | Insert bearing: UC313D1 | Housing: T313D1 | Cover: Cast iron, open end
CM-UCT313D1Shaft: 65 mm | Insert bearing: UC313D1 | Housing: T313D1 | Cover: Cast iron, closed end
UCT313-208D1Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: T313D1 | Cover: None (open unit)
C-UCT313-208D1Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: T313D1 | Cover: Cast iron, open end
CM-UCT313-208D1Shaft: 2-1/2 in | Insert bearing: UC313-208D1 | Housing: T313D1 | Cover: Cast iron, closed end
UCT313-209D1Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: T313D1 | Cover: None (open unit)
C-UCT313-209D1Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: T313D1 | Cover: Cast iron, open end
CM-UCT313-209D1Shaft: 2-9/16 in | Insert bearing: UC313-209D1 | Housing: T313D1 | Cover: Cast iron, closed end
UCT314D1Shaft: 70 mm | Insert bearing: UC314D1 | Housing: T314D1 | Cover: None (open unit)
C-UCT314D1Shaft: 70 mm | Insert bearing: UC314D1 | Housing: T314D1 | Cover: Cast iron, open end
CM-UCT314D1Shaft: 70 mm | Insert bearing: UC314D1 | Housing: T314D1 | Cover: Cast iron, closed end
UCT314-210D1Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: T314D1 | Cover: None (open unit)
C-UCT314-210D1Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: T314D1 | Cover: Cast iron, open end
CM-UCT314-210D1Shaft: 2-5/8 in | Insert bearing: UC314-210D1 | Housing: T314D1 | Cover: Cast iron, closed end
UCT314-211D1Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: T314D1 | Cover: None (open unit)
C-UCT314-211D1Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: T314D1 | Cover: Cast iron, open end
CM-UCT314-211D1Shaft: 2-11/16 in | Insert bearing: UC314-211D1 | Housing: T314D1 | Cover: Cast iron, closed end
UCT314-212D1Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: T314D1 | Cover: None (open unit)
C-UCT314-212D1Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: T314D1 | Cover: Cast iron, open end
CM-UCT314-212D1Shaft: 2-3/4 in | Insert bearing: UC314-212D1 | Housing: T314D1 | Cover: Cast iron, closed end
UCT315D1Shaft: 75 mm | Insert bearing: UC315D1 | Housing: T315D1 | Cover: None (open unit)
C-UCT315D1Shaft: 75 mm | Insert bearing: UC315D1 | Housing: T315D1 | Cover: Cast iron, open end
CM-UCT315D1Shaft: 75 mm | Insert bearing: UC315D1 | Housing: T315D1 | Cover: Cast iron, closed end
UCT315-213D1Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: T315D1 | Cover: None (open unit)
C-UCT315-213D1Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: T315D1 | Cover: Cast iron, open end
CM-UCT315-213D1Shaft: 2-13/16 in | Insert bearing: UC315-213D1 | Housing: T315D1 | Cover: Cast iron, closed end
UCT315-214D1Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: T315D1 | Cover: None (open unit)
C-UCT315-214D1Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: T315D1 | Cover: Cast iron, open end
CM-UCT315-214D1Shaft: 2-7/8 in | Insert bearing: UC315-214D1 | Housing: T315D1 | Cover: Cast iron, closed end
UCT315-215D1Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: T315D1 | Cover: None (open unit)
C-UCT315-215D1Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: T315D1 | Cover: Cast iron, open end
CM-UCT315-215D1Shaft: 2-15/16 in | Insert bearing: UC315-215D1 | Housing: T315D1 | Cover: Cast iron, closed end
UCT315-300D1Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: T315D1 | Cover: None (open unit)
C-UCT315-300D1Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: T315D1 | Cover: Cast iron, open end
CM-UCT315-300D1Shaft: 3 in | Insert bearing: UC315-300D1 | Housing: T315D1 | Cover: Cast iron, closed end
UCT316D1Shaft: 80 mm | Insert bearing: UC316D1 | Housing: T316D1 | Cover: None (open unit)
C-UCT316D1Shaft: 80 mm | Insert bearing: UC316D1 | Housing: T316D1 | Cover: Cast iron, open end
CM-UCT316D1Shaft: 80 mm | Insert bearing: UC316D1 | Housing: T316D1 | Cover: Cast iron, closed end
UCT316-301D1Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: T316D1 | Cover: None (open unit)
C-UCT316-301D1Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: T316D1 | Cover: Cast iron, open end
CM-UCT316-301D1Shaft: 3-1/16 in | Insert bearing: UC316-301D1 | Housing: T316D1 | Cover: Cast iron, closed end
UCT316-302D1Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: T316D1 | Cover: None (open unit)
C-UCT316-302D1Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: T316D1 | Cover: Cast iron, open end
CM-UCT316-302D1Shaft: 3-1/8 in | Insert bearing: UC316-302D1 | Housing: T316D1 | Cover: Cast iron, closed end
UCT316-303D1Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: T316D1 | Cover: None (open unit)
C-UCT316-303D1Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: T316D1 | Cover: Cast iron, open end
CM-UCT316-303D1Shaft: 3-3/16 in | Insert bearing: UC316-303D1 | Housing: T316D1 | Cover: Cast iron, closed end
UCT317D1Shaft: 85 mm | Insert bearing: UC317D1 | Housing: T317D1 | Cover: None (open unit)
C-UCT317D1Shaft: 85 mm | Insert bearing: UC317D1 | Housing: T317D1 | Cover: Cast iron, open end
CM-UCT317D1Shaft: 85 mm | Insert bearing: UC317D1 | Housing: T317D1 | Cover: Cast iron, closed end
UCT317-304D1Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: T317D1 | Cover: None (open unit)
C-UCT317-304D1Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: T317D1 | Cover: Cast iron, open end
CM-UCT317-304D1Shaft: 3-1/4 in | Insert bearing: UC317-304D1 | Housing: T317D1 | Cover: Cast iron, closed end
UCT317-305D1Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: T317D1 | Cover: None (open unit)
C-UCT317-305D1Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: T317D1 | Cover: Cast iron, open end
CM-UCT317-305D1Shaft: 3-5/16 in | Insert bearing: UC317-305D1 | Housing: T317D1 | Cover: Cast iron, closed end
UCT317-307D1Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: T317D1 | Cover: None (open unit)
C-UCT317-307D1Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: T317D1 | Cover: Cast iron, open end
CM-UCT317-307D1Shaft: 3-7/16 in | Insert bearing: UC317-307D1 | Housing: T317D1 | Cover: Cast iron, closed end
UCT318D1Shaft: 90 mm | Insert bearing: UC318D1 | Housing: T318D1 | Cover: None (open unit)
C-UCT318D1Shaft: 90 mm | Insert bearing: UC318D1 | Housing: T318D1 | Cover: Cast iron, open end
CM-UCT318D1Shaft: 90 mm | Insert bearing: UC318D1 | Housing: T318D1 | Cover: Cast iron, closed end
UCT318-307D1Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: T318D1 | Cover: None (open unit)
C-UCT318-307D1Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: T318D1 | Cover: Cast iron, open end
CM-UCT318-307D1Shaft: 3-7/16 in | Insert bearing: UC318-307D1 | Housing: T318D1 | Cover: Cast iron, closed end
UCT318-308D1Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: T318D1 | Cover: None (open unit)
C-UCT318-308D1Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: T318D1 | Cover: Cast iron, open end
CM-UCT318-308D1Shaft: 3-1/2 in | Insert bearing: UC318-308D1 | Housing: T318D1 | Cover: Cast iron, closed end
UCT319D1Shaft: 95 mm | Insert bearing: UC319D1 | Housing: T319D1 | Cover: None (open unit)
C-UCT319D1Shaft: 95 mm | Insert bearing: UC319D1 | Housing: T319D1 | Cover: Cast iron, open end
CM-UCT319D1Shaft: 95 mm | Insert bearing: UC319D1 | Housing: T319D1 | Cover: Cast iron, closed end
UCT319-310D1Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: T319D1 | Cover: None (open unit)
C-UCT319-310D1Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: T319D1 | Cover: Cast iron, open end
CM-UCT319-310D1Shaft: 3-5/8 in | Insert bearing: UC319-310D1 | Housing: T319D1 | Cover: Cast iron, closed end
UCT319-311D1Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: T319D1 | Cover: None (open unit)
C-UCT319-311D1Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: T319D1 | Cover: Cast iron, open end
CM-UCT319-311D1Shaft: 3-11/16 in | Insert bearing: UC319-311D1 | Housing: T319D1 | Cover: Cast iron, closed end
UCT319-312D1Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: T319D1 | Cover: None (open unit)
C-UCT319-312D1Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: T319D1 | Cover: Cast iron, open end
CM-UCT319-312D1Shaft: 3-3/4 in | Insert bearing: UC319-312D1 | Housing: T319D1 | Cover: Cast iron, closed end
UCT320D1Shaft: 100 mm | Insert bearing: UC320D1 | Housing: T320D1 | Cover: None (open unit)
C-UCT320D1Shaft: 100 mm | Insert bearing: UC320D1 | Housing: T320D1 | Cover: Cast iron, open end
CM-UCT320D1Shaft: 100 mm | Insert bearing: UC320D1 | Housing: T320D1 | Cover: Cast iron, closed end
UCT320-313D1Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: T320D1 | Cover: None (open unit)
C-UCT320-313D1Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: T320D1 | Cover: Cast iron, open end
CM-UCT320-313D1Shaft: 3-13/16 in | Insert bearing: UC320-313D1 | Housing: T320D1 | Cover: Cast iron, closed end
UCT320-314D1Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: T320D1 | Cover: None (open unit)
C-UCT320-314D1Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: T320D1 | Cover: Cast iron, open end
CM-UCT320-314D1Shaft: 3-7/8 in | Insert bearing: UC320-314D1 | Housing: T320D1 | Cover: Cast iron, closed end
UCT320-315D1Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: T320D1 | Cover: None (open unit)
C-UCT320-315D1Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: T320D1 | Cover: Cast iron, open end
CM-UCT320-315D1Shaft: 3-15/16 in | Insert bearing: UC320-315D1 | Housing: T320D1 | Cover: Cast iron, closed end
UCT320-400D1Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: T320D1 | Cover: None (open unit)
C-UCT320-400D1Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: T320D1 | Cover: Cast iron, open end
CM-UCT320-400D1Shaft: 4 in | Insert bearing: UC320-400D1 | Housing: T320D1 | Cover: Cast iron, closed end
UCT321D1Shaft: 105 mm | Insert bearing: - | Housing: T321D1 | Cover: None (open unit)
C-UCT321D1Shaft: 105 mm | Insert bearing: - | Housing: T321D1 | Cover: Cast iron, open end
CM-UCT321D1Shaft: 105 mm | Insert bearing: - | Housing: T321D1 | Cover: Cast iron, closed end
UCT322D1Shaft: 110 mm | Insert bearing: - | Housing: T322D1 | Cover: None (open unit)
C-UCT322D1Shaft: 110 mm | Insert bearing: - | Housing: T322D1 | Cover: Cast iron, open end
CM-UCT322D1Shaft: 110 mm | Insert bearing: - | Housing: T322D1 | Cover: Cast iron, closed end
UCT324D1Shaft: 120 mm | Insert bearing: - | Housing: T324D1 | Cover: None (open unit)
C-UCT324D1Shaft: 120 mm | Insert bearing: - | Housing: T324D1 | Cover: Cast iron, open end
CM-UCT324D1Shaft: 120 mm | Insert bearing: - | Housing: T324D1 | Cover: Cast iron, closed end
UCT326D1Shaft: 130 mm | Insert bearing: - | Housing: T326D1 | Cover: None (open unit)
C-UCT326D1Shaft: 130 mm | Insert bearing: - | Housing: T326D1 | Cover: Cast iron, open end
CM-UCT326D1Shaft: 130 mm | Insert bearing: - | Housing: T326D1 | Cover: Cast iron, closed end
UCT328D1Shaft: 140 mm | Insert bearing: - | Housing: T328D1 | Cover: None (open unit)
C-UCT328D1Shaft: 140 mm | Insert bearing: - | Housing: T328D1 | Cover: Cast iron, open end
CM-UCT328D1Shaft: 140 mm | Insert bearing: - | Housing: T328D1 | Cover: Cast iron, closed end

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
