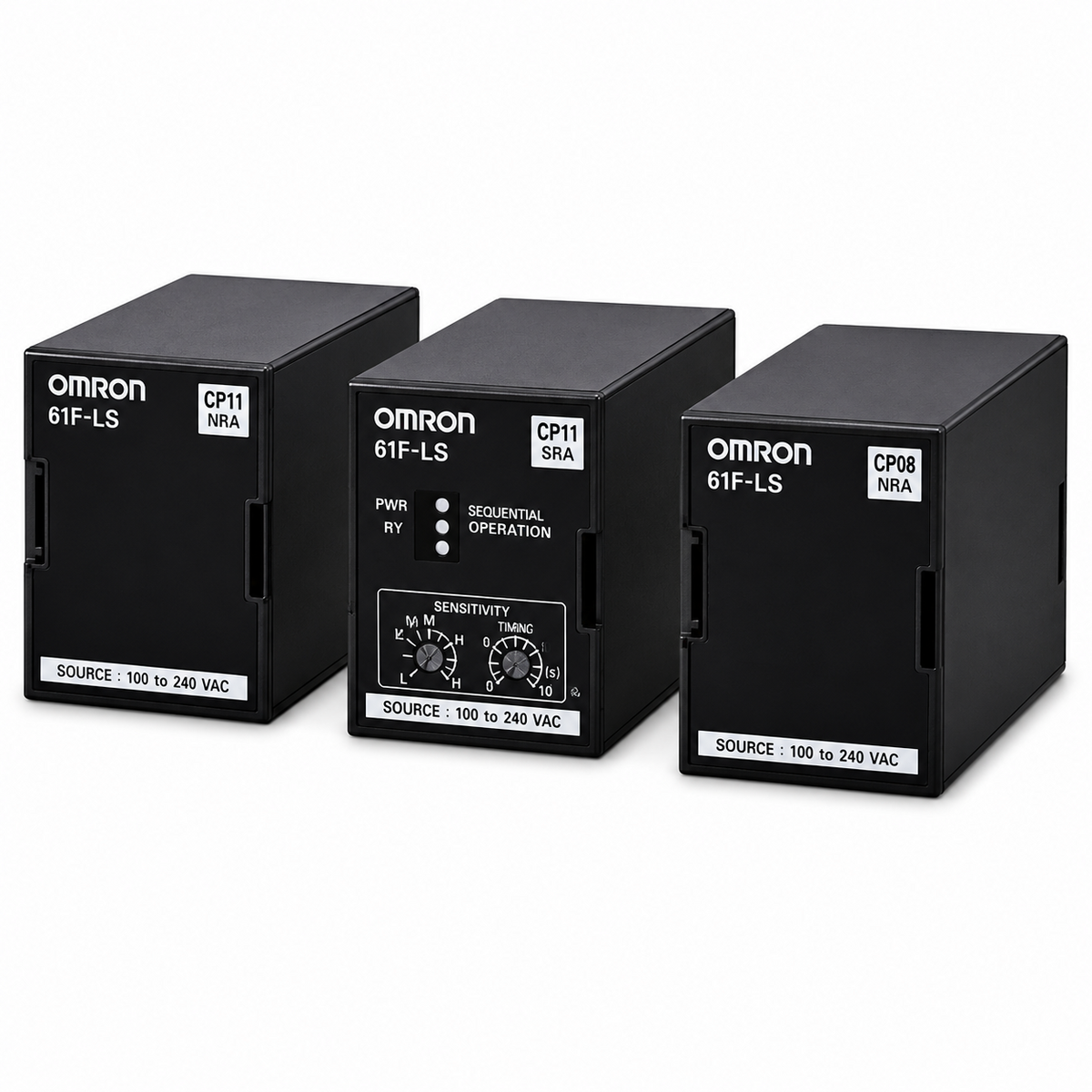

• Omron 61F-LS Floatless Level Switch (Compact Plug-in, Normal/High-func/DC, 24~240VAC/DC)
1 1

Omron 61F-LS Floatless Level Switch (Compact Plug-in, Normal/High-func/DC, 24~240VAC/DC)

Omron 61F-LS Floatless Level Switch (Compact Plug-in, Normal/High-func/DC, 24~240VAC/DC)

Consolidates the Specifications through Free Power Supply, thus Allowing Use in High Temperature Environments with Temperatures of Up to 70°C.

Specifications

Type Floatless Level Switch (Compact Plug-in)
Max Operating Temp 70°C (AC models); DC model excluded
Note Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP11-NRA 61F-LS Normal 11-pin Relay 100~240 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: Normal | Function: Standard level control | Pin Type: 11-pin | Output: Relay | Supply Voltage: 100~240 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP08-NRA 61F-LS Normal 8-pin Relay 100~240 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: Normal | Function: Standard level control | Pin Type: 8-pin | Output: Relay | Supply Voltage: 100~240 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP11-SRA 61F-LS High functionality (sequential operation) 11-pin Relay 100~240 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: High functionality (sequential operation) | Function: Sequential pump operation | Pin Type: 11-pin | Output: Relay | Supply Voltage: 100~240 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP08-SRA 61F-LS High functionality (sequential operation) 8-pin Relay 100~240 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: High functionality (sequential operation) | Function: Sequential pump operation | Pin Type: 8-pin | Output: Relay | Supply Voltage: 100~240 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP08-SRB 61F-LS High functionality (sequential operation) 8-pin Relay 24 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: High functionality (sequential operation) | Function: Sequential pump operation | Pin Type: 8-pin | Output: Relay | Supply Voltage: 24 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP11-ARA 61F-LS High functionality (advanced operation) 11-pin Relay 100~240 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: High functionality (advanced operation) | Function: Advanced level control | Pin Type: 11-pin | Output: Relay | Supply Voltage: 100~240 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP08-ARA 61F-LS High functionality (advanced operation) 8-pin Relay 100~240 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: High functionality (advanced operation) | Function: Advanced level control | Pin Type: 8-pin | Output: Relay | Supply Voltage: 100~240 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP08-ARB 61F-LS High functionality (advanced operation) 8-pin Relay 24 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: High functionality (advanced operation) | Function: Advanced level control | Pin Type: 8-pin | Output: Relay | Supply Voltage: 24 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP11-BTC 61F-LS DC power supply 11-pin Transistor 24 VDC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: DC power supply | Function: DC transistor output | Pin Type: 11-pin | Output: Transistor | Supply Voltage: 24 VDC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP11-BRC 61F-LS DC power supply 11-pin Relay 24 VDC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: DC power supply | Function: DC relay output | Pin Type: 11-pin | Output: Relay | Supply Voltage: 24 VDC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
Level SwitchesOmron
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron 61F-LS Floatless Level Switch (Compact Plug-in, Normal/High-func/DC, 24~240VAC/DC)

Brand Omron·Level Switches

Available part numbers (10)

61F-LS-CP11-NRA, 61F-LS-CP08-NRA, 61F-LS-CP11-SRA, 61F-LS-CP08-SRA, 61F-LS-CP08-SRB, 61F-LS-CP11-ARA, 61F-LS-CP08-ARA, 61F-LS-CP08-ARB, 61F-LS-CP11-BTC, 61F-LS-CP11-BRC

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
61F-LS-CP11-NRA61F-LS Normal 11-pin Relay 100~240 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: Normal | Function: Standard level control | Pin Type: 11-pin | Output: Relay | Supply Voltage: 100~240 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP08-NRA61F-LS Normal 8-pin Relay 100~240 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: Normal | Function: Standard level control | Pin Type: 8-pin | Output: Relay | Supply Voltage: 100~240 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP11-SRA61F-LS High functionality (sequential operation) 11-pin Relay 100~240 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: High functionality (sequential operation) | Function: Sequential pump operation | Pin Type: 11-pin | Output: Relay | Supply Voltage: 100~240 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP08-SRA61F-LS High functionality (sequential operation) 8-pin Relay 100~240 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: High functionality (sequential operation) | Function: Sequential pump operation | Pin Type: 8-pin | Output: Relay | Supply Voltage: 100~240 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP08-SRB61F-LS High functionality (sequential operation) 8-pin Relay 24 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: High functionality (sequential operation) | Function: Sequential pump operation | Pin Type: 8-pin | Output: Relay | Supply Voltage: 24 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP11-ARA61F-LS High functionality (advanced operation) 11-pin Relay 100~240 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: High functionality (advanced operation) | Function: Advanced level control | Pin Type: 11-pin | Output: Relay | Supply Voltage: 100~240 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP08-ARA61F-LS High functionality (advanced operation) 8-pin Relay 100~240 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: High functionality (advanced operation) | Function: Advanced level control | Pin Type: 8-pin | Output: Relay | Supply Voltage: 100~240 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP08-ARB61F-LS High functionality (advanced operation) 8-pin Relay 24 VAC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: High functionality (advanced operation) | Function: Advanced level control | Pin Type: 8-pin | Output: Relay | Supply Voltage: 24 VAC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP11-BTC61F-LS DC power supply 11-pin Transistor 24 VDC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: DC power supply | Function: DC transistor output | Pin Type: 11-pin | Output: Transistor | Supply Voltage: 24 VDC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
61F-LS-CP11-BRC61F-LS DC power supply 11-pin Relay 24 VDC | Type: Floatless Level Switch (Compact Plug-in) | Function Type: DC power supply | Function: DC relay output | Pin Type: 11-pin | Output: Relay | Supply Voltage: 24 VDC | Max Operating Temp: 70°C (AC models); DC model excluded | Note: Socket sold separately: PF113A (11-pin) / PF083A (8-pin)
