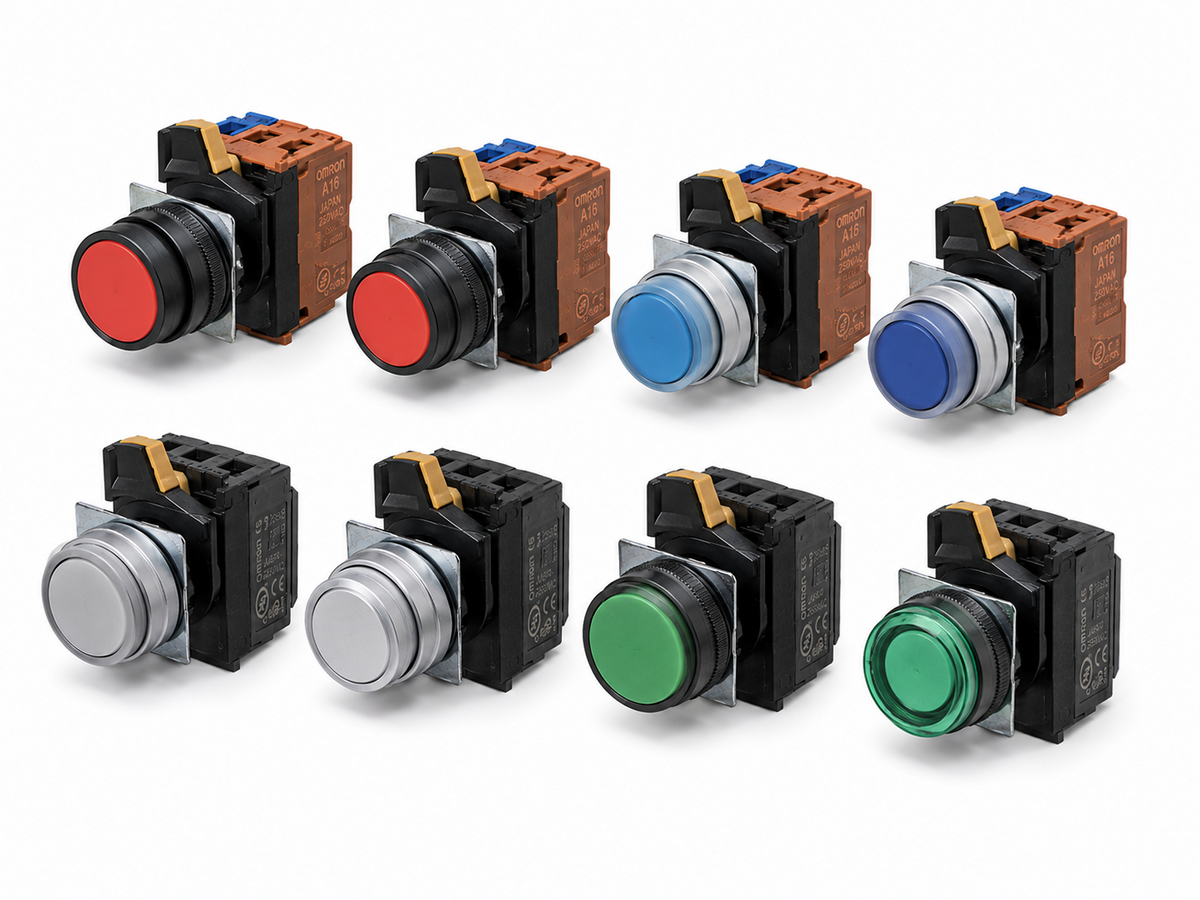

Omron A22NL Lighted Pushbutton Switch Set (22mm, Flat/Proj/Guard/Mush, Plastic+Metal, LED, Screw+Push-In)

Omron A22NL Lighted Pushbutton Switch Set (22mm, Flat/Proj/Guard/Mush, Plastic+Metal, LED, Screw+Push-In)

22-mm dia.

Key features

  • Pushbutton Switches
  • Control panel miniaturization through a more compact design and modified wiring direction

Specifications

Type Pushbutton Switch Set (Lighted, LED)
Outputs 1 output
Contact Codes 100 (SPST-NO) / 002 (SPST-NC)
Button Colors TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange)
LED Colors R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange)
LED Voltages A=6V / B=12V / C=24V / D=100-120V / E=200-240V
Note Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BNM-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Flat Plastic Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Plastic | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BNA-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Flat Plastic Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Plastic | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BNM-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Flat Plastic Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Plastic | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BNA-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Flat Plastic Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Plastic | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MNM-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Flat Brushed metal Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Brushed metal | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MNA-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Flat Brushed metal Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Brushed metal | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MNM-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Flat Brushed metal Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MNA-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Flat Brushed metal Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BPM-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Projected Plastic Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Plastic | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BPA-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Projected Plastic Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Plastic | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BPM-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Projected Plastic Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Plastic | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BPA-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Projected Plastic Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Plastic | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MPM-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Projected Brushed metal Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Brushed metal | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MPA-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Projected Brushed metal Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Brushed metal | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MPM-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Projected Brushed metal Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MPA-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Projected Brushed metal Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BGM-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Full-guard Plastic Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Plastic | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BGA-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Full-guard Plastic Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Plastic | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BGM-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Full-guard Plastic Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Plastic | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BGA-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Full-guard Plastic Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Plastic | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MGM-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Full-guard Brushed metal Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Brushed metal | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MGA-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Full-guard Brushed metal Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Brushed metal | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MGM-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Full-guard Brushed metal Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MGA-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Full-guard Brushed metal Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BMM-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Mushroom Plastic Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Plastic | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BMA-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Mushroom Plastic Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Plastic | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BMM-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Mushroom Plastic Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Plastic | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BMA-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Mushroom Plastic Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Plastic | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MMM-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Mushroom Brushed metal Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Brushed metal | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MMA-(4)(4)A-G(7)(7)(7)-(8)(9) A22NL Lighted Mushroom Brushed metal Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Brushed metal | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MMM-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Mushroom Brushed metal Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MMA-(4)(4)A-P(7)(7)(7)-(8)(9) A22NL Lighted Mushroom Brushed metal Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
SwitchesOmron
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron A22NL Lighted Pushbutton Switch Set (22mm, Flat/Proj/Guard/Mush, Plastic+Metal, LED, Screw+Push-In)

Brand Omron·Switches

Available part numbers (32)

A22NL-BNM-(4)(4)A-G(7)(7)(7)-(8)(9), A22NL-BNA-(4)(4)A-G(7)(7)(7)-(8)(9), A22NL-BNM-(4)(4)A-P(7)(7)(7)-(8)(9), A22NL-BNA-(4)(4)A-P(7)(7)(7)-(8)(9), A22NL-MNM-(4)(4)A-G(7)(7)(7)-(8)(9), A22NL-MNA-(4)(4)A-G(7)(7)(7)-(8)(9), A22NL-MNM-(4)(4)A-P(7)(7)(7)-(8)(9), A22NL-MNA-(4)(4)A-P(7)(7)(7)-(8)(9), A22NL-BPM-(4)(4)A-G(7)(7)(7)-(8)(9), A22NL-BPA-(4)(4)A-G(7)(7)(7)-(8)(9) + 22 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A22NL-BNM-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Flat Plastic Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Plastic | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BNA-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Flat Plastic Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Plastic | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BNM-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Flat Plastic Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Plastic | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BNA-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Flat Plastic Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Plastic | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MNM-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Flat Brushed metal Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Brushed metal | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MNA-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Flat Brushed metal Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Brushed metal | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MNM-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Flat Brushed metal Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MNA-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Flat Brushed metal Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Flat | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BPM-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Projected Plastic Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Plastic | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BPA-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Projected Plastic Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Plastic | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BPM-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Projected Plastic Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Plastic | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BPA-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Projected Plastic Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Plastic | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MPM-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Projected Brushed metal Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Brushed metal | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MPA-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Projected Brushed metal Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Brushed metal | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MPM-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Projected Brushed metal Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MPA-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Projected Brushed metal Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Projected | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BGM-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Full-guard Plastic Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Plastic | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BGA-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Full-guard Plastic Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Plastic | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BGM-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Full-guard Plastic Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Plastic | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BGA-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Full-guard Plastic Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Plastic | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MGM-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Full-guard Brushed metal Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Brushed metal | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MGA-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Full-guard Brushed metal Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Brushed metal | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MGM-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Full-guard Brushed metal Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MGA-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Full-guard Brushed metal Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Full-guard | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BMM-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Mushroom Plastic Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Plastic | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BMA-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Mushroom Plastic Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Plastic | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BMM-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Mushroom Plastic Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Plastic | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-BMA-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Mushroom Plastic Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Plastic | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MMM-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Mushroom Brushed metal Screw terminal Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Brushed metal | Terminal: Screw terminal | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MMA-(4)(4)A-G(7)(7)(7)-(8)(9)A22NL Lighted Mushroom Brushed metal Screw terminal Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Brushed metal | Terminal: Screw terminal | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MMM-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Mushroom Brushed metal Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A22NL-MMA-(4)(4)A-P(7)(7)(7)-(8)(9)A22NL Lighted Mushroom Brushed metal Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (Lighted, LED) | Button Shape: Mushroom | Bezel: Brushed metal | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O (Red/Green/Yellow/White/Blue/Orange) | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=button color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
