• Omron A30NL Lighted Pushbutton Switch Set (30mm, Flat/Proj/Guard/Mush, LED, Screw+Push-In)
1 1

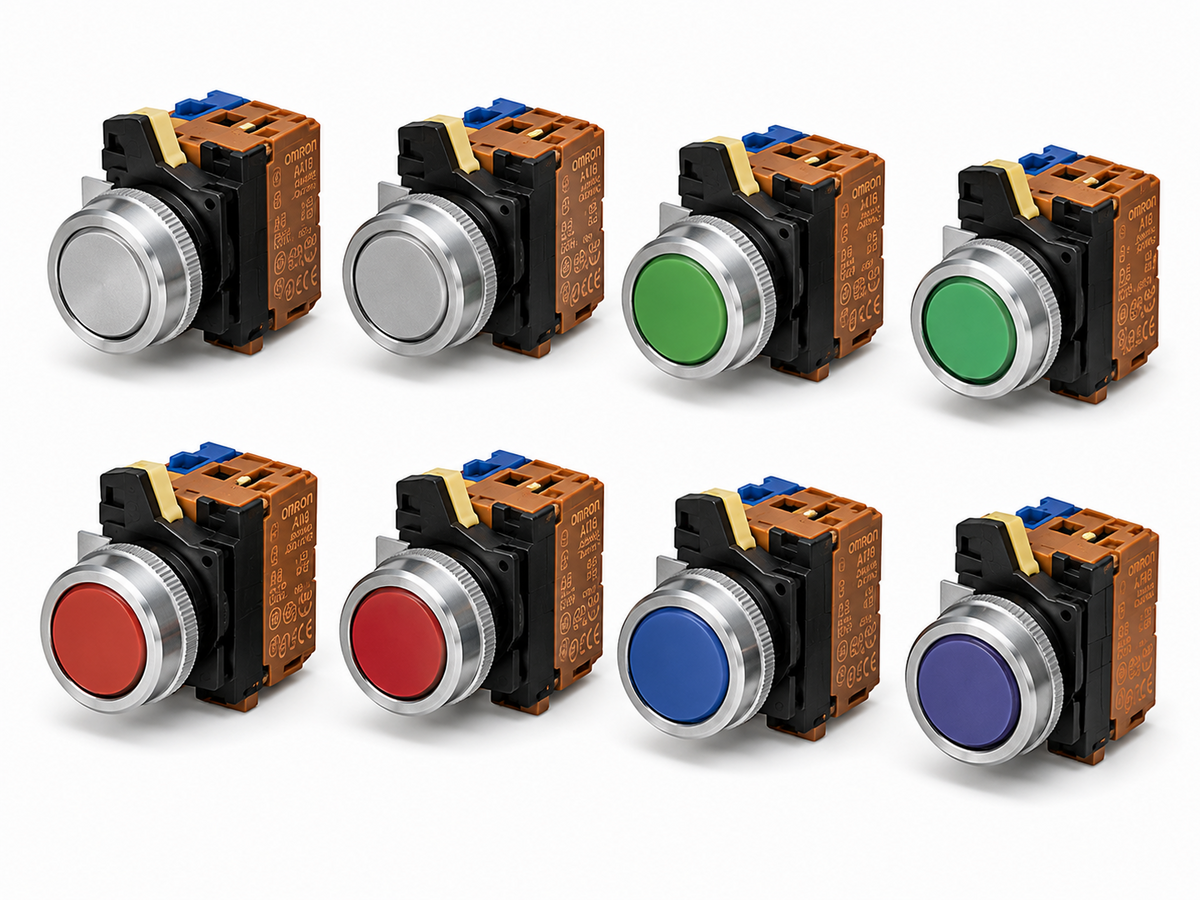

Omron A30NL Lighted Pushbutton Switch Set (30mm, Flat/Proj/Guard/Mush, LED, Screw+Push-In)

Omron A30NL Lighted Pushbutton Switch Set (30mm, Flat/Proj/Guard/Mush, LED, Screw+Push-In)

30-mm dia.

Key features

  • Pushbutton Switches Control panel miniaturization through a more compact design and modified wiring direction

Specifications

Type Pushbutton Switch Set (30mm, Lighted, Brushed metal)
Outputs 1 output
Contact Codes 100 (SPST-NO) / 002 (SPST-NC)
Button Colors TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange)
LED Colors R/G/Y/W/A/O
LED Voltages A=6V / B=12V / C=24V / D=100-120V / E=200-240V
Note Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MNM-(4)(4)A-G(7)(7)(7)-(8)(9) A30NL Lighted Flat Screw Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Flat | Terminal: Screw | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MNA-(4)(4)A-G(7)(7)(7)-(8)(9) A30NL Lighted Flat Screw Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Flat | Terminal: Screw | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MNM-(4)(4)A-P(7)(7)(7)-(8)(9) A30NL Lighted Flat Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Flat | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MNA-(4)(4)A-P(7)(7)(7)-(8)(9) A30NL Lighted Flat Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Flat | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MPM-(4)(4)A-G(7)(7)(7)-(8)(9) A30NL Lighted Projected Screw Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Projected | Terminal: Screw | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MPA-(4)(4)A-G(7)(7)(7)-(8)(9) A30NL Lighted Projected Screw Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Projected | Terminal: Screw | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MPM-(4)(4)A-P(7)(7)(7)-(8)(9) A30NL Lighted Projected Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Projected | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MPA-(4)(4)A-P(7)(7)(7)-(8)(9) A30NL Lighted Projected Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Projected | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MGM-(4)(4)A-G(7)(7)(7)-(8)(9) A30NL Lighted Full-guard Screw Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Full-guard | Terminal: Screw | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MGA-(4)(4)A-G(7)(7)(7)-(8)(9) A30NL Lighted Full-guard Screw Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Full-guard | Terminal: Screw | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MGM-(4)(4)A-P(7)(7)(7)-(8)(9) A30NL Lighted Full-guard Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Full-guard | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MGA-(4)(4)A-P(7)(7)(7)-(8)(9) A30NL Lighted Full-guard Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Full-guard | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MMM-(4)(4)A-G(7)(7)(7)-(8)(9) A30NL Lighted Mushroom Screw Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Mushroom | Terminal: Screw | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MMA-(4)(4)A-G(7)(7)(7)-(8)(9) A30NL Lighted Mushroom Screw Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Mushroom | Terminal: Screw | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MMM-(4)(4)A-P(7)(7)(7)-(8)(9) A30NL Lighted Mushroom Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Mushroom | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MMA-(4)(4)A-P(7)(7)(7)-(8)(9) A30NL Lighted Mushroom Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Mushroom | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
SwitchesOmron
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron A30NL Lighted Pushbutton Switch Set (30mm, Flat/Proj/Guard/Mush, LED, Screw+Push-In)

Brand Omron·Switches

Available part numbers (16)

A30NL-MNM-(4)(4)A-G(7)(7)(7)-(8)(9), A30NL-MNA-(4)(4)A-G(7)(7)(7)-(8)(9), A30NL-MNM-(4)(4)A-P(7)(7)(7)-(8)(9), A30NL-MNA-(4)(4)A-P(7)(7)(7)-(8)(9), A30NL-MPM-(4)(4)A-G(7)(7)(7)-(8)(9), A30NL-MPA-(4)(4)A-G(7)(7)(7)-(8)(9), A30NL-MPM-(4)(4)A-P(7)(7)(7)-(8)(9), A30NL-MPA-(4)(4)A-P(7)(7)(7)-(8)(9), A30NL-MGM-(4)(4)A-G(7)(7)(7)-(8)(9), A30NL-MGA-(4)(4)A-G(7)(7)(7)-(8)(9) + 6 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A30NL-MNM-(4)(4)A-G(7)(7)(7)-(8)(9)A30NL Lighted Flat Screw Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Flat | Terminal: Screw | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MNA-(4)(4)A-G(7)(7)(7)-(8)(9)A30NL Lighted Flat Screw Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Flat | Terminal: Screw | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MNM-(4)(4)A-P(7)(7)(7)-(8)(9)A30NL Lighted Flat Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Flat | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MNA-(4)(4)A-P(7)(7)(7)-(8)(9)A30NL Lighted Flat Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Flat | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MPM-(4)(4)A-G(7)(7)(7)-(8)(9)A30NL Lighted Projected Screw Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Projected | Terminal: Screw | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MPA-(4)(4)A-G(7)(7)(7)-(8)(9)A30NL Lighted Projected Screw Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Projected | Terminal: Screw | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MPM-(4)(4)A-P(7)(7)(7)-(8)(9)A30NL Lighted Projected Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Projected | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MPA-(4)(4)A-P(7)(7)(7)-(8)(9)A30NL Lighted Projected Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Projected | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MGM-(4)(4)A-G(7)(7)(7)-(8)(9)A30NL Lighted Full-guard Screw Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Full-guard | Terminal: Screw | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MGA-(4)(4)A-G(7)(7)(7)-(8)(9)A30NL Lighted Full-guard Screw Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Full-guard | Terminal: Screw | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MGM-(4)(4)A-P(7)(7)(7)-(8)(9)A30NL Lighted Full-guard Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Full-guard | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MGA-(4)(4)A-P(7)(7)(7)-(8)(9)A30NL Lighted Full-guard Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Full-guard | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MMM-(4)(4)A-G(7)(7)(7)-(8)(9)A30NL Lighted Mushroom Screw Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Mushroom | Terminal: Screw | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MMA-(4)(4)A-G(7)(7)(7)-(8)(9)A30NL Lighted Mushroom Screw Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Mushroom | Terminal: Screw | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MMM-(4)(4)A-P(7)(7)(7)-(8)(9)A30NL Lighted Mushroom Push-In Plus Momentary 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Mushroom | Terminal: Push-In Plus | Action: Momentary | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
A30NL-MMA-(4)(4)A-P(7)(7)(7)-(8)(9)A30NL Lighted Mushroom Push-In Plus Alternate 1 output | Type: Pushbutton Switch Set (30mm, Lighted, Brushed metal) | Shape: Mushroom | Terminal: Push-In Plus | Action: Alternate | Outputs: 1 output | Contact Codes: 100 (SPST-NO) / 002 (SPST-NC) | Button Colors: TR/TG/TY/TW/TA/TO (transparent Red/Green/Yellow/White/Blue/Orange) | LED Colors: R/G/Y/W/A/O | LED Voltages: A=6V / B=12V / C=24V / D=100-120V / E=200-240V | Note: Replace (4)(4)=color, (7)(7)(7)=contact code, (8)=LED color, (9)=voltage when ordering
