• Omron A3SA Lighted Pushbutton Switch Set (Square 40mm, Standard load, SPDT/DPDT, 5/12/24V)
1 1

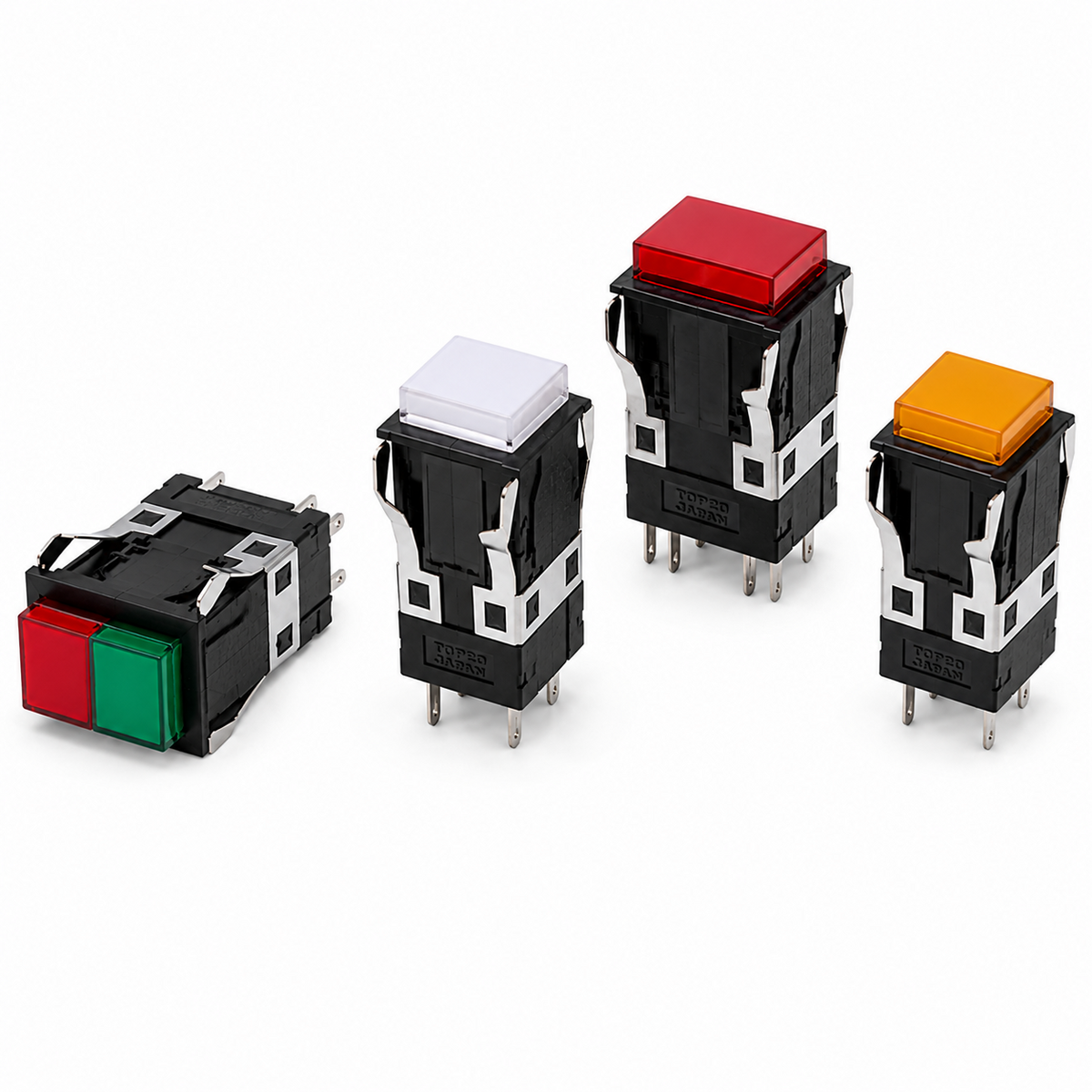

Omron A3SA Lighted Pushbutton Switch Set (Square 40mm, Standard load, SPDT/DPDT, 5/12/24V)

Omron A3SA Lighted Pushbutton Switch Set (Square 40mm, Standard load, SPDT/DPDT, 5/12/24V)

Pushbutton Switch Series with Square 40-mm Body.

Specifications

Type Lighted Pushbutton Switch Set (A3SA Square)
Load Standard (250VAC 2A)
Screen Single
Button Colors R / Y / G / W
Note Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90A1-5E[] A3SA Std SPDT Momentary 5 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Momentary | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90B1-5E[] A3SA Std SPDT Alternate 5 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Alternate | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90A1-12E[] A3SA Std SPDT Momentary 12 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Momentary | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90B1-12E[] A3SA Std SPDT Alternate 12 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Alternate | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90A1-24E[] A3SA Std SPDT Momentary 24 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Momentary | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90B1-24E[] A3SA Std SPDT Alternate 24 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Alternate | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90C1-5E[] A3SA Std DPDT Momentary 5 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Momentary | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90D1-5E[] A3SA Std DPDT Alternate 5 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Alternate | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90C1-12E[] A3SA Std DPDT Momentary 12 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Momentary | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90D1-12E[] A3SA Std DPDT Alternate 12 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Alternate | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90C1-24E[] A3SA Std DPDT Momentary 24 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Momentary | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90D1-24E[] A3SA Std DPDT Alternate 24 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Alternate | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
SwitchesOmron
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron A3SA Lighted Pushbutton Switch Set (Square 40mm, Standard load, SPDT/DPDT, 5/12/24V)

Brand Omron·Switches

Available part numbers (12)

A3SA-90A1-5E[], A3SA-90B1-5E[], A3SA-90A1-12E[], A3SA-90B1-12E[], A3SA-90A1-24E[], A3SA-90B1-24E[], A3SA-90C1-5E[], A3SA-90D1-5E[], A3SA-90C1-12E[], A3SA-90D1-12E[] + 2 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A3SA-90A1-5E[]A3SA Std SPDT Momentary 5 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Momentary | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90B1-5E[]A3SA Std SPDT Alternate 5 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Alternate | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90A1-12E[]A3SA Std SPDT Momentary 12 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Momentary | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90B1-12E[]A3SA Std SPDT Alternate 12 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Alternate | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90A1-24E[]A3SA Std SPDT Momentary 24 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Momentary | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90B1-24E[]A3SA Std SPDT Alternate 24 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Alternate | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90C1-5E[]A3SA Std DPDT Momentary 5 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Momentary | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90D1-5E[]A3SA Std DPDT Alternate 5 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Alternate | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90C1-12E[]A3SA Std DPDT Momentary 12 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Momentary | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90D1-12E[]A3SA Std DPDT Alternate 12 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Alternate | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90C1-24E[]A3SA Std DPDT Momentary 24 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Momentary | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SA-90D1-24E[]A3SA Std DPDT Alternate 24 VDC | Type: Lighted Pushbutton Switch Set (A3SA Square) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Alternate | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
