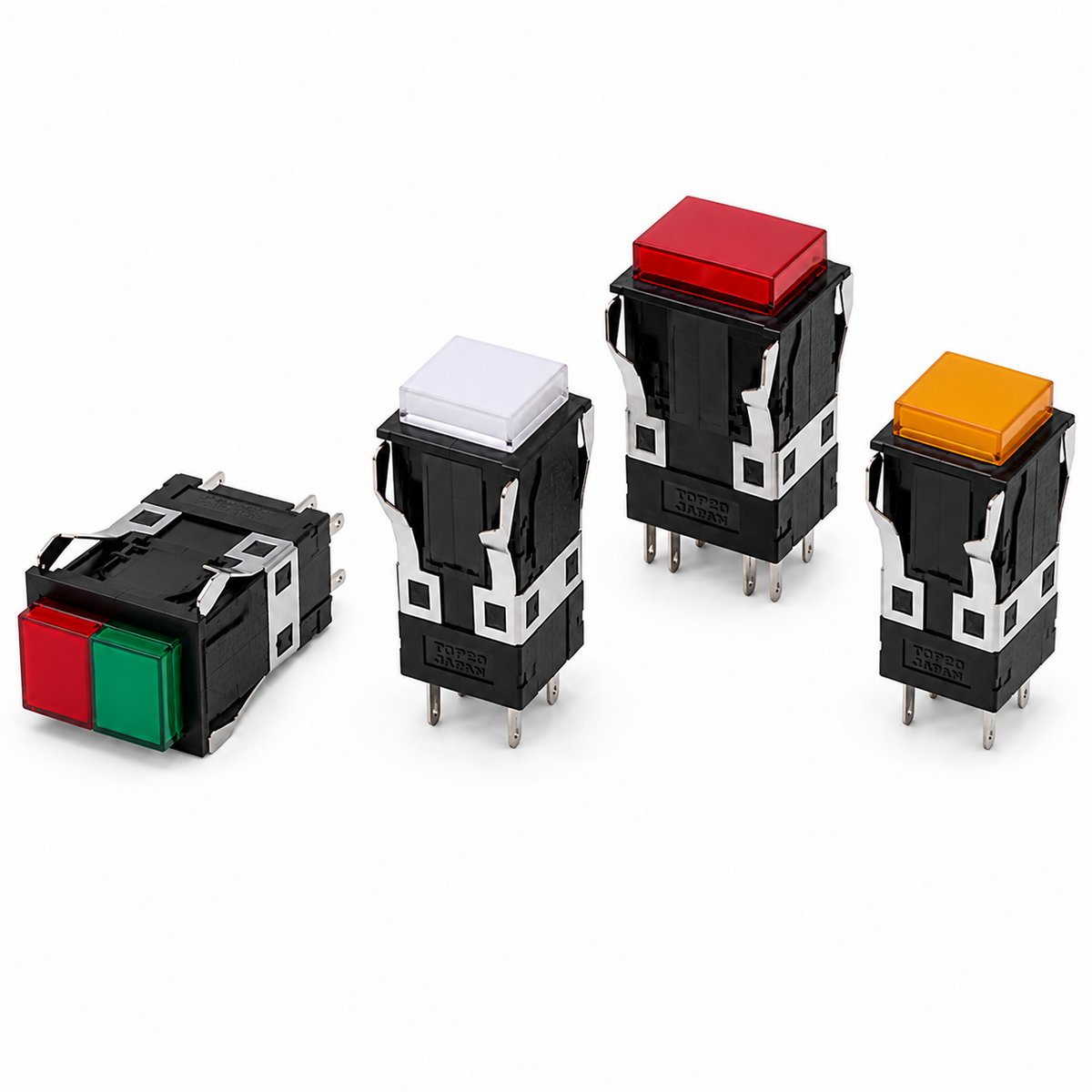

Omron A3SJ Lighted Pushbutton Switch Set (Rectangular 40mm, Standard load, Single+2-split, 5/12/24V)

Omron A3SJ Lighted Pushbutton Switch Set (Rectangular 40mm, Standard load, Single+2-split, 5/12/24V)

Pushbutton Switch Series with Square 40-mm Body.

Specifications

Type Lighted Pushbutton Switch Set (A3SJ Rectangular)
Button Colors R / Y / G / W
A3SJ-90A1-5E[] A3SJ Std SPDT Momentary 5 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Momentary | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90B1-5E[] A3SJ Std SPDT Alternate 5 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Alternate | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90A1-12E[] A3SJ Std SPDT Momentary 12 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Momentary | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90B1-12E[] A3SJ Std SPDT Alternate 12 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Alternate | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90A1-24E[] A3SJ Std SPDT Momentary 24 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Momentary | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90B1-24E[] A3SJ Std SPDT Alternate 24 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Alternate | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90C1-5E[] A3SJ Std DPDT Momentary 5 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Momentary | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90D1-5E[] A3SJ Std DPDT Alternate 5 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Alternate | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90C1-12E[] A3SJ Std DPDT Momentary 12 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Momentary | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90D1-12E[] A3SJ Std DPDT Alternate 12 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Alternate | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90C1-24E[] A3SJ Std DPDT Momentary 24 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Momentary | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90D1-24E[] A3SJ Std DPDT Alternate 24 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Alternate | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90A3-24E[][] A3SJ Std SPDT Momentary 24V 2-split | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard | Output: SPDT | Action: Momentary | Voltage: 24 VDC | Screen: Vertical 2-split | Button Colors: R / Y / G / W | Note: Replace [][] with two color codes for 2-split screen (top/bottom)
A3SJ-90B3-24E[][] A3SJ Std SPDT Alternate 24V 2-split | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard | Output: SPDT | Action: Alternate | Voltage: 24 VDC | Screen: Vertical 2-split | Button Colors: R / Y / G / W | Note: Replace [][] with two color codes for 2-split screen (top/bottom)
A3SJ-90C3-24E[][] A3SJ Std DPDT Momentary 24V 2-split | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard | Output: DPDT | Action: Momentary | Voltage: 24 VDC | Screen: Vertical 2-split | Button Colors: R / Y / G / W | Note: Replace [][] with two color codes for 2-split screen (top/bottom)
A3SJ-90D3-24E[][] A3SJ Std DPDT Alternate 24V 2-split | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard | Output: DPDT | Action: Alternate | Voltage: 24 VDC | Screen: Vertical 2-split | Button Colors: R / Y / G / W | Note: Replace [][] with two color codes for 2-split screen (top/bottom)
SwitchesOmron
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron A3SJ Lighted Pushbutton Switch Set (Rectangular 40mm, Standard load, Single+2-split, 5/12/24V)

Brand Omron·Switches

Available part numbers (16)

A3SJ-90A1-5E[], A3SJ-90B1-5E[], A3SJ-90A1-12E[], A3SJ-90B1-12E[], A3SJ-90A1-24E[], A3SJ-90B1-24E[], A3SJ-90C1-5E[], A3SJ-90D1-5E[], A3SJ-90C1-12E[], A3SJ-90D1-12E[] + 6 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A3SJ-90A1-5E[]A3SJ Std SPDT Momentary 5 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Momentary | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90B1-5E[]A3SJ Std SPDT Alternate 5 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Alternate | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90A1-12E[]A3SJ Std SPDT Momentary 12 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Momentary | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90B1-12E[]A3SJ Std SPDT Alternate 12 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Alternate | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90A1-24E[]A3SJ Std SPDT Momentary 24 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Momentary | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90B1-24E[]A3SJ Std SPDT Alternate 24 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: SPDT | Action: Alternate | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90C1-5E[]A3SJ Std DPDT Momentary 5 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Momentary | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90D1-5E[]A3SJ Std DPDT Alternate 5 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Alternate | Voltage: 5 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90C1-12E[]A3SJ Std DPDT Momentary 12 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Momentary | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90D1-12E[]A3SJ Std DPDT Alternate 12 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Alternate | Voltage: 12 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90C1-24E[]A3SJ Std DPDT Momentary 24 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Momentary | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90D1-24E[]A3SJ Std DPDT Alternate 24 VDC | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard (250VAC 2A) | Output: DPDT | Action: Alternate | Voltage: 24 VDC | Screen: Single | Button Colors: R / Y / G / W | Note: Replace [] with color: R=Red / Y=Yellow / G=Green / W=White
A3SJ-90A3-24E[][]A3SJ Std SPDT Momentary 24V 2-split | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard | Output: SPDT | Action: Momentary | Voltage: 24 VDC | Screen: Vertical 2-split | Button Colors: R / Y / G / W | Note: Replace [][] with two color codes for 2-split screen (top/bottom)
A3SJ-90B3-24E[][]A3SJ Std SPDT Alternate 24V 2-split | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard | Output: SPDT | Action: Alternate | Voltage: 24 VDC | Screen: Vertical 2-split | Button Colors: R / Y / G / W | Note: Replace [][] with two color codes for 2-split screen (top/bottom)
A3SJ-90C3-24E[][]A3SJ Std DPDT Momentary 24V 2-split | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard | Output: DPDT | Action: Momentary | Voltage: 24 VDC | Screen: Vertical 2-split | Button Colors: R / Y / G / W | Note: Replace [][] with two color codes for 2-split screen (top/bottom)
A3SJ-90D3-24E[][]A3SJ Std DPDT Alternate 24V 2-split | Type: Lighted Pushbutton Switch Set (A3SJ Rectangular) | Load: Standard | Output: DPDT | Action: Alternate | Voltage: 24 VDC | Screen: Vertical 2-split | Button Colors: R / Y / G / W | Note: Replace [][] with two color codes for 2-split screen (top/bottom)
