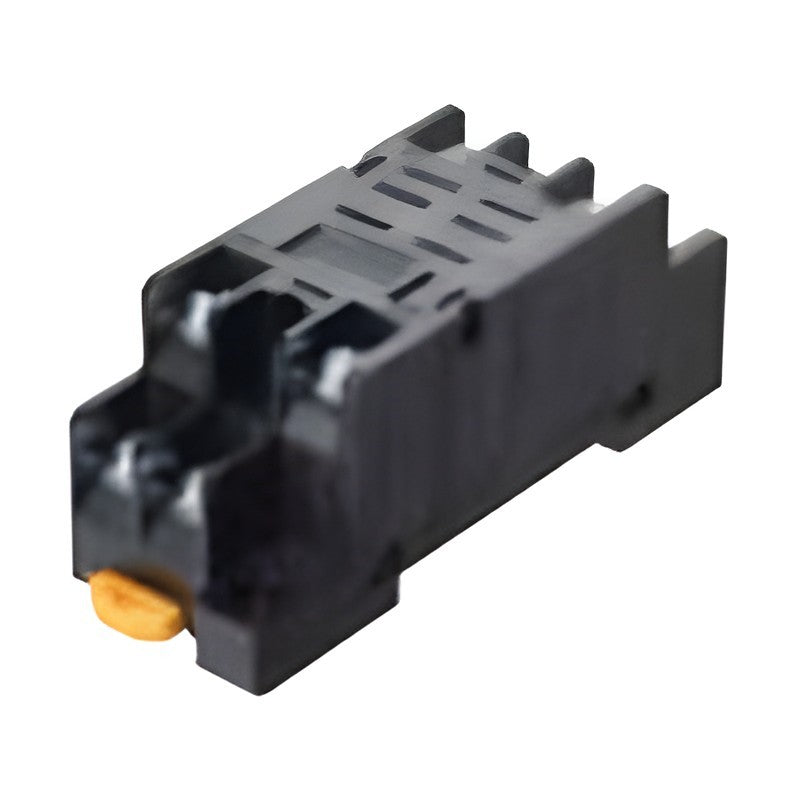

Omron P2RFZ/P2R/P7TF/P7LF Common Sockets (Slim Square Type)

Slim square common sockets for G2R-S and similar relays (P2RFZ front-mounting, P2R back-mounting), plus P7TF-05 and P7LF-06 front-mounting sockets.

Key features

P2RFZ front-mounting screw sockets, 5 and 8 pins
-E types provide finger protection (forked crimp terminals)
P2R back-mounting sockets with solder or PCB terminals
P7TF-05 5-pin and P7LF-06 6-pin (30 A) front-mounting sockets
P2DN short bars and P2CZ-C terminal covers available for P2RFZ

Specifications

Brand	Omron
Product	Common socket, slim square type
Pin counts	5 / 6 / 8 pins
Insulation resistance	1,000 MOhm min.
Dielectric (coil-contact)	4,000 VAC 1 min (P2RFZ, P2R)
Source	Omron Common Sockets data sheet CSM_common_sockets_DS_E_6_10 (English ed.), p. 1, 3, 7

P7LF-06

Pins: 6 | Connection: Front (surface) connecting | Terminal: Screw | Carry current: 30 A

Relay SocketsOmron

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron P2RFZ/P2R/P7TF/P7LF Common Sockets (Slim Square Type)

Brand Omron·Relay Sockets

Available part numbers (1)

P7LF-06

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
