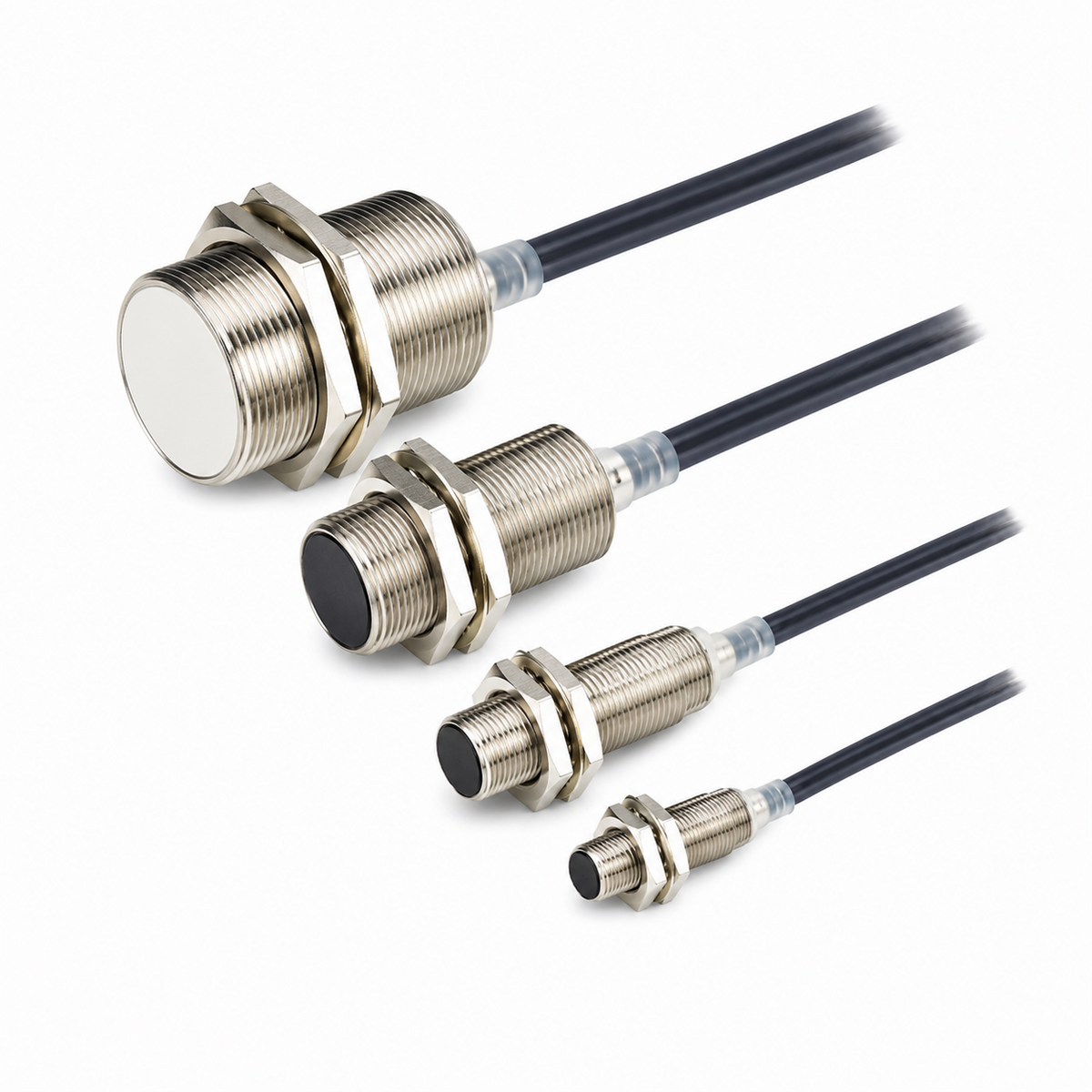

Omron E2E AC 2-Wire Proximity Sensor (Shielded, M12/M18/M30, NO/NC)

OMRON E2E Series AC 2-wire shielded proximity sensors.

Key features

M12 (2mm), M18 (5mm), M30 (10mm)
NO and NC
PVC oil-resistant cable
Pre-wired 2m and M12 connector
UL and frequency variants also available

Specifications

Shield	Shielded
Wire	AC 2-wire
Cable	PVC oil-resistant
Note	Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4

E2E-X2Y1 2M		AC 2W shielded M12 2 mm NO 2m \| Size: M12 \| Sensing Distance: 2 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: Pre-wired 2 m
E2E-X2Y1-M1		AC 2W shielded M12 2 mm NO M12 conn \| Size: M12 \| Sensing Distance: 2 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: M12 Connector \| Pin Arrangement: (3, 4): (AC, AC)
E2E-X2Y2 2M		AC 2W shielded M12 2 mm NC 2m \| Size: M12 \| Sensing Distance: 2 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: Pre-wired 2 m
E2E-X2Y2-M1		AC 2W shielded M12 2 mm NC M12 conn \| Size: M12 \| Sensing Distance: 2 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: M12 Connector \| Pin Arrangement: (1, 2): (AC, AC)
E2E-X5Y1 2M		AC 2W shielded M18 5 mm NO 2m \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: Pre-wired 2 m
E2E-X5Y1-M1		AC 2W shielded M18 5 mm NO M12 conn \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: M12 Connector \| Pin Arrangement: (3, 4): (AC, AC)
E2E-X5Y2 2M		AC 2W shielded M18 5 mm NC 2m \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: Pre-wired 2 m
E2E-X5Y2-M1		AC 2W shielded M18 5 mm NC M12 conn \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: M12 Connector \| Pin Arrangement: (1, 2): (AC, AC)
E2E-X10Y1 2M		AC 2W shielded M30 10 mm NO 2m \| Size: M30 \| Sensing Distance: 10 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: Pre-wired 2 m
E2E-X10Y1-M1		AC 2W shielded M30 10 mm NO M12 conn \| Size: M30 \| Sensing Distance: 10 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: M12 Connector \| Pin Arrangement: (3, 4): (AC, AC)
E2E-X10Y2 2M		AC 2W shielded M30 10 mm NC 2m \| Size: M30 \| Sensing Distance: 10 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: Pre-wired 2 m
E2E-X10Y2-M1		AC 2W shielded M30 10 mm NC M12 conn \| Size: M30 \| Sensing Distance: 10 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: M12 Connector \| Pin Arrangement: (1, 2): (AC, AC)

ProximityOmron

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2E AC 2-Wire Proximity Sensor (Shielded, M12/M18/M30, NO/NC)

Brand Omron·Proximity

Available part numbers (12)

E2E-X2Y1 2M, E2E-X2Y1-M1, E2E-X2Y2 2M, E2E-X2Y2-M1, E2E-X5Y1 2M, E2E-X5Y1-M1, E2E-X5Y2 2M, E2E-X5Y2-M1, E2E-X10Y1 2M, E2E-X10Y1-M1 + 2 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	E2E-X2Y1 2M	AC 2W shielded M12 2 mm NO 2m \| Size: M12 \| Sensing Distance: 2 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: Pre-wired 2 m
	E2E-X2Y1-M1	AC 2W shielded M12 2 mm NO M12 conn \| Size: M12 \| Sensing Distance: 2 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: M12 Connector \| Pin Arrangement: (3, 4): (AC, AC)
	E2E-X2Y2 2M	AC 2W shielded M12 2 mm NC 2m \| Size: M12 \| Sensing Distance: 2 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: Pre-wired 2 m
	E2E-X2Y2-M1	AC 2W shielded M12 2 mm NC M12 conn \| Size: M12 \| Sensing Distance: 2 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: M12 Connector \| Pin Arrangement: (1, 2): (AC, AC)
	E2E-X5Y1 2M	AC 2W shielded M18 5 mm NO 2m \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: Pre-wired 2 m
	E2E-X5Y1-M1	AC 2W shielded M18 5 mm NO M12 conn \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: M12 Connector \| Pin Arrangement: (3, 4): (AC, AC)
	E2E-X5Y2 2M	AC 2W shielded M18 5 mm NC 2m \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: Pre-wired 2 m
	E2E-X5Y2-M1	AC 2W shielded M18 5 mm NC M12 conn \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: M12 Connector \| Pin Arrangement: (1, 2): (AC, AC)
	E2E-X10Y1 2M	AC 2W shielded M30 10 mm NO 2m \| Size: M30 \| Sensing Distance: 10 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: Pre-wired 2 m
	E2E-X10Y1-M1	AC 2W shielded M30 10 mm NO M12 conn \| Size: M30 \| Sensing Distance: 10 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: M12 Connector \| Pin Arrangement: (3, 4): (AC, AC)
	E2E-X10Y2 2M	AC 2W shielded M30 10 mm NC 2m \| Size: M30 \| Sensing Distance: 10 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: Pre-wired 2 m
	E2E-X10Y2-M1	AC 2W shielded M30 10 mm NC M12 conn \| Size: M30 \| Sensing Distance: 10 mm \| Shield: Shielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]Y[]5; UL model: E2E-X[]Y[]-US; M4 conn: E2E-X[]Y[]-M4 \| Connection: M12 Connector \| Pin Arrangement: (1, 2): (AC, AC)

Need a different model, or a part not listed here? Send us your parts list →
