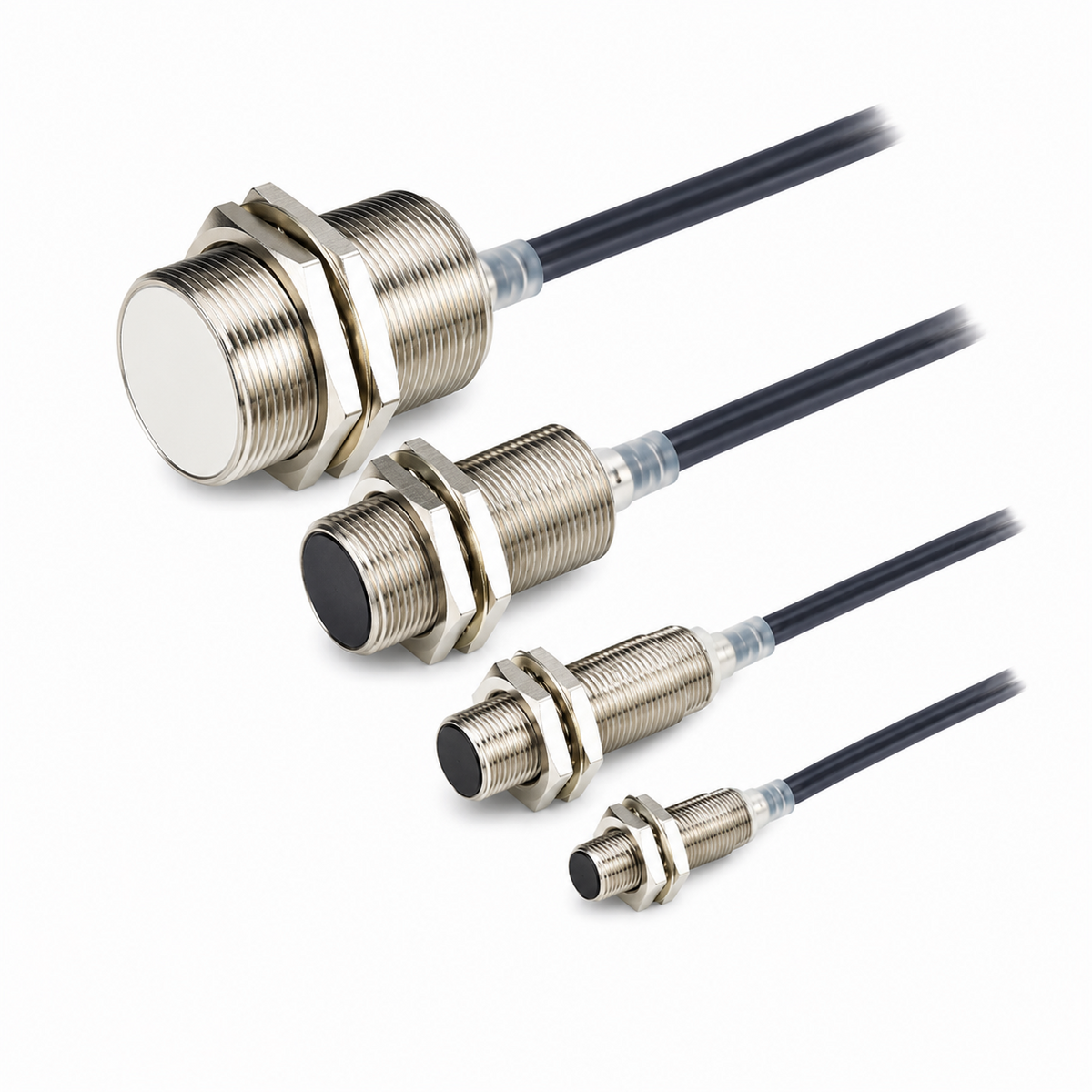

Omron E2E AC 2-Wire Proximity Sensor (Unshielded, M12/M18/M30, NO/NC)

OMRON E2E Series AC 2-wire unshielded proximity sensors.

Key features

M12 (5mm), M18 (10mm), M30 (18mm)
NO and NC
PVC oil-resistant cable
Pre-wired 2m and M12 connector
UL and frequency variants also available

Specifications

Shield	Unshielded
Wire	AC 2-wire
Cable	PVC oil-resistant
Note	Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US

E2E-X5MY1 2M		AC 2W unshielded M12 5 mm NO 2m \| Size: M12 \| Sensing Distance: 5 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: Pre-wired 2 m
E2E-X5MY1-M1		AC 2W unshielded M12 5 mm NO M12 conn \| Size: M12 \| Sensing Distance: 5 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: M12 Connector \| Pin Arrangement: (3, 4): (AC, AC)
E2E-X5MY2 2M		AC 2W unshielded M12 5 mm NC 2m \| Size: M12 \| Sensing Distance: 5 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: Pre-wired 2 m
E2E-X5MY2-M1		AC 2W unshielded M12 5 mm NC M12 conn \| Size: M12 \| Sensing Distance: 5 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: M12 Connector \| Pin Arrangement: (1, 2): (AC, AC)
E2E-X10MY1 2M		AC 2W unshielded M18 10 mm NO 2m \| Size: M18 \| Sensing Distance: 10 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: Pre-wired 2 m
E2E-X10MY1-M1		AC 2W unshielded M18 10 mm NO M12 conn \| Size: M18 \| Sensing Distance: 10 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: M12 Connector \| Pin Arrangement: (3, 4): (AC, AC)
E2E-X10MY2 2M		AC 2W unshielded M18 10 mm NC 2m \| Size: M18 \| Sensing Distance: 10 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: Pre-wired 2 m
E2E-X10MY2-M1		AC 2W unshielded M18 10 mm NC M12 conn \| Size: M18 \| Sensing Distance: 10 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: M12 Connector \| Pin Arrangement: (1, 2): (AC, AC)
E2E-X18MY1 2M		AC 2W unshielded M30 18 mm NO 2m \| Size: M30 \| Sensing Distance: 18 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: Pre-wired 2 m
E2E-X18MY1-M1		AC 2W unshielded M30 18 mm NO M12 conn \| Size: M30 \| Sensing Distance: 18 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: M12 Connector \| Pin Arrangement: (3, 4): (AC, AC)
E2E-X18MY2 2M		AC 2W unshielded M30 18 mm NC 2m \| Size: M30 \| Sensing Distance: 18 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: Pre-wired 2 m
E2E-X18MY2-M1		AC 2W unshielded M30 18 mm NC M12 conn \| Size: M30 \| Sensing Distance: 18 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: M12 Connector \| Pin Arrangement: (1, 2): (AC, AC)

ProximityOmron

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2E AC 2-Wire Proximity Sensor (Unshielded, M12/M18/M30, NO/NC)

Brand Omron·Proximity

Available part numbers (12)

E2E-X5MY1 2M, E2E-X5MY1-M1, E2E-X5MY2 2M, E2E-X5MY2-M1, E2E-X10MY1 2M, E2E-X10MY1-M1, E2E-X10MY2 2M, E2E-X10MY2-M1, E2E-X18MY1 2M, E2E-X18MY1-M1 + 2 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	E2E-X5MY1 2M	AC 2W unshielded M12 5 mm NO 2m \| Size: M12 \| Sensing Distance: 5 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: Pre-wired 2 m
	E2E-X5MY1-M1	AC 2W unshielded M12 5 mm NO M12 conn \| Size: M12 \| Sensing Distance: 5 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: M12 Connector \| Pin Arrangement: (3, 4): (AC, AC)
	E2E-X5MY2 2M	AC 2W unshielded M12 5 mm NC 2m \| Size: M12 \| Sensing Distance: 5 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: Pre-wired 2 m
	E2E-X5MY2-M1	AC 2W unshielded M12 5 mm NC M12 conn \| Size: M12 \| Sensing Distance: 5 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: M12 Connector \| Pin Arrangement: (1, 2): (AC, AC)
	E2E-X10MY1 2M	AC 2W unshielded M18 10 mm NO 2m \| Size: M18 \| Sensing Distance: 10 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: Pre-wired 2 m
	E2E-X10MY1-M1	AC 2W unshielded M18 10 mm NO M12 conn \| Size: M18 \| Sensing Distance: 10 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: M12 Connector \| Pin Arrangement: (3, 4): (AC, AC)
	E2E-X10MY2 2M	AC 2W unshielded M18 10 mm NC 2m \| Size: M18 \| Sensing Distance: 10 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: Pre-wired 2 m
	E2E-X10MY2-M1	AC 2W unshielded M18 10 mm NC M12 conn \| Size: M18 \| Sensing Distance: 10 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: M12 Connector \| Pin Arrangement: (1, 2): (AC, AC)
	E2E-X18MY1 2M	AC 2W unshielded M30 18 mm NO 2m \| Size: M30 \| Sensing Distance: 18 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: Pre-wired 2 m
	E2E-X18MY1-M1	AC 2W unshielded M30 18 mm NO M12 conn \| Size: M30 \| Sensing Distance: 18 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NO \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: M12 Connector \| Pin Arrangement: (3, 4): (AC, AC)
	E2E-X18MY2 2M	AC 2W unshielded M30 18 mm NC 2m \| Size: M30 \| Sensing Distance: 18 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: Pre-wired 2 m
	E2E-X18MY2-M1	AC 2W unshielded M30 18 mm NC M12 conn \| Size: M30 \| Sensing Distance: 18 mm \| Shield: Unshielded \| Wire: AC 2-wire \| Cable: PVC oil-resistant \| Operation Mode: NC \| Note: Freq variant: E2E-X[]MY[]5; UL model: E2E-X[]MY[]-US \| Connection: M12 Connector \| Pin Arrangement: (1, 2): (AC, AC)
