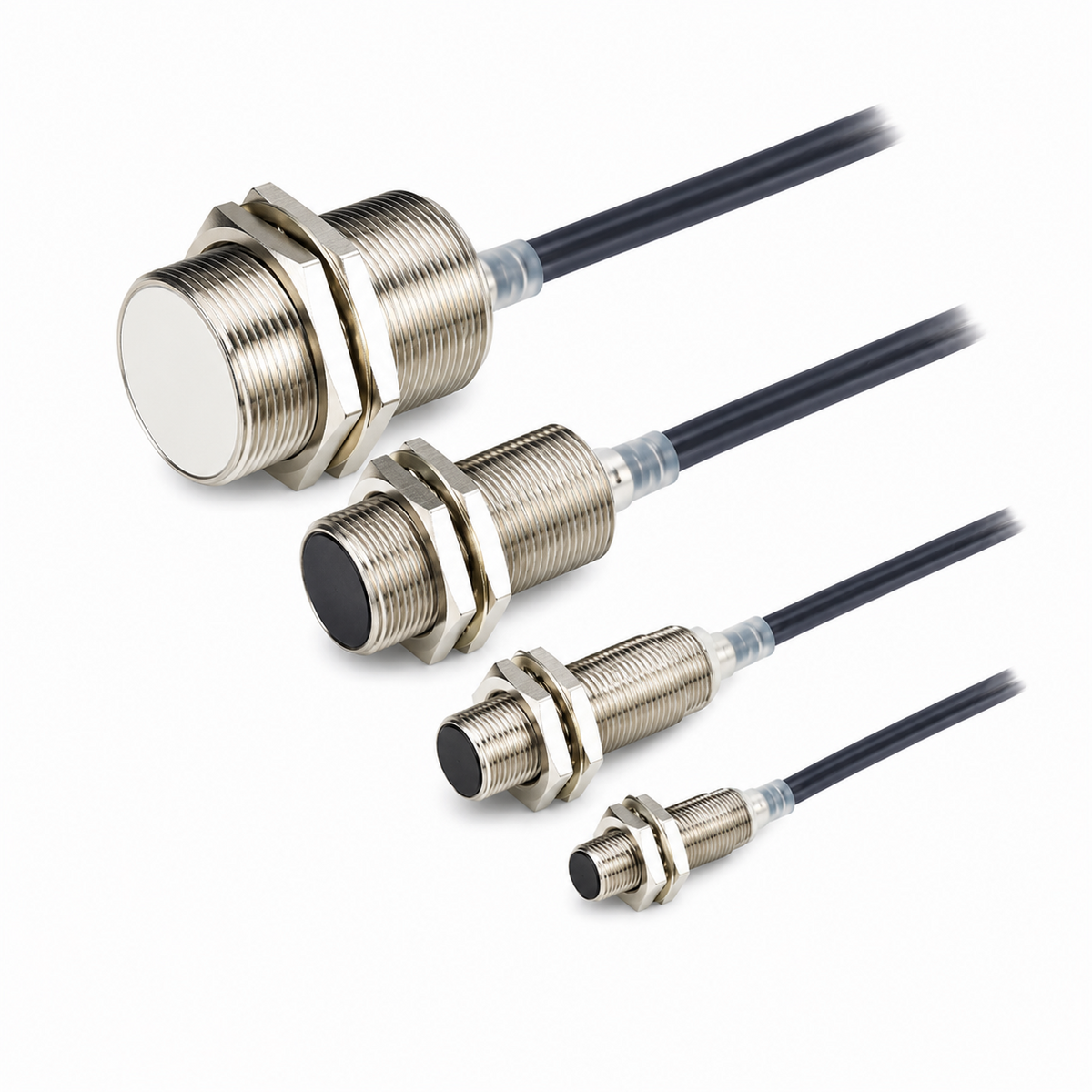

Omron E2E DC 2-Wire PUR Cable Proximity Sensor (Shielded, M8/M12/M18/M30, NO/NC)

Omron E2E DC 2-Wire PUR Cable Proximity Sensor (Shielded, M8/M12/M18/M30, NO/NC)

OMRON E2E Series DC 2-wire shielded proximity sensors with PUR (polyurethane) cable.

Key features

  • M8 (2mm), M12 (3mm), M18 (7mm), M30 (10mm)
  • NO and NC
  • Pre-wired 2m and M12 Smartclick connector 0.3m

Specifications

Shield Shielded
Wire DC 2-wire
Cable PUR (polyurethane)
Polarity Yes
Note DC 3W/2W standard models integrated into E2E NEXT Series
E2E-X2D1-U 2M DC 2W PUR M8 2 mm NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X2D1-M1TGJ-U 0.3M DC 2W PUR M8 2 mm NO Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 4: 0 V
E2E-X2D2-U 2M DC 2W PUR M8 2 mm NC 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X2D2-M1TGJ-U 0.3M DC 2W PUR M8 2 mm NC Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 2: 0 V
E2E-X3D1-U 2M DC 2W PUR M12 3 mm NO 2m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X3D1-M1TGJ-U 0.3M DC 2W PUR M12 3 mm NO Smartclick 0.3m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 4: 0 V
E2E-X3D2-U 2M DC 2W PUR M12 3 mm NC 2m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X3D2-M1TGJ-U 0.3M DC 2W PUR M12 3 mm NC Smartclick 0.3m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 2: 0 V
E2E-X7D1-U 2M DC 2W PUR M18 7 mm NO 2m | Size: M18 | Sensing Distance: 7 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X7D1-M1TGJ-U 0.3M DC 2W PUR M18 7 mm NO Smartclick 0.3m | Size: M18 | Sensing Distance: 7 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 4: 0 V
E2E-X7D2-U 2M DC 2W PUR M18 7 mm NC 2m | Size: M18 | Sensing Distance: 7 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X7D2-M1TGJ-U 0.3M DC 2W PUR M18 7 mm NC Smartclick 0.3m | Size: M18 | Sensing Distance: 7 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 2: 0 V
E2E-X10D1-U 2M DC 2W PUR M30 10 mm NO 2m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X10D1-M1TGJ-U 0.3M DC 2W PUR M30 10 mm NO Smartclick 0.3m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 4: 0 V
E2E-X10D2-U 2M DC 2W PUR M30 10 mm NC 2m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X10D2-M1TGJ-U 0.3M DC 2W PUR M30 10 mm NC Smartclick 0.3m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 2: 0 V
ProximityOmron
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2E DC 2-Wire PUR Cable Proximity Sensor (Shielded, M8/M12/M18/M30, NO/NC)

Brand Omron·Proximity

Available part numbers (16)

E2E-X2D1-U 2M, E2E-X2D1-M1TGJ-U 0.3M, E2E-X2D2-U 2M, E2E-X2D2-M1TGJ-U 0.3M, E2E-X3D1-U 2M, E2E-X3D1-M1TGJ-U 0.3M, E2E-X3D2-U 2M, E2E-X3D2-M1TGJ-U 0.3M, E2E-X7D1-U 2M, E2E-X7D1-M1TGJ-U 0.3M + 6 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E2E-X2D1-U 2MDC 2W PUR M8 2 mm NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X2D1-M1TGJ-U 0.3MDC 2W PUR M8 2 mm NO Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 4: 0 V
E2E-X2D2-U 2MDC 2W PUR M8 2 mm NC 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X2D2-M1TGJ-U 0.3MDC 2W PUR M8 2 mm NC Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 2: 0 V
E2E-X3D1-U 2MDC 2W PUR M12 3 mm NO 2m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X3D1-M1TGJ-U 0.3MDC 2W PUR M12 3 mm NO Smartclick 0.3m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 4: 0 V
E2E-X3D2-U 2MDC 2W PUR M12 3 mm NC 2m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X3D2-M1TGJ-U 0.3MDC 2W PUR M12 3 mm NC Smartclick 0.3m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 2: 0 V
E2E-X7D1-U 2MDC 2W PUR M18 7 mm NO 2m | Size: M18 | Sensing Distance: 7 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X7D1-M1TGJ-U 0.3MDC 2W PUR M18 7 mm NO Smartclick 0.3m | Size: M18 | Sensing Distance: 7 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 4: 0 V
E2E-X7D2-U 2MDC 2W PUR M18 7 mm NC 2m | Size: M18 | Sensing Distance: 7 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X7D2-M1TGJ-U 0.3MDC 2W PUR M18 7 mm NC Smartclick 0.3m | Size: M18 | Sensing Distance: 7 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 2: 0 V
E2E-X10D1-U 2MDC 2W PUR M30 10 mm NO 2m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X10D1-M1TGJ-U 0.3MDC 2W PUR M30 10 mm NO Smartclick 0.3m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NO | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 4: 0 V
E2E-X10D2-U 2MDC 2W PUR M30 10 mm NC 2m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: Pre-wired 2 m
E2E-X10D2-M1TGJ-U 0.3MDC 2W PUR M30 10 mm NC Smartclick 0.3m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Wire: DC 2-wire | Cable: PUR (polyurethane) | Polarity: Yes | Operation Mode: NC | Note: DC 3W/2W standard models integrated into E2E NEXT Series | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Pin Arrangement: 1: +V, 2: 0 V
