Omron E2E NEXT BASIC Single distance Proximity Sensor (M18, Unshielded, DC 3-Wire, IO-Link, NPN/PNP)

Omron E2E NEXT BASIC Single distance Proximity Sensor (M18, Unshielded, DC 3-Wire, IO-Link, NPN/PNP)

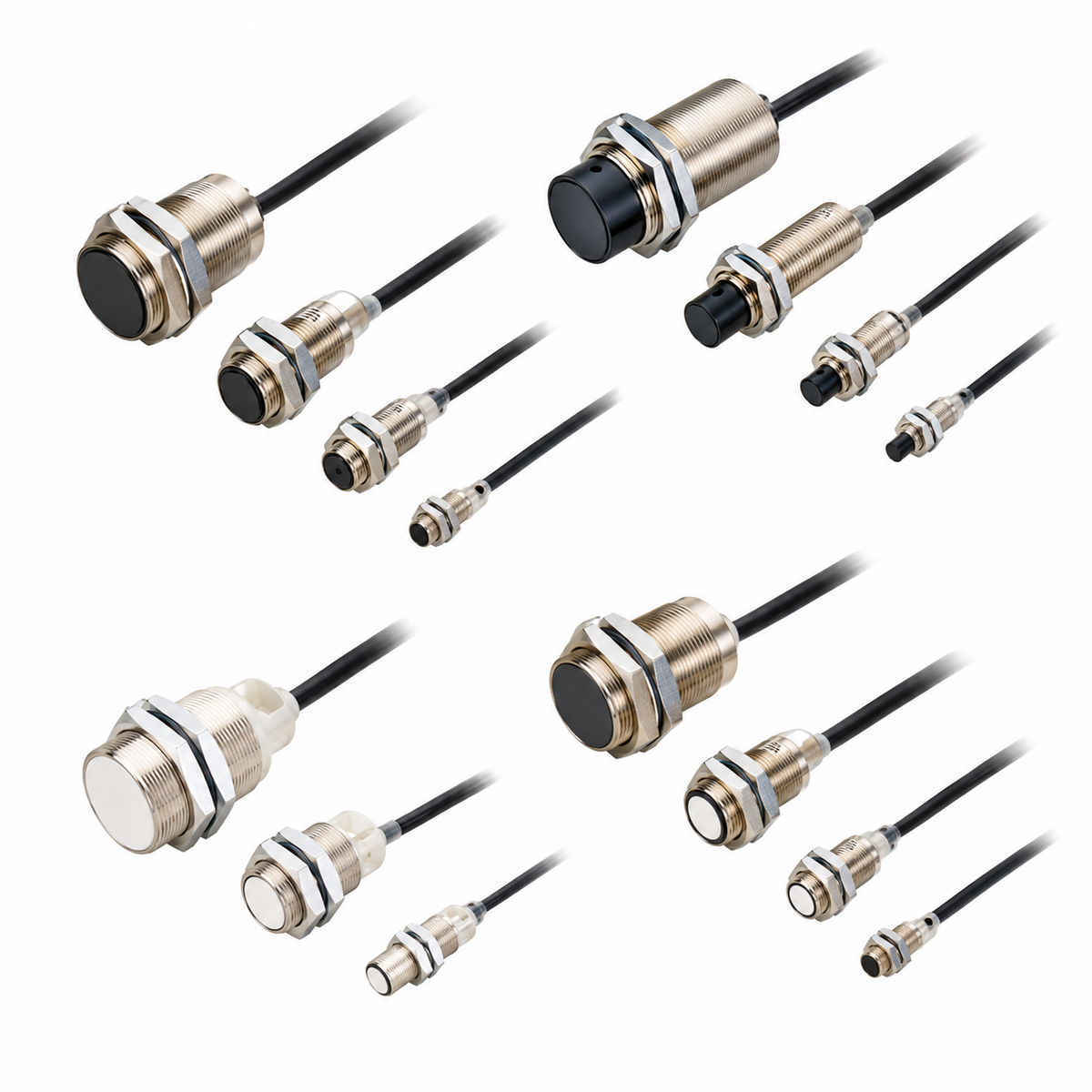

OMRON E2E NEXT Series BASIC Single distance cylindrical proximity sensor.

Key features

  • M18 body, Unshielded
  • Sensing distance 10 mm (standard body)
  • DC 3-wire
  • PNP IO-Link COM3/COM2 and NPN
  • NO/NC/NO+NC
  • Pre-wired 2m/5m, M12 Smartclick 0.3m, M12/M8 connector

Specifications

Size M18
Sensing Distance 10 mm
Shield Unshielded
Grade BASIC Single distance
Note IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link
E2E-X10MBB1T18 2M E2E NEXT M18 10 mm PNP IO-Link COM3 NO 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X10MBB1T18 5M E2E NEXT M18 10 mm PNP IO-Link COM3 NO 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X10MBB1T18-M1TJ 0.3M E2E NEXT M18 10 mm PNP IO-Link COM3 NO Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB1T18-M1 E2E NEXT M18 10 mm PNP IO-Link COM3 NO M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Connector
E2E-X10MBB1D18 2M E2E NEXT M18 10 mm PNP IO-Link COM2 NO 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X10MBB1D18 5M E2E NEXT M18 10 mm PNP IO-Link COM2 NO 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X10MBB1D18-M1TJ 0.3M E2E NEXT M18 10 mm PNP IO-Link COM2 NO Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB1D18-M1 E2E NEXT M18 10 mm PNP IO-Link COM2 NO M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Connector
E2E-X10MBC118 2M E2E NEXT M18 10 mm NPN NO 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X10MBC118 5M E2E NEXT M18 10 mm NPN NO 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X10MBC118-M1TJ 0.3M E2E NEXT M18 10 mm NPN NO Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBC118-M1 E2E NEXT M18 10 mm NPN NO M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Connector
E2E-X10MBB218 2M E2E NEXT M18 10 mm PNP NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X10MBB218 5M E2E NEXT M18 10 mm PNP NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X10MBB218-M1TJ 0.3M E2E NEXT M18 10 mm PNP NC Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB218-M1 E2E NEXT M18 10 mm PNP NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Connector
E2E-X10MBC218 2M E2E NEXT M18 10 mm NPN NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X10MBC218 5M E2E NEXT M18 10 mm NPN NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X10MBC218-M1TJ 0.3M E2E NEXT M18 10 mm NPN NC Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBC218-M1 E2E NEXT M18 10 mm NPN NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Connector
E2E-X10MBB3D18 2M E2E NEXT M18 10 mm PNP NO+NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X10MBB3D18 5M E2E NEXT M18 10 mm PNP NO+NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X10MBB3D18-M1TJ 0.3M E2E NEXT M18 10 mm PNP NO+NC Smartclick | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB3D18-M1 E2E NEXT M18 10 mm PNP NO+NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Connector
E2E-X10MBC318 2M E2E NEXT M18 10 mm NPN NO+NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X10MBC318 5M E2E NEXT M18 10 mm NPN NO+NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X10MBC318-M1TJ 0.3M E2E NEXT M18 10 mm NPN NO+NC Smartclick | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBC318-M1 E2E NEXT M18 10 mm NPN NO+NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Connector
E2E-X10MBB1TL18 2M E2E NEXT M18 10 mm PNP IO-Link COM3 NO 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X10MBB1TL18 5M E2E NEXT M18 10 mm PNP IO-Link COM3 NO 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X10MBB1TL18-M1TJ 0.3M E2E NEXT M18 10 mm PNP IO-Link COM3 NO Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB1TL18-M1 E2E NEXT M18 10 mm PNP IO-Link COM3 NO M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Connector
E2E-X10MBB1DL18 2M E2E NEXT M18 10 mm PNP IO-Link COM2 NO 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X10MBB1DL18 5M E2E NEXT M18 10 mm PNP IO-Link COM2 NO 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X10MBB1DL18-M1TJ 0.3M E2E NEXT M18 10 mm PNP IO-Link COM2 NO Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB1DL18-M1 E2E NEXT M18 10 mm PNP IO-Link COM2 NO M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Connector
E2E-X10MBC1L18 2M E2E NEXT M18 10 mm NPN NO 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X10MBC1L18 5M E2E NEXT M18 10 mm NPN NO 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X10MBC1L18-M1TJ 0.3M E2E NEXT M18 10 mm NPN NO Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBC1L18-M1 E2E NEXT M18 10 mm NPN NO M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Connector
E2E-X10MBB2L18 2M E2E NEXT M18 10 mm PNP NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X10MBB2L18 5M E2E NEXT M18 10 mm PNP NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X10MBB2L18-M1TJ 0.3M E2E NEXT M18 10 mm PNP NC Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB2L18-M1 E2E NEXT M18 10 mm PNP NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Connector
E2E-X10MBC2L18 2M E2E NEXT M18 10 mm NPN NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X10MBC2L18 5M E2E NEXT M18 10 mm NPN NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X10MBC2L18-M1TJ 0.3M E2E NEXT M18 10 mm NPN NC Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBC2L18-M1 E2E NEXT M18 10 mm NPN NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Connector
E2E-X10MBB3DL18 2M E2E NEXT M18 10 mm PNP NO+NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X10MBB3DL18 5M E2E NEXT M18 10 mm PNP NO+NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X10MBB3DL18-M1TJ 0.3M E2E NEXT M18 10 mm PNP NO+NC Smartclick | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB3DL18-M1 E2E NEXT M18 10 mm PNP NO+NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Connector
E2E-X10MBC3L18 2M E2E NEXT M18 10 mm NPN NO+NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X10MBC3L18 5M E2E NEXT M18 10 mm NPN NO+NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X10MBC3L18-M1TJ 0.3M E2E NEXT M18 10 mm NPN NO+NC Smartclick | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBC3L18-M1 E2E NEXT M18 10 mm NPN NO+NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Connector
ProximityOmron
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2E NEXT BASIC Single distance Proximity Sensor (M18, Unshielded, DC 3-Wire, IO-Link, NPN/PNP)

Brand Omron·Proximity

Available part numbers (56)

E2E-X10MBB1T18 2M, E2E-X10MBB1T18 5M, E2E-X10MBB1T18-M1TJ 0.3M, E2E-X10MBB1T18-M1, E2E-X10MBB1D18 2M, E2E-X10MBB1D18 5M, E2E-X10MBB1D18-M1TJ 0.3M, E2E-X10MBB1D18-M1, E2E-X10MBC118 2M, E2E-X10MBC118 5M + 46 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E2E-X10MBB1T18 2ME2E NEXT M18 10 mm PNP IO-Link COM3 NO 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X10MBB1T18 5ME2E NEXT M18 10 mm PNP IO-Link COM3 NO 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X10MBB1T18-M1TJ 0.3ME2E NEXT M18 10 mm PNP IO-Link COM3 NO Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB1T18-M1E2E NEXT M18 10 mm PNP IO-Link COM3 NO M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Connector
E2E-X10MBB1D18 2ME2E NEXT M18 10 mm PNP IO-Link COM2 NO 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X10MBB1D18 5ME2E NEXT M18 10 mm PNP IO-Link COM2 NO 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X10MBB1D18-M1TJ 0.3ME2E NEXT M18 10 mm PNP IO-Link COM2 NO Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB1D18-M1E2E NEXT M18 10 mm PNP IO-Link COM2 NO M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Connector
E2E-X10MBC118 2ME2E NEXT M18 10 mm NPN NO 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X10MBC118 5ME2E NEXT M18 10 mm NPN NO 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X10MBC118-M1TJ 0.3ME2E NEXT M18 10 mm NPN NO Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBC118-M1E2E NEXT M18 10 mm NPN NO M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Connector
E2E-X10MBB218 2ME2E NEXT M18 10 mm PNP NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X10MBB218 5ME2E NEXT M18 10 mm PNP NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X10MBB218-M1TJ 0.3ME2E NEXT M18 10 mm PNP NC Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB218-M1E2E NEXT M18 10 mm PNP NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Connector
E2E-X10MBC218 2ME2E NEXT M18 10 mm NPN NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X10MBC218 5ME2E NEXT M18 10 mm NPN NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X10MBC218-M1TJ 0.3ME2E NEXT M18 10 mm NPN NC Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBC218-M1E2E NEXT M18 10 mm NPN NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Connector
E2E-X10MBB3D18 2ME2E NEXT M18 10 mm PNP NO+NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X10MBB3D18 5ME2E NEXT M18 10 mm PNP NO+NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X10MBB3D18-M1TJ 0.3ME2E NEXT M18 10 mm PNP NO+NC Smartclick | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB3D18-M1E2E NEXT M18 10 mm PNP NO+NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Connector
E2E-X10MBC318 2ME2E NEXT M18 10 mm NPN NO+NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X10MBC318 5ME2E NEXT M18 10 mm NPN NO+NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X10MBC318-M1TJ 0.3ME2E NEXT M18 10 mm NPN NO+NC Smartclick | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBC318-M1E2E NEXT M18 10 mm NPN NO+NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Connector
E2E-X10MBB1TL18 2ME2E NEXT M18 10 mm PNP IO-Link COM3 NO 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X10MBB1TL18 5ME2E NEXT M18 10 mm PNP IO-Link COM3 NO 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X10MBB1TL18-M1TJ 0.3ME2E NEXT M18 10 mm PNP IO-Link COM3 NO Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB1TL18-M1E2E NEXT M18 10 mm PNP IO-Link COM3 NO M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Connector
E2E-X10MBB1DL18 2ME2E NEXT M18 10 mm PNP IO-Link COM2 NO 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X10MBB1DL18 5ME2E NEXT M18 10 mm PNP IO-Link COM2 NO 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X10MBB1DL18-M1TJ 0.3ME2E NEXT M18 10 mm PNP IO-Link COM2 NO Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB1DL18-M1E2E NEXT M18 10 mm PNP IO-Link COM2 NO M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Connector
E2E-X10MBC1L18 2ME2E NEXT M18 10 mm NPN NO 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X10MBC1L18 5ME2E NEXT M18 10 mm NPN NO 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X10MBC1L18-M1TJ 0.3ME2E NEXT M18 10 mm NPN NO Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBC1L18-M1E2E NEXT M18 10 mm NPN NO M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Connector
E2E-X10MBB2L18 2ME2E NEXT M18 10 mm PNP NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X10MBB2L18 5ME2E NEXT M18 10 mm PNP NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X10MBB2L18-M1TJ 0.3ME2E NEXT M18 10 mm PNP NC Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB2L18-M1E2E NEXT M18 10 mm PNP NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Connector
E2E-X10MBC2L18 2ME2E NEXT M18 10 mm NPN NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X10MBC2L18 5ME2E NEXT M18 10 mm NPN NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X10MBC2L18-M1TJ 0.3ME2E NEXT M18 10 mm NPN NC Smartclick 0.3m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBC2L18-M1E2E NEXT M18 10 mm NPN NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Connector
E2E-X10MBB3DL18 2ME2E NEXT M18 10 mm PNP NO+NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X10MBB3DL18 5ME2E NEXT M18 10 mm PNP NO+NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X10MBB3DL18-M1TJ 0.3ME2E NEXT M18 10 mm PNP NO+NC Smartclick | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBB3DL18-M1E2E NEXT M18 10 mm PNP NO+NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Connector
E2E-X10MBC3L18 2ME2E NEXT M18 10 mm NPN NO+NC 2m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X10MBC3L18 5ME2E NEXT M18 10 mm NPN NO+NC 5m | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X10MBC3L18-M1TJ 0.3ME2E NEXT M18 10 mm NPN NO+NC Smartclick | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X10MBC3L18-M1E2E NEXT M18 10 mm NPN NO+NC M12 conn | Size: M18 | Sensing Distance: 10 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Connector
