• Omron E2E NEXT BASIC Single distance Proximity Sensor (M8, Unshielded, DC 3-Wire, IO-Link, NPN/PNP)
1 1

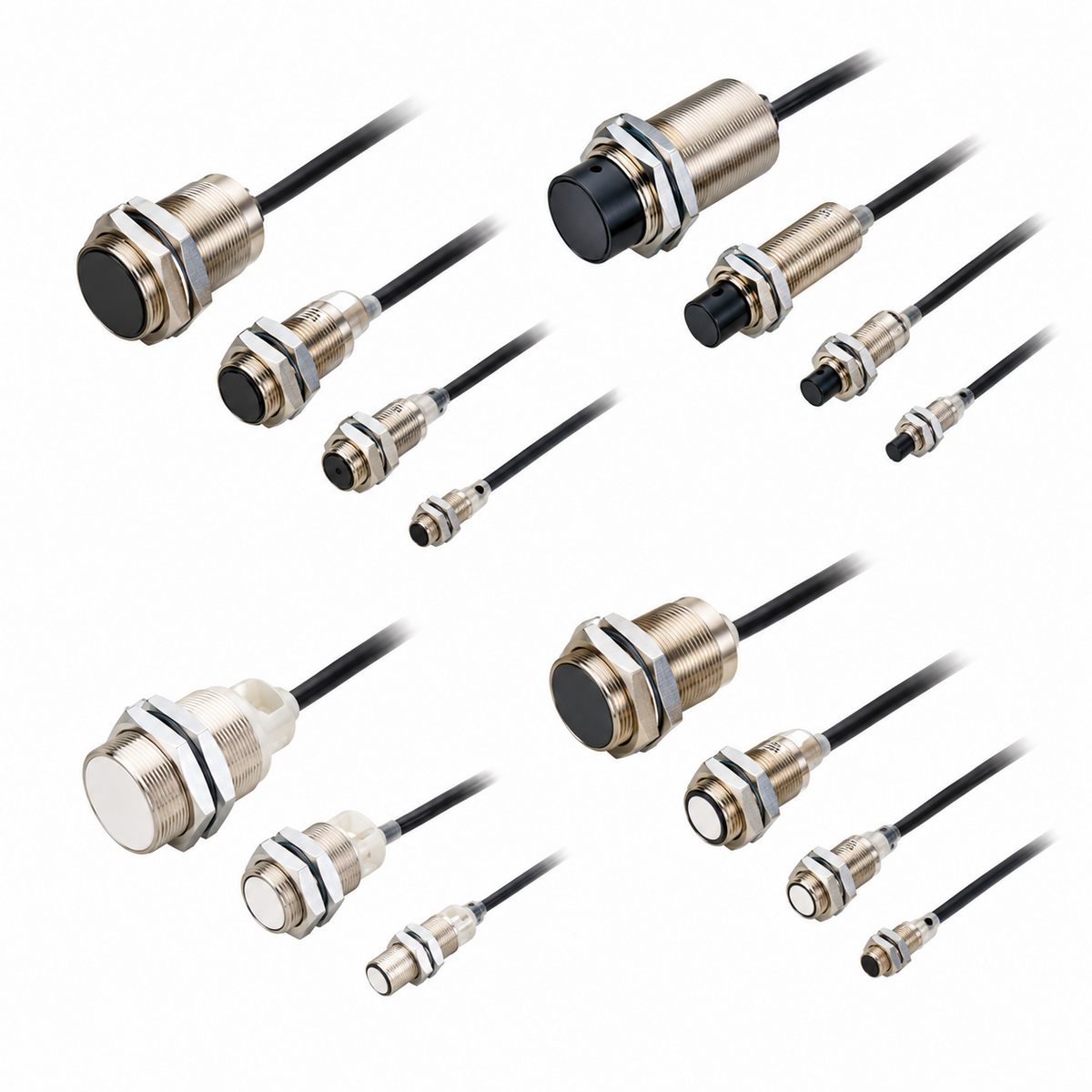

Omron E2E NEXT BASIC Single distance Proximity Sensor (M8, Unshielded, DC 3-Wire, IO-Link, NPN/PNP)

Omron E2E NEXT BASIC Single distance Proximity Sensor (M8, Unshielded, DC 3-Wire, IO-Link, NPN/PNP)

OMRON E2E NEXT Series BASIC Single distance cylindrical proximity sensor.

Key features

  • M8 body, Unshielded
  • Sensing distance 2 mm (standard body)
  • DC 3-wire
  • PNP IO-Link COM3/COM2 and NPN
  • NO/NC/NO+NC
  • Pre-wired 2m/5m, M12 Smartclick 0.3m, M12/M8 connector

Specifications

Size M8
Sensing Distance 2 mm
Shield Unshielded
Grade BASIC Single distance
Note IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link
E2E-X2MBB1T8 2M E2E NEXT M8 2 mm PNP IO-Link COM3 NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X2MBB1T8 5M E2E NEXT M8 2 mm PNP IO-Link COM3 NO 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X2MBB1T8-M1TJ 0.3M E2E NEXT M8 2 mm PNP IO-Link COM3 NO Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBB1T8-M1 E2E NEXT M8 2 mm PNP IO-Link COM3 NO M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Connector
E2E-X2MBB1T8-M3 E2E NEXT M8 2 mm PNP IO-Link COM3 NO M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M8 Connector 4-pin
E2E-X2MBB1T8-M5 E2E NEXT M8 2 mm PNP IO-Link COM3 NO M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M8 Connector 3-pin
E2E-X2MBB1D8 2M E2E NEXT M8 2 mm PNP IO-Link COM2 NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X2MBB1D8 5M E2E NEXT M8 2 mm PNP IO-Link COM2 NO 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X2MBB1D8-M1TJ 0.3M E2E NEXT M8 2 mm PNP IO-Link COM2 NO Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBB1D8-M1 E2E NEXT M8 2 mm PNP IO-Link COM2 NO M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Connector
E2E-X2MBB1D8-M3 E2E NEXT M8 2 mm PNP IO-Link COM2 NO M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M8 Connector 4-pin
E2E-X2MBB1D8-M5 E2E NEXT M8 2 mm PNP IO-Link COM2 NO M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M8 Connector 3-pin
E2E-X2MBC18 2M E2E NEXT M8 2 mm NPN NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X2MBC18 5M E2E NEXT M8 2 mm NPN NO 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X2MBC18-M1TJ 0.3M E2E NEXT M8 2 mm NPN NO Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBC18-M1 E2E NEXT M8 2 mm NPN NO M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Connector
E2E-X2MBC18-M3 E2E NEXT M8 2 mm NPN NO M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M8 Connector 4-pin
E2E-X2MBC18-M5 E2E NEXT M8 2 mm NPN NO M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M8 Connector 3-pin
E2E-X2MBB28 2M E2E NEXT M8 2 mm PNP NC 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X2MBB28 5M E2E NEXT M8 2 mm PNP NC 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X2MBB28-M1TJ 0.3M E2E NEXT M8 2 mm PNP NC Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBB28-M1 E2E NEXT M8 2 mm PNP NC M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Connector
E2E-X2MBB28-M3 E2E NEXT M8 2 mm PNP NC M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M8 Connector 4-pin
E2E-X2MBB28-M5 E2E NEXT M8 2 mm PNP NC M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M8 Connector 3-pin
E2E-X2MBC28 2M E2E NEXT M8 2 mm NPN NC 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X2MBC28 5M E2E NEXT M8 2 mm NPN NC 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X2MBC28-M1TJ 0.3M E2E NEXT M8 2 mm NPN NC Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBC28-M1 E2E NEXT M8 2 mm NPN NC M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Connector
E2E-X2MBC28-M3 E2E NEXT M8 2 mm NPN NC M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M8 Connector 4-pin
E2E-X2MBC28-M5 E2E NEXT M8 2 mm NPN NC M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M8 Connector 3-pin
E2E-X2MBB1TL8 2M E2E NEXT M8 2 mm PNP IO-Link COM3 NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X2MBB1TL8 5M E2E NEXT M8 2 mm PNP IO-Link COM3 NO 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X2MBB1TL8-M1TJ 0.3M E2E NEXT M8 2 mm PNP IO-Link COM3 NO Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBB1TL8-M1 E2E NEXT M8 2 mm PNP IO-Link COM3 NO M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Connector
E2E-X2MBB1TL8-M3 E2E NEXT M8 2 mm PNP IO-Link COM3 NO M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M8 Connector 4-pin
E2E-X2MBB1TL8-M5 E2E NEXT M8 2 mm PNP IO-Link COM3 NO M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M8 Connector 3-pin
E2E-X2MBB1DL8 2M E2E NEXT M8 2 mm PNP IO-Link COM2 NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X2MBB1DL8 5M E2E NEXT M8 2 mm PNP IO-Link COM2 NO 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X2MBB1DL8-M1TJ 0.3M E2E NEXT M8 2 mm PNP IO-Link COM2 NO Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBB1DL8-M1 E2E NEXT M8 2 mm PNP IO-Link COM2 NO M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Connector
E2E-X2MBB1DL8-M3 E2E NEXT M8 2 mm PNP IO-Link COM2 NO M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M8 Connector 4-pin
E2E-X2MBB1DL8-M5 E2E NEXT M8 2 mm PNP IO-Link COM2 NO M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M8 Connector 3-pin
E2E-X2MBC1L8 2M E2E NEXT M8 2 mm NPN NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X2MBC1L8 5M E2E NEXT M8 2 mm NPN NO 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X2MBC1L8-M1TJ 0.3M E2E NEXT M8 2 mm NPN NO Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBC1L8-M1 E2E NEXT M8 2 mm NPN NO M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Connector
E2E-X2MBC1L8-M3 E2E NEXT M8 2 mm NPN NO M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M8 Connector 4-pin
E2E-X2MBC1L8-M5 E2E NEXT M8 2 mm NPN NO M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M8 Connector 3-pin
E2E-X2MBB2L8 2M E2E NEXT M8 2 mm PNP NC 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X2MBB2L8 5M E2E NEXT M8 2 mm PNP NC 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X2MBB2L8-M1TJ 0.3M E2E NEXT M8 2 mm PNP NC Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBB2L8-M1 E2E NEXT M8 2 mm PNP NC M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Connector
E2E-X2MBB2L8-M3 E2E NEXT M8 2 mm PNP NC M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M8 Connector 4-pin
E2E-X2MBB2L8-M5 E2E NEXT M8 2 mm PNP NC M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M8 Connector 3-pin
E2E-X2MBC2L8 2M E2E NEXT M8 2 mm NPN NC 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X2MBC2L8 5M E2E NEXT M8 2 mm NPN NC 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X2MBC2L8-M1TJ 0.3M E2E NEXT M8 2 mm NPN NC Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBC2L8-M1 E2E NEXT M8 2 mm NPN NC M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Connector
E2E-X2MBC2L8-M3 E2E NEXT M8 2 mm NPN NC M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M8 Connector 4-pin
E2E-X2MBC2L8-M5 E2E NEXT M8 2 mm NPN NC M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M8 Connector 3-pin
E2E-X2MBB3DL8 2M E2E NEXT M8 2 mm PNP NO+NC 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X2MBB3DL8 5M E2E NEXT M8 2 mm PNP NO+NC 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X2MBB3DL8-M1TJ 0.3M E2E NEXT M8 2 mm PNP NO+NC Smartclick | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBB3DL8-M1 E2E NEXT M8 2 mm PNP NO+NC M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Connector
E2E-X2MBC3L8 2M E2E NEXT M8 2 mm NPN NO+NC 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X2MBC3L8 5M E2E NEXT M8 2 mm NPN NO+NC 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X2MBC3L8-M1TJ 0.3M E2E NEXT M8 2 mm NPN NO+NC Smartclick | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBC3L8-M1 E2E NEXT M8 2 mm NPN NO+NC M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Connector
ProximityOmron
68 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2E NEXT BASIC Single distance Proximity Sensor (M8, Unshielded, DC 3-Wire, IO-Link, NPN/PNP)

Brand Omron·Proximity

Available part numbers (68)

E2E-X2MBB1T8 2M, E2E-X2MBB1T8 5M, E2E-X2MBB1T8-M1TJ 0.3M, E2E-X2MBB1T8-M1, E2E-X2MBB1T8-M3, E2E-X2MBB1T8-M5, E2E-X2MBB1D8 2M, E2E-X2MBB1D8 5M, E2E-X2MBB1D8-M1TJ 0.3M, E2E-X2MBB1D8-M1 + 58 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E2E-X2MBB1T8 2ME2E NEXT M8 2 mm PNP IO-Link COM3 NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X2MBB1T8 5ME2E NEXT M8 2 mm PNP IO-Link COM3 NO 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X2MBB1T8-M1TJ 0.3ME2E NEXT M8 2 mm PNP IO-Link COM3 NO Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBB1T8-M1E2E NEXT M8 2 mm PNP IO-Link COM3 NO M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Connector
E2E-X2MBB1T8-M3E2E NEXT M8 2 mm PNP IO-Link COM3 NO M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M8 Connector 4-pin
E2E-X2MBB1T8-M5E2E NEXT M8 2 mm PNP IO-Link COM3 NO M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M8 Connector 3-pin
E2E-X2MBB1D8 2ME2E NEXT M8 2 mm PNP IO-Link COM2 NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X2MBB1D8 5ME2E NEXT M8 2 mm PNP IO-Link COM2 NO 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X2MBB1D8-M1TJ 0.3ME2E NEXT M8 2 mm PNP IO-Link COM2 NO Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBB1D8-M1E2E NEXT M8 2 mm PNP IO-Link COM2 NO M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Connector
E2E-X2MBB1D8-M3E2E NEXT M8 2 mm PNP IO-Link COM2 NO M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M8 Connector 4-pin
E2E-X2MBB1D8-M5E2E NEXT M8 2 mm PNP IO-Link COM2 NO M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M8 Connector 3-pin
E2E-X2MBC18 2ME2E NEXT M8 2 mm NPN NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X2MBC18 5ME2E NEXT M8 2 mm NPN NO 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X2MBC18-M1TJ 0.3ME2E NEXT M8 2 mm NPN NO Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBC18-M1E2E NEXT M8 2 mm NPN NO M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Connector
E2E-X2MBC18-M3E2E NEXT M8 2 mm NPN NO M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M8 Connector 4-pin
E2E-X2MBC18-M5E2E NEXT M8 2 mm NPN NO M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M8 Connector 3-pin
E2E-X2MBB28 2ME2E NEXT M8 2 mm PNP NC 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X2MBB28 5ME2E NEXT M8 2 mm PNP NC 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X2MBB28-M1TJ 0.3ME2E NEXT M8 2 mm PNP NC Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBB28-M1E2E NEXT M8 2 mm PNP NC M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Connector
E2E-X2MBB28-M3E2E NEXT M8 2 mm PNP NC M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M8 Connector 4-pin
E2E-X2MBB28-M5E2E NEXT M8 2 mm PNP NC M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M8 Connector 3-pin
E2E-X2MBC28 2ME2E NEXT M8 2 mm NPN NC 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X2MBC28 5ME2E NEXT M8 2 mm NPN NC 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X2MBC28-M1TJ 0.3ME2E NEXT M8 2 mm NPN NC Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBC28-M1E2E NEXT M8 2 mm NPN NC M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Connector
E2E-X2MBC28-M3E2E NEXT M8 2 mm NPN NC M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M8 Connector 4-pin
E2E-X2MBC28-M5E2E NEXT M8 2 mm NPN NC M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M8 Connector 3-pin
E2E-X2MBB1TL8 2ME2E NEXT M8 2 mm PNP IO-Link COM3 NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X2MBB1TL8 5ME2E NEXT M8 2 mm PNP IO-Link COM3 NO 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X2MBB1TL8-M1TJ 0.3ME2E NEXT M8 2 mm PNP IO-Link COM3 NO Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBB1TL8-M1E2E NEXT M8 2 mm PNP IO-Link COM3 NO M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Connector
E2E-X2MBB1TL8-M3E2E NEXT M8 2 mm PNP IO-Link COM3 NO M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M8 Connector 4-pin
E2E-X2MBB1TL8-M5E2E NEXT M8 2 mm PNP IO-Link COM3 NO M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M8 Connector 3-pin
E2E-X2MBB1DL8 2ME2E NEXT M8 2 mm PNP IO-Link COM2 NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X2MBB1DL8 5ME2E NEXT M8 2 mm PNP IO-Link COM2 NO 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X2MBB1DL8-M1TJ 0.3ME2E NEXT M8 2 mm PNP IO-Link COM2 NO Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBB1DL8-M1E2E NEXT M8 2 mm PNP IO-Link COM2 NO M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Connector
E2E-X2MBB1DL8-M3E2E NEXT M8 2 mm PNP IO-Link COM2 NO M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M8 Connector 4-pin
E2E-X2MBB1DL8-M5E2E NEXT M8 2 mm PNP IO-Link COM2 NO M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M8 Connector 3-pin
E2E-X2MBC1L8 2ME2E NEXT M8 2 mm NPN NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X2MBC1L8 5ME2E NEXT M8 2 mm NPN NO 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X2MBC1L8-M1TJ 0.3ME2E NEXT M8 2 mm NPN NO Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBC1L8-M1E2E NEXT M8 2 mm NPN NO M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Connector
E2E-X2MBC1L8-M3E2E NEXT M8 2 mm NPN NO M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M8 Connector 4-pin
E2E-X2MBC1L8-M5E2E NEXT M8 2 mm NPN NO M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M8 Connector 3-pin
E2E-X2MBB2L8 2ME2E NEXT M8 2 mm PNP NC 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X2MBB2L8 5ME2E NEXT M8 2 mm PNP NC 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X2MBB2L8-M1TJ 0.3ME2E NEXT M8 2 mm PNP NC Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBB2L8-M1E2E NEXT M8 2 mm PNP NC M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Connector
E2E-X2MBB2L8-M3E2E NEXT M8 2 mm PNP NC M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M8 Connector 4-pin
E2E-X2MBB2L8-M5E2E NEXT M8 2 mm PNP NC M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M8 Connector 3-pin
E2E-X2MBC2L8 2ME2E NEXT M8 2 mm NPN NC 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X2MBC2L8 5ME2E NEXT M8 2 mm NPN NC 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X2MBC2L8-M1TJ 0.3ME2E NEXT M8 2 mm NPN NC Smartclick 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBC2L8-M1E2E NEXT M8 2 mm NPN NC M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Connector
E2E-X2MBC2L8-M3E2E NEXT M8 2 mm NPN NC M8 4pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M8 Connector 4-pin
E2E-X2MBC2L8-M5E2E NEXT M8 2 mm NPN NC M8 3pin conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M8 Connector 3-pin
E2E-X2MBB3DL8 2ME2E NEXT M8 2 mm PNP NO+NC 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X2MBB3DL8 5ME2E NEXT M8 2 mm PNP NO+NC 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X2MBB3DL8-M1TJ 0.3ME2E NEXT M8 2 mm PNP NO+NC Smartclick | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBB3DL8-M1E2E NEXT M8 2 mm PNP NO+NC M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Connector
E2E-X2MBC3L8 2ME2E NEXT M8 2 mm NPN NO+NC 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X2MBC3L8 5ME2E NEXT M8 2 mm NPN NO+NC 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X2MBC3L8-M1TJ 0.3ME2E NEXT M8 2 mm NPN NO+NC Smartclick | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X2MBC3L8-M1E2E NEXT M8 2 mm NPN NO+NC M12 conn | Size: M8 | Sensing Distance: 2 mm | Shield: Unshielded | Grade: BASIC Single distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Connector
