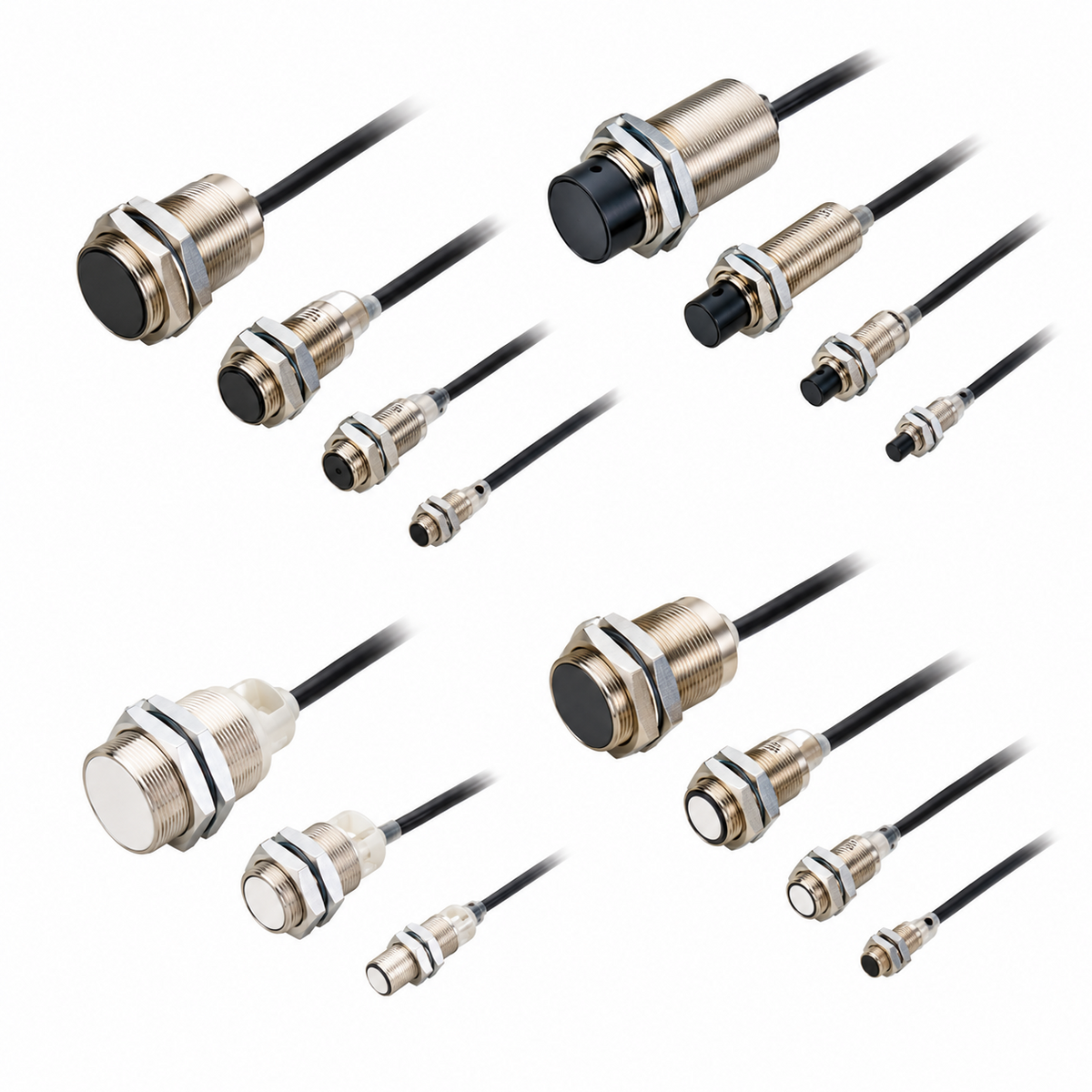

Omron E2E NEXT PREMIUM Quadruple distance Proximity Sensor (M30, Shielded, DC 3-Wire, IO-Link, NPN/PNP)

Omron E2E NEXT PREMIUM Quadruple distance Proximity Sensor (M30, Shielded, DC 3-Wire, IO-Link, NPN/PNP)

OMRON E2E NEXT Series PREMIUM Quadruple distance cylindrical proximity sensor.

Key features

  • M30 body, Shielded
  • Sensing distance 23 mm (standard body)
  • DC 3-wire
  • PNP IO-Link COM3/COM2 and NPN
  • NO/NC/NO+NC
  • Pre-wired 2m/5m, M12 Smartclick 0.3m, M12/M8 connector

Specifications

Size M30
Sensing Distance 23 mm
Shield Shielded
Grade PREMIUM Quadruple distance
Note IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link
E2E-X23B1T30 2M E2E NEXT M30 23 mm PNP IO-Link COM3 NO 2m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X23B1T30 5M E2E NEXT M30 23 mm PNP IO-Link COM3 NO 5m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X23B1T30-M1TJ 0.3M E2E NEXT M30 23 mm PNP IO-Link COM3 NO Smartclick 0.3m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X23B1T30-M1 E2E NEXT M30 23 mm PNP IO-Link COM3 NO M12 conn | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Connector
E2E-X23B1D30 2M E2E NEXT M30 23 mm PNP IO-Link COM2 NO 2m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X23B1D30 5M E2E NEXT M30 23 mm PNP IO-Link COM2 NO 5m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X23B1D30-M1TJ 0.3M E2E NEXT M30 23 mm PNP IO-Link COM2 NO Smartclick 0.3m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X23B1D30-M1 E2E NEXT M30 23 mm PNP IO-Link COM2 NO M12 conn | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Connector
E2E-X23C130 2M E2E NEXT M30 23 mm NPN NO 2m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X23C130 5M E2E NEXT M30 23 mm NPN NO 5m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X23C130-M1TJ 0.3M E2E NEXT M30 23 mm NPN NO Smartclick 0.3m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X23C130-M1 E2E NEXT M30 23 mm NPN NO M12 conn | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Connector
E2E-X23B230 2M E2E NEXT M30 23 mm PNP NC 2m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X23B230 5M E2E NEXT M30 23 mm PNP NC 5m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X23B230-M1TJ 0.3M E2E NEXT M30 23 mm PNP NC Smartclick 0.3m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X23B230-M1 E2E NEXT M30 23 mm PNP NC M12 conn | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Connector
E2E-X23C230 2M E2E NEXT M30 23 mm NPN NC 2m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X23C230 5M E2E NEXT M30 23 mm NPN NC 5m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X23C230-M1TJ 0.3M E2E NEXT M30 23 mm NPN NC Smartclick 0.3m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X23C230-M1 E2E NEXT M30 23 mm NPN NC M12 conn | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Connector
E2E-X23B3D30 2M E2E NEXT M30 23 mm PNP NO+NC 2m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X23B3D30 5M E2E NEXT M30 23 mm PNP NO+NC 5m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X23B3D30-M1TJ 0.3M E2E NEXT M30 23 mm PNP NO+NC Smartclick | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X23B3D30-M1 E2E NEXT M30 23 mm PNP NO+NC M12 conn | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Connector
E2E-X23C330 2M E2E NEXT M30 23 mm NPN NO+NC 2m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X23C330 5M E2E NEXT M30 23 mm NPN NO+NC 5m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X23C330-M1TJ 0.3M E2E NEXT M30 23 mm NPN NO+NC Smartclick | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X23C330-M1 E2E NEXT M30 23 mm NPN NO+NC M12 conn | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Standard | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Connector
E2E-X23B1TL30 2M E2E NEXT M30 23 mm PNP IO-Link COM3 NO 2m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X23B1TL30 5M E2E NEXT M30 23 mm PNP IO-Link COM3 NO 5m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X23B1TL30-M1TJ 0.3M E2E NEXT M30 23 mm PNP IO-Link COM3 NO Smartclick 0.3m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X23B1TL30-M1 E2E NEXT M30 23 mm PNP IO-Link COM3 NO M12 conn | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM3 | Operation Mode: NO | Connection: M12 Connector
E2E-X23B1DL30 2M E2E NEXT M30 23 mm PNP IO-Link COM2 NO 2m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X23B1DL30 5M E2E NEXT M30 23 mm PNP IO-Link COM2 NO 5m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X23B1DL30-M1TJ 0.3M E2E NEXT M30 23 mm PNP IO-Link COM2 NO Smartclick 0.3m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X23B1DL30-M1 E2E NEXT M30 23 mm PNP IO-Link COM2 NO M12 conn | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP IO-Link COM2 | Operation Mode: NO | Connection: M12 Connector
E2E-X23C1L30 2M E2E NEXT M30 23 mm NPN NO 2m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X23C1L30 5M E2E NEXT M30 23 mm NPN NO 5m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X23C1L30-M1TJ 0.3M E2E NEXT M30 23 mm NPN NO Smartclick 0.3m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X23C1L30-M1 E2E NEXT M30 23 mm NPN NO M12 conn | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO | Connection: M12 Connector
E2E-X23B2L30 2M E2E NEXT M30 23 mm PNP NC 2m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X23B2L30 5M E2E NEXT M30 23 mm PNP NC 5m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X23B2L30-M1TJ 0.3M E2E NEXT M30 23 mm PNP NC Smartclick 0.3m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X23B2L30-M1 E2E NEXT M30 23 mm PNP NC M12 conn | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NC | Connection: M12 Connector
E2E-X23C2L30 2M E2E NEXT M30 23 mm NPN NC 2m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X23C2L30 5M E2E NEXT M30 23 mm NPN NC 5m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X23C2L30-M1TJ 0.3M E2E NEXT M30 23 mm NPN NC Smartclick 0.3m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X23C2L30-M1 E2E NEXT M30 23 mm NPN NC M12 conn | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NC | Connection: M12 Connector
E2E-X23B3DL30 2M E2E NEXT M30 23 mm PNP NO+NC 2m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X23B3DL30 5M E2E NEXT M30 23 mm PNP NO+NC 5m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X23B3DL30-M1TJ 0.3M E2E NEXT M30 23 mm PNP NO+NC Smartclick | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X23B3DL30-M1 E2E NEXT M30 23 mm PNP NO+NC M12 conn | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: PNP | Operation Mode: NO+NC | Connection: M12 Connector
E2E-X23C3L30 2M E2E NEXT M30 23 mm NPN NO+NC 2m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2E-X23C3L30 5M E2E NEXT M30 23 mm NPN NO+NC 5m | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2E-X23C3L30-M1TJ 0.3M E2E NEXT M30 23 mm NPN NO+NC Smartclick | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2E-X23C3L30-M1 E2E NEXT M30 23 mm NPN NO+NC M12 conn | Size: M30 | Sensing Distance: 23 mm | Shield: Shielded | Grade: PREMIUM Quadruple distance | Body Length: Long | Note: IO-Link not supported for NC-type PNP or NPN outputs; NO mode changeable to NC via IO-Link | Output: NPN | Operation Mode: NO+NC | Connection: M12 Connector
ProximityOmron
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2E NEXT PREMIUM Quadruple distance Proximity Sensor (M30, Shielded, DC 3-Wire, IO-Link, NPN/PNP)

Brand Omron·Proximity

Available part numbers (56)

E2E-X23B1T30 2M, E2E-X23B1T30 5M, E2E-X23B1T30-M1TJ 0.3M, E2E-X23B1T30-M1, E2E-X23B1D30 2M, E2E-X23B1D30 5M, E2E-X23B1D30-M1TJ 0.3M, E2E-X23B1D30-M1, E2E-X23C130 2M, E2E-X23C130 5M + 46 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
