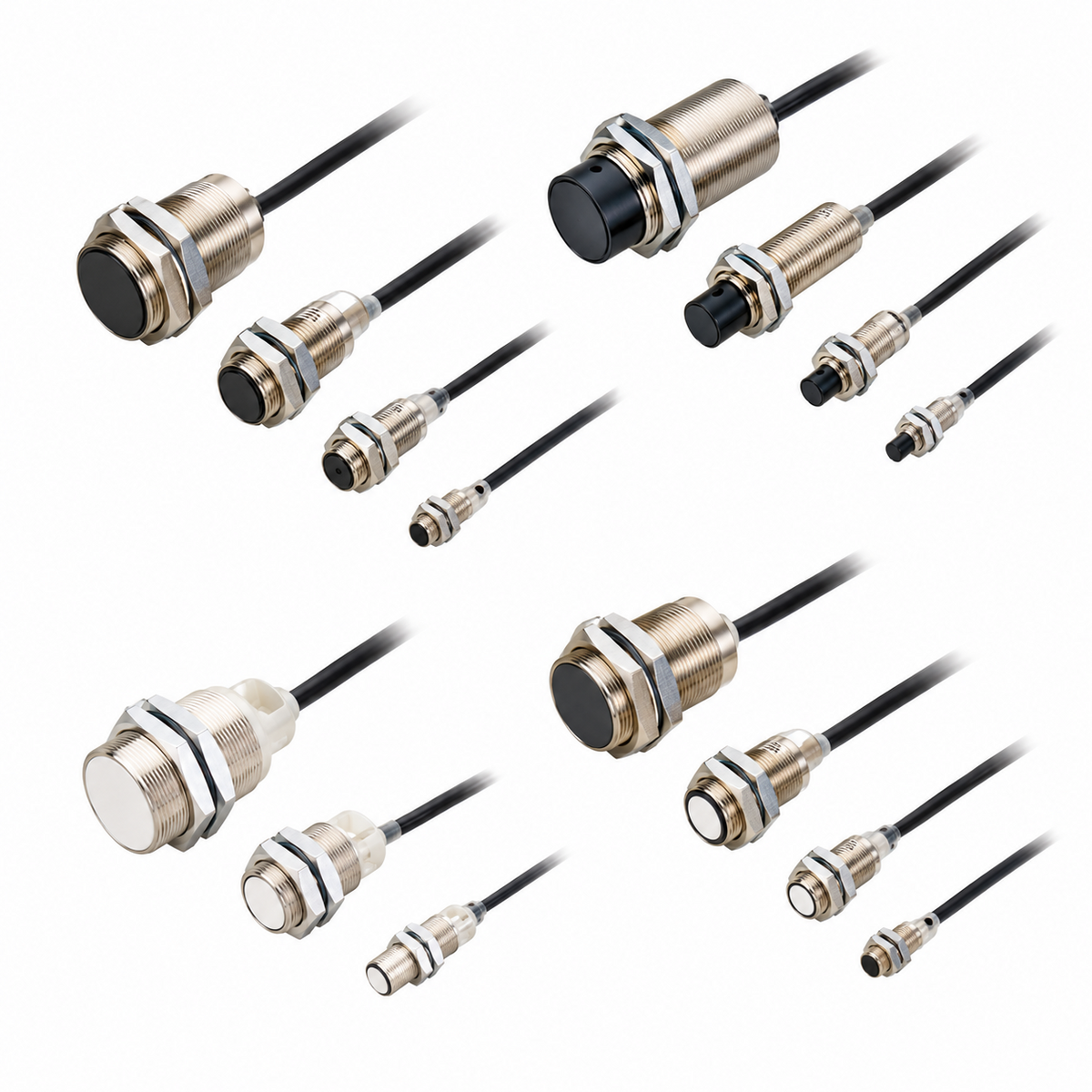

Omron E2E NEXT Single Distance Proximity Sensor (M18, Shielded, DC 2-Wire)

OMRON E2E NEXT Series single distance DC 2-wire shielded proximity sensor.

Key features

M18
Sensing distance 5 mm
NO and NC
Pre-wired 2m/5m (with/without polarity) and M12 Smartclick 0.3m

Specifications

Size	M18
Sensing Distance	5 mm
Shield	Shielded
Wire	DC 2-wire
Grade	Single distance

E2E-X5D1-N 2M		2W Single M18 5 mm NO 2m pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NO \| Connection: Pre-wired 2 m \| Polarity: Yes
E2E-X5D1-N 5M		2W Single M18 5 mm NO 5m pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NO \| Connection: Pre-wired 5 m \| Polarity: Yes
E2E-X5D1-T-N 2M		2W Single M18 5 mm NO 2m no-pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NO \| Connection: Pre-wired 2 m \| Polarity: No
E2E-X5D1-T-N 5M		2W Single M18 5 mm NO 5m no-pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NO \| Connection: Pre-wired 5 m \| Polarity: No
E2E-X5D1-M1TGJ 0.3M		2W Single M18 5 mm NO Smartclick pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NO \| Connection: M12 Pre-wired Smartclick 0.3 m \| Polarity: Yes
E2E-X5D1-M1TGJ-T 0.3M		2W Single M18 5 mm NO Smartclick no-pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NO \| Connection: M12 Pre-wired Smartclick 0.3 m \| Polarity: No
E2E-X5D2-N 2M		2W Single M18 5 mm NC 2m pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NC \| Connection: Pre-wired 2 m \| Polarity: Yes
E2E-X5D2-N 5M		2W Single M18 5 mm NC 5m pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NC \| Connection: Pre-wired 5 m \| Polarity: Yes
E2E-X5D2-T-N 2M		2W Single M18 5 mm NC 2m no-pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NC \| Connection: Pre-wired 2 m \| Polarity: No
E2E-X5D2-T-N 5M		2W Single M18 5 mm NC 5m no-pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NC \| Connection: Pre-wired 5 m \| Polarity: No
E2E-X5D2-M1TGJ 0.3M		2W Single M18 5 mm NC Smartclick pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NC \| Connection: M12 Pre-wired Smartclick 0.3 m \| Polarity: Yes
E2E-X5D2-M1TGJ-T 0.3M		2W Single M18 5 mm NC Smartclick no-pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NC \| Connection: M12 Pre-wired Smartclick 0.3 m \| Polarity: No

ProximityOmron

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2E NEXT Single Distance Proximity Sensor (M18, Shielded, DC 2-Wire)

Brand Omron·Proximity

Available part numbers (12)

E2E-X5D1-N 2M, E2E-X5D1-N 5M, E2E-X5D1-T-N 2M, E2E-X5D1-T-N 5M, E2E-X5D1-M1TGJ 0.3M, E2E-X5D1-M1TGJ-T 0.3M, E2E-X5D2-N 2M, E2E-X5D2-N 5M, E2E-X5D2-T-N 2M, E2E-X5D2-T-N 5M + 2 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	E2E-X5D1-N 2M	2W Single M18 5 mm NO 2m pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NO \| Connection: Pre-wired 2 m \| Polarity: Yes
	E2E-X5D1-N 5M	2W Single M18 5 mm NO 5m pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NO \| Connection: Pre-wired 5 m \| Polarity: Yes
	E2E-X5D1-T-N 2M	2W Single M18 5 mm NO 2m no-pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NO \| Connection: Pre-wired 2 m \| Polarity: No
	E2E-X5D1-T-N 5M	2W Single M18 5 mm NO 5m no-pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NO \| Connection: Pre-wired 5 m \| Polarity: No
	E2E-X5D1-M1TGJ 0.3M	2W Single M18 5 mm NO Smartclick pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NO \| Connection: M12 Pre-wired Smartclick 0.3 m \| Polarity: Yes
	E2E-X5D1-M1TGJ-T 0.3M	2W Single M18 5 mm NO Smartclick no-pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NO \| Connection: M12 Pre-wired Smartclick 0.3 m \| Polarity: No
	E2E-X5D2-N 2M	2W Single M18 5 mm NC 2m pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NC \| Connection: Pre-wired 2 m \| Polarity: Yes
	E2E-X5D2-N 5M	2W Single M18 5 mm NC 5m pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NC \| Connection: Pre-wired 5 m \| Polarity: Yes
	E2E-X5D2-T-N 2M	2W Single M18 5 mm NC 2m no-pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NC \| Connection: Pre-wired 2 m \| Polarity: No
	E2E-X5D2-T-N 5M	2W Single M18 5 mm NC 5m no-pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NC \| Connection: Pre-wired 5 m \| Polarity: No
	E2E-X5D2-M1TGJ 0.3M	2W Single M18 5 mm NC Smartclick pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NC \| Connection: M12 Pre-wired Smartclick 0.3 m \| Polarity: Yes
	E2E-X5D2-M1TGJ-T 0.3M	2W Single M18 5 mm NC Smartclick no-pol \| Size: M18 \| Sensing Distance: 5 mm \| Shield: Shielded \| Wire: DC 2-wire \| Grade: Single distance \| Operation Mode: NC \| Connection: M12 Pre-wired Smartclick 0.3 m \| Polarity: No
