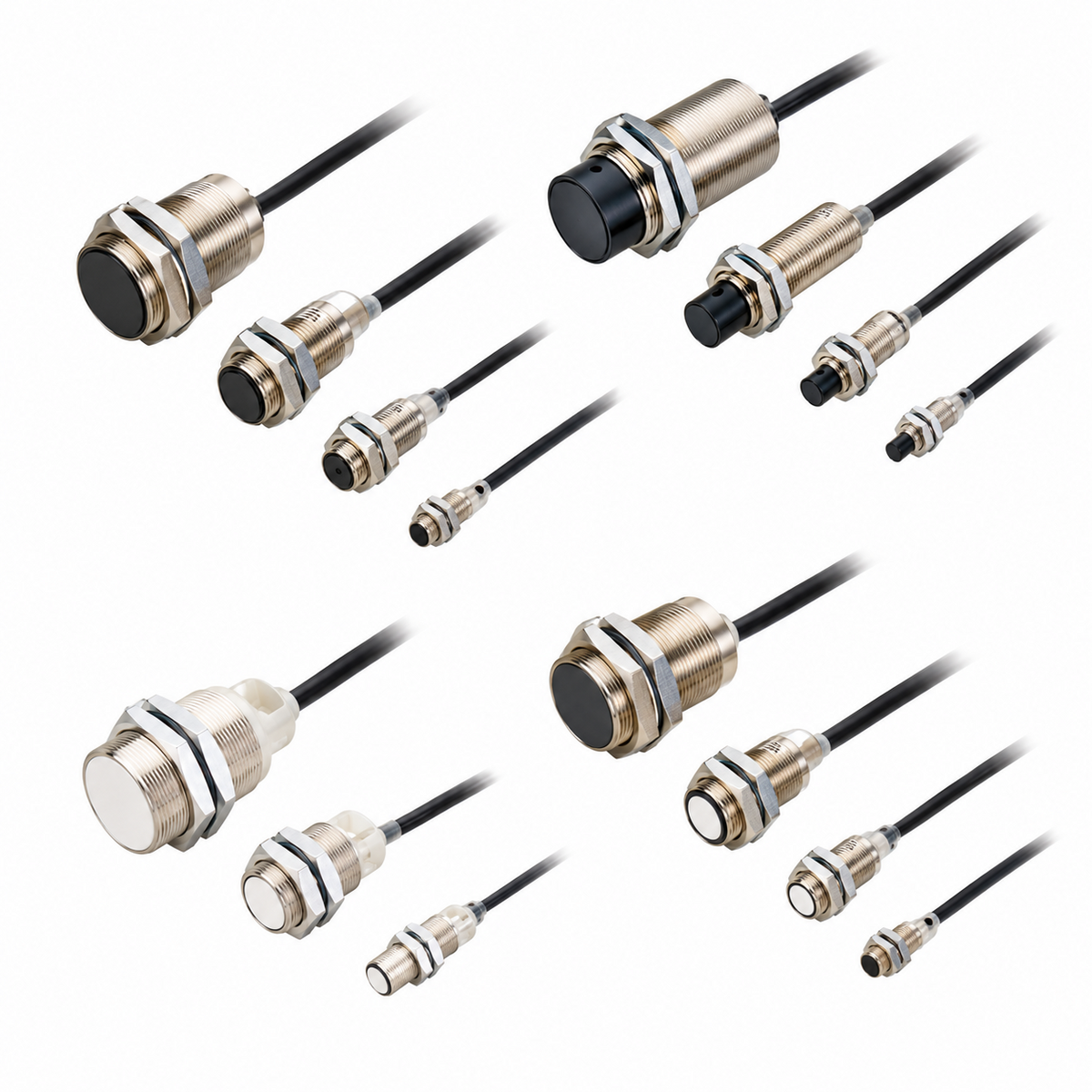

Omron E2E NEXT Standard Distance Proximity Sensor (M12, Shielded, DC 2-Wire)

Omron E2E NEXT Standard Distance Proximity Sensor (M12, Shielded, DC 2-Wire)

OMRON E2E NEXT Series standard distance DC 2-wire shielded proximity sensor.

Key features

  • M12
  • Sensing distance 3 mm
  • NO and NC
  • Pre-wired 2m/5m, M12 Smartclick 0.3m, M12/M8 connector

Specifications

Size M12
Sensing Distance 3 mm
Shield Shielded
Wire DC 2-wire
Grade Standard distance
E2E-X3D1-N 2M 2W Std M12 3 mm NO 2m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X3D1-N 5M 2W Std M12 3 mm NO 5m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X3D1L 2M 2W Std M12 3 mm NO long 2m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NO | Connection: Pre-wired 2 m | Body: Long
E2E-X3D1L 5M 2W Std M12 3 mm NO long 5m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NO | Connection: Pre-wired 5 m | Body: Long
E2E-X3D1-M1TGJ 0.3M 2W Std M12 3 mm NO Smartclick | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NO | Connection: M12 Pre-wired Smartclick 0.3 m
E2E-X3D1-M1G 2W Std M12 3 mm NO M12 conn | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NO | Connection: M12 Connector
E2E-X3D2-N 2M 2W Std M12 3 mm NC 2m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X3D2-N 5M 2W Std M12 3 mm NC 5m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X3D2L 2M 2W Std M12 3 mm NC long 2m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NC | Connection: Pre-wired 2 m | Body: Long
E2E-X3D2L 5M 2W Std M12 3 mm NC long 5m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NC | Connection: Pre-wired 5 m | Body: Long
E2E-X3D2-M1G 2W Std M12 3 mm NC M12 conn | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NC | Connection: M12 Connector
ProximityOmron
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2E NEXT Standard Distance Proximity Sensor (M12, Shielded, DC 2-Wire)

Brand Omron·Proximity

Available part numbers (11)

E2E-X3D1-N 2M, E2E-X3D1-N 5M, E2E-X3D1L 2M, E2E-X3D1L 5M, E2E-X3D1-M1TGJ 0.3M, E2E-X3D1-M1G, E2E-X3D2-N 2M, E2E-X3D2-N 5M, E2E-X3D2L 2M, E2E-X3D2L 5M + 1 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E2E-X3D1-N 2M2W Std M12 3 mm NO 2m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-X3D1-N 5M2W Std M12 3 mm NO 5m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-X3D1L 2M2W Std M12 3 mm NO long 2m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NO | Connection: Pre-wired 2 m | Body: Long
E2E-X3D1L 5M2W Std M12 3 mm NO long 5m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NO | Connection: Pre-wired 5 m | Body: Long
E2E-X3D1-M1TGJ 0.3M2W Std M12 3 mm NO Smartclick | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NO | Connection: M12 Pre-wired Smartclick 0.3 m
E2E-X3D1-M1G2W Std M12 3 mm NO M12 conn | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NO | Connection: M12 Connector
E2E-X3D2-N 2M2W Std M12 3 mm NC 2m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-X3D2-N 5M2W Std M12 3 mm NC 5m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-X3D2L 2M2W Std M12 3 mm NC long 2m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NC | Connection: Pre-wired 2 m | Body: Long
E2E-X3D2L 5M2W Std M12 3 mm NC long 5m | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NC | Connection: Pre-wired 5 m | Body: Long
E2E-X3D2-M1G2W Std M12 3 mm NC M12 conn | Size: M12 | Sensing Distance: 3 mm | Shield: Shielded | Wire: DC 2-wire | Grade: Standard distance | Operation Mode: NC | Connection: M12 Connector
