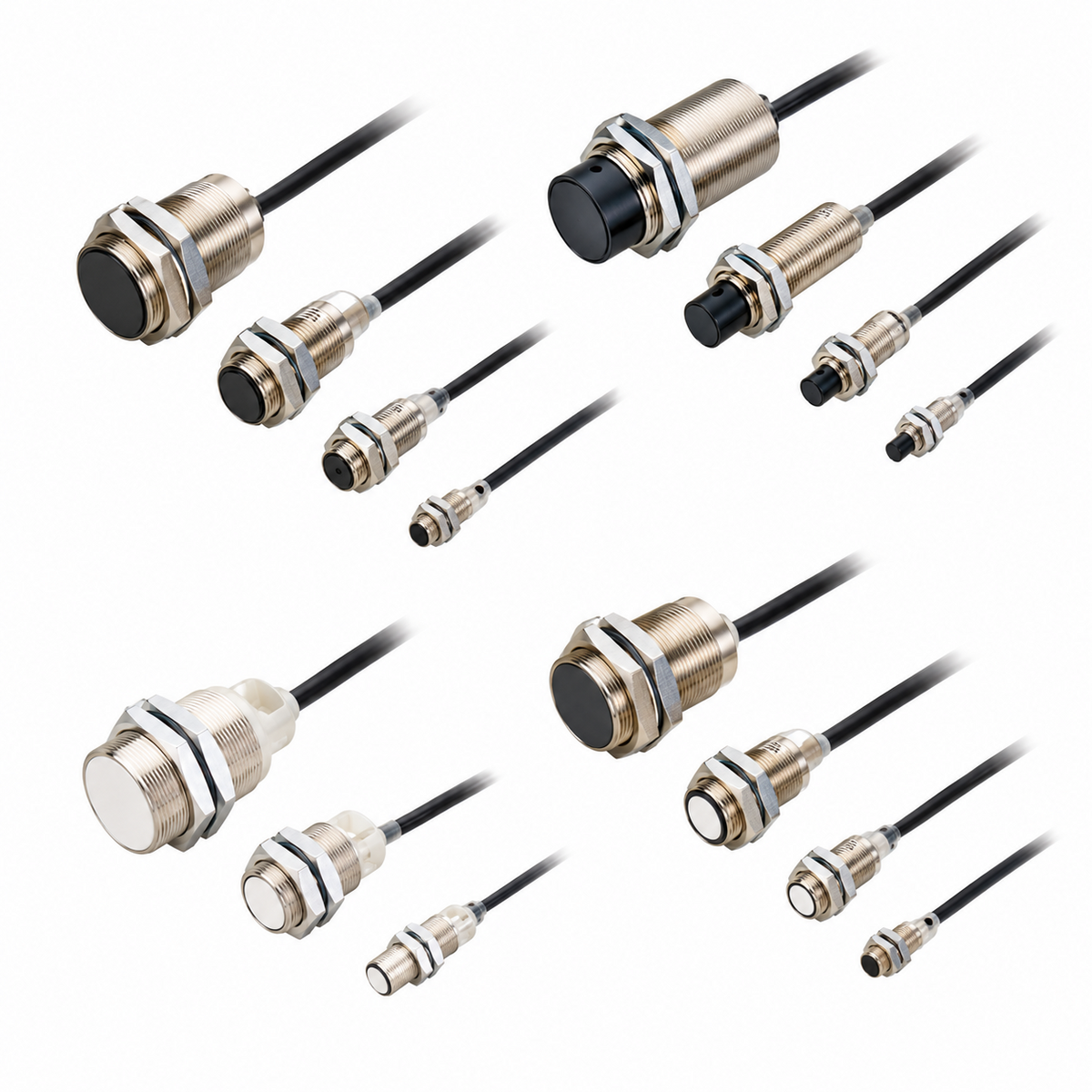

Omron E2E NEXT Standard Distance Proximity Sensor (M8, Unshielded, DC 2-Wire)

OMRON E2E NEXT Series standard distance DC 2-wire unshielded proximity sensor.

Key features

M8
Sensing distance 4 mm
NO and NC
Pre-wired 2m/5m, M12 Smartclick 0.3m, M12 connector

Specifications

Size	M8
Sensing Distance	4 mm
Shield	Unshielded
Wire	DC 2-wire
Grade	Standard distance

E2E-X4MD1 2M		2W Std M8 4 mm NO 2m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NO \| Connection: Pre-wired 2 m
E2E-X4MD1 5M		2W Std M8 4 mm NO 5m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NO \| Connection: Pre-wired 5 m
E2E-X4MD1L 2M		2W Std M8 4 mm NO long 2m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NO \| Connection: Pre-wired 2 m \| Body: Long
E2E-X4MD1L 5M		2W Std M8 4 mm NO long 5m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NO \| Connection: Pre-wired 5 m \| Body: Long
E2E-X4MD1-M1TGJ 0.3M		2W Std M8 4 mm NO Smartclick \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NO \| Connection: M12 Pre-wired Smartclick 0.3 m
E2E-X4MD1-M1G		2W Std M8 4 mm NO M12 conn \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NO \| Connection: M12 Connector
E2E-X4MD1-M3G		2W Std M8 4 mm NO M8 conn \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NO \| Connection: M8 4-pin Connector
E2E-X4MD2 2M		2W Std M8 4 mm NC 2m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NC \| Connection: Pre-wired 2 m
E2E-X4MD2 5M		2W Std M8 4 mm NC 5m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NC \| Connection: Pre-wired 5 m
E2E-X4MD2L 2M		2W Std M8 4 mm NC long 2m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NC \| Connection: Pre-wired 2 m \| Body: Long
E2E-X4MD2L 5M		2W Std M8 4 mm NC long 5m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NC \| Connection: Pre-wired 5 m \| Body: Long
E2E-X4MD2-M1G		2W Std M8 4 mm NC M12 conn \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NC \| Connection: M12 Connector
E2E-X4MD2-M3G		2W Std M8 4 mm NC M8 conn \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NC \| Connection: M8 4-pin Connector

ProximityOmron

13 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2E NEXT Standard Distance Proximity Sensor (M8, Unshielded, DC 2-Wire)

Brand Omron·Proximity

Available part numbers (13)

E2E-X4MD1 2M, E2E-X4MD1 5M, E2E-X4MD1L 2M, E2E-X4MD1L 5M, E2E-X4MD1-M1TGJ 0.3M, E2E-X4MD1-M1G, E2E-X4MD1-M3G, E2E-X4MD2 2M, E2E-X4MD2 5M, E2E-X4MD2L 2M + 3 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	E2E-X4MD1 2M	2W Std M8 4 mm NO 2m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NO \| Connection: Pre-wired 2 m
	E2E-X4MD1 5M	2W Std M8 4 mm NO 5m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NO \| Connection: Pre-wired 5 m
	E2E-X4MD1L 2M	2W Std M8 4 mm NO long 2m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NO \| Connection: Pre-wired 2 m \| Body: Long
	E2E-X4MD1L 5M	2W Std M8 4 mm NO long 5m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NO \| Connection: Pre-wired 5 m \| Body: Long
	E2E-X4MD1-M1TGJ 0.3M	2W Std M8 4 mm NO Smartclick \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NO \| Connection: M12 Pre-wired Smartclick 0.3 m
	E2E-X4MD1-M1G	2W Std M8 4 mm NO M12 conn \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NO \| Connection: M12 Connector
	E2E-X4MD1-M3G	2W Std M8 4 mm NO M8 conn \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NO \| Connection: M8 4-pin Connector
	E2E-X4MD2 2M	2W Std M8 4 mm NC 2m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NC \| Connection: Pre-wired 2 m
	E2E-X4MD2 5M	2W Std M8 4 mm NC 5m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NC \| Connection: Pre-wired 5 m
	E2E-X4MD2L 2M	2W Std M8 4 mm NC long 2m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NC \| Connection: Pre-wired 2 m \| Body: Long
	E2E-X4MD2L 5M	2W Std M8 4 mm NC long 5m \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NC \| Connection: Pre-wired 5 m \| Body: Long
	E2E-X4MD2-M1G	2W Std M8 4 mm NC M12 conn \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NC \| Connection: M12 Connector
	E2E-X4MD2-M3G	2W Std M8 4 mm NC M8 conn \| Size: M8 \| Sensing Distance: 4 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Standard distance \| Operation Mode: NC \| Connection: M8 4-pin Connector
