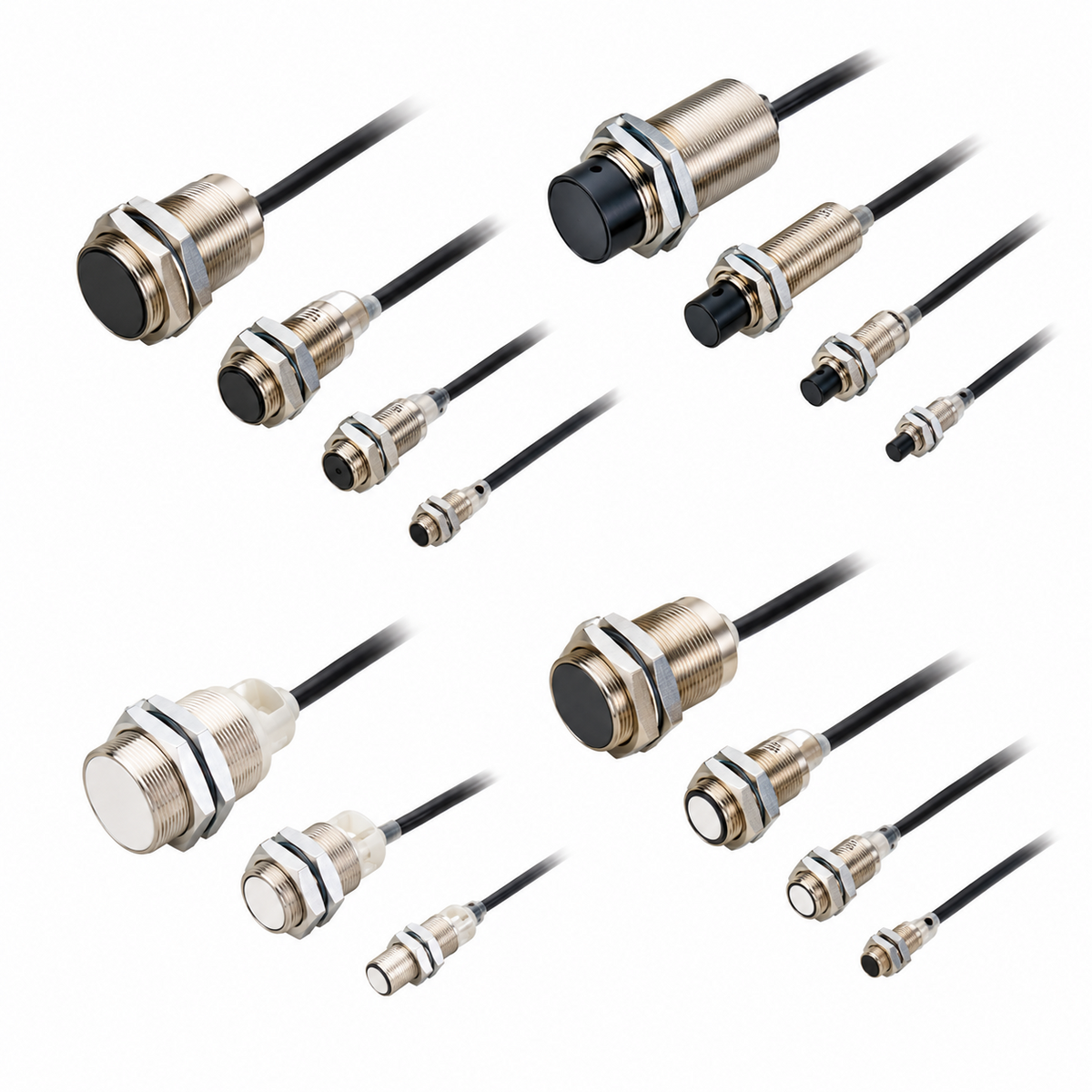

Omron E2E NEXT Triple Distance Proximity Sensor (M8, Unshielded, DC 2-Wire)

OMRON E2E NEXT Series triple distance DC 2-wire proximity sensor.

Key features

M8, Unshielded
Sensing distance 6 mm
NO and NC
Pre-wired 2m/5m (with/without polarity) and M12 Smartclick 0.3m

Specifications

Size	M8
Sensing Distance	6 mm
Shield	Unshielded
Wire	DC 2-wire
Grade	Triple distance
Body	Standard

E2E-X6MD18 2M		2W Triple M8 6 mm NO 2m yes-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NO \| Connection: Pre-wired 2 m \| Polarity: Yes
E2E-X6MD18 5M		2W Triple M8 6 mm NO 5m yes-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NO \| Connection: Pre-wired 5 m \| Polarity: Yes
E2E-X6MD18-T 2M		2W Triple M8 6 mm NO 2m no-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NO \| Connection: Pre-wired 2 m \| Polarity: No
E2E-X6MD18-T 5M		2W Triple M8 6 mm NO 5m no-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NO \| Connection: Pre-wired 5 m \| Polarity: No
E2E-X6MD18-M1TGJ 0.3M		2W Triple M8 6 mm NO Smartclick yes-pol \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NO \| Connection: M12 Pre-wired Smartclick Connector 0.3 m \| Polarity: Yes
E2E-X6MD18-M1TGJ-T 0.3M		2W Triple M8 6 mm NO Smartclick no-pol \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NO \| Connection: M12 Pre-wired Smartclick Connector 0.3 m \| Polarity: No
E2E-X6MD28 2M		2W Triple M8 6 mm NC 2m yes-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NC \| Connection: Pre-wired 2 m \| Polarity: Yes
E2E-X6MD28 5M		2W Triple M8 6 mm NC 5m yes-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NC \| Connection: Pre-wired 5 m \| Polarity: Yes
E2E-X6MD28-T 2M		2W Triple M8 6 mm NC 2m no-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NC \| Connection: Pre-wired 2 m \| Polarity: No
E2E-X6MD28-T 5M		2W Triple M8 6 mm NC 5m no-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NC \| Connection: Pre-wired 5 m \| Polarity: No
E2E-X6MD28-M1TGJ 0.3M		2W Triple M8 6 mm NC Smartclick yes-pol \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NC \| Connection: M12 Pre-wired Smartclick Connector 0.3 m \| Polarity: Yes
E2E-X6MD28-M1TGJ-T 0.3M		2W Triple M8 6 mm NC Smartclick no-pol \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NC \| Connection: M12 Pre-wired Smartclick Connector 0.3 m \| Polarity: No

ProximityOmron

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2E NEXT Triple Distance Proximity Sensor (M8, Unshielded, DC 2-Wire)

Brand Omron·Proximity

Available part numbers (12)

E2E-X6MD18 2M, E2E-X6MD18 5M, E2E-X6MD18-T 2M, E2E-X6MD18-T 5M, E2E-X6MD18-M1TGJ 0.3M, E2E-X6MD18-M1TGJ-T 0.3M, E2E-X6MD28 2M, E2E-X6MD28 5M, E2E-X6MD28-T 2M, E2E-X6MD28-T 5M + 2 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	E2E-X6MD18 2M	2W Triple M8 6 mm NO 2m yes-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NO \| Connection: Pre-wired 2 m \| Polarity: Yes
	E2E-X6MD18 5M	2W Triple M8 6 mm NO 5m yes-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NO \| Connection: Pre-wired 5 m \| Polarity: Yes
	E2E-X6MD18-T 2M	2W Triple M8 6 mm NO 2m no-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NO \| Connection: Pre-wired 2 m \| Polarity: No
	E2E-X6MD18-T 5M	2W Triple M8 6 mm NO 5m no-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NO \| Connection: Pre-wired 5 m \| Polarity: No
	E2E-X6MD18-M1TGJ 0.3M	2W Triple M8 6 mm NO Smartclick yes-pol \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NO \| Connection: M12 Pre-wired Smartclick Connector 0.3 m \| Polarity: Yes
	E2E-X6MD18-M1TGJ-T 0.3M	2W Triple M8 6 mm NO Smartclick no-pol \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NO \| Connection: M12 Pre-wired Smartclick Connector 0.3 m \| Polarity: No
	E2E-X6MD28 2M	2W Triple M8 6 mm NC 2m yes-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NC \| Connection: Pre-wired 2 m \| Polarity: Yes
	E2E-X6MD28 5M	2W Triple M8 6 mm NC 5m yes-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NC \| Connection: Pre-wired 5 m \| Polarity: Yes
	E2E-X6MD28-T 2M	2W Triple M8 6 mm NC 2m no-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NC \| Connection: Pre-wired 2 m \| Polarity: No
	E2E-X6MD28-T 5M	2W Triple M8 6 mm NC 5m no-polarity \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NC \| Connection: Pre-wired 5 m \| Polarity: No
	E2E-X6MD28-M1TGJ 0.3M	2W Triple M8 6 mm NC Smartclick yes-pol \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NC \| Connection: M12 Pre-wired Smartclick Connector 0.3 m \| Polarity: Yes
	E2E-X6MD28-M1TGJ-T 0.3M	2W Triple M8 6 mm NC Smartclick no-pol \| Size: M8 \| Sensing Distance: 6 mm \| Shield: Unshielded \| Wire: DC 2-wire \| Grade: Triple distance \| Body: Standard \| Operation Mode: NC \| Connection: M12 Pre-wired Smartclick Connector 0.3 m \| Polarity: No
