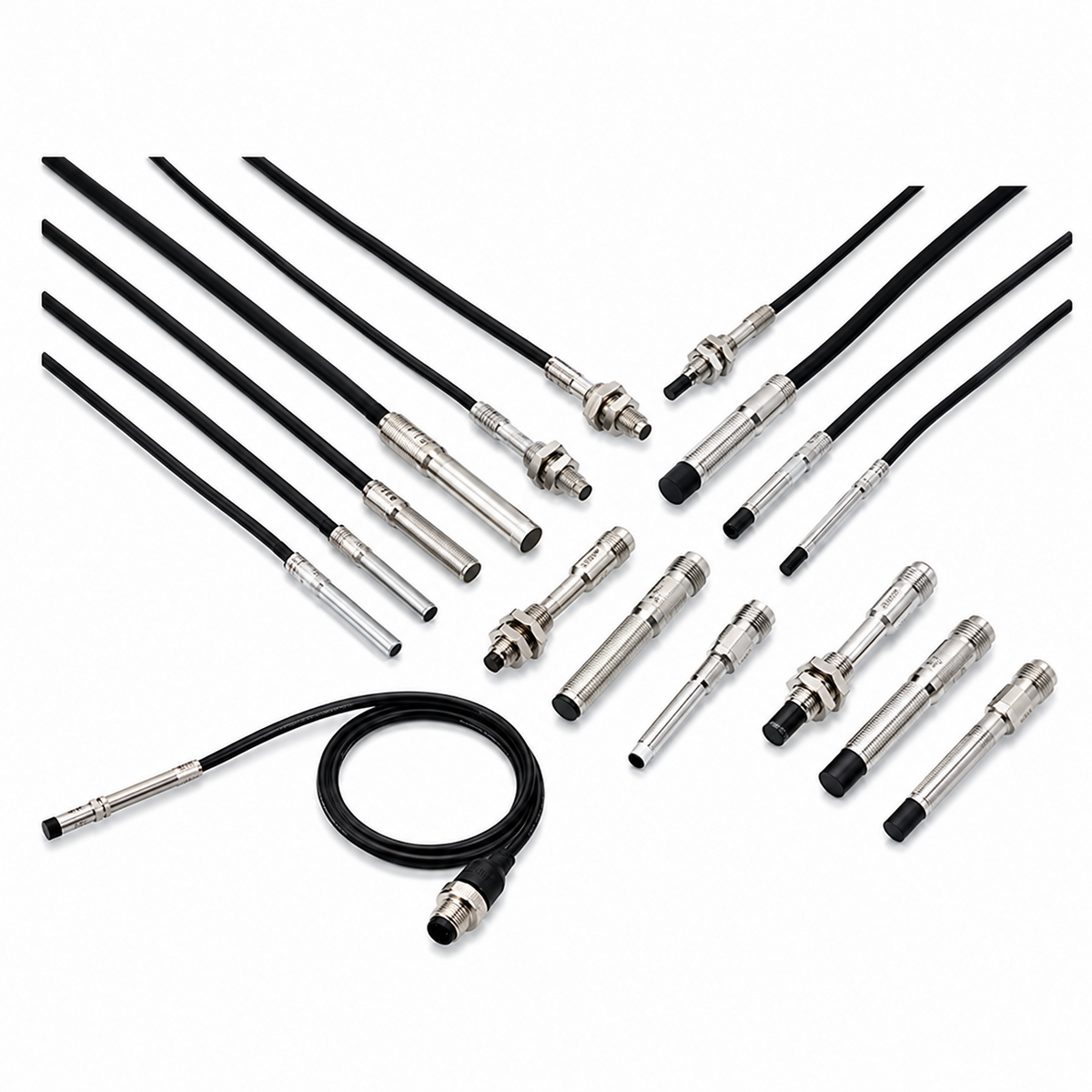

Omron E2E Small-diameter Proximity Sensor (3 dia., Unshielded, 2 mm, NPN/PNP)

OMRON E2E Series ultra-small unshielded proximity sensor. 3 dia. body, 2 mm sensing distance.

Key features

NPN and PNP
NO and NC
Pre-wired 2m/5m, M8 pre-wired connector 0.3m

Specifications

Size	3 dia.
Sensing Distance	2 mm
Shield	Unshielded
Cable	PVC oil-resistant

E2E-C03N02-WC-C1 2M		3 dia. 2 mm NPN NO 2m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: NPN \| Operation Mode: NO \| Connection: Pre-wired 2 m
E2E-C03N02-WC-C1 5M		3 dia. 2 mm NPN NO 5m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: NPN \| Operation Mode: NO \| Connection: Pre-wired 5 m
E2E-C03N02-CJ-C1 0.3M		3 dia. 2 mm NPN NO M8 Smartclick 0.3m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: NPN \| Operation Mode: NO \| Connection: M8 Pre-wired Connector 0.3 m
E2E-C03N02-WC-C2 2M		3 dia. 2 mm NPN NC 2m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: NPN \| Operation Mode: NC \| Connection: Pre-wired 2 m
E2E-C03N02-WC-C2 5M		3 dia. 2 mm NPN NC 5m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: NPN \| Operation Mode: NC \| Connection: Pre-wired 5 m
E2E-C03N02-CJ-C2 0.3M		3 dia. 2 mm NPN NC M8 Smartclick 0.3m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: NPN \| Operation Mode: NC \| Connection: M8 Pre-wired Connector 0.3 m
E2E-C03N02-WC-B1 2M		3 dia. 2 mm PNP NO 2m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: PNP \| Operation Mode: NO \| Connection: Pre-wired 2 m
E2E-C03N02-WC-B1 5M		3 dia. 2 mm PNP NO 5m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: PNP \| Operation Mode: NO \| Connection: Pre-wired 5 m
E2E-C03N02-CJ-B1 0.3M		3 dia. 2 mm PNP NO M8 Smartclick 0.3m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: PNP \| Operation Mode: NO \| Connection: M8 Pre-wired Connector 0.3 m
E2E-C03N02-WC-B2 2M		3 dia. 2 mm PNP NC 2m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: PNP \| Operation Mode: NC \| Connection: Pre-wired 2 m
E2E-C03N02-WC-B2 5M		3 dia. 2 mm PNP NC 5m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: PNP \| Operation Mode: NC \| Connection: Pre-wired 5 m
E2E-C03N02-CJ-B2 0.3M		3 dia. 2 mm PNP NC M8 Smartclick 0.3m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: PNP \| Operation Mode: NC \| Connection: M8 Pre-wired Connector 0.3 m

ProximityOmron

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2E Small-diameter Proximity Sensor (3 dia., Unshielded, 2 mm, NPN/PNP)

Brand Omron·Proximity

Available part numbers (12)

E2E-C03N02-WC-C1 2M, E2E-C03N02-WC-C1 5M, E2E-C03N02-CJ-C1 0.3M, E2E-C03N02-WC-C2 2M, E2E-C03N02-WC-C2 5M, E2E-C03N02-CJ-C2 0.3M, E2E-C03N02-WC-B1 2M, E2E-C03N02-WC-B1 5M, E2E-C03N02-CJ-B1 0.3M, E2E-C03N02-WC-B2 2M + 2 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	E2E-C03N02-WC-C1 2M	3 dia. 2 mm NPN NO 2m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: NPN \| Operation Mode: NO \| Connection: Pre-wired 2 m
	E2E-C03N02-WC-C1 5M	3 dia. 2 mm NPN NO 5m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: NPN \| Operation Mode: NO \| Connection: Pre-wired 5 m
	E2E-C03N02-CJ-C1 0.3M	3 dia. 2 mm NPN NO M8 Smartclick 0.3m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: NPN \| Operation Mode: NO \| Connection: M8 Pre-wired Connector 0.3 m
	E2E-C03N02-WC-C2 2M	3 dia. 2 mm NPN NC 2m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: NPN \| Operation Mode: NC \| Connection: Pre-wired 2 m
	E2E-C03N02-WC-C2 5M	3 dia. 2 mm NPN NC 5m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: NPN \| Operation Mode: NC \| Connection: Pre-wired 5 m
	E2E-C03N02-CJ-C2 0.3M	3 dia. 2 mm NPN NC M8 Smartclick 0.3m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: NPN \| Operation Mode: NC \| Connection: M8 Pre-wired Connector 0.3 m
	E2E-C03N02-WC-B1 2M	3 dia. 2 mm PNP NO 2m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: PNP \| Operation Mode: NO \| Connection: Pre-wired 2 m
	E2E-C03N02-WC-B1 5M	3 dia. 2 mm PNP NO 5m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: PNP \| Operation Mode: NO \| Connection: Pre-wired 5 m
	E2E-C03N02-CJ-B1 0.3M	3 dia. 2 mm PNP NO M8 Smartclick 0.3m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: PNP \| Operation Mode: NO \| Connection: M8 Pre-wired Connector 0.3 m
	E2E-C03N02-WC-B2 2M	3 dia. 2 mm PNP NC 2m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: PNP \| Operation Mode: NC \| Connection: Pre-wired 2 m
	E2E-C03N02-WC-B2 5M	3 dia. 2 mm PNP NC 5m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: PNP \| Operation Mode: NC \| Connection: Pre-wired 5 m
	E2E-C03N02-CJ-B2 0.3M	3 dia. 2 mm PNP NC M8 Smartclick 0.3m \| Size: 3 dia. \| Sensing Distance: 2 mm \| Shield: Unshielded \| Cable: PVC oil-resistant \| Output: PNP \| Operation Mode: NC \| Connection: M8 Pre-wired Connector 0.3 m
