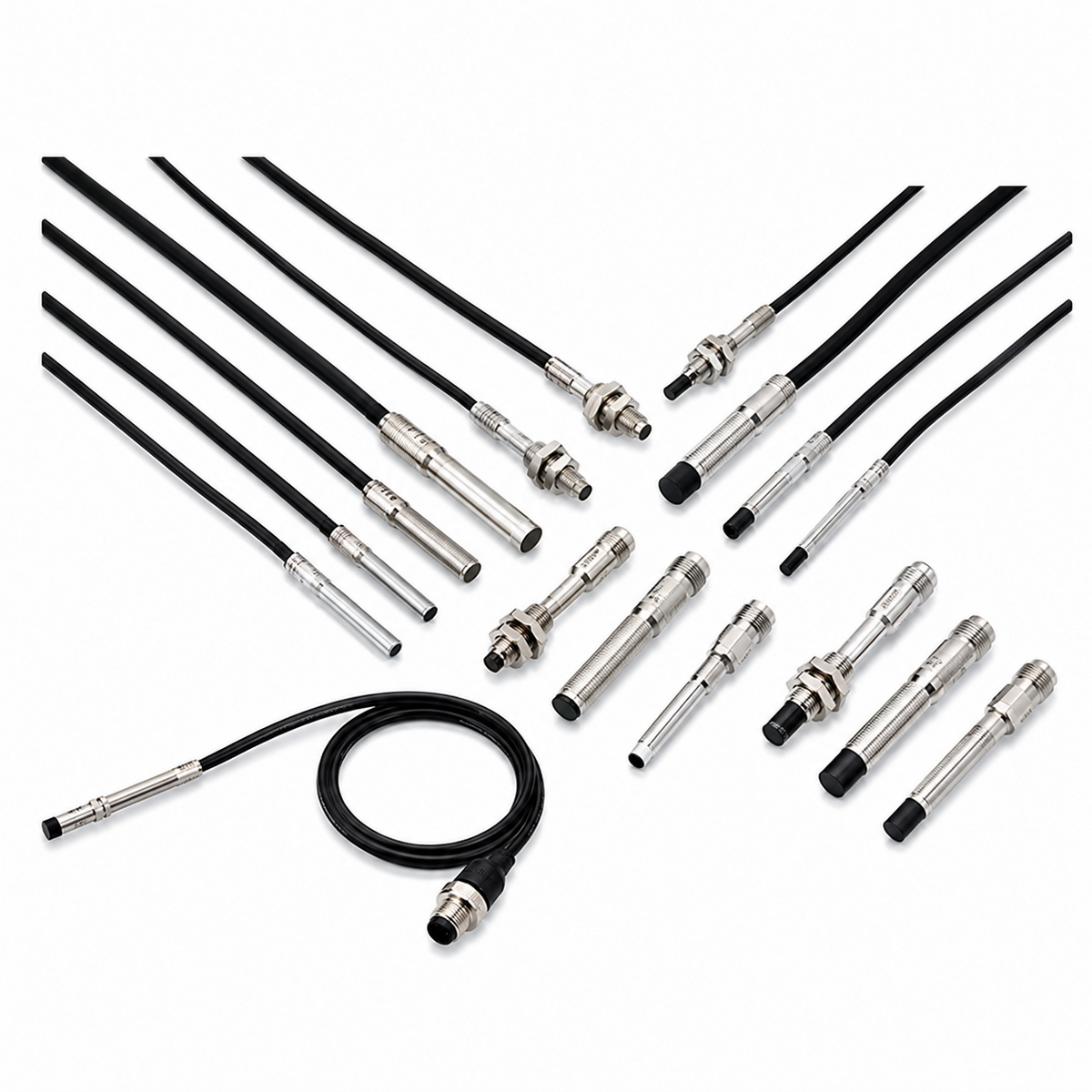

• Omron E2E Small-diameter Proximity Sensor (M5, Shielded, 1.2 mm, NPN/PNP)
1 1

Omron E2E Small-diameter Proximity Sensor (M5, Shielded, 1.2 mm, NPN/PNP)

Omron E2E Small-diameter Proximity Sensor (M5, Shielded, 1.2 mm, NPN/PNP)

OMRON E2E Series ultra-small shielded proximity sensor.

Key features

  • M5 body, 1.2 mm sensing distance
  • NPN and PNP
  • NO and NC
  • Pre-wired 2m/5m, M8 pre-wired connector 0.3m, M8 connector

Specifications

Size M5
Sensing Distance 1.2 mm
Shield Shielded
Cable PVC oil-resistant
E2E-S05S12-WC-C1 2M M5 1.2 mm NPN NO 2m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-S05S12-WC-C1 5M M5 1.2 mm NPN NO 5m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-S05S12-CJ-C1 0.3M M5 1.2 mm NPN NO M8 Smartclick 0.3m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NO | Connection: M8 Pre-wired Connector 0.3 m
E2E-S05S12-MC-C1 M5 1.2 mm NPN NO M8 conn | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NO | Connection: M8 Connector
E2E-S05S12-WC-C2 2M M5 1.2 mm NPN NC 2m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-S05S12-WC-C2 5M M5 1.2 mm NPN NC 5m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-S05S12-CJ-C2 0.3M M5 1.2 mm NPN NC M8 Smartclick 0.3m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NC | Connection: M8 Pre-wired Connector 0.3 m
E2E-S05S12-MC-C2 M5 1.2 mm NPN NC M8 conn | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NC | Connection: M8 Connector
E2E-S05S12-WC-B1 2M M5 1.2 mm PNP NO 2m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-S05S12-WC-B1 5M M5 1.2 mm PNP NO 5m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-S05S12-CJ-B1 0.3M M5 1.2 mm PNP NO M8 Smartclick 0.3m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NO | Connection: M8 Pre-wired Connector 0.3 m
E2E-S05S12-MC-B1 M5 1.2 mm PNP NO M8 conn | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NO | Connection: M8 Connector
E2E-S05S12-WC-B2 2M M5 1.2 mm PNP NC 2m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-S05S12-WC-B2 5M M5 1.2 mm PNP NC 5m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-S05S12-CJ-B2 0.3M M5 1.2 mm PNP NC M8 Smartclick 0.3m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NC | Connection: M8 Pre-wired Connector 0.3 m
E2E-S05S12-MC-B2 M5 1.2 mm PNP NC M8 conn | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NC | Connection: M8 Connector
ProximityOmron
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2E Small-diameter Proximity Sensor (M5, Shielded, 1.2 mm, NPN/PNP)

Brand Omron·Proximity

Available part numbers (16)

E2E-S05S12-WC-C1 2M, E2E-S05S12-WC-C1 5M, E2E-S05S12-CJ-C1 0.3M, E2E-S05S12-MC-C1, E2E-S05S12-WC-C2 2M, E2E-S05S12-WC-C2 5M, E2E-S05S12-CJ-C2 0.3M, E2E-S05S12-MC-C2, E2E-S05S12-WC-B1 2M, E2E-S05S12-WC-B1 5M + 6 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E2E-S05S12-WC-C1 2MM5 1.2 mm NPN NO 2m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-S05S12-WC-C1 5MM5 1.2 mm NPN NO 5m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-S05S12-CJ-C1 0.3MM5 1.2 mm NPN NO M8 Smartclick 0.3m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NO | Connection: M8 Pre-wired Connector 0.3 m
E2E-S05S12-MC-C1M5 1.2 mm NPN NO M8 conn | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NO | Connection: M8 Connector
E2E-S05S12-WC-C2 2MM5 1.2 mm NPN NC 2m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-S05S12-WC-C2 5MM5 1.2 mm NPN NC 5m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-S05S12-CJ-C2 0.3MM5 1.2 mm NPN NC M8 Smartclick 0.3m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NC | Connection: M8 Pre-wired Connector 0.3 m
E2E-S05S12-MC-C2M5 1.2 mm NPN NC M8 conn | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: NPN | Operation Mode: NC | Connection: M8 Connector
E2E-S05S12-WC-B1 2MM5 1.2 mm PNP NO 2m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m
E2E-S05S12-WC-B1 5MM5 1.2 mm PNP NO 5m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m
E2E-S05S12-CJ-B1 0.3MM5 1.2 mm PNP NO M8 Smartclick 0.3m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NO | Connection: M8 Pre-wired Connector 0.3 m
E2E-S05S12-MC-B1M5 1.2 mm PNP NO M8 conn | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NO | Connection: M8 Connector
E2E-S05S12-WC-B2 2MM5 1.2 mm PNP NC 2m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m
E2E-S05S12-WC-B2 5MM5 1.2 mm PNP NC 5m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NC | Connection: Pre-wired 5 m
E2E-S05S12-CJ-B2 0.3MM5 1.2 mm PNP NC M8 Smartclick 0.3m | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NC | Connection: M8 Pre-wired Connector 0.3 m
E2E-S05S12-MC-B2M5 1.2 mm PNP NC M8 conn | Size: M5 | Sensing Distance: 1.2 mm | Shield: Shielded | Cable: PVC oil-resistant | Output: PNP | Operation Mode: NC | Connection: M8 Connector
