• Omron E2EC-M / E2EC-Q Stainless Steel Sensing Surface Proximity Sensor (8 dia., 2mm, NO)
1 1

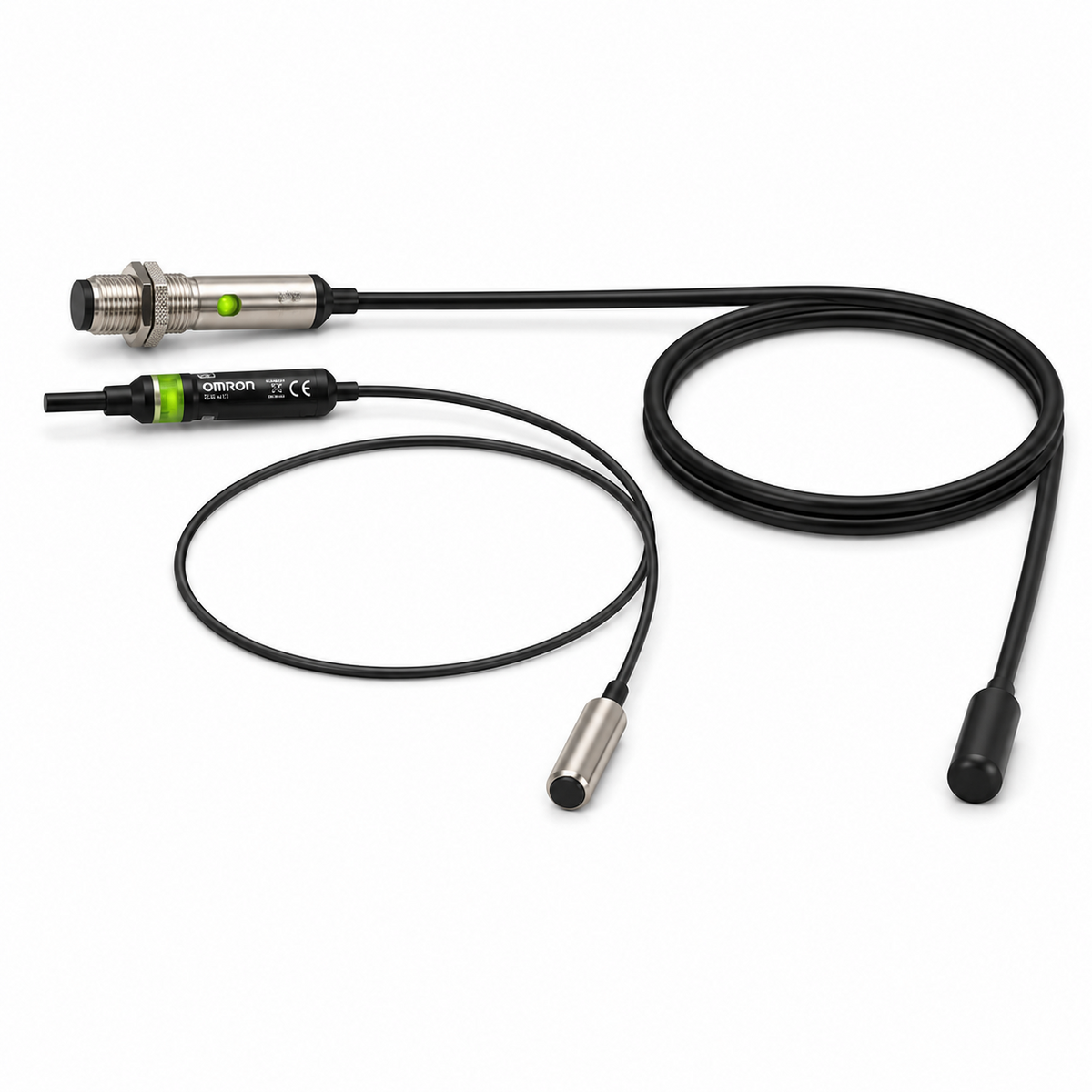

Omron E2EC-M / E2EC-Q Stainless Steel Sensing Surface Proximity Sensor (8 dia., 2mm, NO)

Omron E2EC-M / E2EC-Q Stainless Steel Sensing Surface Proximity Sensor (8 dia., 2mm, NO)

OMRON E2EC-M / E2EC-Q Series stainless steel sensing head proximity sensor.

Key features

  • Shielded, 8 dia., 2mm sensing distance
  • Iron surface mounting
  • NO only
  • E2EC-MC2B1 2M: DC 3-wire PNP pre-wired 2m
  • E2EC-MC2D1 2M: DC 2-wire (polarity) pre-wired 2m
  • E2EC-QC2D1-M1GJ-T 0.3M: DC 2-wire (no polarity) M12 connector 0.3m

Specifications

Size 8 dia.
Sensing Distance 2 mm
Shield Shielded
Operation Mode NO
Sensing Head Stainless steel
Mounting Iron surface
E2EC-MC2B1 2M Stainless steel 8dia 2mm DC3W PNP NO pre-wired 2m | Size: 8 dia. | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Sensing Head: Stainless steel | Mounting: Iron surface
E2EC-MC2D1 2M Stainless steel 8dia 2mm DC2W polarity NO pre-wired 2m | Size: 8 dia. | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Sensing Head: Stainless steel | Mounting: Iron surface
E2EC-QC2D1-M1GJ-T 0.3M Stainless steel 8dia 2mm DC2W no-polarity NO M12conn 0.3m | Size: 8 dia. | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire (no polarity) | Output: --- | Operation Mode: NO | Connection: M12 Pre-wired Connector 0.3 m | Pin: (3)-(4) | Sensing Head: Stainless steel | Mounting: Iron surface | Required Cable: XS2F-D421-DD0 (2m) or XS2F-D421-GD0 (5m); use heat-resistant XS2F-D42x-x80F for spatter environments
ProximityOmron
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2EC-M / E2EC-Q Stainless Steel Sensing Surface Proximity Sensor (8 dia., 2mm, NO)

Brand Omron·Proximity

Available part numbers (3)

E2EC-MC2B1 2M, E2EC-MC2D1 2M, E2EC-QC2D1-M1GJ-T 0.3M

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E2EC-MC2B1 2MStainless steel 8dia 2mm DC3W PNP NO pre-wired 2m | Size: 8 dia. | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Sensing Head: Stainless steel | Mounting: Iron surface
E2EC-MC2D1 2MStainless steel 8dia 2mm DC2W polarity NO pre-wired 2m | Size: 8 dia. | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire (polarity) | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Sensing Head: Stainless steel | Mounting: Iron surface
E2EC-QC2D1-M1GJ-T 0.3MStainless steel 8dia 2mm DC2W no-polarity NO M12conn 0.3m | Size: 8 dia. | Sensing Distance: 2 mm | Shield: Shielded | Wire: DC 2-wire (no polarity) | Output: --- | Operation Mode: NO | Connection: M12 Pre-wired Connector 0.3 m | Pin: (3)-(4) | Sensing Head: Stainless steel | Mounting: Iron surface | Required Cable: XS2F-D421-DD0 (2m) or XS2F-D421-GD0 (5m); use heat-resistant XS2F-D42x-x80F for spatter environments
