Omron E2EQ NEXT Fluororesin Spatter-resistant Proximity Sensor BASIC Double (DC 3-Wire, M8/M12/M18/M30)

Omron E2EQ NEXT Fluororesin Spatter-resistant Proximity Sensor BASIC Double (DC 3-Wire, M8/M12/M18/M30)

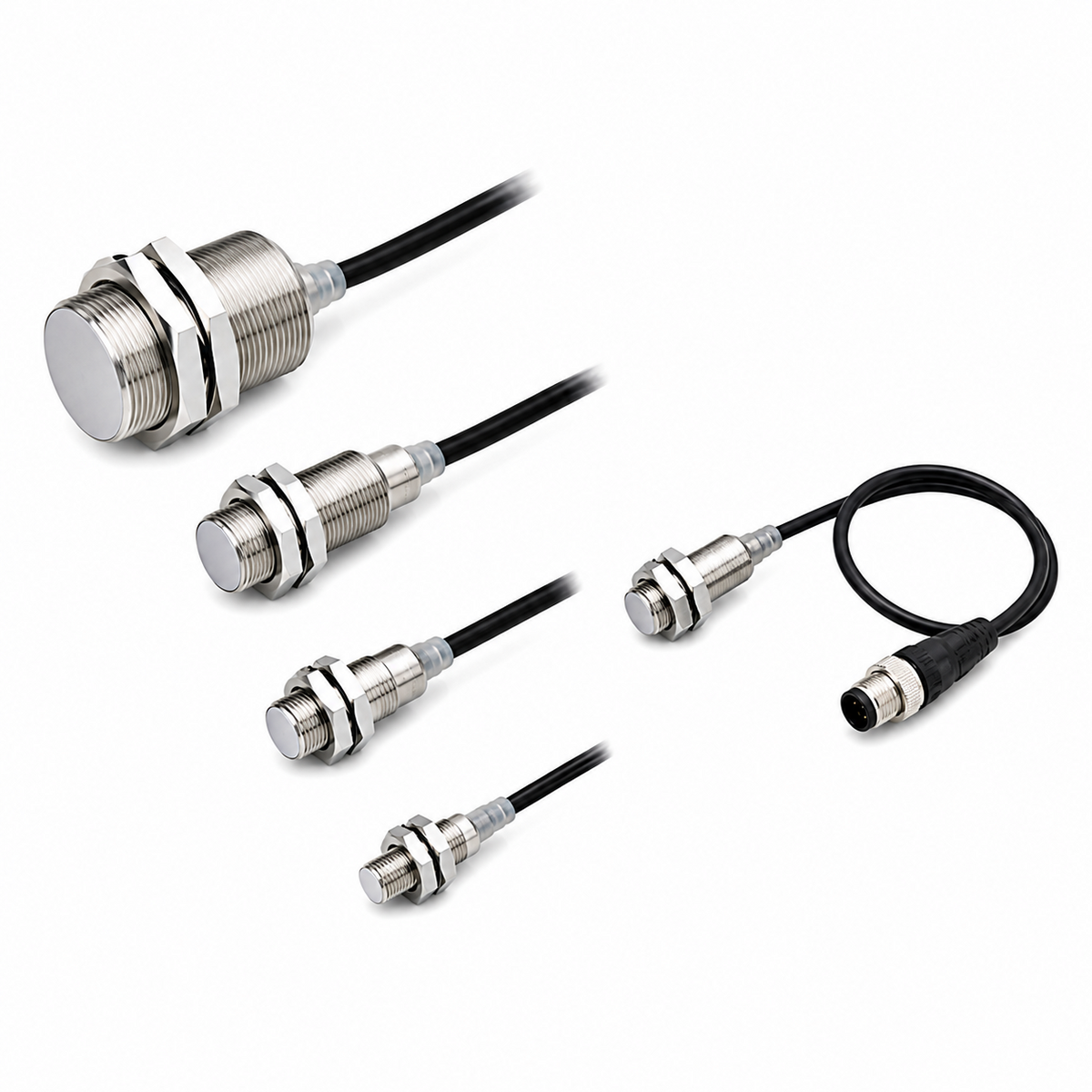

OMRON E2EQ NEXT Series fluororesin coating spatter-resistant proximity sensor.

Key features

  • BASIC double distance
  • M8 (2mm), M12 (4mm), M18 (8mm), M30 (15mm)
  • PNP/NPN
  • NO/NO+NC
  • IO-Link COM2 (PNP only)
  • Pre-wired 2m/5m, Smartclick 0.3m

Specifications

Shield Shielded
Grade BASIC Double Spatter-resistant (2×)
Wire DC 3-wire
Coating Fluororesin
E2EQ-X2B1D8 2M E2EQ M8 2 mm PNP NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X2B1D8 5M E2EQ M8 2 mm PNP NO 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X2B1D8-M1TJ 0.3M E2EQ M8 2 mm PNP NO SC 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X2C18 2M E2EQ M8 2 mm NPN NO 2m | Size: M8 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X2C18 5M E2EQ M8 2 mm NPN NO 5m | Size: M8 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X2C18-M1TJ 0.3M E2EQ M8 2 mm NPN NO SC 0.3m | Size: M8 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X4B1D12 2M E2EQ M12 4 mm PNP NO 2m | Size: M12 | Sensing Distance: 4 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X4B1D12 5M E2EQ M12 4 mm PNP NO 5m | Size: M12 | Sensing Distance: 4 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X4B1D12-M1TJ 0.3M E2EQ M12 4 mm PNP NO SC 0.3m | Size: M12 | Sensing Distance: 4 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X4B3D12 2M E2EQ M12 4 mm PNP NO+NC 2m | Size: M12 | Sensing Distance: 4 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X4B3D12 5M E2EQ M12 4 mm PNP NO+NC 5m | Size: M12 | Sensing Distance: 4 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X4B3D12-M1TJ 0.3M E2EQ M12 4 mm PNP NO+NC SC 0.3m | Size: M12 | Sensing Distance: 4 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X4C112 2M E2EQ M12 4 mm NPN NO 2m | Size: M12 | Sensing Distance: 4 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X4C112 5M E2EQ M12 4 mm NPN NO 5m | Size: M12 | Sensing Distance: 4 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X4C112-M1TJ 0.3M E2EQ M12 4 mm NPN NO SC 0.3m | Size: M12 | Sensing Distance: 4 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X4C312 2M E2EQ M12 4 mm NPN NO+NC 2m | Size: M12 | Sensing Distance: 4 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X4C312 5M E2EQ M12 4 mm NPN NO+NC 5m | Size: M12 | Sensing Distance: 4 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X4C312-M1TJ 0.3M E2EQ M12 4 mm NPN NO+NC SC 0.3m | Size: M12 | Sensing Distance: 4 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X8B1D18 2M E2EQ M18 8 mm PNP NO 2m | Size: M18 | Sensing Distance: 8 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X8B1D18 5M E2EQ M18 8 mm PNP NO 5m | Size: M18 | Sensing Distance: 8 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X8B1D18-M1TJ 0.3M E2EQ M18 8 mm PNP NO SC 0.3m | Size: M18 | Sensing Distance: 8 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X8B3D18 2M E2EQ M18 8 mm PNP NO+NC 2m | Size: M18 | Sensing Distance: 8 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X8B3D18 5M E2EQ M18 8 mm PNP NO+NC 5m | Size: M18 | Sensing Distance: 8 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X8B3D18-M1TJ 0.3M E2EQ M18 8 mm PNP NO+NC SC 0.3m | Size: M18 | Sensing Distance: 8 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X8C118 2M E2EQ M18 8 mm NPN NO 2m | Size: M18 | Sensing Distance: 8 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X8C118 5M E2EQ M18 8 mm NPN NO 5m | Size: M18 | Sensing Distance: 8 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X8C118-M1TJ 0.3M E2EQ M18 8 mm NPN NO SC 0.3m | Size: M18 | Sensing Distance: 8 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X8C318 2M E2EQ M18 8 mm NPN NO+NC 2m | Size: M18 | Sensing Distance: 8 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X8C318 5M E2EQ M18 8 mm NPN NO+NC 5m | Size: M18 | Sensing Distance: 8 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X8C318-M1TJ 0.3M E2EQ M18 8 mm NPN NO+NC SC 0.3m | Size: M18 | Sensing Distance: 8 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X15B1D30 2M E2EQ M30 15 mm PNP NO 2m | Size: M30 | Sensing Distance: 15 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X15B1D30 5M E2EQ M30 15 mm PNP NO 5m | Size: M30 | Sensing Distance: 15 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X15B1D30-M1TJ 0.3M E2EQ M30 15 mm PNP NO SC 0.3m | Size: M30 | Sensing Distance: 15 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X15B3D30 2M E2EQ M30 15 mm PNP NO+NC 2m | Size: M30 | Sensing Distance: 15 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X15B3D30 5M E2EQ M30 15 mm PNP NO+NC 5m | Size: M30 | Sensing Distance: 15 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X15B3D30-M1TJ 0.3M E2EQ M30 15 mm PNP NO+NC SC 0.3m | Size: M30 | Sensing Distance: 15 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X15C130 2M E2EQ M30 15 mm NPN NO 2m | Size: M30 | Sensing Distance: 15 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X15C130 5M E2EQ M30 15 mm NPN NO 5m | Size: M30 | Sensing Distance: 15 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X15C130-M1TJ 0.3M E2EQ M30 15 mm NPN NO SC 0.3m | Size: M30 | Sensing Distance: 15 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X15C330 2M E2EQ M30 15 mm NPN NO+NC 2m | Size: M30 | Sensing Distance: 15 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X15C330 5M E2EQ M30 15 mm NPN NO+NC 5m | Size: M30 | Sensing Distance: 15 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X15C330-M1TJ 0.3M E2EQ M30 15 mm NPN NO+NC SC 0.3m | Size: M30 | Sensing Distance: 15 mm | Shield: Shielded | Grade: BASIC Double Spatter-resistant (2×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
ProximityOmron
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2EQ NEXT Fluororesin Spatter-resistant Proximity Sensor BASIC Double (DC 3-Wire, M8/M12/M18/M30)

Brand Omron·Proximity

Available part numbers (42)

E2EQ-X2B1D8 2M, E2EQ-X2B1D8 5M, E2EQ-X2B1D8-M1TJ 0.3M, E2EQ-X2C18 2M, E2EQ-X2C18 5M, E2EQ-X2C18-M1TJ 0.3M, E2EQ-X4B1D12 2M, E2EQ-X4B1D12 5M, E2EQ-X4B1D12-M1TJ 0.3M, E2EQ-X4B3D12 2M + 32 more — see full table ↓
