• Omron E2EQ NEXT Fluororesin Spatter-resistant Proximity Sensor BASIC Single (DC 3-Wire, M8/M12/M18/M30)
1 1

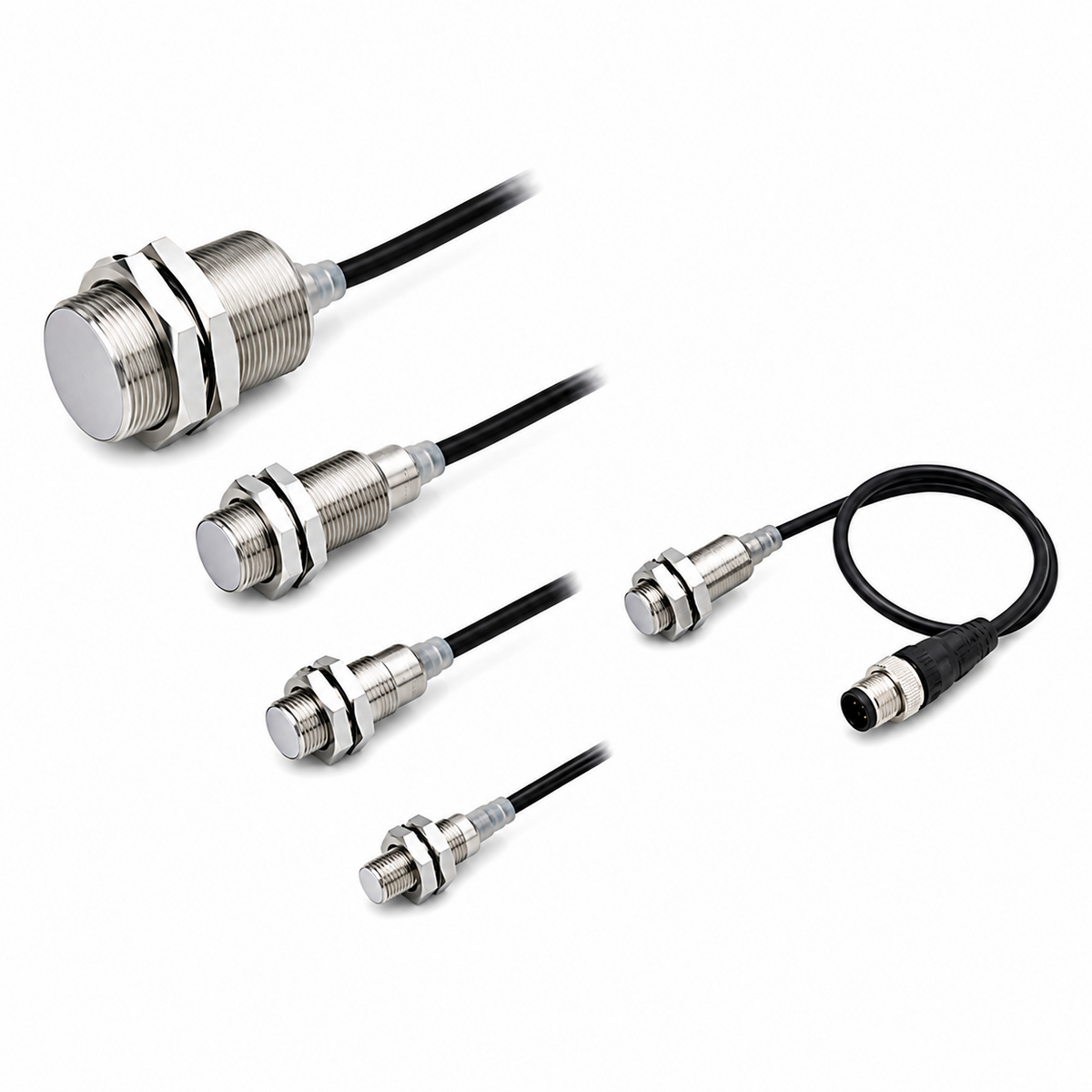

Omron E2EQ NEXT Fluororesin Spatter-resistant Proximity Sensor BASIC Single (DC 3-Wire, M8/M12/M18/M30)

Omron E2EQ NEXT Fluororesin Spatter-resistant Proximity Sensor BASIC Single (DC 3-Wire, M8/M12/M18/M30)

OMRON E2EQ NEXT Series fluororesin coating spatter-resistant proximity sensor.

Key features

  • BASIC single distance
  • M8 (1.5mm), M12 (2mm), M18 (5mm), M30 (10mm)
  • PNP/NPN
  • NO/NO+NC
  • IO-Link COM2 (PNP only)
  • Pre-wired 2m/5m, Smartclick 0.3m

Specifications

Shield Shielded
Grade BASIC Single Spatter-resistant (1×)
Wire DC 3-wire
Coating Fluororesin
E2EQ-X1R5B1D8 2M E2EQ M8 1.5 mm PNP NO 2m | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X1R5B1D8 5M E2EQ M8 1.5 mm PNP NO 5m | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X1R5B1D8-M1TJ 0.3M E2EQ M8 1.5 mm PNP NO SC 0.3m | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X1R5C18 2M E2EQ M8 1.5 mm NPN NO 2m | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X1R5C18 5M E2EQ M8 1.5 mm NPN NO 5m | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X1R5C18-M1TJ 0.3M E2EQ M8 1.5 mm NPN NO SC 0.3m | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X2B1D12 2M E2EQ M12 2 mm PNP NO 2m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X2B1D12 5M E2EQ M12 2 mm PNP NO 5m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X2B1D12-M1TJ 0.3M E2EQ M12 2 mm PNP NO SC 0.3m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X2B3D12 2M E2EQ M12 2 mm PNP NO+NC 2m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X2B3D12 5M E2EQ M12 2 mm PNP NO+NC 5m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X2B3D12-M1TJ 0.3M E2EQ M12 2 mm PNP NO+NC SC 0.3m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X2C112 2M E2EQ M12 2 mm NPN NO 2m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X2C112 5M E2EQ M12 2 mm NPN NO 5m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X2C112-M1TJ 0.3M E2EQ M12 2 mm NPN NO SC 0.3m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X2C312 2M E2EQ M12 2 mm NPN NO+NC 2m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X2C312 5M E2EQ M12 2 mm NPN NO+NC 5m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X2C312-M1TJ 0.3M E2EQ M12 2 mm NPN NO+NC SC 0.3m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X5B1D18 2M E2EQ M18 5 mm PNP NO 2m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X5B1D18 5M E2EQ M18 5 mm PNP NO 5m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X5B1D18-M1TJ 0.3M E2EQ M18 5 mm PNP NO SC 0.3m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X5B3D18 2M E2EQ M18 5 mm PNP NO+NC 2m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X5B3D18 5M E2EQ M18 5 mm PNP NO+NC 5m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X5B3D18-M1TJ 0.3M E2EQ M18 5 mm PNP NO+NC SC 0.3m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X5C118 2M E2EQ M18 5 mm NPN NO 2m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X5C118 5M E2EQ M18 5 mm NPN NO 5m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X5C118-M1TJ 0.3M E2EQ M18 5 mm NPN NO SC 0.3m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X5C318 2M E2EQ M18 5 mm NPN NO+NC 2m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X5C318 5M E2EQ M18 5 mm NPN NO+NC 5m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X5C318-M1TJ 0.3M E2EQ M18 5 mm NPN NO+NC SC 0.3m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X10B1D30 2M E2EQ M30 10 mm PNP NO 2m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X10B1D30 5M E2EQ M30 10 mm PNP NO 5m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X10B1D30-M1TJ 0.3M E2EQ M30 10 mm PNP NO SC 0.3m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X10B3D30 2M E2EQ M30 10 mm PNP NO+NC 2m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X10B3D30 5M E2EQ M30 10 mm PNP NO+NC 5m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X10B3D30-M1TJ 0.3M E2EQ M30 10 mm PNP NO+NC SC 0.3m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X10C130 2M E2EQ M30 10 mm NPN NO 2m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X10C130 5M E2EQ M30 10 mm NPN NO 5m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X10C130-M1TJ 0.3M E2EQ M30 10 mm NPN NO SC 0.3m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X10C330 2M E2EQ M30 10 mm NPN NO+NC 2m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X10C330 5M E2EQ M30 10 mm NPN NO+NC 5m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X10C330-M1TJ 0.3M E2EQ M30 10 mm NPN NO+NC SC 0.3m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
ProximityOmron
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2EQ NEXT Fluororesin Spatter-resistant Proximity Sensor BASIC Single (DC 3-Wire, M8/M12/M18/M30)

Brand Omron·Proximity

Available part numbers (42)

E2EQ-X1R5B1D8 2M, E2EQ-X1R5B1D8 5M, E2EQ-X1R5B1D8-M1TJ 0.3M, E2EQ-X1R5C18 2M, E2EQ-X1R5C18 5M, E2EQ-X1R5C18-M1TJ 0.3M, E2EQ-X2B1D12 2M, E2EQ-X2B1D12 5M, E2EQ-X2B1D12-M1TJ 0.3M, E2EQ-X2B3D12 2M + 32 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E2EQ-X1R5B1D8 2ME2EQ M8 1.5 mm PNP NO 2m | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X1R5B1D8 5ME2EQ M8 1.5 mm PNP NO 5m | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X1R5B1D8-M1TJ 0.3ME2EQ M8 1.5 mm PNP NO SC 0.3m | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X1R5C18 2ME2EQ M8 1.5 mm NPN NO 2m | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X1R5C18 5ME2EQ M8 1.5 mm NPN NO 5m | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X1R5C18-M1TJ 0.3ME2EQ M8 1.5 mm NPN NO SC 0.3m | Size: M8 | Sensing Distance: 1.5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X2B1D12 2ME2EQ M12 2 mm PNP NO 2m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X2B1D12 5ME2EQ M12 2 mm PNP NO 5m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X2B1D12-M1TJ 0.3ME2EQ M12 2 mm PNP NO SC 0.3m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X2B3D12 2ME2EQ M12 2 mm PNP NO+NC 2m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X2B3D12 5ME2EQ M12 2 mm PNP NO+NC 5m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X2B3D12-M1TJ 0.3ME2EQ M12 2 mm PNP NO+NC SC 0.3m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X2C112 2ME2EQ M12 2 mm NPN NO 2m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X2C112 5ME2EQ M12 2 mm NPN NO 5m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X2C112-M1TJ 0.3ME2EQ M12 2 mm NPN NO SC 0.3m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X2C312 2ME2EQ M12 2 mm NPN NO+NC 2m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X2C312 5ME2EQ M12 2 mm NPN NO+NC 5m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X2C312-M1TJ 0.3ME2EQ M12 2 mm NPN NO+NC SC 0.3m | Size: M12 | Sensing Distance: 2 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X5B1D18 2ME2EQ M18 5 mm PNP NO 2m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X5B1D18 5ME2EQ M18 5 mm PNP NO 5m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X5B1D18-M1TJ 0.3ME2EQ M18 5 mm PNP NO SC 0.3m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X5B3D18 2ME2EQ M18 5 mm PNP NO+NC 2m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X5B3D18 5ME2EQ M18 5 mm PNP NO+NC 5m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X5B3D18-M1TJ 0.3ME2EQ M18 5 mm PNP NO+NC SC 0.3m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X5C118 2ME2EQ M18 5 mm NPN NO 2m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X5C118 5ME2EQ M18 5 mm NPN NO 5m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X5C118-M1TJ 0.3ME2EQ M18 5 mm NPN NO SC 0.3m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X5C318 2ME2EQ M18 5 mm NPN NO+NC 2m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X5C318 5ME2EQ M18 5 mm NPN NO+NC 5m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X5C318-M1TJ 0.3ME2EQ M18 5 mm NPN NO+NC SC 0.3m | Size: M18 | Sensing Distance: 5 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X10B1D30 2ME2EQ M30 10 mm PNP NO 2m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X10B1D30 5ME2EQ M30 10 mm PNP NO 5m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X10B1D30-M1TJ 0.3ME2EQ M30 10 mm PNP NO SC 0.3m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X10B3D30 2ME2EQ M30 10 mm PNP NO+NC 2m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X10B3D30 5ME2EQ M30 10 mm PNP NO+NC 5m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X10B3D30-M1TJ 0.3ME2EQ M30 10 mm PNP NO+NC SC 0.3m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: PNP | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X10C130 2ME2EQ M30 10 mm NPN NO 2m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m
E2EQ-X10C130 5ME2EQ M30 10 mm NPN NO 5m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: Pre-wired 5 m
E2EQ-X10C130-M1TJ 0.3ME2EQ M30 10 mm NPN NO SC 0.3m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO | Connection: M12 Pre-wired Smartclick Connector 0.3 m
E2EQ-X10C330 2ME2EQ M30 10 mm NPN NO+NC 2m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 2 m
E2EQ-X10C330 5ME2EQ M30 10 mm NPN NO+NC 5m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: Pre-wired 5 m
E2EQ-X10C330-M1TJ 0.3ME2EQ M30 10 mm NPN NO+NC SC 0.3m | Size: M30 | Sensing Distance: 10 mm | Shield: Shielded | Grade: BASIC Single Spatter-resistant (1×) | Wire: DC 3-wire | Coating: Fluororesin | Note: IO-Link COM2 (PNP NO/NO+NC, ** models); IO-Link COM3: change prefix E2EQ→E2E and D→T (e.g. E2EQ-X6B1D12→E2E-X6B1T12); NC models: replace '1' with '2' in model number; M12 Connector: add '-M1' suffix | Output: NPN | Operation Mode: NO+NC | Connection: M12 Pre-wired Smartclick Connector 0.3 m

Need a different model, or a part not listed here? Send us your parts list →
