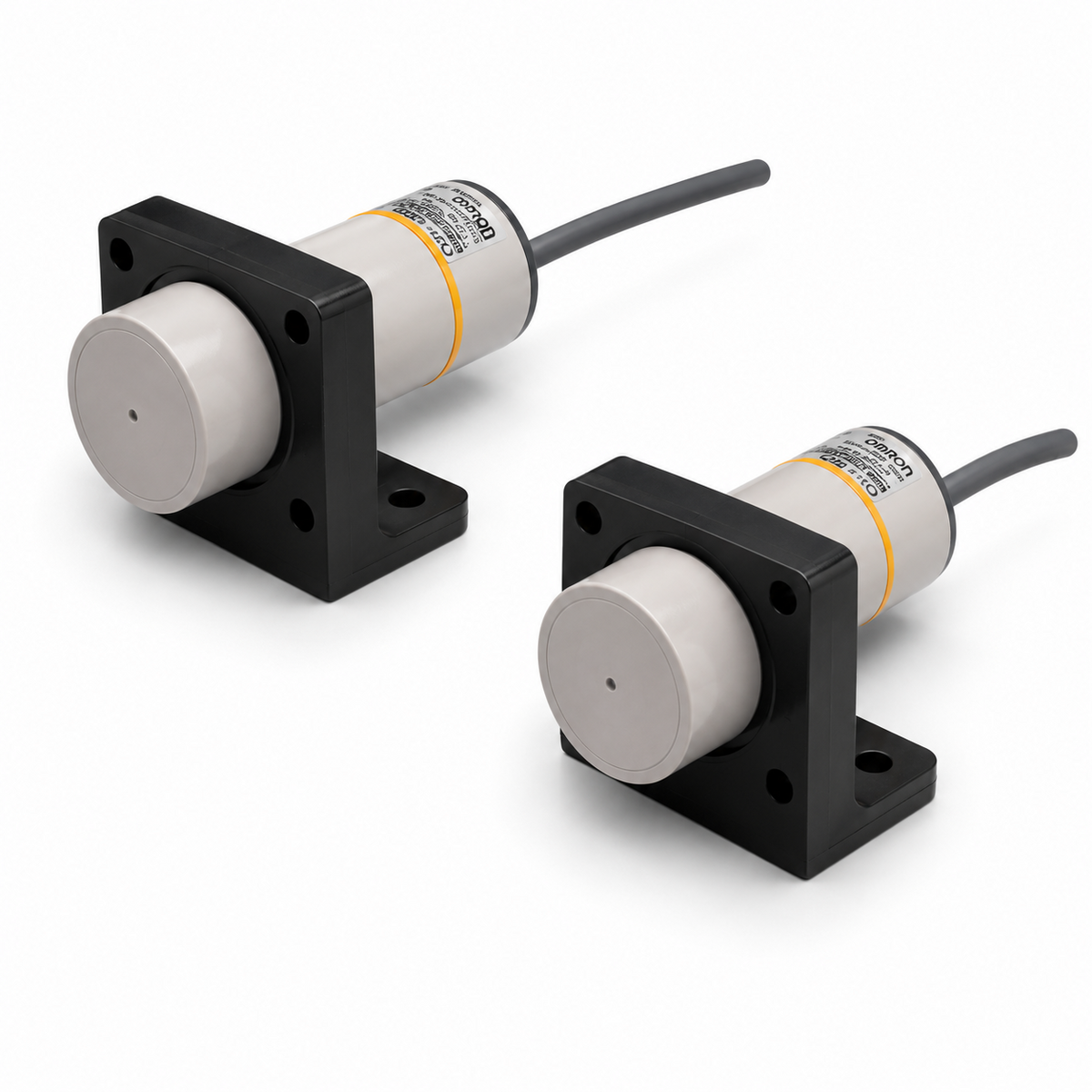

Omron E2K-C Long-distance Capacitive Proximity Sensor (Unshielded, Adjustable Sensitivity)

Omron E2K-C Long-distance Capacitive Proximity Sensor (Unshielded, Adjustable Sensitivity)

OMRON E2K-C Series long-distance capacitive sensor with adjustable sensitivity.

Key features

  • Unshielded
  • Pre-wired 2m
  • Standard: 25mm adjustable range 3-25mm — DC 3-wire NPN/PNP + AC 2-wire NO/NC
  • Noise-resistant: 20mm adjustable range 3-20mm — DC 3-wire NPN + AC/DC 2-wire NO/NC
  • UL model available for AC 2-wire 25mm NO (E2K-C25MY1-US)

Specifications

Shield Unshielded
Sensor Type Capacitive
Connection Pre-wired 2 m
E2K-C25ME1 2M E2K-C Standard 25 mm (3~25 mm) DC 3-wire NPN NO 2m | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C25ME2 2M E2K-C Standard 25 mm (3~25 mm) DC 3-wire NPN NC 2m | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C25MF1 2M E2K-C Standard 25 mm (3~25 mm) DC 3-wire PNP NO 2m | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C25MF2 2M E2K-C Standard 25 mm (3~25 mm) DC 3-wire PNP NC 2m | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C25MY1 2M E2K-C Standard 25 mm (3~25 mm) AC 2-wire --- NO 2m | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: AC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: UL model available for E2K-C25MY1 NO: E2K-C25MY1-US
E2K-C25MY2 2M E2K-C Standard 25 mm (3~25 mm) AC 2-wire --- NC 2m | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: AC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C20MC1 2M E2K-C Noise-resistant 20 mm (3~20 mm) DC 3-wire NPN NO 2m | Type: Noise-resistant | Sensing Distance: 20 mm (3~20 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C20MC2 2M E2K-C Noise-resistant 20 mm (3~20 mm) DC 3-wire NPN NC 2m | Type: Noise-resistant | Sensing Distance: 20 mm (3~20 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C20MT1 2M E2K-C Noise-resistant 20 mm (3~20 mm) AC/DC 2-wire --- NO 2m | Type: Noise-resistant | Sensing Distance: 20 mm (3~20 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: AC/DC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C20MT2 2M E2K-C Noise-resistant 20 mm (3~20 mm) AC/DC 2-wire --- NC 2m | Type: Noise-resistant | Sensing Distance: 20 mm (3~20 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: AC/DC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
ProximityOmron
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E2K-C Long-distance Capacitive Proximity Sensor (Unshielded, Adjustable Sensitivity)

Brand Omron·Proximity

Available part numbers (10)

E2K-C25ME1 2M, E2K-C25ME2 2M, E2K-C25MF1 2M, E2K-C25MF2 2M, E2K-C25MY1 2M, E2K-C25MY2 2M, E2K-C20MC1 2M, E2K-C20MC2 2M, E2K-C20MT1 2M, E2K-C20MT2 2M

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E2K-C25ME1 2ME2K-C Standard 25 mm (3~25 mm) DC 3-wire NPN NO 2m | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C25ME2 2ME2K-C Standard 25 mm (3~25 mm) DC 3-wire NPN NC 2m | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C25MF1 2ME2K-C Standard 25 mm (3~25 mm) DC 3-wire PNP NO 2m | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: PNP | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C25MF2 2ME2K-C Standard 25 mm (3~25 mm) DC 3-wire PNP NC 2m | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: PNP | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C25MY1 2ME2K-C Standard 25 mm (3~25 mm) AC 2-wire --- NO 2m | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: AC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: UL model available for E2K-C25MY1 NO: E2K-C25MY1-US
E2K-C25MY2 2ME2K-C Standard 25 mm (3~25 mm) AC 2-wire --- NC 2m | Type: Standard | Sensing Distance: 25 mm (3~25 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: AC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C20MC1 2ME2K-C Noise-resistant 20 mm (3~20 mm) DC 3-wire NPN NO 2m | Type: Noise-resistant | Sensing Distance: 20 mm (3~20 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: NPN | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C20MC2 2ME2K-C Noise-resistant 20 mm (3~20 mm) DC 3-wire NPN NC 2m | Type: Noise-resistant | Sensing Distance: 20 mm (3~20 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: DC 3-wire | Output: NPN | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C20MT1 2ME2K-C Noise-resistant 20 mm (3~20 mm) AC/DC 2-wire --- NO 2m | Type: Noise-resistant | Sensing Distance: 20 mm (3~20 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: AC/DC 2-wire | Output: --- | Operation Mode: NO | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
E2K-C20MT2 2ME2K-C Noise-resistant 20 mm (3~20 mm) AC/DC 2-wire --- NC 2m | Type: Noise-resistant | Sensing Distance: 20 mm (3~20 mm) | Shield: Unshielded | Sensor Type: Capacitive | Wire: AC/DC 2-wire | Output: --- | Operation Mode: NC | Connection: Pre-wired 2 m | Note: Sensitivity adjustment driver Y92E-KC25 provided
