• Omron E32 Standard Reflective Fiber Units (Threaded / Cylindrical / Hex-shaped, Coaxial & Standard)
1 1

Omron E32 Standard Reflective Fiber Units (Threaded / Cylindrical / Hex-shaped, Coaxial & Standard)

Omron E32 Standard Reflective Fiber Units (Threaded / Cylindrical / Hex-shaped, Coaxial & Standard)

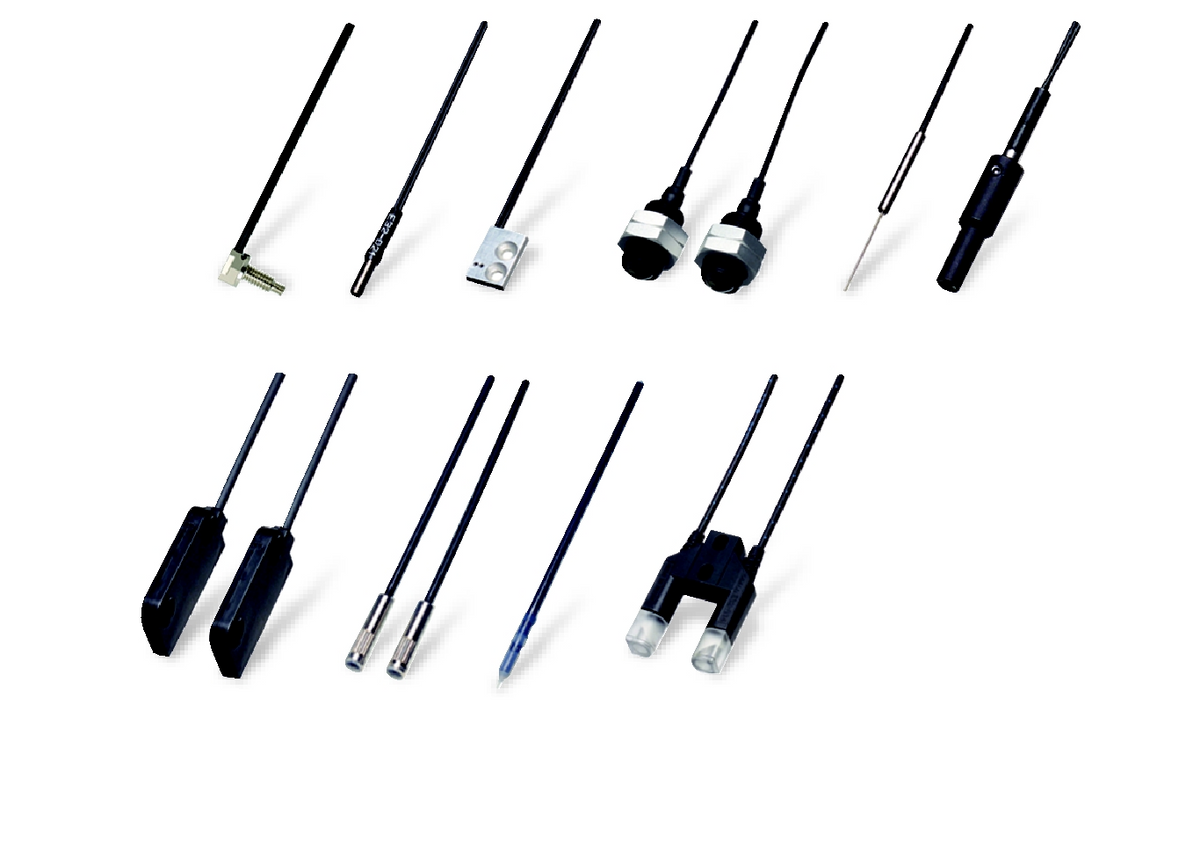

OMRON E32 Series standard reflective fiber units for threaded and cylindrical mounting.

Key features

  • Includes coaxial reflective types (E32-C31N/C91N/C31/C31M/CC200/LD11N) for improved detection of small and glossy objects, and standard reflective types in M3/M4/M6 threaded and 1.5 dia./3 dia./6 dia. cylindrical configurations
  • IP67 rated
  • Flexible or bend-resistant fiber options
  • Compatible with E3X-ZV, E3X-HD, and E3NX-FA fiber amplifiers
  • Cable length: 1 m or 2 m (free cutting)
  • PDF ref: E418-E1 p.8-11, p.14-15
E32-C31N 2M Threaded M3 right-angle coaxial reflective, flexible R4, IP67 | Model: E32-C31N 2M | Type: Reflective (Coaxial) | Mounting: Threaded M3 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 50 mm | Sensing Dist. FA ST: 75 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia.
E32-C91N 2M Threaded M6 right-angle coaxial reflective, flexible R4, IP67 | Model: E32-C91N 2M | Type: Reflective (Coaxial) | Mounting: Threaded M6 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 350 mm | Sensing Dist. FA ST: 520 mm | Min. Sensing Object: — (standard fiber)
E32-D21R 2M Threaded M3 right-angle reflective, flexible R1, IP67 | Model: E32-D21R 2M | Type: Reflective (Standard) | Mounting: Threaded M3 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 60 mm | Sensing Dist. FA ST: 90 mm | Min. Sensing Object: — (standard fiber)
E32-C31 2M Threaded M3 top-view coaxial reflective, R25, IP67 | Model: E32-C31 2M | Type: Reflective (Coaxial) | Mounting: Threaded M3 | View: Top-view | Aperture Angle: Approx. 60° | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 150 mm | Sensing Dist. FA ST: 220 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia.
E32-C31M 1M Threaded M3 top-view coaxial reflective, R10, IP67, 1m cable | Model: E32-C31M 1M | Type: Reflective (Coaxial) | Mounting: Threaded M3 | View: Top-view | Aperture Angle: Approx. 60° | Bending Radius: R10 | IP Rating: IP67 | Cable Length: 1 m (Free Cutting) | Sensing Dist. ZV ST: 60 mm | Sensing Dist. FA ST: 90 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia.
E32-D211R 2M Threaded M4 right-angle reflective, flexible R1, IP67 | Model: E32-D211R 2M | Type: Reflective (Standard) | Mounting: Threaded M4 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 350 mm | Sensing Dist. FA ST: 520 mm | Min. Sensing Object: — (standard fiber)
E32-D11R 2M Threaded M6 right-angle reflective, flexible R1, IP67 | Model: E32-D11R 2M | Type: Reflective (Standard) | Mounting: Threaded M6 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 350 mm | Sensing Dist. FA ST: 520 mm | Min. Sensing Object: — (standard fiber)
E32-CC200 2M Threaded M6 top-view coaxial reflective, R25, IP67 | Model: E32-CC200 2M | Type: Reflective (Coaxial) | Mounting: Threaded M6 | View: Top-view | Aperture Angle: Approx. 60° | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 600 mm | Sensing Dist. FA ST: 900 mm | Min. Sensing Object: — (standard fiber)
E32-LD11N 2M Hex-shaped M6 top-view Build-in Lens reflective, R25, IP50 | Model: E32-LD11N 2M | Type: Reflective (Build-in Lens, Coaxial) | Mounting: Hex-shaped M6 | View: Top-view | Aperture Angle: Approx. 15° | Bending Radius: R25 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 350 mm | Sensing Dist. FA ST: 520 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | Note: GIGA Beam Build-in Lens; for glossy white paper
E32-D22B 2M Cylindrical 1.5 dia. reflective, bend-resistant R4, IP67 | Model: E32-D22B 2M | Type: Reflective (Standard) | Mounting: Cylindrical press-fit 1.5 dia. | View: Top-view | Bending Radius: Bend-resistant R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 60 mm | Sensing Dist. FA ST: 90 mm | Min. Sensing Object: — (standard fiber)
E32-D43M 1M Cylindrical 1.5 dia. sleeve reflective, R4, IP67, 1m cable | Model: E32-D43M 1M | Type: Reflective (Sleeve) | Mounting: Cylindrical press-fit 1.5 dia. | View: Top-view | Bending Radius: R4 | IP Rating: IP67 | Cable Length: 1 m (Free Cutting) | Sensing Dist. ZV ST: 12 mm | Sensing Dist. FA ST: 18 mm | Min. Sensing Object: — (standard fiber)
E32-D22R 2M Cylindrical 3 dia. reflective, flexible R1, IP67 | Model: E32-D22R 2M | Type: Reflective (Standard) | Mounting: Cylindrical press-fit 3 dia. | View: Top-view | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 60 mm | Sensing Dist. FA ST: 90 mm | Min. Sensing Object: — (standard fiber)
E32-D221B 2M Cylindrical 3 dia. top-view reflective, bend-resistant R4, IP67 | Model: E32-D221B 2M | Type: Reflective (Standard) | Mounting: Cylindrical press-fit 3 dia. | View: Top-view | Bending Radius: Bend-resistant R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 140 mm | Sensing Dist. FA ST: 210 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia.
E32-D32L 2M Cylindrical 3 dia. coaxial reflective, R25, IP67 | Model: E32-D32L 2M | Type: Reflective (Coaxial) | Mounting: Cylindrical press-fit 3 dia. | View: Top-view | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 300 mm | Sensing Dist. FA ST: 450 mm | Min. Sensing Object: — (standard fiber)
E32-D33 2M Cylindrical 3 dia. sleeve reflective, R4, IP67 | Model: E32-D33 2M | Type: Reflective (Sleeve) | Mounting: Cylindrical press-fit 3 dia. | View: Top-view | Bending Radius: R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 30 mm | Sensing Dist. FA ST: 45 mm | Min. Sensing Object: — (standard fiber)
E32-D14LR 2M Cylindrical 6 dia. side-view reflective, flexible R1, IP67 | Model: E32-D14LR 2M | Type: Reflective (Standard) | Mounting: Cylindrical press-fit 6 dia. | View: Side-view | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 100 mm | Sensing Dist. FA ST: 150 mm | Min. Sensing Object: — (standard fiber)
Fiber OpticOmron
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E32 Standard Reflective Fiber Units (Threaded / Cylindrical / Hex-shaped, Coaxial & Standard)

Brand Omron·Fiber Optic

Available part numbers (16)

E32-C31N 2M, E32-C91N 2M, E32-D21R 2M, E32-C31 2M, E32-C31M 1M, E32-D211R 2M, E32-D11R 2M, E32-CC200 2M, E32-LD11N 2M, E32-D22B 2M + 6 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E32-C31N 2MThreaded M3 right-angle coaxial reflective, flexible R4, IP67 | Model: E32-C31N 2M | Type: Reflective (Coaxial) | Mounting: Threaded M3 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 50 mm | Sensing Dist. FA ST: 75 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia.
E32-C91N 2MThreaded M6 right-angle coaxial reflective, flexible R4, IP67 | Model: E32-C91N 2M | Type: Reflective (Coaxial) | Mounting: Threaded M6 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 350 mm | Sensing Dist. FA ST: 520 mm | Min. Sensing Object: — (standard fiber)
E32-D21R 2MThreaded M3 right-angle reflective, flexible R1, IP67 | Model: E32-D21R 2M | Type: Reflective (Standard) | Mounting: Threaded M3 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 60 mm | Sensing Dist. FA ST: 90 mm | Min. Sensing Object: — (standard fiber)
E32-C31 2MThreaded M3 top-view coaxial reflective, R25, IP67 | Model: E32-C31 2M | Type: Reflective (Coaxial) | Mounting: Threaded M3 | View: Top-view | Aperture Angle: Approx. 60° | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 150 mm | Sensing Dist. FA ST: 220 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia.
E32-C31M 1MThreaded M3 top-view coaxial reflective, R10, IP67, 1m cable | Model: E32-C31M 1M | Type: Reflective (Coaxial) | Mounting: Threaded M3 | View: Top-view | Aperture Angle: Approx. 60° | Bending Radius: R10 | IP Rating: IP67 | Cable Length: 1 m (Free Cutting) | Sensing Dist. ZV ST: 60 mm | Sensing Dist. FA ST: 90 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia.
E32-D211R 2MThreaded M4 right-angle reflective, flexible R1, IP67 | Model: E32-D211R 2M | Type: Reflective (Standard) | Mounting: Threaded M4 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 350 mm | Sensing Dist. FA ST: 520 mm | Min. Sensing Object: — (standard fiber)
E32-D11R 2MThreaded M6 right-angle reflective, flexible R1, IP67 | Model: E32-D11R 2M | Type: Reflective (Standard) | Mounting: Threaded M6 | View: Right-angle | Aperture Angle: Approx. 60° | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 350 mm | Sensing Dist. FA ST: 520 mm | Min. Sensing Object: — (standard fiber)
E32-CC200 2MThreaded M6 top-view coaxial reflective, R25, IP67 | Model: E32-CC200 2M | Type: Reflective (Coaxial) | Mounting: Threaded M6 | View: Top-view | Aperture Angle: Approx. 60° | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 600 mm | Sensing Dist. FA ST: 900 mm | Min. Sensing Object: — (standard fiber)
E32-LD11N 2MHex-shaped M6 top-view Build-in Lens reflective, R25, IP50 | Model: E32-LD11N 2M | Type: Reflective (Build-in Lens, Coaxial) | Mounting: Hex-shaped M6 | View: Top-view | Aperture Angle: Approx. 15° | Bending Radius: R25 | IP Rating: IP50 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 350 mm | Sensing Dist. FA ST: 520 mm | Min. Sensing Object: 0.1 dia. / 0.03 dia. | Note: GIGA Beam Build-in Lens; for glossy white paper
E32-D22B 2MCylindrical 1.5 dia. reflective, bend-resistant R4, IP67 | Model: E32-D22B 2M | Type: Reflective (Standard) | Mounting: Cylindrical press-fit 1.5 dia. | View: Top-view | Bending Radius: Bend-resistant R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 60 mm | Sensing Dist. FA ST: 90 mm | Min. Sensing Object: — (standard fiber)
E32-D43M 1MCylindrical 1.5 dia. sleeve reflective, R4, IP67, 1m cable | Model: E32-D43M 1M | Type: Reflective (Sleeve) | Mounting: Cylindrical press-fit 1.5 dia. | View: Top-view | Bending Radius: R4 | IP Rating: IP67 | Cable Length: 1 m (Free Cutting) | Sensing Dist. ZV ST: 12 mm | Sensing Dist. FA ST: 18 mm | Min. Sensing Object: — (standard fiber)
E32-D22R 2MCylindrical 3 dia. reflective, flexible R1, IP67 | Model: E32-D22R 2M | Type: Reflective (Standard) | Mounting: Cylindrical press-fit 3 dia. | View: Top-view | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 60 mm | Sensing Dist. FA ST: 90 mm | Min. Sensing Object: — (standard fiber)
E32-D221B 2MCylindrical 3 dia. top-view reflective, bend-resistant R4, IP67 | Model: E32-D221B 2M | Type: Reflective (Standard) | Mounting: Cylindrical press-fit 3 dia. | View: Top-view | Bending Radius: Bend-resistant R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 140 mm | Sensing Dist. FA ST: 210 mm | Min. Sensing Object: 5 μm dia. / 2 μm dia.
E32-D32L 2MCylindrical 3 dia. coaxial reflective, R25, IP67 | Model: E32-D32L 2M | Type: Reflective (Coaxial) | Mounting: Cylindrical press-fit 3 dia. | View: Top-view | Bending Radius: R25 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 300 mm | Sensing Dist. FA ST: 450 mm | Min. Sensing Object: — (standard fiber)
E32-D33 2MCylindrical 3 dia. sleeve reflective, R4, IP67 | Model: E32-D33 2M | Type: Reflective (Sleeve) | Mounting: Cylindrical press-fit 3 dia. | View: Top-view | Bending Radius: R4 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 30 mm | Sensing Dist. FA ST: 45 mm | Min. Sensing Object: — (standard fiber)
E32-D14LR 2MCylindrical 6 dia. side-view reflective, flexible R1, IP67 | Model: E32-D14LR 2M | Type: Reflective (Standard) | Mounting: Cylindrical press-fit 6 dia. | View: Side-view | Bending Radius: Flexible R1 | IP Rating: IP67 | Cable Length: 2 m (Free Cutting) | Sensing Dist. ZV ST: 100 mm | Sensing Dist. FA ST: 150 mm | Min. Sensing Object: — (standard fiber)
