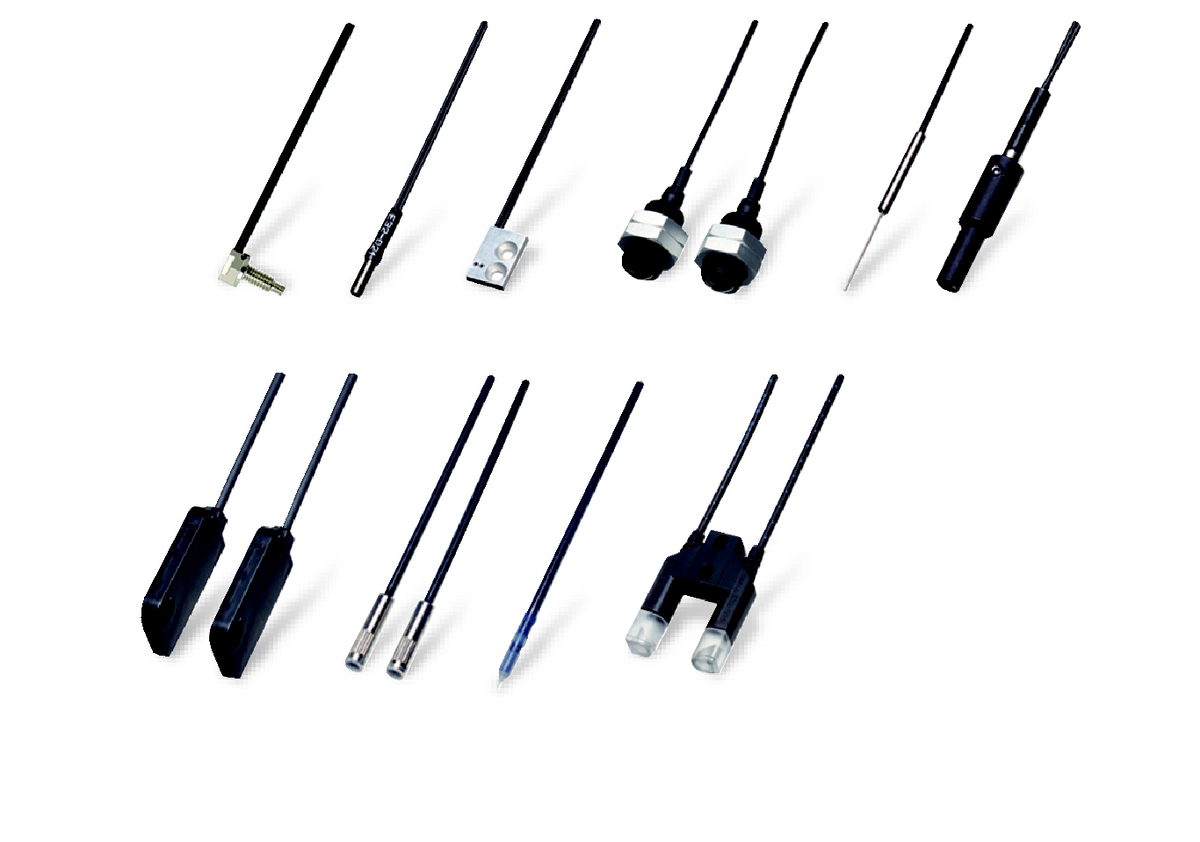

Omron E32 Standard Through-beam Fiber Units (Threaded / Cylindrical, M3~M4)

OMRON E32 Series standard through-beam fiber units for threaded and cylindrical mounting.

Key features

Includes M4 threaded top-view and right-angle models (E32-T11N/T11R) and cylindrical press-fit models in 1 dia. / 1.5 dia. / 3 dia. sizes
IP67 rated
Flexible fiber with small bending radius for tight routing
Compatible with E3X-ZV, E3X-HD, and E3NX-FA fiber amplifiers
Sold as matched pairs (set of 2)
Cable length: 2 m (free cutting)

Specifications

Type	Through-beam (Set of 2)
IP Rating	IP67
Cable Length	2 m (Free Cutting)

E32-T11N 2M		Threaded M4 top-view through-beam, 1 dia., flexible R1, IP67 \| Model: E32-T11N 2M \| Type: Through-beam (Set of 2) \| Mounting: Threaded M4 \| View: Top-view \| Aperture Angle: Approx. 60° \| Sensing Surface Dia.: 1 dia. \| Bending Radius: Flexible R1 \| IP Rating: IP67 \| Cable Length: 2 m (Free Cutting) \| Sensing Dist. ZV ST: 1,000 mm \| Sensing Dist. FA ST: 1,500 mm \| Min. Sensing Object: 5 μm dia. / 2 μm dia.
E32-T11R 2M		Threaded M4 right-angle through-beam, 1 dia., flexible R1, IP67 \| Model: E32-T11R 2M \| Type: Through-beam (Set of 2) \| Mounting: Threaded M4 \| View: Right-angle \| Aperture Angle: Approx. 60° \| Sensing Surface Dia.: 1 dia. \| Bending Radius: Flexible R1 \| IP Rating: IP67 \| Cable Length: 2 m (Free Cutting) \| Sensing Dist. ZV ST: 1,000 mm \| Sensing Dist. FA ST: 1,500 mm \| Min. Sensing Object: 5 μm dia. / 2 μm dia.
E32-T223R 2M		Cylindrical 1 dia. top-view through-beam, flexible R1, IP67 \| Model: E32-T223R 2M \| Type: Through-beam (Set of 2) \| Mounting: Cylindrical press-fit 1 dia. \| View: Top-view \| Bending Radius: Flexible R1 \| IP Rating: IP67 \| Cable Length: 2 m (Free Cutting) \| Sensing Dist. ZV ST: 250 mm \| Sensing Dist. FA ST: 370 mm \| Min. Sensing Object: 0.5 dia.
E32-T22B 2M		Cylindrical 1.5 dia. top-view through-beam, bend-resistant R4, IP67 \| Model: E32-T22B 2M \| Type: Through-beam (Set of 2) \| Mounting: Cylindrical press-fit 1.5 dia. \| View: Top-view \| Bending Radius: Bend-resistant R4 \| IP Rating: IP67 \| Cable Length: 2 m (Free Cutting) \| Sensing Dist. ZV ST: 400 mm \| Sensing Dist. FA ST: 600 mm \| Min. Sensing Object: — (standard fiber)
E32-T12R 2M		Cylindrical 3 dia. top-view through-beam, flexible R1, IP67 \| Model: E32-T12R 2M \| Type: Through-beam (Set of 2) \| Mounting: Cylindrical press-fit 3 dia. \| View: Top-view \| Bending Radius: Flexible R1 \| IP Rating: IP67 \| Cable Length: 2 m (Free Cutting) \| Sensing Dist. ZV ST: 1,000 mm \| Sensing Dist. FA ST: 1,500 mm \| Min. Sensing Object: 5 μm dia. / 2 μm dia.
E32-T14LR 2M		Cylindrical 3 dia. side-view through-beam, flexible R1, IP67 \| Model: E32-T14LR 2M \| Type: Through-beam (Set of 2) \| Mounting: Cylindrical press-fit 3 dia. \| View: Side-view \| Bending Radius: Flexible R1 \| IP Rating: IP67 \| Cable Length: 2 m (Free Cutting) \| Sensing Dist. ZV ST: 450 mm \| Sensing Dist. FA ST: 670 mm \| Min. Sensing Object: 5 μm dia. / 2 μm dia.

Fiber OpticOmron

6 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E32 Standard Through-beam Fiber Units (Threaded / Cylindrical, M3~M4)

Brand Omron·Fiber Optic

Available part numbers (6)

E32-T11N 2M, E32-T11R 2M, E32-T223R 2M, E32-T22B 2M, E32-T12R 2M, E32-T14LR 2M

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	E32-T11N 2M	Threaded M4 top-view through-beam, 1 dia., flexible R1, IP67 \| Model: E32-T11N 2M \| Type: Through-beam (Set of 2) \| Mounting: Threaded M4 \| View: Top-view \| Aperture Angle: Approx. 60° \| Sensing Surface Dia.: 1 dia. \| Bending Radius: Flexible R1 \| IP Rating: IP67 \| Cable Length: 2 m (Free Cutting) \| Sensing Dist. ZV ST: 1,000 mm \| Sensing Dist. FA ST: 1,500 mm \| Min. Sensing Object: 5 μm dia. / 2 μm dia.
	E32-T11R 2M	Threaded M4 right-angle through-beam, 1 dia., flexible R1, IP67 \| Model: E32-T11R 2M \| Type: Through-beam (Set of 2) \| Mounting: Threaded M4 \| View: Right-angle \| Aperture Angle: Approx. 60° \| Sensing Surface Dia.: 1 dia. \| Bending Radius: Flexible R1 \| IP Rating: IP67 \| Cable Length: 2 m (Free Cutting) \| Sensing Dist. ZV ST: 1,000 mm \| Sensing Dist. FA ST: 1,500 mm \| Min. Sensing Object: 5 μm dia. / 2 μm dia.
	E32-T223R 2M	Cylindrical 1 dia. top-view through-beam, flexible R1, IP67 \| Model: E32-T223R 2M \| Type: Through-beam (Set of 2) \| Mounting: Cylindrical press-fit 1 dia. \| View: Top-view \| Bending Radius: Flexible R1 \| IP Rating: IP67 \| Cable Length: 2 m (Free Cutting) \| Sensing Dist. ZV ST: 250 mm \| Sensing Dist. FA ST: 370 mm \| Min. Sensing Object: 0.5 dia.
	E32-T22B 2M	Cylindrical 1.5 dia. top-view through-beam, bend-resistant R4, IP67 \| Model: E32-T22B 2M \| Type: Through-beam (Set of 2) \| Mounting: Cylindrical press-fit 1.5 dia. \| View: Top-view \| Bending Radius: Bend-resistant R4 \| IP Rating: IP67 \| Cable Length: 2 m (Free Cutting) \| Sensing Dist. ZV ST: 400 mm \| Sensing Dist. FA ST: 600 mm \| Min. Sensing Object: — (standard fiber)
	E32-T12R 2M	Cylindrical 3 dia. top-view through-beam, flexible R1, IP67 \| Model: E32-T12R 2M \| Type: Through-beam (Set of 2) \| Mounting: Cylindrical press-fit 3 dia. \| View: Top-view \| Bending Radius: Flexible R1 \| IP Rating: IP67 \| Cable Length: 2 m (Free Cutting) \| Sensing Dist. ZV ST: 1,000 mm \| Sensing Dist. FA ST: 1,500 mm \| Min. Sensing Object: 5 μm dia. / 2 μm dia.
	E32-T14LR 2M	Cylindrical 3 dia. side-view through-beam, flexible R1, IP67 \| Model: E32-T14LR 2M \| Type: Through-beam (Set of 2) \| Mounting: Cylindrical press-fit 3 dia. \| View: Side-view \| Bending Radius: Flexible R1 \| IP Rating: IP67 \| Cable Length: 2 m (Free Cutting) \| Sensing Dist. ZV ST: 450 mm \| Sensing Dist. FA ST: 670 mm \| Min. Sensing Object: 5 μm dia. / 2 μm dia.

Need a different model, or a part not listed here? Send us your parts list →
