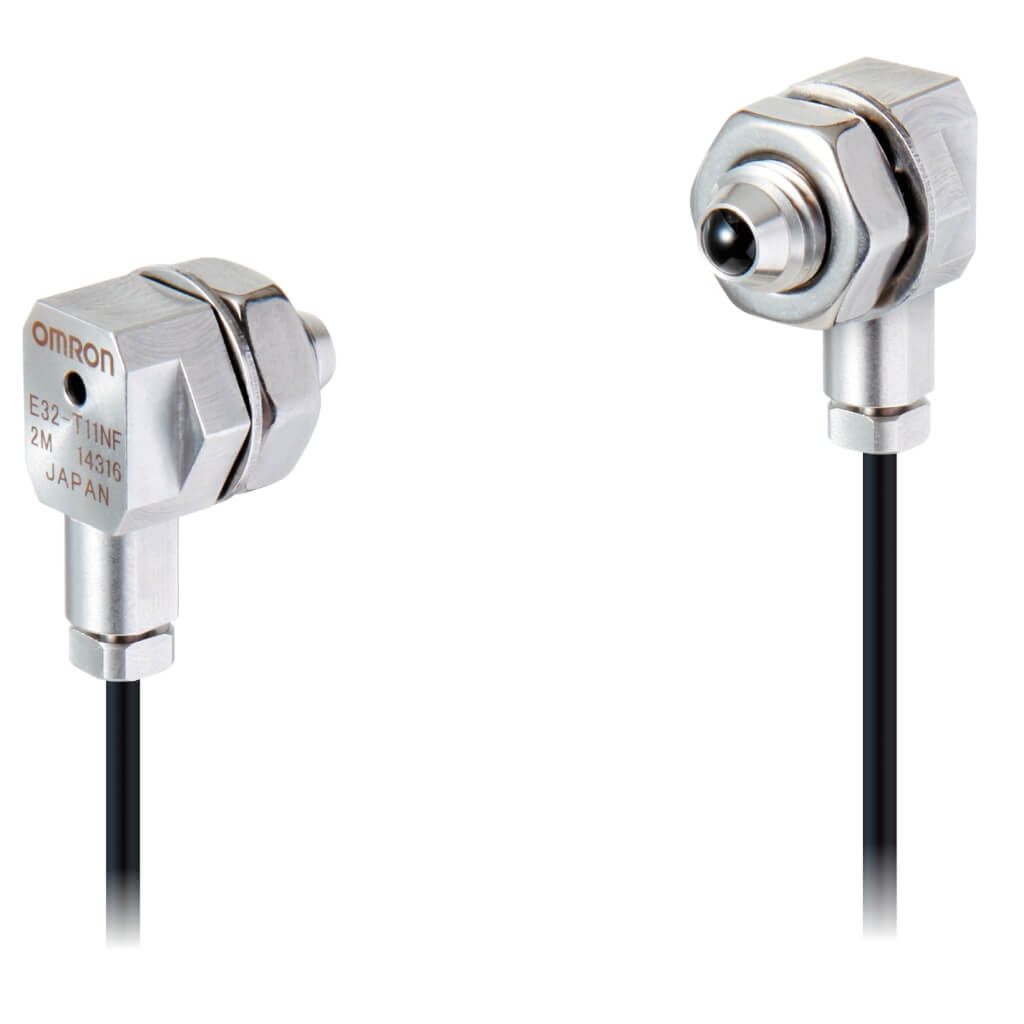

Omron E32-T11NF Oil-resistant Fiber Unit (Through-beam, Right-angle, Fluororesin Cable + Glass Lens)

Omron E32-T11NF Oil-resistant Fiber Unit (Through-beam, Right-angle, Fluororesin Cable + Glass Lens)

OMRON E32-T11NF Oil-resistant Fiber Unit — Environment-resistant Series.

Key features

  • Through-beam type with right-angle sensing direction
  • Fluororesin cable covering (fiber covering) prevents cutting oil ingress into the fiber core
  • Mechanical seal structure: aluminum ring bushing compressed by set screw against fluororesin core
  • Spherical glass lens resists oil adhesion; shape prevents accumulation of oil drops and cutting chips
  • IP68G degree of protection (JIS C 0920 Annex 1)
  • Operating temperature −25 to +70 °C

Specifications

Type Oil-resistant Through-beam Fiber Unit
Sensing Direction Right-angle
Bending Radius of Cable Flexible R1
Unbendable Length 0 mm
Tensile Strength 29.4 N
Cable Sheath Material Fluororesin
Fiber Core Material Plastic
Emitter/Receiver Differentiation None (interchangeable)
Lens Spherical glass (resists oil adhesion)
Ambient Temperature −25 to +70 °C
Degree of Protection IP68 (IEC 60529) + IP68G (JIS C 0920 Annex 1)
Sealing Method Mechanical seal (aluminum ring bushing compressed by set screw against fluororesin)
E32-T11NF 2M E32-T11NF 2M — through-beam right-angle fiber unit, M8 | Type: Oil-resistant Through-beam Fiber Unit | Sensing Direction: Right-angle | Mounting Size: M8 | Sensing Distance: GIGA 4,000 mm / ST 4,000 mm / HS 4,000 mm / SHS 2,200 mm (E3X-HD); same in E3NX-FA | Optical Axis Diameter (Min. Sensing Object): 4 mm dia. (min. sensing object 0.1 mm dia. E3X-HD / 0.03 mm dia. E3NX-FA) | Bending Radius of Cable: Flexible R1 | Unbendable Length: 0 mm | Tensile Strength: 29.4 N | Cable Sheath Material: Fluororesin | Fiber Core Material: Plastic | Emitter/Receiver Differentiation: None (interchangeable) | Lens: Spherical glass (resists oil adhesion) | Mounting: 8.5 mm dia. mounting hole / Tightening torque 12 N·m | Ambient Temperature: −25 to +70 °C | Weight (Packed): approx. 80 g | Degree of Protection: IP68 (IEC 60529) + IP68G (JIS C 0920 Annex 1) | Sealing Method: Mechanical seal (aluminum ring bushing compressed by set screw against fluororesin) | Compatible Amplifiers: E3X-HD series / E3NX-FA series (amplifiers not oil-resistant) | Response Time (with E3X-HD): SHS 50 μs (NPN) or 55 μs (PNP) / HS 250 μs / ST 1 ms / GIGA 16 ms | Response Time (with E3NX-FA): SHS 30 μs / HS 250 μs / ST 1 ms / GIGA 16 ms | Oil Resistance: 4 years (verified by OMRON's accelerated evaluation tests) | Cable Sheath: Fluororesin (patent pending) — resists both water-soluble and water-insoluble cutting oils | Evaluation Standard: Passed IP67G (JIS C 0920 Annex 1) and OMRON's Oil-resistant Component Evaluation Standards | Applicable Oil Types: JIS K 2241:2000 specified cutting oils | Evaluation Temperature: 35 °C max
E32-T11NFS 2M E32-T11NFS 2M — through-beam right-angle fiber unit, M4 (limited space) | Type: Oil-resistant Through-beam Fiber Unit | Sensing Direction: Right-angle | Mounting Size: M4 (limited space) | Sensing Distance: GIGA 2,200 mm / ST 1,100 mm / HS 730 mm / SHS 270 mm (E3X-HD); GIGA 3,300 mm / ST 1,600 mm / HS 1,100 mm / SHS 270 mm (E3NX-FA) | Optical Axis Diameter (Min. Sensing Object): 2 mm dia. (min. sensing object 0.1 mm dia. E3X-HD / 0.03 mm dia. E3NX-FA) | Bending Radius of Cable: Flexible R1 | Unbendable Length: 0 mm | Tensile Strength: 29.4 N | Cable Sheath Material: Fluororesin | Fiber Core Material: Plastic | Emitter/Receiver Differentiation: None (interchangeable) | Lens: Spherical glass (resists oil adhesion) | Mounting: 4.2 mm dia. mounting hole / Tightening torque 0.78 N·m | Ambient Temperature: −25 to +70 °C | Weight (Packed): approx. 70 g | Degree of Protection: IP68 (IEC 60529) + IP68G (JIS C 0920 Annex 1) | Sealing Method: Mechanical seal (aluminum ring bushing compressed by set screw against fluororesin) | Compatible Amplifiers: E3X-HD series / E3NX-FA series (amplifiers not oil-resistant) | Response Time (with E3X-HD): SHS 50 μs (NPN) or 55 μs (PNP) / HS 250 μs / ST 1 ms / GIGA 16 ms | Response Time (with E3NX-FA): SHS 30 μs / HS 250 μs / ST 1 ms / GIGA 16 ms | Oil Resistance: 4 years (verified by OMRON's accelerated evaluation tests) | Cable Sheath: Fluororesin (patent pending) — resists both water-soluble and water-insoluble cutting oils | Evaluation Standard: Passed IP67G (JIS C 0920 Annex 1) and OMRON's Oil-resistant Component Evaluation Standards | Applicable Oil Types: JIS K 2241:2000 specified cutting oils | Evaluation Temperature: 35 °C max
Fiber OpticOmron
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E32-T11NF Oil-resistant Fiber Unit (Through-beam, Right-angle, Fluororesin Cable + Glass Lens)

Brand Omron·Fiber Optic

Available part numbers (2)

E32-T11NF 2M, E32-T11NFS 2M

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E32-T11NF 2ME32-T11NF 2M — through-beam right-angle fiber unit, M8 | Type: Oil-resistant Through-beam Fiber Unit | Sensing Direction: Right-angle | Mounting Size: M8 | Sensing Distance: GIGA 4,000 mm / ST 4,000 mm / HS 4,000 mm / SHS 2,200 mm (E3X-HD); same in E3NX-FA | Optical Axis Diameter (Min. Sensing Object): 4 mm dia. (min. sensing object 0.1 mm dia. E3X-HD / 0.03 mm dia. E3NX-FA) | Bending Radius of Cable: Flexible R1 | Unbendable Length: 0 mm | Tensile Strength: 29.4 N | Cable Sheath Material: Fluororesin | Fiber Core Material: Plastic | Emitter/Receiver Differentiation: None (interchangeable) | Lens: Spherical glass (resists oil adhesion) | Mounting: 8.5 mm dia. mounting hole / Tightening torque 12 N·m | Ambient Temperature: −25 to +70 °C | Weight (Packed): approx. 80 g | Degree of Protection: IP68 (IEC 60529) + IP68G (JIS C 0920 Annex 1) | Sealing Method: Mechanical seal (aluminum ring bushing compressed by set screw against fluororesin) | Compatible Amplifiers: E3X-HD series / E3NX-FA series (amplifiers not oil-resistant) | Response Time (with E3X-HD): SHS 50 μs (NPN) or 55 μs (PNP) / HS 250 μs / ST 1 ms / GIGA 16 ms | Response Time (with E3NX-FA): SHS 30 μs / HS 250 μs / ST 1 ms / GIGA 16 ms | Oil Resistance: 4 years (verified by OMRON's accelerated evaluation tests) | Cable Sheath: Fluororesin (patent pending) — resists both water-soluble and water-insoluble cutting oils | Evaluation Standard: Passed IP67G (JIS C 0920 Annex 1) and OMRON's Oil-resistant Component Evaluation Standards | Applicable Oil Types: JIS K 2241:2000 specified cutting oils | Evaluation Temperature: 35 °C max
E32-T11NFS 2ME32-T11NFS 2M — through-beam right-angle fiber unit, M4 (limited space) | Type: Oil-resistant Through-beam Fiber Unit | Sensing Direction: Right-angle | Mounting Size: M4 (limited space) | Sensing Distance: GIGA 2,200 mm / ST 1,100 mm / HS 730 mm / SHS 270 mm (E3X-HD); GIGA 3,300 mm / ST 1,600 mm / HS 1,100 mm / SHS 270 mm (E3NX-FA) | Optical Axis Diameter (Min. Sensing Object): 2 mm dia. (min. sensing object 0.1 mm dia. E3X-HD / 0.03 mm dia. E3NX-FA) | Bending Radius of Cable: Flexible R1 | Unbendable Length: 0 mm | Tensile Strength: 29.4 N | Cable Sheath Material: Fluororesin | Fiber Core Material: Plastic | Emitter/Receiver Differentiation: None (interchangeable) | Lens: Spherical glass (resists oil adhesion) | Mounting: 4.2 mm dia. mounting hole / Tightening torque 0.78 N·m | Ambient Temperature: −25 to +70 °C | Weight (Packed): approx. 70 g | Degree of Protection: IP68 (IEC 60529) + IP68G (JIS C 0920 Annex 1) | Sealing Method: Mechanical seal (aluminum ring bushing compressed by set screw against fluororesin) | Compatible Amplifiers: E3X-HD series / E3NX-FA series (amplifiers not oil-resistant) | Response Time (with E3X-HD): SHS 50 μs (NPN) or 55 μs (PNP) / HS 250 μs / ST 1 ms / GIGA 16 ms | Response Time (with E3NX-FA): SHS 30 μs / HS 250 μs / ST 1 ms / GIGA 16 ms | Oil Resistance: 4 years (verified by OMRON's accelerated evaluation tests) | Cable Sheath: Fluororesin (patent pending) — resists both water-soluble and water-insoluble cutting oils | Evaluation Standard: Passed IP67G (JIS C 0920 Annex 1) and OMRON's Oil-resistant Component Evaluation Standards | Applicable Oil Types: JIS K 2241:2000 specified cutting oils | Evaluation Temperature: 35 °C max
