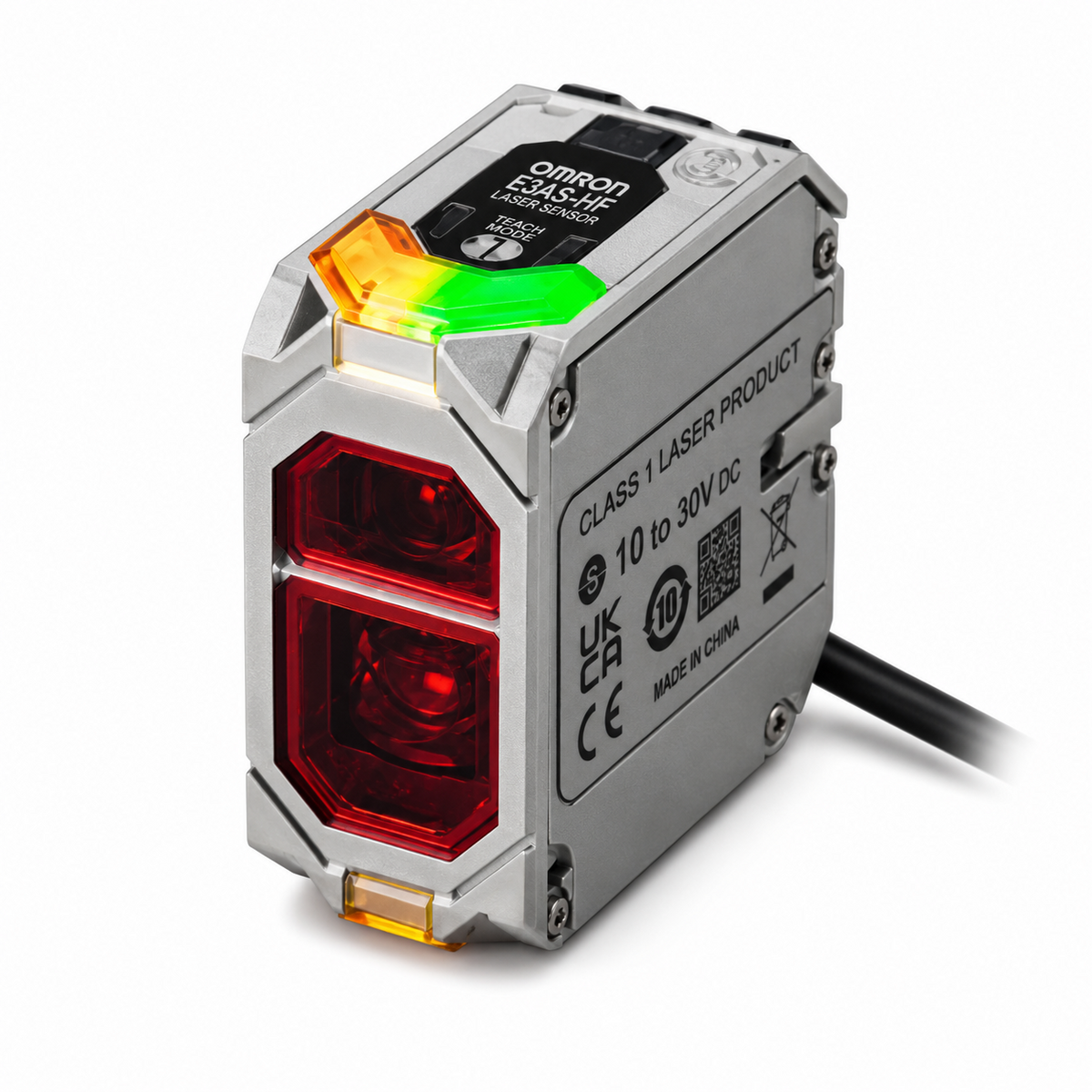

Omron E3AS-HF6000DM TOF Laser Sensor with Built-in Amplifier (Diffuse Beam, NPN/PNP, IO-Link COM3)

Omron E3AS-HF6000DM TOF Laser Sensor with Built-in Amplifier (Diffuse Beam, NPN/PNP, IO-Link COM3)

OMRON E3AS-HF Series TOF laser sensor with built-in amplifier, diffuse beam type.

Key features

  • Sensing distance 0.05 to 6,000 mm
  • Angular characteristics ±85° max
  • Wide detection range ideal for detecting objects at varying distances without reflector
  • IO-Link COM3 (230.4 kbps)
  • NPN and PNP output
  • Connection options: pre-wired 2 m / 5 m, M12 connector horizontal/vertical, M12 pre-wired Smartclick connector 0.3 m

Specifications

Sensing Distance 0.05 to 6,000 mm (6 m)
Light Source Red light (TOF laser)
Angular Characteristics ±85° max.
IO-Link COM3 (230.4 kbps)
Note Detects low-reflective / black workpieces at long range
Beam Type Diffuse
E3AS-HF6000DMN 2M Diffuse beam NPN pre-wired 2m | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: NPN | Connection: Pre-wired 2 m | Beam Type: Diffuse
E3AS-HF6000DMN 5M Diffuse beam NPN pre-wired 5m | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: NPN | Connection: Pre-wired 5 m | Beam Type: Diffuse
E3AS-HF6000DMN M1H Diffuse beam NPN M12 connector horizontal | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: NPN | Connection: M12 Connector (horizontal) | Beam Type: Diffuse | Required Cable: XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) straight or XS5F-D422 right-angle (sold separately)
E3AS-HF6000DMN M1V Diffuse beam NPN M12 connector vertical | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: NPN | Connection: M12 Connector (vertical) | Beam Type: Diffuse | Required Cable: XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) straight or XS5F-D422 right-angle (sold separately)
E3AS-HF6000DMN-M1TJ 0.3M Diffuse beam NPN M12 pre-wired Smartclick 0.3m | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: NPN | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Beam Type: Diffuse
E3AS-HF6000DMT 2M Diffuse beam PNP pre-wired 2m | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: PNP | Connection: Pre-wired 2 m | Beam Type: Diffuse
E3AS-HF6000DMT 5M Diffuse beam PNP pre-wired 5m | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: PNP | Connection: Pre-wired 5 m | Beam Type: Diffuse
E3AS-HF6000DMT M1H Diffuse beam PNP M12 connector horizontal | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: PNP | Connection: M12 Connector (horizontal) | Beam Type: Diffuse | Required Cable: XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) straight or XS5F-D422 right-angle (sold separately)
E3AS-HF6000DMT M1V Diffuse beam PNP M12 connector vertical | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: PNP | Connection: M12 Connector (vertical) | Beam Type: Diffuse | Required Cable: XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) straight or XS5F-D422 right-angle (sold separately)
E3AS-HF6000DMT-M1TJ 0.3M Diffuse beam PNP M12 pre-wired Smartclick 0.3m | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: PNP | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Beam Type: Diffuse
PhotoelectricOmron
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E3AS-HF6000DM TOF Laser Sensor with Built-in Amplifier (Diffuse Beam, NPN/PNP, IO-Link COM3)

Brand Omron·Photoelectric

Available part numbers (10)

E3AS-HF6000DMN 2M, E3AS-HF6000DMN 5M, E3AS-HF6000DMN M1H, E3AS-HF6000DMN M1V, E3AS-HF6000DMN-M1TJ 0.3M, E3AS-HF6000DMT 2M, E3AS-HF6000DMT 5M, E3AS-HF6000DMT M1H, E3AS-HF6000DMT M1V, E3AS-HF6000DMT-M1TJ 0.3M

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E3AS-HF6000DMN 2MDiffuse beam NPN pre-wired 2m | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: NPN | Connection: Pre-wired 2 m | Beam Type: Diffuse
E3AS-HF6000DMN 5MDiffuse beam NPN pre-wired 5m | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: NPN | Connection: Pre-wired 5 m | Beam Type: Diffuse
E3AS-HF6000DMN M1HDiffuse beam NPN M12 connector horizontal | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: NPN | Connection: M12 Connector (horizontal) | Beam Type: Diffuse | Required Cable: XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) straight or XS5F-D422 right-angle (sold separately)
E3AS-HF6000DMN M1VDiffuse beam NPN M12 connector vertical | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: NPN | Connection: M12 Connector (vertical) | Beam Type: Diffuse | Required Cable: XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) straight or XS5F-D422 right-angle (sold separately)
E3AS-HF6000DMN-M1TJ 0.3MDiffuse beam NPN M12 pre-wired Smartclick 0.3m | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: NPN | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Beam Type: Diffuse
E3AS-HF6000DMT 2MDiffuse beam PNP pre-wired 2m | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: PNP | Connection: Pre-wired 2 m | Beam Type: Diffuse
E3AS-HF6000DMT 5MDiffuse beam PNP pre-wired 5m | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: PNP | Connection: Pre-wired 5 m | Beam Type: Diffuse
E3AS-HF6000DMT M1HDiffuse beam PNP M12 connector horizontal | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: PNP | Connection: M12 Connector (horizontal) | Beam Type: Diffuse | Required Cable: XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) straight or XS5F-D422 right-angle (sold separately)
E3AS-HF6000DMT M1VDiffuse beam PNP M12 connector vertical | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: PNP | Connection: M12 Connector (vertical) | Beam Type: Diffuse | Required Cable: XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) straight or XS5F-D422 right-angle (sold separately)
E3AS-HF6000DMT-M1TJ 0.3MDiffuse beam PNP M12 pre-wired Smartclick 0.3m | Sensing Distance: 0.05 to 6,000 mm (6 m) | Light Source: Red light (TOF laser) | Angular Characteristics: ±85° max. | IO-Link: COM3 (230.4 kbps) | Note: Detects low-reflective / black workpieces at long range | Output: PNP | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Beam Type: Diffuse
