• Omron E3JK AC/DC Built-in Power Supply Photoelectric Sensor (Relay output, no bracket)
1 1

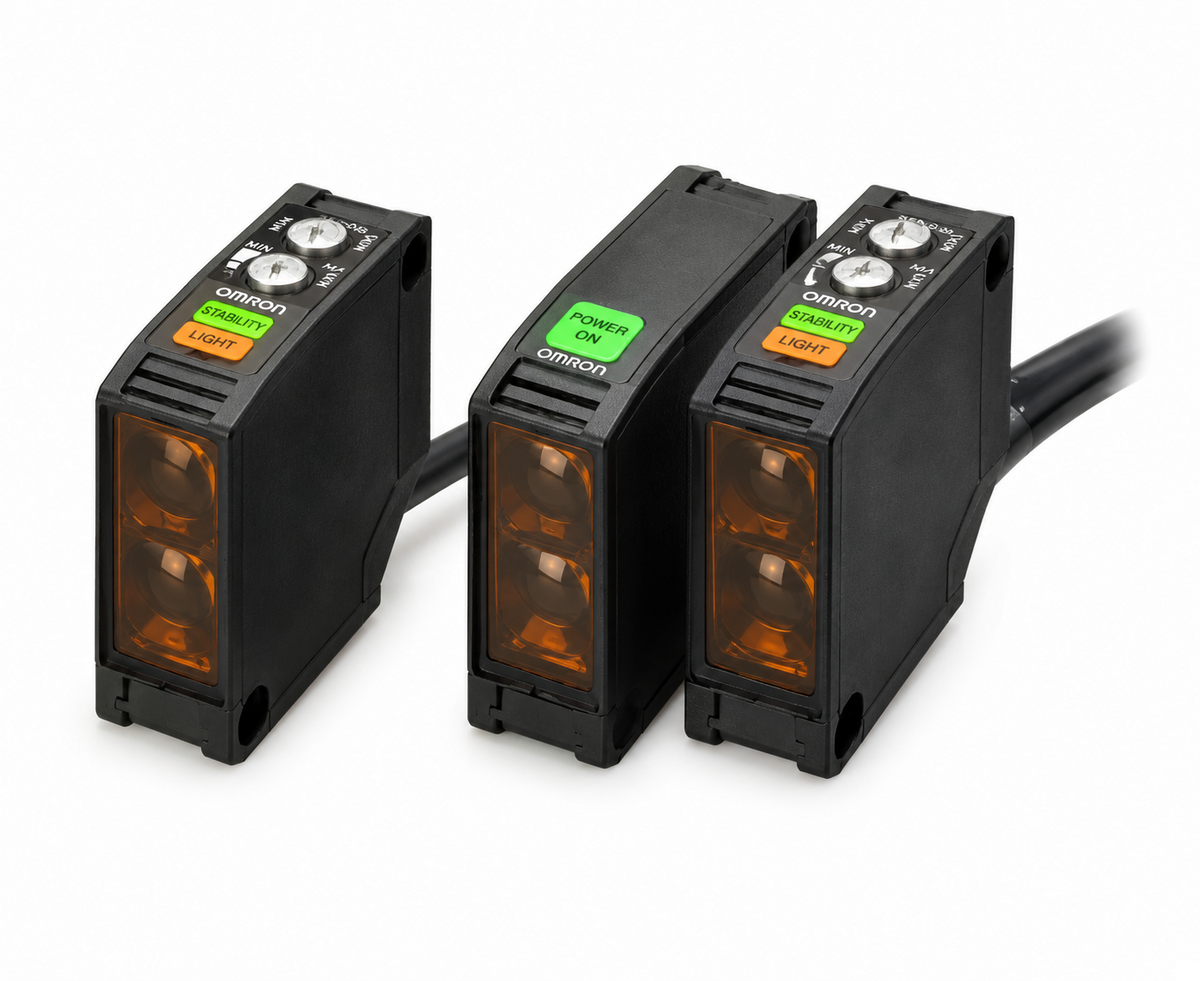

Omron E3JK AC/DC Built-in Power Supply Photoelectric Sensor (Relay output, no bracket)

Omron E3JK AC/DC Built-in Power Supply Photoelectric Sensor (Relay output, no bracket)

OMRON E3JK Series AC/DC selectable relay output photoelectric sensors.

Key features

  • No bracket or reflector included
  • Through-beam 40m/5m red+IR
  • Retro without MSR (red/IR) + with MSR (red)
  • Diffuse 2.5m/300mm red+IR
  • Order E39-L40 bracket and E39-R1/R1S/R2 reflector separately

Specifications

Output Relay (AC/DC)
Power Supply AC/DC selectable
Bracket Included No — order E39-L40 separately
E3JK-TR11 2M Through-beam 40 m Relay (AC/DC) set 2m | Sensing Distance: 40 m | Light Source: Red light | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Set
E3JK-TR11-L 2M Through-beam 40 m Relay (AC/DC) emitter 2m | Sensing Distance: 40 m | Light Source: Red light | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Emitter | Pair With: E3JK-TR11-D 2M
E3JK-TR11-D 2M Through-beam 40 m Relay (AC/DC) receiver 2m | Sensing Distance: 40 m | Light Source: Red light | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Receiver | Pair With: E3JK-TR11-L 2M
E3JK-TR12 2M Through-beam 5 m Relay (AC/DC) set 2m | Sensing Distance: 5 m | Light Source: Red light | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Set
E3JK-TR12-L 2M Through-beam 5 m Relay (AC/DC) emitter 2m | Sensing Distance: 5 m | Light Source: Red light | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Emitter | Pair With: E3JK-TR12-D 2M
E3JK-TR12-D 2M Through-beam 5 m Relay (AC/DC) receiver 2m | Sensing Distance: 5 m | Light Source: Red light | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Receiver | Pair With: E3JK-TR12-L 2M
E3JK-TR13 2M Through-beam 40 m Relay (AC/DC) set 2m | Sensing Distance: 40 m | Light Source: Infrared | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Set
E3JK-TR13-L 2M Through-beam 40 m Relay (AC/DC) emitter 2m | Sensing Distance: 40 m | Light Source: Infrared | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Emitter | Pair With: E3JK-TR13-D 2M
E3JK-TR13-D 2M Through-beam 40 m Relay (AC/DC) receiver 2m | Sensing Distance: 40 m | Light Source: Infrared | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Receiver | Pair With: E3JK-TR13-L 2M
E3JK-TR14 2M Through-beam 5 m Relay (AC/DC) set 2m | Sensing Distance: 5 m | Light Source: Infrared | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Set
E3JK-TR14-L 2M Through-beam 5 m Relay (AC/DC) emitter 2m | Sensing Distance: 5 m | Light Source: Infrared | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Emitter | Pair With: E3JK-TR14-D 2M
E3JK-TR14-D 2M Through-beam 5 m Relay (AC/DC) receiver 2m | Sensing Distance: 5 m | Light Source: Infrared | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Receiver | Pair With: E3JK-TR14-L 2M
E3JK-RR11 2M Retro without MSR Red light Relay (AC/DC) 2m | Sensing Distance: 7 m with E39-R1 / 11 m with E39-R2 (min 100 mm) | Light Source: Red light | Sensing Method: Retro-reflective (without MSR) | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Reflector: E39-R1/R1S/R2 sold separately
E3JK-RR13 2M Retro without MSR Infrared Relay (AC/DC) 2m | Sensing Distance: 7 m with E39-R1 / 11 m with E39-R2 (min 100 mm) | Light Source: Infrared | Sensing Method: Retro-reflective (without MSR) | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Reflector: E39-R1/R1S/R2 sold separately
E3JK-RR12 2M Retro with MSR Red light Relay (AC/DC) 2m | Sensing Distance: 6 m with E39-R1 / 10 m with E39-R2 (min 100 mm) | Light Source: Red light | Sensing Method: Retro-reflective (with MSR) | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Reflector: E39-R1/R1S/R2 sold separately
E3JK-DR11 2M Diffuse 2.5 m Red light Relay (AC/DC) 2m | Sensing Distance: 2.5 m | Light Source: Red light | Sensing Method: Diffuse-reflective | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately
E3JK-DR12 2M Diffuse 300 mm Red light Relay (AC/DC) 2m | Sensing Distance: 300 mm | Light Source: Red light | Sensing Method: Diffuse-reflective | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately
E3JK-DR13 2M Diffuse 2.5 m Infrared Relay (AC/DC) 2m | Sensing Distance: 2.5 m | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately
E3JK-DR14 2M Diffuse 300 mm Infrared Relay (AC/DC) 2m | Sensing Distance: 300 mm | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately
PhotoelectricOmron
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E3JK AC/DC Built-in Power Supply Photoelectric Sensor (Relay output, no bracket)

Brand Omron·Photoelectric

Available part numbers (19)

E3JK-TR11 2M, E3JK-TR11-L 2M, E3JK-TR11-D 2M, E3JK-TR12 2M, E3JK-TR12-L 2M, E3JK-TR12-D 2M, E3JK-TR13 2M, E3JK-TR13-L 2M, E3JK-TR13-D 2M, E3JK-TR14 2M + 9 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E3JK-TR11 2MThrough-beam 40 m Relay (AC/DC) set 2m | Sensing Distance: 40 m | Light Source: Red light | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Set
E3JK-TR11-L 2MThrough-beam 40 m Relay (AC/DC) emitter 2m | Sensing Distance: 40 m | Light Source: Red light | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Emitter | Pair With: E3JK-TR11-D 2M
E3JK-TR11-D 2MThrough-beam 40 m Relay (AC/DC) receiver 2m | Sensing Distance: 40 m | Light Source: Red light | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Receiver | Pair With: E3JK-TR11-L 2M
E3JK-TR12 2MThrough-beam 5 m Relay (AC/DC) set 2m | Sensing Distance: 5 m | Light Source: Red light | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Set
E3JK-TR12-L 2MThrough-beam 5 m Relay (AC/DC) emitter 2m | Sensing Distance: 5 m | Light Source: Red light | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Emitter | Pair With: E3JK-TR12-D 2M
E3JK-TR12-D 2MThrough-beam 5 m Relay (AC/DC) receiver 2m | Sensing Distance: 5 m | Light Source: Red light | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Receiver | Pair With: E3JK-TR12-L 2M
E3JK-TR13 2MThrough-beam 40 m Relay (AC/DC) set 2m | Sensing Distance: 40 m | Light Source: Infrared | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Set
E3JK-TR13-L 2MThrough-beam 40 m Relay (AC/DC) emitter 2m | Sensing Distance: 40 m | Light Source: Infrared | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Emitter | Pair With: E3JK-TR13-D 2M
E3JK-TR13-D 2MThrough-beam 40 m Relay (AC/DC) receiver 2m | Sensing Distance: 40 m | Light Source: Infrared | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Receiver | Pair With: E3JK-TR13-L 2M
E3JK-TR14 2MThrough-beam 5 m Relay (AC/DC) set 2m | Sensing Distance: 5 m | Light Source: Infrared | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Set
E3JK-TR14-L 2MThrough-beam 5 m Relay (AC/DC) emitter 2m | Sensing Distance: 5 m | Light Source: Infrared | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Emitter | Pair With: E3JK-TR14-D 2M
E3JK-TR14-D 2MThrough-beam 5 m Relay (AC/DC) receiver 2m | Sensing Distance: 5 m | Light Source: Infrared | Sensing Method: Through-beam | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3JK-TR11-L 2M) | Type: Receiver | Pair With: E3JK-TR14-L 2M
E3JK-RR11 2MRetro without MSR Red light Relay (AC/DC) 2m | Sensing Distance: 7 m with E39-R1 / 11 m with E39-R2 (min 100 mm) | Light Source: Red light | Sensing Method: Retro-reflective (without MSR) | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Reflector: E39-R1/R1S/R2 sold separately
E3JK-RR13 2MRetro without MSR Infrared Relay (AC/DC) 2m | Sensing Distance: 7 m with E39-R1 / 11 m with E39-R2 (min 100 mm) | Light Source: Infrared | Sensing Method: Retro-reflective (without MSR) | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Reflector: E39-R1/R1S/R2 sold separately
E3JK-RR12 2MRetro with MSR Red light Relay (AC/DC) 2m | Sensing Distance: 6 m with E39-R1 / 10 m with E39-R2 (min 100 mm) | Light Source: Red light | Sensing Method: Retro-reflective (with MSR) | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately | Reflector: E39-R1/R1S/R2 sold separately
E3JK-DR11 2MDiffuse 2.5 m Red light Relay (AC/DC) 2m | Sensing Distance: 2.5 m | Light Source: Red light | Sensing Method: Diffuse-reflective | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately
E3JK-DR12 2MDiffuse 300 mm Red light Relay (AC/DC) 2m | Sensing Distance: 300 mm | Light Source: Red light | Sensing Method: Diffuse-reflective | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately
E3JK-DR13 2MDiffuse 2.5 m Infrared Relay (AC/DC) 2m | Sensing Distance: 2.5 m | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately
E3JK-DR14 2MDiffuse 300 mm Infrared Relay (AC/DC) 2m | Sensing Distance: 300 mm | Light Source: Infrared | Sensing Method: Diffuse-reflective | Output: Relay (AC/DC) | Power Supply: AC/DC selectable | Bracket Included: No — order E39-L40 separately
