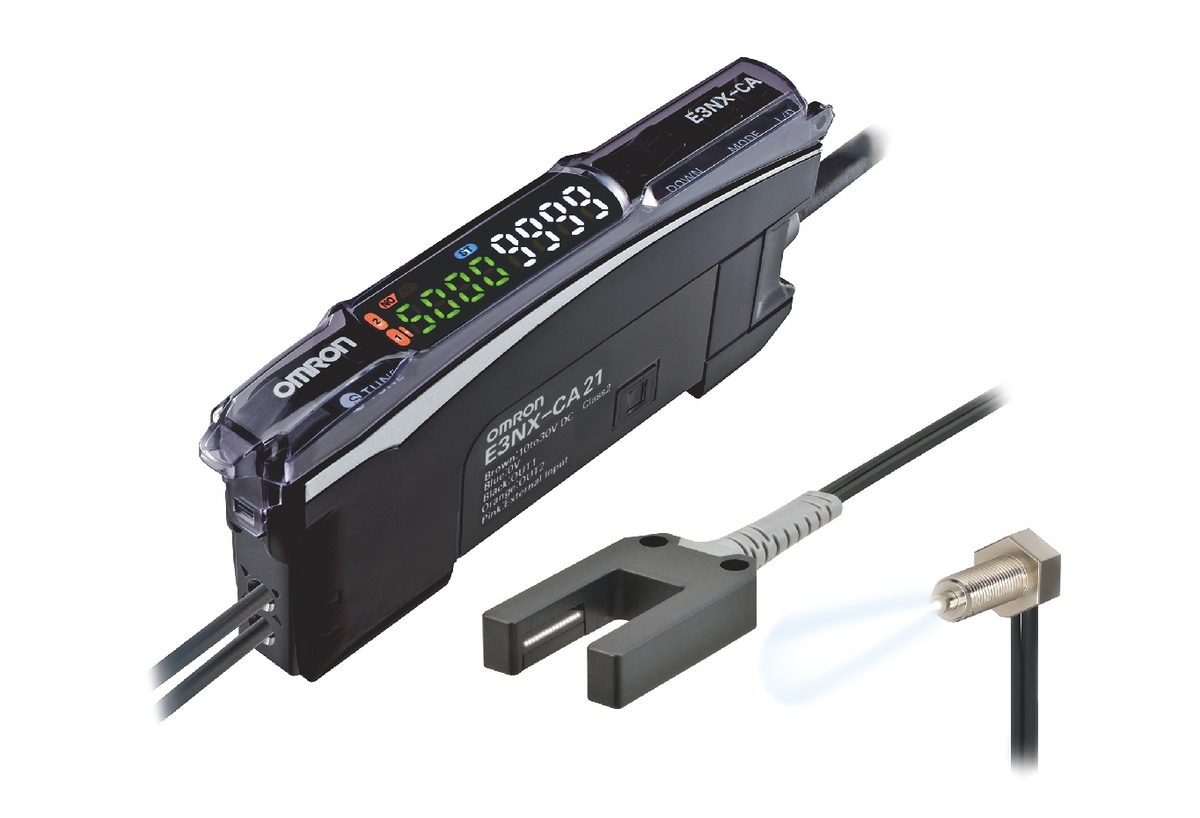

Omron E3NX-CA High-Function Color Fiber Amplifier (Multi-Output + External Input, AND/OR Logic)

Omron E3NX-CA High-Function Color Fiber Amplifier (Multi-Output + External Input, AND/OR Logic)

High-function color fiber amplifier with 2 outputs, 1 external input, and AND/OR logic output for advanced color detection applications.

Key features

  • White LED + RGB matrix sensor with 4x dynamic range and 4x S/N improvement vs E3X-DAC-S
  • External input enables remote tuning, Light OFF, Zero Reset, and BANK switching (1~8) — useful for production line recipe changeover or remote troubleshooting
  • AND/OR logic combines OUT1 and OUT2 channels for complex pass/fail criteria (e.g., color match + count threshold simultaneously)
  • Output 2 supports Error output mode for self-diagnostic alarms
  • Smart Tuning, four response modes (SHS 50μs ~ GIGA 16ms), BANK 1~8. 10-30 VDC, NPN or PNP
  • Compatible with OMRON E32 series fiber heads (E32-C91N coaxial recommended for color detection on tilted glossy workpieces)

Specifications

I/O Configuration 2 outputs + 1 input
Connection Pre-wired (2m cable, 4 dia., 5 conductors)
Power Consumption Normal: 960mW max. (40mA @ 24VDC)
ECO ON 720mW (30mA)
ECO LO 800mW (33mA)
Control Output NPN or PNP open-collector, 30 VDC max., 2 outputs
Load Current 100 mA max. (1-3 amps), 20 mA max. (4+ amps)
Residual Voltage 1 V max. (<10 mA load) / 2 V max. (10-100 mA load)
OFF Current 0.1 mA max.
Output 2 Mode Standard / Error output / AND output / OR output
External Input Functions Input OFF / Tuning / Full Auto Tuning / Light OFF / BANK1-2 switching / BANK1-8 switching / Zero Reset
Response Time — SHS (Super-high-speed) 50 μs (Contrast Mode only)
