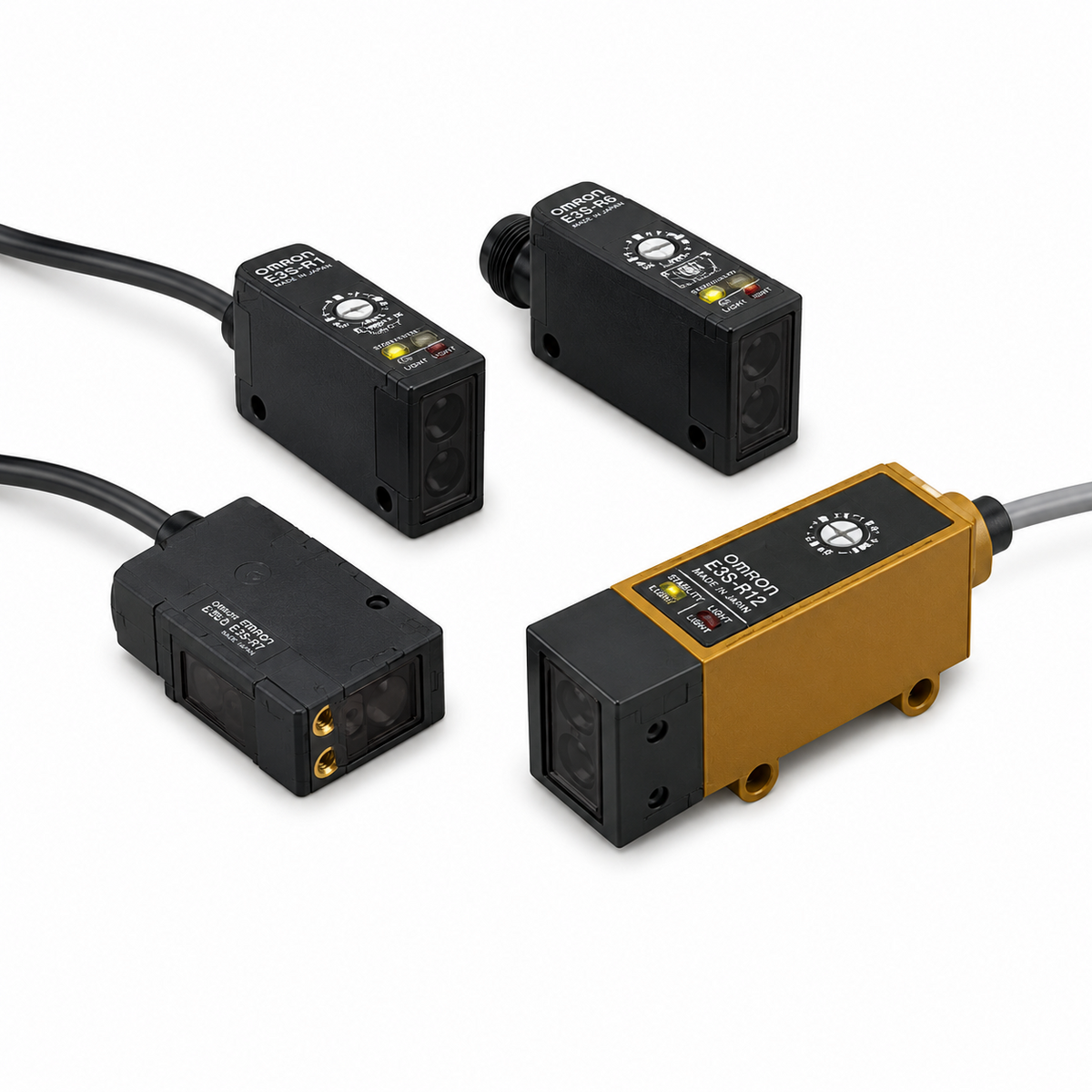

Omron E3S-R Transparent Object Detection Sensor (Metal Housing, Retro-reflective, NPN, Infrared)

OMRON E3S-R Series metal housing retro-reflective transparent object detection sensors.

Key features

NPN output only
Infrared light. 300 mm (E3S-RS30E4/E42): ideal for glass wafers and LCD boards. 1 m (E3S-R1E4/E42): applicable for glass wafers
Pre-wired 2 m
Sensitivity adjuster E39-G1 and reflector E39-R1 included

Specifications

Light Source	Infrared
Sensing Method	Retro-reflective (transparent object detection)
Output	NPN
Housing	Metal
Orientation	-
Connection	Pre-wired 2 m
Application	Reflector E39-R1 included. Ideal for glass wafers/LCD boards (300mm IR) or plastic bottles (1m red); test before use

E3S-RS30E4 2M		Metal 300mm IR NPN 2m variant1 \| Sensing Distance: 300 mm \| Light Source: Infrared \| Sensing Method: Retro-reflective (transparent object detection) \| Output: NPN \| Housing: Metal \| Orientation: - \| Connection: Pre-wired 2 m \| Application: Reflector E39-R1 included. Ideal for glass wafers/LCD boards (300mm IR) or plastic bottles (1m red); test before use \| Note: Ideal for glass wafers/LCD boards; sensitivity adjuster E39-G1 included
E3S-R1E4 2M		Metal 1m IR NPN 2m variant1 \| Sensing Distance: 1 m \| Light Source: Infrared \| Sensing Method: Retro-reflective (transparent object detection) \| Output: NPN \| Housing: Metal \| Orientation: - \| Connection: Pre-wired 2 m \| Application: Reflector E39-R1 included. Ideal for glass wafers/LCD boards (300mm IR) or plastic bottles (1m red); test before use \| Note: Applicable for glass wafers/LCD boards; sensitivity adjuster E39-G1 included
E3S-RS30E42 2M		Metal 300mm IR NPN 2m variant2 \| Sensing Distance: 300 mm \| Light Source: Infrared \| Sensing Method: Retro-reflective (transparent object detection) \| Output: NPN \| Housing: Metal \| Orientation: - \| Connection: Pre-wired 2 m \| Application: Reflector E39-R1 included. Ideal for glass wafers/LCD boards (300mm IR) or plastic bottles (1m red); test before use \| Note: Ideal for glass wafers/LCD boards; sensitivity adjuster E39-G1 included
E3S-R1E42 2M		Metal 1m IR NPN 2m variant2 \| Sensing Distance: 1 m \| Light Source: Infrared \| Sensing Method: Retro-reflective (transparent object detection) \| Output: NPN \| Housing: Metal \| Orientation: - \| Connection: Pre-wired 2 m \| Application: Reflector E39-R1 included. Ideal for glass wafers/LCD boards (300mm IR) or plastic bottles (1m red); test before use \| Note: Applicable for glass wafers/LCD boards; sensitivity adjuster E39-G1 included

PhotoelectricOmron

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E3S-R Transparent Object Detection Sensor (Metal Housing, Retro-reflective, NPN, Infrared)

Brand Omron·Photoelectric

Available part numbers (4)

E3S-RS30E4 2M, E3S-R1E4 2M, E3S-RS30E42 2M, E3S-R1E42 2M

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	E3S-RS30E4 2M	Metal 300mm IR NPN 2m variant1 \| Sensing Distance: 300 mm \| Light Source: Infrared \| Sensing Method: Retro-reflective (transparent object detection) \| Output: NPN \| Housing: Metal \| Orientation: - \| Connection: Pre-wired 2 m \| Application: Reflector E39-R1 included. Ideal for glass wafers/LCD boards (300mm IR) or plastic bottles (1m red); test before use \| Note: Ideal for glass wafers/LCD boards; sensitivity adjuster E39-G1 included
	E3S-R1E4 2M	Metal 1m IR NPN 2m variant1 \| Sensing Distance: 1 m \| Light Source: Infrared \| Sensing Method: Retro-reflective (transparent object detection) \| Output: NPN \| Housing: Metal \| Orientation: - \| Connection: Pre-wired 2 m \| Application: Reflector E39-R1 included. Ideal for glass wafers/LCD boards (300mm IR) or plastic bottles (1m red); test before use \| Note: Applicable for glass wafers/LCD boards; sensitivity adjuster E39-G1 included
	E3S-RS30E42 2M	Metal 300mm IR NPN 2m variant2 \| Sensing Distance: 300 mm \| Light Source: Infrared \| Sensing Method: Retro-reflective (transparent object detection) \| Output: NPN \| Housing: Metal \| Orientation: - \| Connection: Pre-wired 2 m \| Application: Reflector E39-R1 included. Ideal for glass wafers/LCD boards (300mm IR) or plastic bottles (1m red); test before use \| Note: Ideal for glass wafers/LCD boards; sensitivity adjuster E39-G1 included
	E3S-R1E42 2M	Metal 1m IR NPN 2m variant2 \| Sensing Distance: 1 m \| Light Source: Infrared \| Sensing Method: Retro-reflective (transparent object detection) \| Output: NPN \| Housing: Metal \| Orientation: - \| Connection: Pre-wired 2 m \| Application: Reflector E39-R1 included. Ideal for glass wafers/LCD boards (300mm IR) or plastic bottles (1m red); test before use \| Note: Applicable for glass wafers/LCD boards; sensitivity adjuster E39-G1 included
