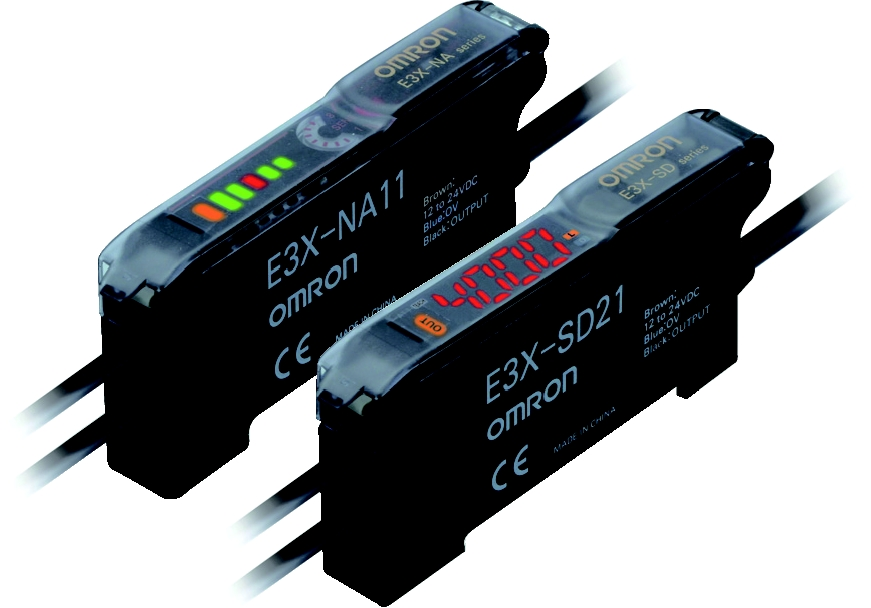

Omron E3X-NA V-Type Water-Resistant Fiber Amplifier (IP66, M8 Connector)

Omron E3X-NA V-Type Water-Resistant Fiber Amplifier (IP66, M8 Connector)

Water-resistant fiber amplifier unit with IP66 protection and M8 4-pin connector for tool-free cable replacement and quick maintenance.

Key features

  • Ideal for wet processing, food and beverage production, and equipment requiring frequent disconnect
  • Bar display with 8-turn adjuster. 12-24 VDC, open-collector output (NPN/PNP)
  • Compatible with E32 series fiber optic head units
  • Sensor I/O cable XS3F-M421-402-A / XS3F-M421-405-A (straight) or XS3F-M422-402-A / XS3F-M422-405-A (L-shaped) sold separately
  • Mounting Bracket (E39-L148) and DIN track End Plate (PFP-M) sold separately

Specifications

Connection M8 4-pin connector (XS3F cable sold separately)
Light Source Red LED (680 nm)
Display 5-segment bar (4 green + 1 red) excess gain indicator
Sensitivity Setting 8-turn sensitivity adjuster (with indicator)
Power Supply 12 to 24 VDC ±10%, ripple (p-p) 10% max.
Power Consumption 840 mW max. (35 mA @ 24 VDC)
Control Output Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max.
Mode Selector Light-ON / Dark-ON
Response Time Operate/Reset 200 μs max.
Timer Function No timer / OFF-delay (40 ms fixed) — selectable
Mutual Interference Prevention Up to 5 amplifiers (optically synchronized)
Protection IP66 ⭐ Water-resistant
E3X-NA14V OMRON E3X-NA14V water-resistant fiber amplifier, NPN, IP66, M8 connector. | Output: NPN | Connection: M8 4-pin connector (XS3F cable sold separately) | Light Source: Red LED (680 nm) | Display: 5-segment bar (4 green + 1 red) excess gain indicator | Sensitivity Setting: 8-turn sensitivity adjuster (with indicator) | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 840 mW max. (35 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. | Timer Function: No timer / OFF-delay (40 ms fixed) — selectable | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP66 ⭐ Water-resistant | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Connector: M8 4-pin (XS3F-M421/M422 cable sold separately) | Mounting: DIN track or Mounting Bracket E39-L148 (sold separately)
E3X-NA44V OMRON E3X-NA44V water-resistant fiber amplifier, PNP, IP66, M8 connector. | Output: PNP | Connection: M8 4-pin connector (XS3F cable sold separately) | Light Source: Red LED (680 nm) | Display: 5-segment bar (4 green + 1 red) excess gain indicator | Sensitivity Setting: 8-turn sensitivity adjuster (with indicator) | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 840 mW max. (35 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. | Timer Function: No timer / OFF-delay (40 ms fixed) — selectable | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP66 ⭐ Water-resistant | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Connector: M8 4-pin (XS3F-M421/M422 cable sold separately) | Mounting: DIN track or Mounting Bracket E39-L148 (sold separately)
Fiber OpticOmron
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E3X-NA V-Type Water-Resistant Fiber Amplifier (IP66, M8 Connector)

Brand Omron·Fiber Optic

Available part numbers (2)

E3X-NA14V, E3X-NA44V

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E3X-NA14VOMRON E3X-NA14V water-resistant fiber amplifier, NPN, IP66, M8 connector. | Output: NPN | Connection: M8 4-pin connector (XS3F cable sold separately) | Light Source: Red LED (680 nm) | Display: 5-segment bar (4 green + 1 red) excess gain indicator | Sensitivity Setting: 8-turn sensitivity adjuster (with indicator) | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 840 mW max. (35 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. | Timer Function: No timer / OFF-delay (40 ms fixed) — selectable | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP66 ⭐ Water-resistant | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Connector: M8 4-pin (XS3F-M421/M422 cable sold separately) | Mounting: DIN track or Mounting Bracket E39-L148 (sold separately)
E3X-NA44VOMRON E3X-NA44V water-resistant fiber amplifier, PNP, IP66, M8 connector. | Output: PNP | Connection: M8 4-pin connector (XS3F cable sold separately) | Light Source: Red LED (680 nm) | Display: 5-segment bar (4 green + 1 red) excess gain indicator | Sensitivity Setting: 8-turn sensitivity adjuster (with indicator) | Power Supply: 12 to 24 VDC ±10%, ripple (p-p) 10% max. | Power Consumption: 840 mW max. (35 mA @ 24 VDC) | Control Output: Open-collector, 26.4 V max., 50 mA max., residual voltage 1 V max. | Mode Selector: Light-ON / Dark-ON | Response Time: Operate/Reset 200 μs max. | Timer Function: No timer / OFF-delay (40 ms fixed) — selectable | Mutual Interference Prevention: Up to 5 amplifiers (optically synchronized) | Protection: IP66 ⭐ Water-resistant | Ambient Temperature: -25°C to 55°C (1-3 amps), -25°C to 50°C (4-11), -25°C to 45°C (12-16) | Connector: M8 4-pin (XS3F-M421/M422 cable sold separately) | Mounting: DIN track or Mounting Bracket E39-L148 (sold separately)
