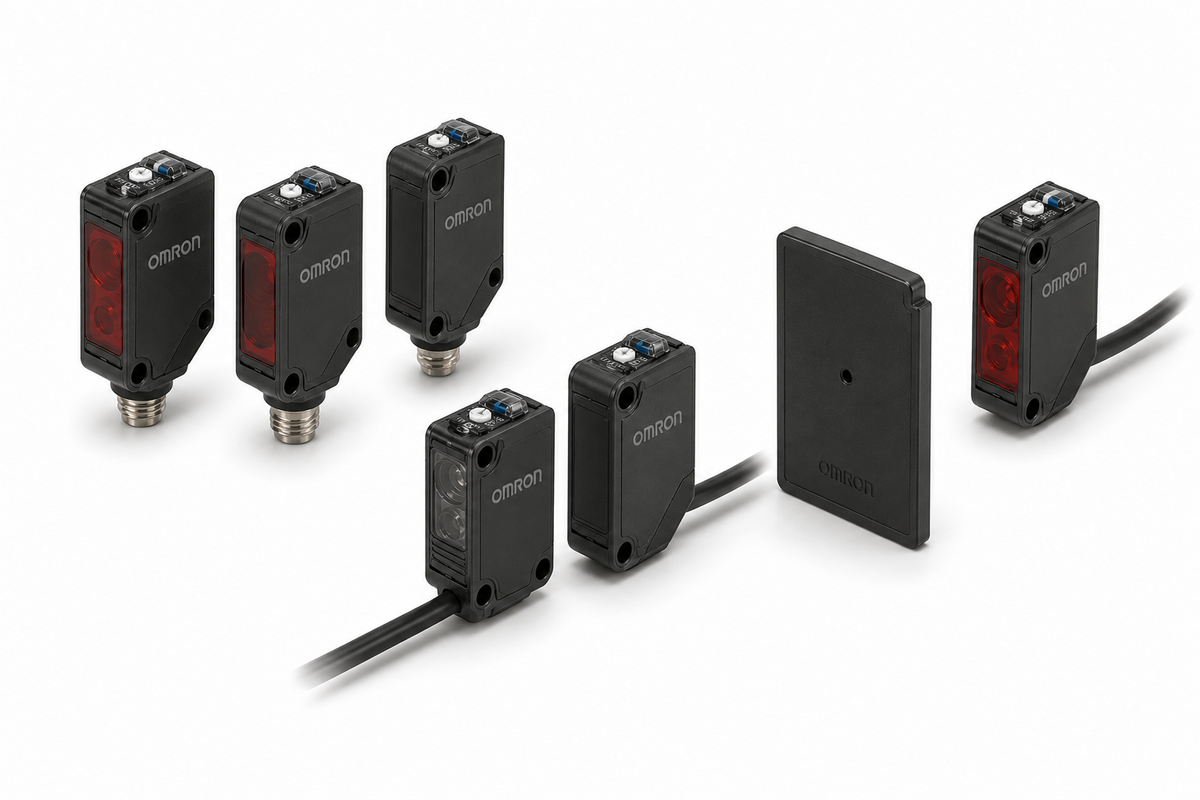

Omron E3Z IO-Link Diffuse-reflective Photoelectric Sensor (1m + Narrow 90mm, PNP, COM2/COM3)

Omron E3Z IO-Link Diffuse-reflective Photoelectric Sensor (1m + Narrow 90mm, PNP, COM2/COM3)

OMRON E3Z IO-Link Series diffuse-reflective photoelectric sensors.

Key features

  • PNP output only
  • IO-Link COM2 (38.4 kbps, IL2) and COM3 (230.4 kbps, IL3)
  • Standard diffuse (E3Z-D82): 1 m, infrared
  • Narrow beam diffuse (E3Z-L81): 90 mm, red light
  • Connection: pre-wired 2 m, M12 Smartclick 0.3 m, or M8 connector
  • IODD file available from OMRON sales representative

Specifications

Output PNP
E3Z-D82-IL2 2M IO-Link Diffuse-reflective (IO-Link) 1 m COM2 (38.4 kbps) pre-wired 2m | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: Pre-wired 2 m
E3Z-D82-M1TJ-IL2 0.3M IO-Link Diffuse-reflective (IO-Link) 1 m COM2 (38.4 kbps) M12 0.3m | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately)
E3Z-D87-IL2 IO-Link Diffuse-reflective (IO-Link) 1 m COM2 (38.4 kbps) M8 | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately)
E3Z-D82-IL3 2M IO-Link Diffuse-reflective (IO-Link) 1 m COM3 (230.4 kbps) pre-wired 2m | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: Pre-wired 2 m
E3Z-D82-M1TJ-IL3 0.3M IO-Link Diffuse-reflective (IO-Link) 1 m COM3 (230.4 kbps) M12 0.3m | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately)
E3Z-D87-IL3 IO-Link Diffuse-reflective (IO-Link) 1 m COM3 (230.4 kbps) M8 | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately)
E3Z-L81-IL2 2M IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM2 (38.4 kbps) pre-wired 2m | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: Pre-wired 2 m
E3Z-L81-M1TJ-IL2 0.3M IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM2 (38.4 kbps) M12 0.3m | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately)
E3Z-L86-IL2 IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM2 (38.4 kbps) M8 | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately)
E3Z-L81-IL3 2M IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM3 (230.4 kbps) pre-wired 2m | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: Pre-wired 2 m
E3Z-L81-M1TJ-IL3 0.3M IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM3 (230.4 kbps) M12 0.3m | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately)
E3Z-L86-IL3 IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM3 (230.4 kbps) M8 | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately)
PhotoelectricOmron
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E3Z IO-Link Diffuse-reflective Photoelectric Sensor (1m + Narrow 90mm, PNP, COM2/COM3)

Brand Omron·Photoelectric

Available part numbers (12)

E3Z-D82-IL2 2M, E3Z-D82-M1TJ-IL2 0.3M, E3Z-D87-IL2, E3Z-D82-IL3 2M, E3Z-D82-M1TJ-IL3 0.3M, E3Z-D87-IL3, E3Z-L81-IL2 2M, E3Z-L81-M1TJ-IL2 0.3M, E3Z-L86-IL2, E3Z-L81-IL3 2M + 2 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E3Z-D82-IL2 2MIO-Link Diffuse-reflective (IO-Link) 1 m COM2 (38.4 kbps) pre-wired 2m | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: Pre-wired 2 m
E3Z-D82-M1TJ-IL2 0.3MIO-Link Diffuse-reflective (IO-Link) 1 m COM2 (38.4 kbps) M12 0.3m | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately)
E3Z-D87-IL2IO-Link Diffuse-reflective (IO-Link) 1 m COM2 (38.4 kbps) M8 | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately)
E3Z-D82-IL3 2MIO-Link Diffuse-reflective (IO-Link) 1 m COM3 (230.4 kbps) pre-wired 2m | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: Pre-wired 2 m
E3Z-D82-M1TJ-IL3 0.3MIO-Link Diffuse-reflective (IO-Link) 1 m COM3 (230.4 kbps) M12 0.3m | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately)
E3Z-D87-IL3IO-Link Diffuse-reflective (IO-Link) 1 m COM3 (230.4 kbps) M8 | Sensing Distance: 1 m | Light Source: Infrared | Sensing Method: Diffuse-reflective (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately)
E3Z-L81-IL2 2MIO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM2 (38.4 kbps) pre-wired 2m | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: Pre-wired 2 m
E3Z-L81-M1TJ-IL2 0.3MIO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM2 (38.4 kbps) M12 0.3m | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately)
E3Z-L86-IL2IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM2 (38.4 kbps) M8 | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately)
E3Z-L81-IL3 2MIO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM3 (230.4 kbps) pre-wired 2m | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: Pre-wired 2 m
E3Z-L81-M1TJ-IL3 0.3MIO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM3 (230.4 kbps) M12 0.3m | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately)
E3Z-L86-IL3IO-Link Diffuse-reflective narrow beam (IO-Link) 90 mm (narrow beam) COM3 (230.4 kbps) M8 | Sensing Distance: 90 mm (narrow beam) | Light Source: Red light | Sensing Method: Diffuse-reflective narrow beam (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately)
