• Omron E3Z IO-Link Retro-reflective Photoelectric Sensor (MSR, 4m, PNP, COM2/COM3)
1 1

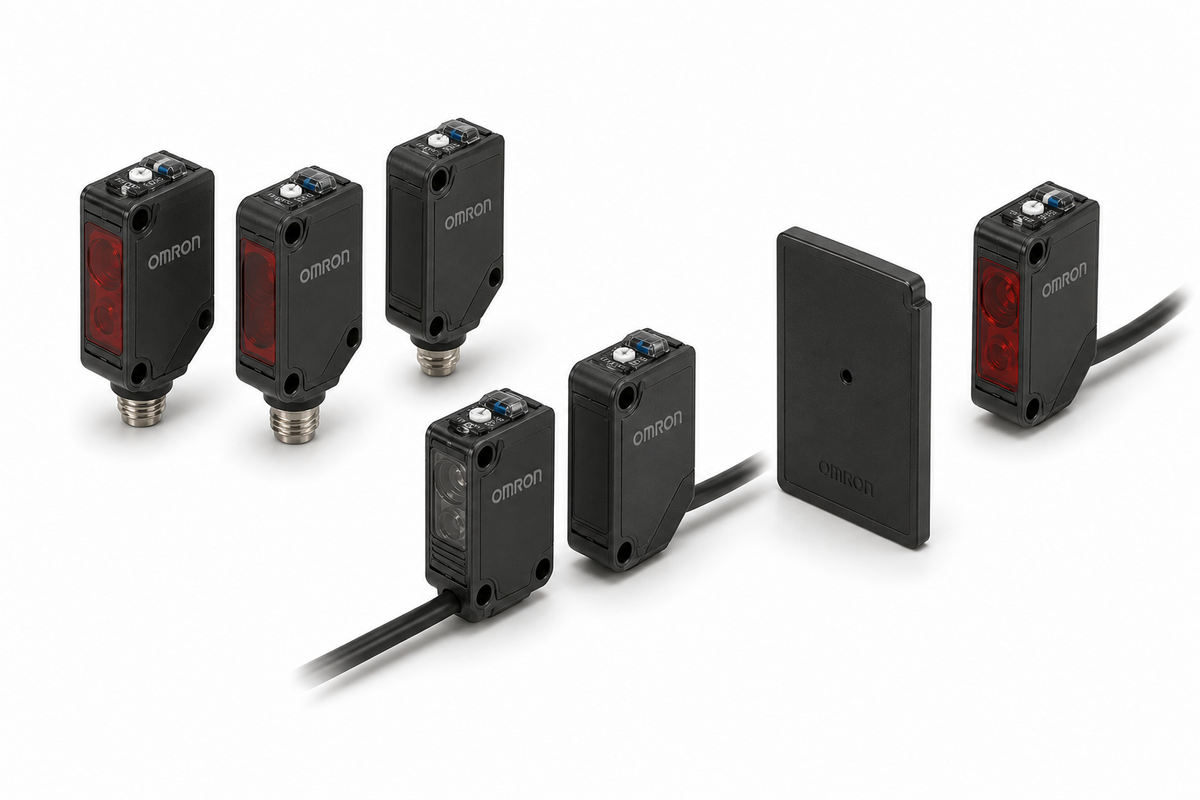

Omron E3Z IO-Link Retro-reflective Photoelectric Sensor (MSR, 4m, PNP, COM2/COM3)

Omron E3Z IO-Link Retro-reflective Photoelectric Sensor (MSR, 4m, PNP, COM2/COM3)

OMRON E3Z IO-Link Series retro-reflective photoelectric sensor with MSR function. 4 m sensing distance (min 100 mm), red light.

Key features

  • PNP output only
  • IO-Link COM2 (38.4 kbps, IL2) and COM3 (230.4 kbps, IL3)
  • Connection: pre-wired 2 m, M12 Smartclick 0.3 m, or M8 connector
  • Reflector E39-R1S (4m rated) sold separately
  • IODD file available from OMRON sales representative

Specifications

Sensing Distance 4 m (min 100 mm with E39-R1S)
Light Source Red light
Sensing Method Retro-reflective with MSR function (IO-Link)
Output PNP
Required Reflector E39-R1S (sold separately)
E3Z-R81-IL2 2M IO-Link retro MSR COM2 (38.4 kbps) pre-wired 2m | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: Pre-wired 2 m
E3Z-R81-M1TJ-IL2 0.3M IO-Link retro MSR COM2 (38.4 kbps) M12 Smartclick 0.3m | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately)
E3Z-R86-IL2 IO-Link retro MSR COM2 (38.4 kbps) M8 connector | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately)
E3Z-R81-IL3 2M IO-Link retro MSR COM3 (230.4 kbps) pre-wired 2m | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: Pre-wired 2 m
E3Z-R81-M1TJ-IL3 0.3M IO-Link retro MSR COM3 (230.4 kbps) M12 Smartclick 0.3m | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately)
E3Z-R86-IL3 IO-Link retro MSR COM3 (230.4 kbps) M8 connector | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately)
PhotoelectricOmron
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E3Z IO-Link Retro-reflective Photoelectric Sensor (MSR, 4m, PNP, COM2/COM3)

Brand Omron·Photoelectric

Available part numbers (6)

E3Z-R81-IL2 2M, E3Z-R81-M1TJ-IL2 0.3M, E3Z-R86-IL2, E3Z-R81-IL3 2M, E3Z-R81-M1TJ-IL3 0.3M, E3Z-R86-IL3

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E3Z-R81-IL2 2MIO-Link retro MSR COM2 (38.4 kbps) pre-wired 2m | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: Pre-wired 2 m
E3Z-R81-M1TJ-IL2 0.3MIO-Link retro MSR COM2 (38.4 kbps) M12 Smartclick 0.3m | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately)
E3Z-R86-IL2IO-Link retro MSR COM2 (38.4 kbps) M8 connector | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM2 (38.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately)
E3Z-R81-IL3 2MIO-Link retro MSR COM3 (230.4 kbps) pre-wired 2m | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: Pre-wired 2 m
E3Z-R81-M1TJ-IL3 0.3MIO-Link retro MSR COM3 (230.4 kbps) M12 Smartclick 0.3m | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: M12 Pre-wired Smartclick Connector 0.3 m | Required Cable: Requires XS5F-D421-D80-F (2m) / XS5F-D421-G80-F (5m) M12 Smartclick straight or XS5F-D422 L-shaped (sold separately)
E3Z-R86-IL3IO-Link retro MSR COM3 (230.4 kbps) M8 connector | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (IO-Link) | Output: PNP | IO-Link: COM3 (230.4 kbps) | Required Reflector: E39-R1S (sold separately) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately)
