Omron E3Z-UL Laser Photoelectric Sensor (Through-beam 60m / Retro / Distance-settable, NPN/PNP, UL Certified)

Omron E3Z-UL Laser Photoelectric Sensor (Through-beam 60m / Retro / Distance-settable, NPN/PNP, UL Certified)

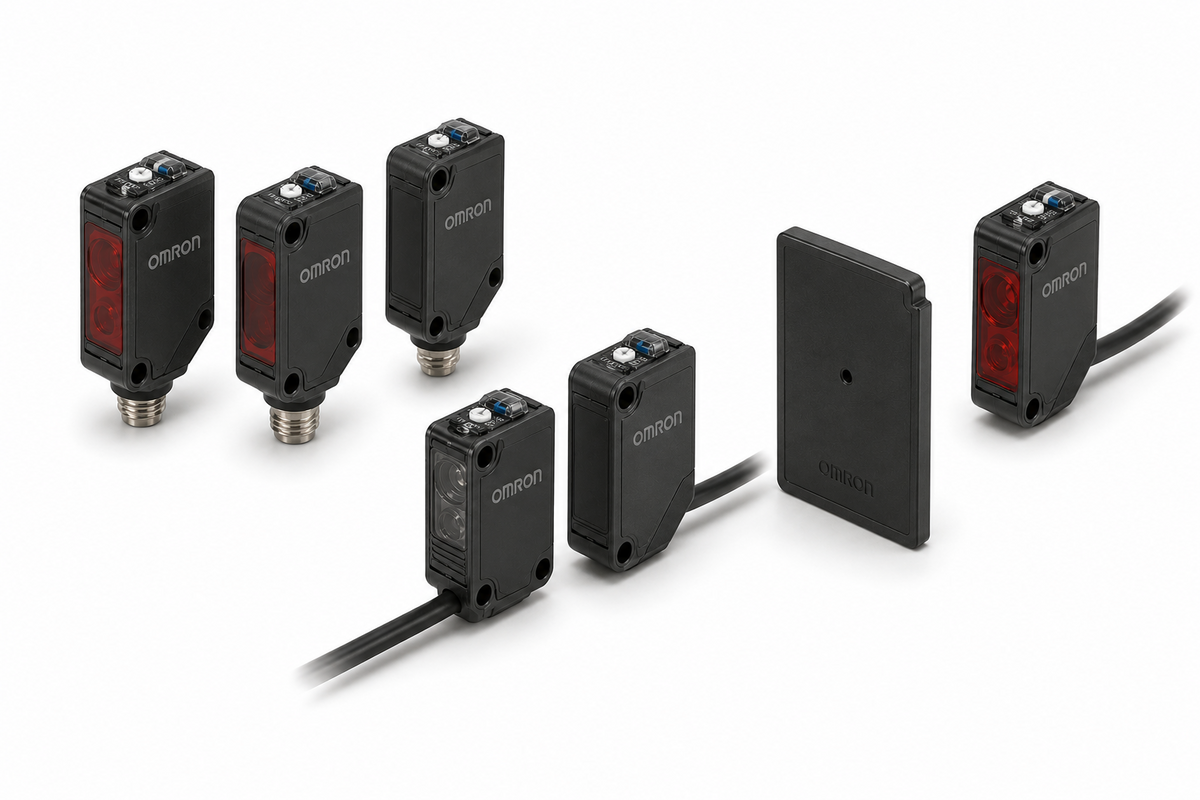

OMRON E3Z Series UL certified laser photoelectric sensors.

Key features

  • Laser through-beam 60 m (E3Z-LT61/81-UL): set, emitter, receiver
  • Laser retro-reflective MSR (E3Z-LR61/81-UL): 15 m / 7 m, red light
  • Laser distance-settable BGS (E3Z-LL61/81-UL): 20~300 mm, 1 ms
  • High-speed BGS (E3Z-LL63/83-UL): 25~300 mm, 0.5 ms
  • NPN and PNP
  • Pre-wired 2 m and M8 connector

Specifications

Certification UL
E3Z-LT61-UL 2M UL through-beam 60 m NPN set 2m | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: NPN | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Set (Emitter+Receiver) | Connection: Pre-wired 2 m
E3Z-LT61-L-UL 2M UL through-beam 60 m NPN emitter 2m | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: NPN | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3Z-LT61-D-UL 2M (Receiver)
E3Z-LT61-D-UL 2M UL through-beam 60 m NPN receiver 2m | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: NPN | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3Z-LT61-L-UL 2M (Emitter)
E3Z-LT66-UL UL through-beam 60 m NPN set M8 | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: NPN | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Set (Emitter+Receiver) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-LT66-L-UL UL through-beam 60 m NPN emitter M8 | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: NPN | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Emitter | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | Pair With: E3Z-LT66-D-UL (Receiver)
E3Z-LT66-D-UL UL through-beam 60 m NPN receiver M8 | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: NPN | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Receiver | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | Pair With: E3Z-LT66-L-UL (Emitter)
E3Z-LT81-UL 2M UL through-beam 60 m PNP set 2m | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: PNP | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Set (Emitter+Receiver) | Connection: Pre-wired 2 m
E3Z-LT81-L-UL 2M UL through-beam 60 m PNP emitter 2m | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: PNP | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3Z-LT81-D-UL 2M (Receiver)
E3Z-LT81-D-UL 2M UL through-beam 60 m PNP receiver 2m | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: PNP | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3Z-LT81-L-UL 2M (Emitter)
E3Z-LT86-UL UL through-beam 60 m PNP set M8 | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: PNP | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Set (Emitter+Receiver) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-LT86-L-UL UL through-beam 60 m PNP emitter M8 | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: PNP | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Emitter | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | Pair With: E3Z-LT86-D-UL (Receiver)
E3Z-LT86-D-UL UL through-beam 60 m PNP receiver M8 | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: PNP | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Receiver | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | Pair With: E3Z-LT86-L-UL (Emitter)
E3Z-LR61-UL 2M UL laser retro MSR NPN 2m | Sensing Distance: 15 m (min 300mm) with E39-R1 / 7 m (min 200mm) with E39-R12 or E39-R6 | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser retro-reflective with MSR (UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1 (15m) / E39-R12 (7m) / E39-R6 (7m) — sold separately | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-LR66-UL UL laser retro MSR NPN M8 | Sensing Distance: 15 m (min 300mm) with E39-R1 / 7 m (min 200mm) with E39-R12 or E39-R6 | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser retro-reflective with MSR (UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1 (15m) / E39-R12 (7m) / E39-R6 (7m) — sold separately | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-LR81-UL 2M UL laser retro MSR PNP 2m | Sensing Distance: 15 m (min 300mm) with E39-R1 / 7 m (min 200mm) with E39-R12 or E39-R6 | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser retro-reflective with MSR (UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1 (15m) / E39-R12 (7m) / E39-R6 (7m) — sold separately | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-LR86-UL UL laser retro MSR PNP M8 | Sensing Distance: 15 m (min 300mm) with E39-R1 / 7 m (min 200mm) with E39-R12 or E39-R6 | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser retro-reflective with MSR (UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1 (15m) / E39-R12 (7m) / E39-R6 (7m) — sold separately | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-LL61-UL 2M UL laser BGS BGS: 20~300 mm 1 ms NPN 2m | Sensing Distance: BGS: 20~300 mm | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: NPN | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-LL66-UL UL laser BGS BGS: 20~300 mm 1 ms NPN M8 | Sensing Distance: BGS: 20~300 mm | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: NPN | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-LL81-UL 2M UL laser BGS BGS: 20~300 mm 1 ms PNP 2m | Sensing Distance: BGS: 20~300 mm | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: PNP | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-LL86-UL UL laser BGS BGS: 20~300 mm 1 ms PNP M8 | Sensing Distance: BGS: 20~300 mm | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: PNP | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-LL63-UL 2M UL laser BGS BGS: 25~300 mm 0.5 ms NPN 2m | Sensing Distance: BGS: 25~300 mm | Light Source: Red light (Laser) | Response Time: 0.5 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: NPN | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-LL68-UL UL laser BGS BGS: 25~300 mm 0.5 ms NPN M8 | Sensing Distance: BGS: 25~300 mm | Light Source: Red light (Laser) | Response Time: 0.5 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: NPN | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-LL83-UL 2M UL laser BGS BGS: 25~300 mm 0.5 ms PNP 2m | Sensing Distance: BGS: 25~300 mm | Light Source: Red light (Laser) | Response Time: 0.5 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: PNP | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-LL88-UL UL laser BGS BGS: 25~300 mm 0.5 ms PNP M8 | Sensing Distance: BGS: 25~300 mm | Light Source: Red light (Laser) | Response Time: 0.5 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: PNP | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
PhotoelectricOmron
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E3Z-UL Laser Photoelectric Sensor (Through-beam 60m / Retro / Distance-settable, NPN/PNP, UL Certified)

Brand Omron·Photoelectric

Available part numbers (24)

E3Z-LT61-UL 2M, E3Z-LT61-L-UL 2M, E3Z-LT61-D-UL 2M, E3Z-LT66-UL, E3Z-LT66-L-UL, E3Z-LT66-D-UL, E3Z-LT81-UL 2M, E3Z-LT81-L-UL 2M, E3Z-LT81-D-UL 2M, E3Z-LT86-UL + 14 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E3Z-LT61-UL 2MUL through-beam 60 m NPN set 2m | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: NPN | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Set (Emitter+Receiver) | Connection: Pre-wired 2 m
E3Z-LT61-L-UL 2MUL through-beam 60 m NPN emitter 2m | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: NPN | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3Z-LT61-D-UL 2M (Receiver)
E3Z-LT61-D-UL 2MUL through-beam 60 m NPN receiver 2m | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: NPN | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3Z-LT61-L-UL 2M (Emitter)
E3Z-LT66-ULUL through-beam 60 m NPN set M8 | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: NPN | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Set (Emitter+Receiver) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-LT66-L-ULUL through-beam 60 m NPN emitter M8 | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: NPN | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Emitter | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | Pair With: E3Z-LT66-D-UL (Receiver)
E3Z-LT66-D-ULUL through-beam 60 m NPN receiver M8 | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: NPN | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Receiver | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | Pair With: E3Z-LT66-L-UL (Emitter)
E3Z-LT81-UL 2MUL through-beam 60 m PNP set 2m | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: PNP | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Set (Emitter+Receiver) | Connection: Pre-wired 2 m
E3Z-LT81-L-UL 2MUL through-beam 60 m PNP emitter 2m | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: PNP | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3Z-LT81-D-UL 2M (Receiver)
E3Z-LT81-D-UL 2MUL through-beam 60 m PNP receiver 2m | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: PNP | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3Z-LT81-L-UL 2M (Emitter)
E3Z-LT86-ULUL through-beam 60 m PNP set M8 | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: PNP | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Set (Emitter+Receiver) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-LT86-L-ULUL through-beam 60 m PNP emitter M8 | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: PNP | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Emitter | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | Pair With: E3Z-LT86-D-UL (Receiver)
E3Z-LT86-D-ULUL through-beam 60 m PNP receiver M8 | Sensing Distance: 60 m | Light Source: Red light (Laser 1ms) | Sensing Method: Through-beam (UL certified) | Output: PNP | Certification: UL | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Type: Through-beam Receiver | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately) | Pair With: E3Z-LT86-L-UL (Emitter)
E3Z-LR61-UL 2MUL laser retro MSR NPN 2m | Sensing Distance: 15 m (min 300mm) with E39-R1 / 7 m (min 200mm) with E39-R12 or E39-R6 | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser retro-reflective with MSR (UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1 (15m) / E39-R12 (7m) / E39-R6 (7m) — sold separately | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-LR66-ULUL laser retro MSR NPN M8 | Sensing Distance: 15 m (min 300mm) with E39-R1 / 7 m (min 200mm) with E39-R12 or E39-R6 | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser retro-reflective with MSR (UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1 (15m) / E39-R12 (7m) / E39-R6 (7m) — sold separately | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-LR81-UL 2MUL laser retro MSR PNP 2m | Sensing Distance: 15 m (min 300mm) with E39-R1 / 7 m (min 200mm) with E39-R12 or E39-R6 | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser retro-reflective with MSR (UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1 (15m) / E39-R12 (7m) / E39-R6 (7m) — sold separately | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-LR86-ULUL laser retro MSR PNP M8 | Sensing Distance: 15 m (min 300mm) with E39-R1 / 7 m (min 200mm) with E39-R12 or E39-R6 | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser retro-reflective with MSR (UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1 (15m) / E39-R12 (7m) / E39-R6 (7m) — sold separately | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-LL61-UL 2MUL laser BGS BGS: 20~300 mm 1 ms NPN 2m | Sensing Distance: BGS: 20~300 mm | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: NPN | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-LL66-ULUL laser BGS BGS: 20~300 mm 1 ms NPN M8 | Sensing Distance: BGS: 20~300 mm | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: NPN | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-LL81-UL 2MUL laser BGS BGS: 20~300 mm 1 ms PNP 2m | Sensing Distance: BGS: 20~300 mm | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: PNP | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-LL86-ULUL laser BGS BGS: 20~300 mm 1 ms PNP M8 | Sensing Distance: BGS: 20~300 mm | Light Source: Red light (Laser) | Response Time: 1 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: PNP | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-LL63-UL 2MUL laser BGS BGS: 25~300 mm 0.5 ms NPN 2m | Sensing Distance: BGS: 25~300 mm | Light Source: Red light (Laser) | Response Time: 0.5 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: NPN | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-LL68-ULUL laser BGS BGS: 25~300 mm 0.5 ms NPN M8 | Sensing Distance: BGS: 25~300 mm | Light Source: Red light (Laser) | Response Time: 0.5 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: NPN | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-LL83-UL 2MUL laser BGS BGS: 25~300 mm 0.5 ms PNP 2m | Sensing Distance: BGS: 25~300 mm | Light Source: Red light (Laser) | Response Time: 0.5 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: PNP | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-LL88-ULUL laser BGS BGS: 25~300 mm 0.5 ms PNP M8 | Sensing Distance: BGS: 25~300 mm | Light Source: Red light (Laser) | Response Time: 0.5 ms | Sensing Method: Laser distance-settable BGS (UL certified) | Output: PNP | Certification: UL | Also Available: M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)

Need a different model, or a part not listed here? Send us your parts list →
