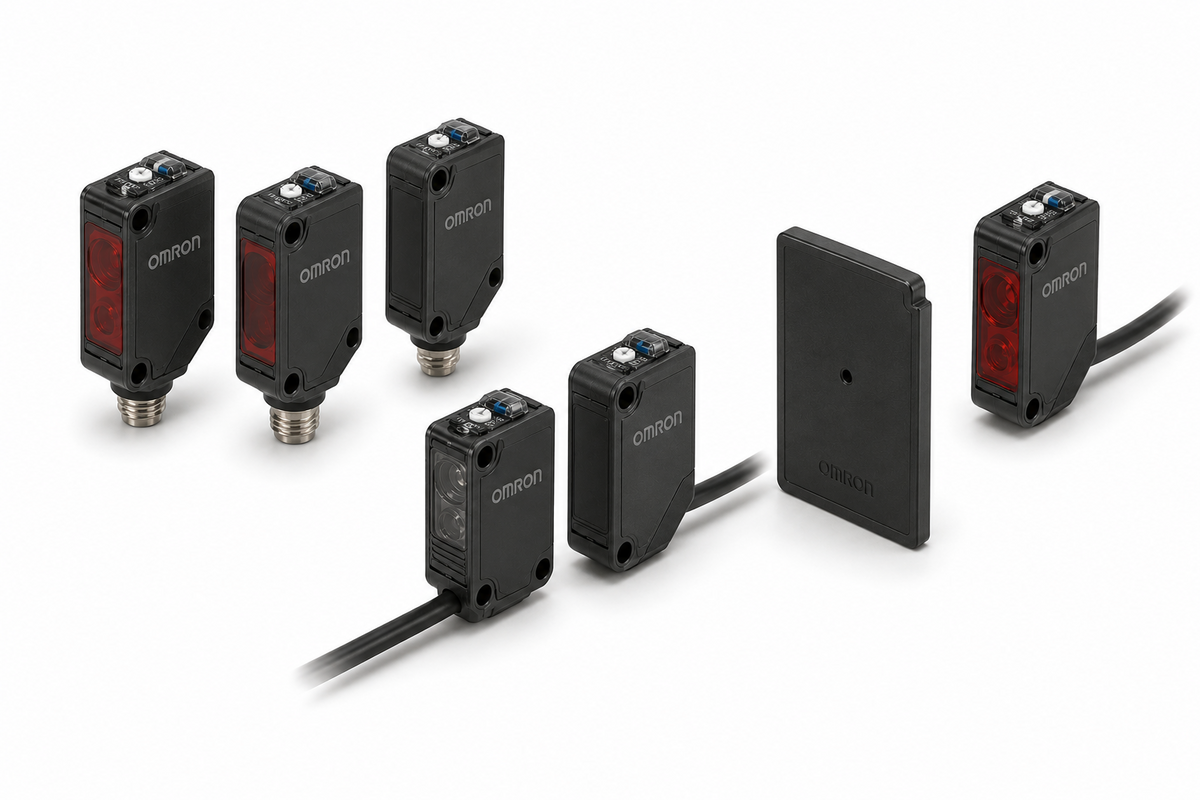

• Omron E3Z-UL Retro-reflective Photoelectric Sensor (MSR 4m + Clear Bottle 500mm/2m, NPN/PNP, UL Certified)
1 1

Omron E3Z-UL Retro-reflective Photoelectric Sensor (MSR 4m + Clear Bottle 500mm/2m, NPN/PNP, UL Certified)

Omron E3Z-UL Retro-reflective Photoelectric Sensor (MSR 4m + Clear Bottle 500mm/2m, NPN/PNP, UL Certified)

OMRON E3Z Series UL certified retro-reflective photoelectric sensors.

Key features

  • MSR models (E3Z-R61/81-UL): 4 m, red light
  • Clear plastic bottle models (E3Z-B61/62/81/82-UL): 500 mm and 2 m
  • Reflectors sold separately
  • NPN and PNP
  • Pre-wired 2 m and M8 connector

Specifications

Light Source Red light
Certification UL
E3Z-R61-UL 2M UL retro MSR NPN 2m | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1S (sold separately) | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-R66-UL UL retro MSR NPN M8 | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1S (sold separately) | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-R81-UL 2M UL retro MSR PNP 2m | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1S (sold separately) | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-R86-UL UL retro MSR PNP M8 | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1S (sold separately) | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-B61-UL 2M UL clear bottle retro 500 mm NPN 2m | Sensing Distance: 500 mm (min 80 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-B66-UL UL clear bottle retro 500 mm NPN M8 | Sensing Distance: 500 mm (min 80 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-B81-UL 2M UL clear bottle retro 500 mm PNP 2m | Sensing Distance: 500 mm (min 80 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-B86-UL UL clear bottle retro 500 mm PNP M8 | Sensing Distance: 500 mm (min 80 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-B62-UL 2M UL clear bottle retro 2 m NPN 2m | Sensing Distance: 2 m (min 500 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-B67-UL UL clear bottle retro 2 m NPN M8 | Sensing Distance: 2 m (min 500 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-B82-UL 2M UL clear bottle retro 2 m PNP 2m | Sensing Distance: 2 m (min 500 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-B87-UL UL clear bottle retro 2 m PNP M8 | Sensing Distance: 2 m (min 500 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
PhotoelectricOmron
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E3Z-UL Retro-reflective Photoelectric Sensor (MSR 4m + Clear Bottle 500mm/2m, NPN/PNP, UL Certified)

Brand Omron·Photoelectric

Available part numbers (12)

E3Z-R61-UL 2M, E3Z-R66-UL, E3Z-R81-UL 2M, E3Z-R86-UL, E3Z-B61-UL 2M, E3Z-B66-UL, E3Z-B81-UL 2M, E3Z-B86-UL, E3Z-B62-UL 2M, E3Z-B67-UL + 2 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E3Z-R61-UL 2MUL retro MSR NPN 2m | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1S (sold separately) | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-R66-ULUL retro MSR NPN M8 | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1S (sold separately) | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-R81-UL 2MUL retro MSR PNP 2m | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1S (sold separately) | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-R86-ULUL retro MSR PNP M8 | Sensing Distance: 4 m (min 100 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective with MSR function (UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1S (sold separately) | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) / M12 standard pre-wired also available: add '-M1J' suffix (e.g. E3Z-T61-M1J-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-B61-UL 2MUL clear bottle retro 500 mm NPN 2m | Sensing Distance: 500 mm (min 80 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-B66-ULUL clear bottle retro 500 mm NPN M8 | Sensing Distance: 500 mm (min 80 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-B81-UL 2MUL clear bottle retro 500 mm PNP 2m | Sensing Distance: 500 mm (min 80 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-B86-ULUL clear bottle retro 500 mm PNP M8 | Sensing Distance: 500 mm (min 80 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-B62-UL 2MUL clear bottle retro 2 m NPN 2m | Sensing Distance: 2 m (min 500 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-B67-ULUL clear bottle retro 2 m NPN M8 | Sensing Distance: 2 m (min 500 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: NPN | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
E3Z-B82-UL 2MUL clear bottle retro 2 m PNP 2m | Sensing Distance: 2 m (min 500 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: Pre-wired 2 m
E3Z-B87-ULUL clear bottle retro 2 m PNP M8 | Sensing Distance: 2 m (min 500 mm with E39-R1S) | Light Source: Red light | Sensing Method: Retro-reflective without MSR (clear bottle, UL certified) | Output: PNP | Certification: UL | Required Reflector: E39-R1S or E39-R1K sold separately | Also Available: M12 Smartclick pre-wired also available: add '-M1TJ' suffix (e.g. E3Z-T61-M1TJ-UL 0.3M) | Connection: M8 Connector | Required Cable: Requires XS3F-M421-402-R (2m) / XS3F-M421-405-R (5m) straight or XS3F-M422 right-angle (sold separately)
