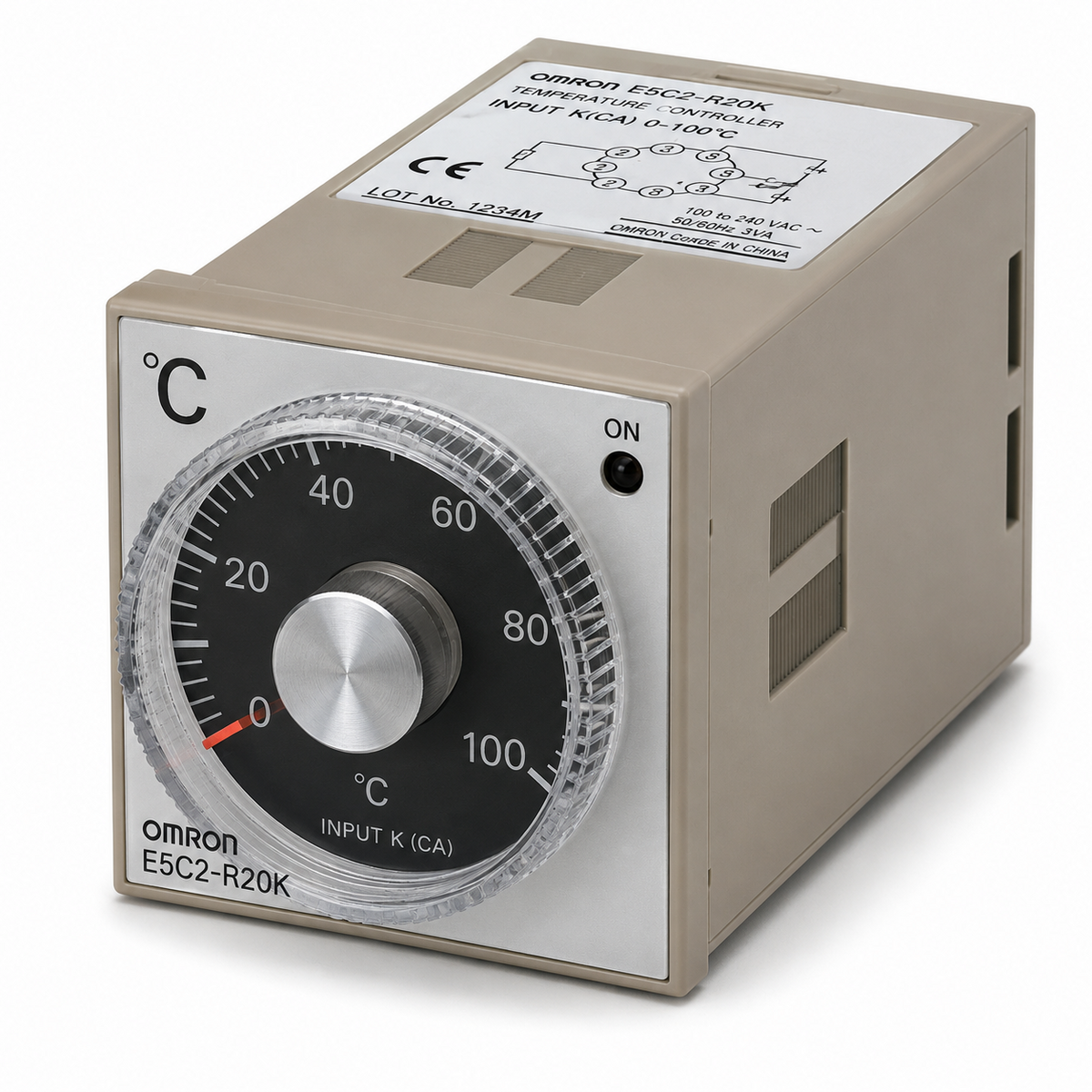

Omron E5C2 Temperature Controller (48x48mm, Analog Setting, ON/OFF or Proportional, Relay Output)

Omron E5C2 Temperature Controller (48x48mm, Analog Setting, ON/OFF or Proportional, Relay Output)

DIN-sized (48x48mm) Temperature Controller with Analog Setting.

Key features

  • No indication type
  • ON/OFF or Proportional (P) control modes
  • Thermocouple (K/J), Platinum resistance thermometer (Pt100), and Thermistor input types
  • Specify temperature range when ordering

Specifications

Output Relay
Setting Analog
Indication None
Note Specify temperature range when ordering
E5C2-R20K ON/OFF, Relay, Thermocouple K (CA), 0~200 to 0~1200°C range (specify at order) | Input: Thermocouple K (CA) Chromel vs. Alumel | Control Mode: ON/OFF | Output: Relay | Available Ranges: 0~200 / 0~300 / 0~400 / 0~600 / 0~800 / 0~1000 / 0~1200 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering
E5C2-R40K Proportional (P), Relay, Thermocouple K (CA), 0~200 to 0~800°C range (specify at order) | Input: Thermocouple K (CA) Chromel vs. Alumel | Control Mode: Proportional (P) | Output: Relay | Available Ranges: 0~200 / 0~300 / 0~400 / 0~600 / 0~800 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering
E5C2-R20J ON/OFF, Relay, Thermocouple J (IC), 0~200 to 0~400°C range (specify at order) | Input: Thermocouple J (IC) Iron vs. Constantan | Control Mode: ON/OFF | Output: Relay | Available Ranges: 0~200 / 0~300 / 0~400 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering
E5C2-R20P-D ON/OFF, Relay, Platinum RTD Pt100, -50~50 to 0~400°C range (specify at order) | Input: Platinum Resistance Thermometer Pt100 | Control Mode: ON/OFF | Output: Relay | Available Ranges: -50~50 / -20~80 / 0~50 / 0~100 / 0~200 / 0~300 / 0~400 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering
E5C2-R20G ON/OFF, Relay, Thermistor (replaceable element), -50~50 to 150~300°C range (specify at order) | Input: Thermistor (replaceable element) | Control Mode: ON/OFF | Output: Relay | Available Ranges: -50~50 / 0~100 / 50~150 / 100~200 / 150~300 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering
Temperature ControllerOmron
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E5C2 Temperature Controller (48x48mm, Analog Setting, ON/OFF or Proportional, Relay Output)

Brand Omron·Temperature Controller

Available part numbers (5)

E5C2-R20K, E5C2-R40K, E5C2-R20J, E5C2-R20P-D, E5C2-R20G

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E5C2-R20KON/OFF, Relay, Thermocouple K (CA), 0~200 to 0~1200°C range (specify at order) | Input: Thermocouple K (CA) Chromel vs. Alumel | Control Mode: ON/OFF | Output: Relay | Available Ranges: 0~200 / 0~300 / 0~400 / 0~600 / 0~800 / 0~1000 / 0~1200 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering
E5C2-R40KProportional (P), Relay, Thermocouple K (CA), 0~200 to 0~800°C range (specify at order) | Input: Thermocouple K (CA) Chromel vs. Alumel | Control Mode: Proportional (P) | Output: Relay | Available Ranges: 0~200 / 0~300 / 0~400 / 0~600 / 0~800 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering
E5C2-R20JON/OFF, Relay, Thermocouple J (IC), 0~200 to 0~400°C range (specify at order) | Input: Thermocouple J (IC) Iron vs. Constantan | Control Mode: ON/OFF | Output: Relay | Available Ranges: 0~200 / 0~300 / 0~400 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering
E5C2-R20P-DON/OFF, Relay, Platinum RTD Pt100, -50~50 to 0~400°C range (specify at order) | Input: Platinum Resistance Thermometer Pt100 | Control Mode: ON/OFF | Output: Relay | Available Ranges: -50~50 / -20~80 / 0~50 / 0~100 / 0~200 / 0~300 / 0~400 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering
E5C2-R20GON/OFF, Relay, Thermistor (replaceable element), -50~50 to 150~300°C range (specify at order) | Input: Thermistor (replaceable element) | Control Mode: ON/OFF | Output: Relay | Available Ranges: -50~50 / 0~100 / 50~150 / 100~200 / 150~300 degC | Setting: Analog | Indication: None | Note: Specify temperature range when ordering
