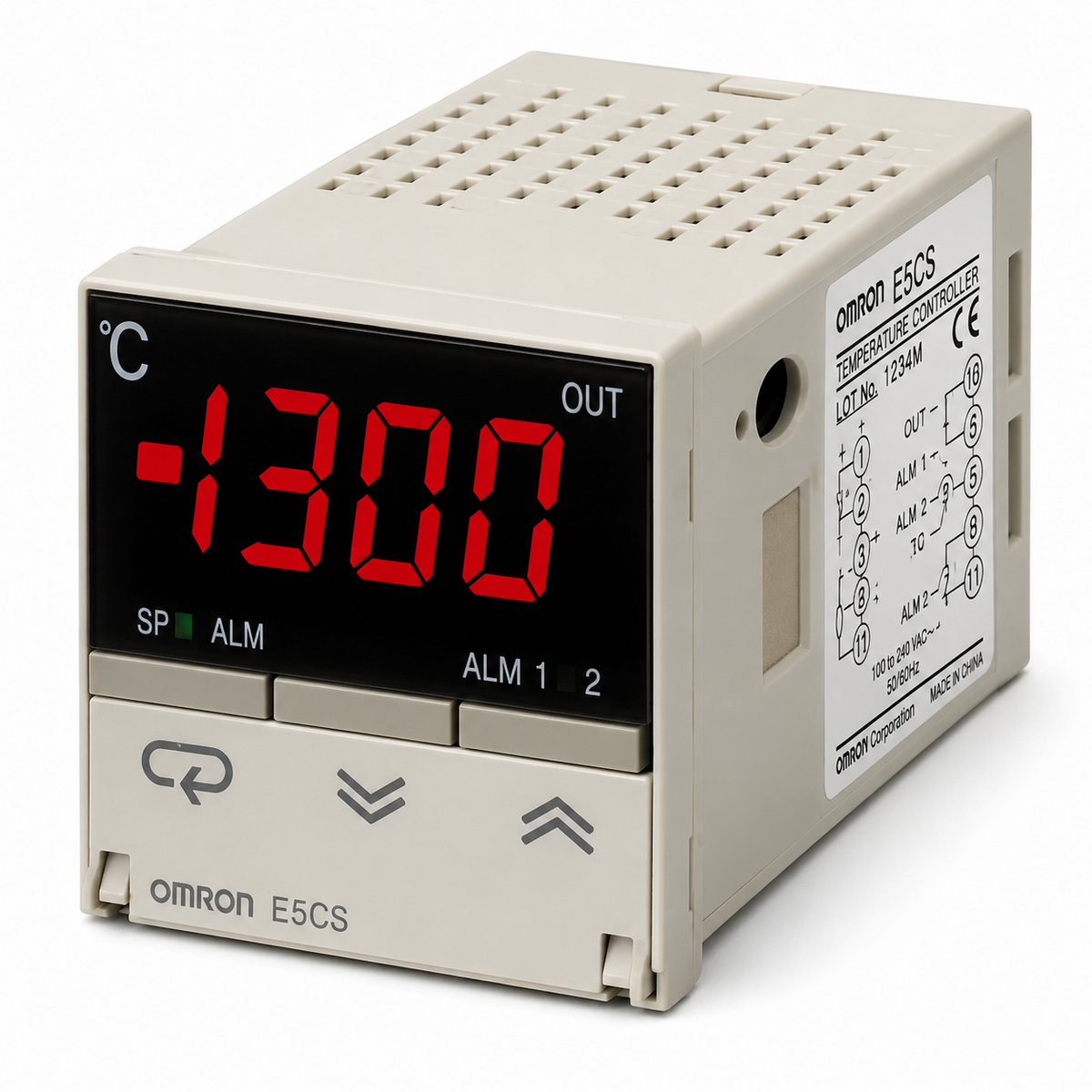

Omron E5CS Temperature Controller (48x48mm Plug-in, ON/OFF or PID, TC/RTD/Thermistor/Universal Input)

Omron E5CS Temperature Controller (48x48mm Plug-in, ON/OFF or PID, TC/RTD/Thermistor/Universal Input)

Simple Functions in DIN 48x48mm-size Plug-in Temperature Controllers.

Key features

  • ON/OFF or PID control modes
  • Thermocouple, Platinum resistance thermometer, Thermistor, and Universal input types
  • Relay and Voltage output (for driving SSR) variants
  • Light Gray case color

Specifications

Type Plug-in
Case Light Gray
E5CS-RKJU-W Relay, Thermocouple, 0 alarms, 100~240VAC | Input: Thermocouple | Output: Relay | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-RPU-W Relay, Platinum RTD, 0 alarms, 100~240VAC | Input: Platinum Resistance Thermometer | Output: Relay | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-QKJU-W Voltage (SSR), Thermocouple, 0 alarms, 100~240VAC | Input: Thermocouple | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-QPU-W Voltage (SSR), Platinum RTD, 0 alarms, 100~240VAC | Input: Platinum Resistance Thermometer | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-R1KJU-W Relay, Thermocouple, 1 alarm, 100~240VAC | Input: Thermocouple | Output: Relay | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-R1PU-W Relay, Platinum RTD, 1 alarm, 100~240VAC | Input: Platinum Resistance Thermometer | Output: Relay | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-Q1KJU-W Voltage (SSR), Thermocouple, 1 alarm, 100~240VAC | Input: Thermocouple | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-Q1PU-W Voltage (SSR), Platinum RTD, 1 alarm, 100~240VAC | Input: Platinum Resistance Thermometer | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-RKJDU-W Relay, Thermocouple, 0 alarms, 24VAC/VDC | Input: Thermocouple | Output: Relay | Alarms: 0 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
E5CS-RPDU-W Relay, Platinum RTD, 0 alarms, 24VAC/VDC | Input: Platinum Resistance Thermometer | Output: Relay | Alarms: 0 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
E5CS-QKJDU-W Voltage (SSR), Thermocouple, 0 alarms, 24VAC/VDC | Input: Thermocouple | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
E5CS-R1KJDU-W Relay, Thermocouple, 1 alarm, 24VAC/VDC | Input: Thermocouple | Output: Relay | Alarms: 1 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
E5CS-R1PDU-W Relay, Platinum RTD, 1 alarm, 24VAC/VDC | Input: Platinum Resistance Thermometer | Output: Relay | Alarms: 1 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
E5CS-Q1KJDU-W Voltage (SSR), Thermocouple, 1 alarm, 24VAC/VDC | Input: Thermocouple | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
E5CS-RGU-W Relay, Thermistor, 0 alarms, 100~240VAC | Input: Thermistor | Output: Relay | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-RTU-W Relay, Universal input, 0 alarms, 100~240VAC | Input: Universal (TC and RTD) | Output: Relay | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-QGU-W Voltage (SSR), Thermistor, 0 alarms, 100~240VAC | Input: Thermistor | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-QTU-W Voltage (SSR), Universal input, 0 alarms, 100~240VAC | Input: Universal (TC and RTD) | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-R1GU-W Relay, Thermistor, 1 alarm, 100~240VAC | Input: Thermistor | Output: Relay | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-R1TU-W Relay, Universal input, 1 alarm, 100~240VAC | Input: Universal (TC and RTD) | Output: Relay | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-Q1GU-W Voltage (SSR), Thermistor, 1 alarm, 100~240VAC | Input: Thermistor | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-Q1TU-W Voltage (SSR), Universal input, 1 alarm, 100~240VAC | Input: Universal (TC and RTD) | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-R2TU-W Relay, Universal input, 2 alarms, 100~240VAC | Input: Universal (TC and RTD) | Output: Relay | Alarms: 2 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | Note: Alarm 2 default = upper limit; changeable via initial setting level 5
E5CS-Q2TU-W Voltage (SSR), Universal input, 2 alarms, 100~240VAC | Input: Universal (TC and RTD) | Output: Voltage (for driving SSR) | Alarms: 2 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | Note: Alarm 2 default = upper limit; changeable via initial setting level 5
E5CS-RGDU-W Relay, Thermistor, 0 alarms, 24VAC/VDC | Input: Thermistor | Output: Relay | Alarms: 0 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
E5CS-R1GDU-W Relay, Thermistor, 1 alarm, 24VAC/VDC | Input: Thermistor | Output: Relay | Alarms: 1 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
Temperature ControllerOmron
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E5CS Temperature Controller (48x48mm Plug-in, ON/OFF or PID, TC/RTD/Thermistor/Universal Input)

Brand Omron·Temperature Controller

Available part numbers (26)

E5CS-RKJU-W, E5CS-RPU-W, E5CS-QKJU-W, E5CS-QPU-W, E5CS-R1KJU-W, E5CS-R1PU-W, E5CS-Q1KJU-W, E5CS-Q1PU-W, E5CS-RKJDU-W, E5CS-RPDU-W + 16 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E5CS-RKJU-WRelay, Thermocouple, 0 alarms, 100~240VAC | Input: Thermocouple | Output: Relay | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-RPU-WRelay, Platinum RTD, 0 alarms, 100~240VAC | Input: Platinum Resistance Thermometer | Output: Relay | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-QKJU-WVoltage (SSR), Thermocouple, 0 alarms, 100~240VAC | Input: Thermocouple | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-QPU-WVoltage (SSR), Platinum RTD, 0 alarms, 100~240VAC | Input: Platinum Resistance Thermometer | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-R1KJU-WRelay, Thermocouple, 1 alarm, 100~240VAC | Input: Thermocouple | Output: Relay | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-R1PU-WRelay, Platinum RTD, 1 alarm, 100~240VAC | Input: Platinum Resistance Thermometer | Output: Relay | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-Q1KJU-WVoltage (SSR), Thermocouple, 1 alarm, 100~240VAC | Input: Thermocouple | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-Q1PU-WVoltage (SSR), Platinum RTD, 1 alarm, 100~240VAC | Input: Platinum Resistance Thermometer | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-RKJDU-WRelay, Thermocouple, 0 alarms, 24VAC/VDC | Input: Thermocouple | Output: Relay | Alarms: 0 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
E5CS-RPDU-WRelay, Platinum RTD, 0 alarms, 24VAC/VDC | Input: Platinum Resistance Thermometer | Output: Relay | Alarms: 0 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
E5CS-QKJDU-WVoltage (SSR), Thermocouple, 0 alarms, 24VAC/VDC | Input: Thermocouple | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
E5CS-R1KJDU-WRelay, Thermocouple, 1 alarm, 24VAC/VDC | Input: Thermocouple | Output: Relay | Alarms: 1 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
E5CS-R1PDU-WRelay, Platinum RTD, 1 alarm, 24VAC/VDC | Input: Platinum Resistance Thermometer | Output: Relay | Alarms: 1 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
E5CS-Q1KJDU-WVoltage (SSR), Thermocouple, 1 alarm, 24VAC/VDC | Input: Thermocouple | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
E5CS-RGU-WRelay, Thermistor, 0 alarms, 100~240VAC | Input: Thermistor | Output: Relay | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-RTU-WRelay, Universal input, 0 alarms, 100~240VAC | Input: Universal (TC and RTD) | Output: Relay | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-QGU-WVoltage (SSR), Thermistor, 0 alarms, 100~240VAC | Input: Thermistor | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-QTU-WVoltage (SSR), Universal input, 0 alarms, 100~240VAC | Input: Universal (TC and RTD) | Output: Voltage (for driving SSR) | Alarms: 0 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-R1GU-WRelay, Thermistor, 1 alarm, 100~240VAC | Input: Thermistor | Output: Relay | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-R1TU-WRelay, Universal input, 1 alarm, 100~240VAC | Input: Universal (TC and RTD) | Output: Relay | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-Q1GU-WVoltage (SSR), Thermistor, 1 alarm, 100~240VAC | Input: Thermistor | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-Q1TU-WVoltage (SSR), Universal input, 1 alarm, 100~240VAC | Input: Universal (TC and RTD) | Output: Voltage (for driving SSR) | Alarms: 1 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray
E5CS-R2TU-WRelay, Universal input, 2 alarms, 100~240VAC | Input: Universal (TC and RTD) | Output: Relay | Alarms: 2 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | Note: Alarm 2 default = upper limit; changeable via initial setting level 5
E5CS-Q2TU-WVoltage (SSR), Universal input, 2 alarms, 100~240VAC | Input: Universal (TC and RTD) | Output: Voltage (for driving SSR) | Alarms: 2 | Power Supply: 100~240VAC | Type: Plug-in | Case: Light Gray | Note: Alarm 2 default = upper limit; changeable via initial setting level 5
E5CS-RGDU-WRelay, Thermistor, 0 alarms, 24VAC/VDC | Input: Thermistor | Output: Relay | Alarms: 0 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray
E5CS-R1GDU-WRelay, Thermistor, 1 alarm, 24VAC/VDC | Input: Thermistor | Output: Relay | Alarms: 1 | Power Supply: 24VAC/VDC | Type: Plug-in | Case: Light Gray

Need a different model, or a part not listed here? Send us your parts list →
