Omron E8PC IoT Pressure Sensor (Pressure + Temperature, IO-Link, -0.1~+40MPa)

Omron E8PC IoT Pressure Sensor (Pressure + Temperature, IO-Link, -0.1~+40MPa)

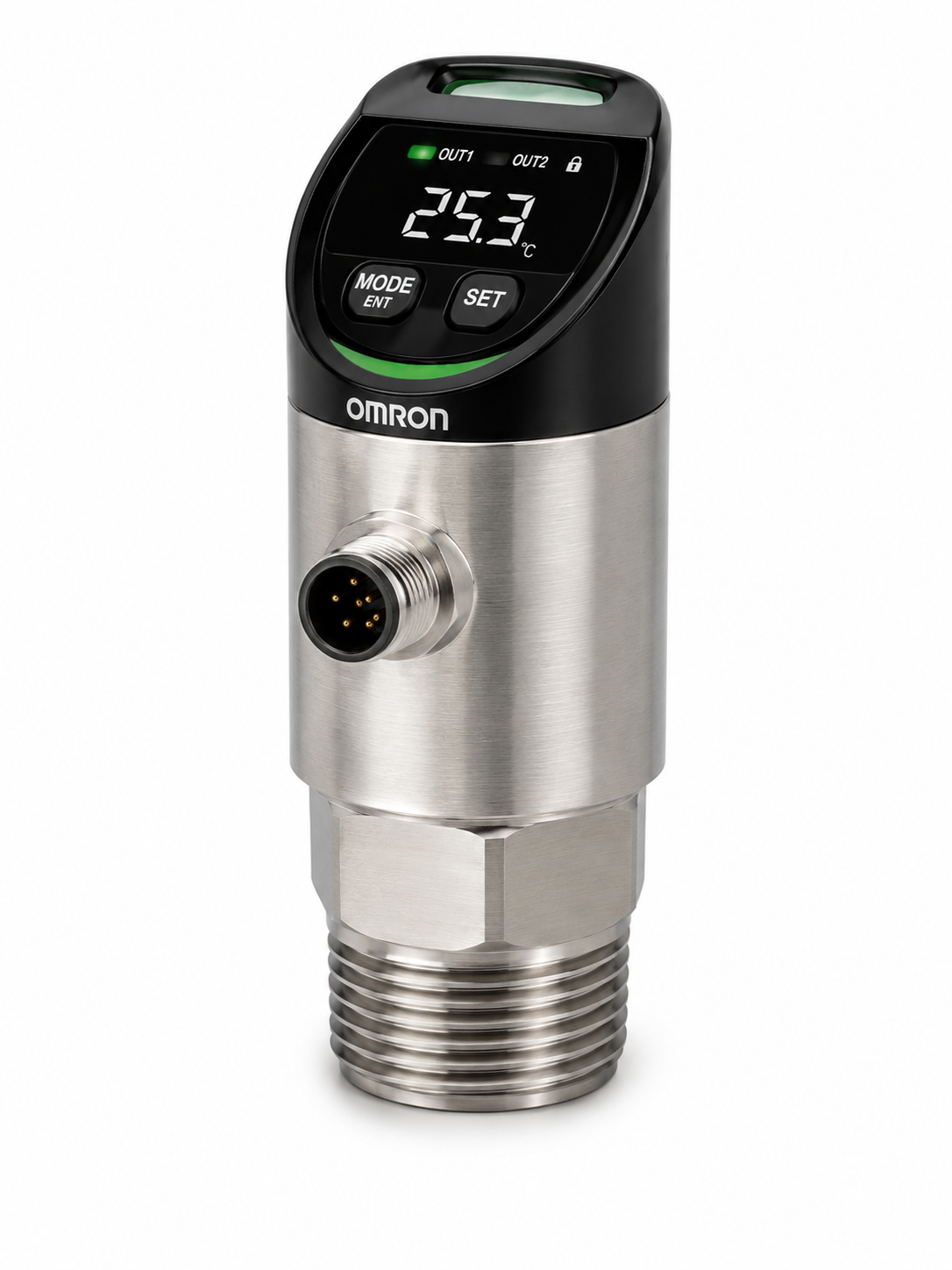

OMRON E8PC Series IoT pressure sensor for simultaneous measurement of pressure and temperature.

Key features

  • Detects abnormalities in hydraulic oil and sealant
  • IO-Link Analog
  • PNP/NPN selectable. -0.1~+1 MPa (liquid/gas): E8PC-010SD/ST. 0~+10 MPa (liquid): E8PC-100SD/ST. 0~+40 MPa (liquid): E8PC-400SD/ST
  • SD=COM2, ST=COM3
  • Requires adapter (E8PC-YA series, sold separately)
E8PC-010SD-E E8PC Pressure+Temp -0.1~+1 MPa Liquid and gas IO-Link COM2 (38.4 kbps) | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: -0.1~+1 MPa | Applicable Medium: Liquid and gas | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM2 (38.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative
E8PC-010ST-E E8PC Pressure+Temp -0.1~+1 MPa Liquid and gas IO-Link COM3 (230.4 kbps) | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: -0.1~+1 MPa | Applicable Medium: Liquid and gas | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM3 (230.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative
E8PC-100SD-E E8PC Pressure+Temp 0~+10 MPa Liquid IO-Link COM2 (38.4 kbps) | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: 0~+10 MPa | Applicable Medium: Liquid | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM2 (38.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative
E8PC-100ST-E E8PC Pressure+Temp 0~+10 MPa Liquid IO-Link COM3 (230.4 kbps) | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: 0~+10 MPa | Applicable Medium: Liquid | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM3 (230.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative
E8PC-400SD-E E8PC Pressure+Temp 0~+40 MPa Liquid IO-Link COM2 (38.4 kbps) | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: 0~+40 MPa | Applicable Medium: Liquid | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM2 (38.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative
E8PC-400ST-E E8PC Pressure+Temp 0~+40 MPa Liquid IO-Link COM3 (230.4 kbps) | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: 0~+40 MPa | Applicable Medium: Liquid | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM3 (230.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative
E8PC-YA-A18 E8PC Adapter R1/8 male 1/8" R (taper thread) | Type: Adapter for E8PC — R1/8 male | Nominal Diameter A: 6 A | Nominal Diameter B: 1/8" | Thread Type: R (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection
E8PC-YA-A14 E8PC Adapter R1/4 male 1/4" R (taper thread) | Type: Adapter for E8PC — R1/4 male | Nominal Diameter A: 8 A | Nominal Diameter B: 1/4" | Thread Type: R (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection
E8PC-YA-A38 E8PC Adapter R3/8 male 3/8" R (taper thread) | Type: Adapter for E8PC — R3/8 male | Nominal Diameter A: 10 A | Nominal Diameter B: 3/8" | Thread Type: R (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection
E8PC-YA-B14N E8PC Adapter G1/4 female 1/4" G (parallel thread) | Type: Adapter for E8PC — G1/4 female | Nominal Diameter A: 8 A | Nominal Diameter B: 1/4" | Thread Type: G (parallel thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection
E8PC-YA-C18 E8PC Adapter NPT1/8 male 1/8" NPT (taper thread) | Type: Adapter for E8PC — NPT1/8 male | Nominal Diameter A: 6 A | Nominal Diameter B: 1/8" | Thread Type: NPT (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection
E8PC-YA-C14 E8PC Adapter NPT1/4 male 1/4" NPT (taper thread) | Type: Adapter for E8PC — NPT1/4 male | Nominal Diameter A: 8 A | Nominal Diameter B: 1/4" | Thread Type: NPT (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection
Flow SensorsOmron
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron E8PC IoT Pressure Sensor (Pressure + Temperature, IO-Link, -0.1~+40MPa)

Brand Omron·Flow Sensors

Available part numbers (12)

E8PC-010SD-E, E8PC-010ST-E, E8PC-100SD-E, E8PC-100ST-E, E8PC-400SD-E, E8PC-400ST-E, E8PC-YA-A18, E8PC-YA-A14, E8PC-YA-A38, E8PC-YA-B14N + 2 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
E8PC-010SD-EE8PC Pressure+Temp -0.1~+1 MPa Liquid and gas IO-Link COM2 (38.4 kbps) | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: -0.1~+1 MPa | Applicable Medium: Liquid and gas | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM2 (38.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative
E8PC-010ST-EE8PC Pressure+Temp -0.1~+1 MPa Liquid and gas IO-Link COM3 (230.4 kbps) | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: -0.1~+1 MPa | Applicable Medium: Liquid and gas | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM3 (230.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative
E8PC-100SD-EE8PC Pressure+Temp 0~+10 MPa Liquid IO-Link COM2 (38.4 kbps) | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: 0~+10 MPa | Applicable Medium: Liquid | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM2 (38.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative
E8PC-100ST-EE8PC Pressure+Temp 0~+10 MPa Liquid IO-Link COM3 (230.4 kbps) | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: 0~+10 MPa | Applicable Medium: Liquid | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM3 (230.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative
E8PC-400SD-EE8PC Pressure+Temp 0~+40 MPa Liquid IO-Link COM2 (38.4 kbps) | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: 0~+40 MPa | Applicable Medium: Liquid | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM2 (38.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative
E8PC-400ST-EE8PC Pressure+Temp 0~+40 MPa Liquid IO-Link COM3 (230.4 kbps) | Type: IoT Pressure Sensor | Measurement: Pressure + Temperature simultaneous | Rated Pressure Range: 0~+40 MPa | Applicable Medium: Liquid | Output: PNP/NPN selectable | Communication: IO-Link Analog | IO-Link Baud Rate: COM3 (230.4 kbps) | Connection: M12 connector (cable sold separately) | Required Adapter: E8PC-YA series (sold separately) | Note: IO-Link IODD file required; contact OMRON representative
E8PC-YA-A18E8PC Adapter R1/8 male 1/8" R (taper thread) | Type: Adapter for E8PC — R1/8 male | Nominal Diameter A: 6 A | Nominal Diameter B: 1/8" | Thread Type: R (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection
E8PC-YA-A14E8PC Adapter R1/4 male 1/4" R (taper thread) | Type: Adapter for E8PC — R1/4 male | Nominal Diameter A: 8 A | Nominal Diameter B: 1/4" | Thread Type: R (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection
E8PC-YA-A38E8PC Adapter R3/8 male 3/8" R (taper thread) | Type: Adapter for E8PC — R3/8 male | Nominal Diameter A: 10 A | Nominal Diameter B: 3/8" | Thread Type: R (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection
E8PC-YA-B14NE8PC Adapter G1/4 female 1/4" G (parallel thread) | Type: Adapter for E8PC — G1/4 female | Nominal Diameter A: 8 A | Nominal Diameter B: 1/4" | Thread Type: G (parallel thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection
E8PC-YA-C18E8PC Adapter NPT1/8 male 1/8" NPT (taper thread) | Type: Adapter for E8PC — NPT1/8 male | Nominal Diameter A: 6 A | Nominal Diameter B: 1/8" | Thread Type: NPT (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection
E8PC-YA-C14E8PC Adapter NPT1/4 male 1/4" NPT (taper thread) | Type: Adapter for E8PC — NPT1/4 male | Nominal Diameter A: 8 A | Nominal Diameter B: 1/4" | Thread Type: NPT (taper thread) | Material: SUS304 | Compatible Sensor: E8PC-010/100/400 series | Note: Required for sensor installation; throttle E8PC-YS optional for surge protection

Need a different model, or a part not listed here? Send us your parts list →
