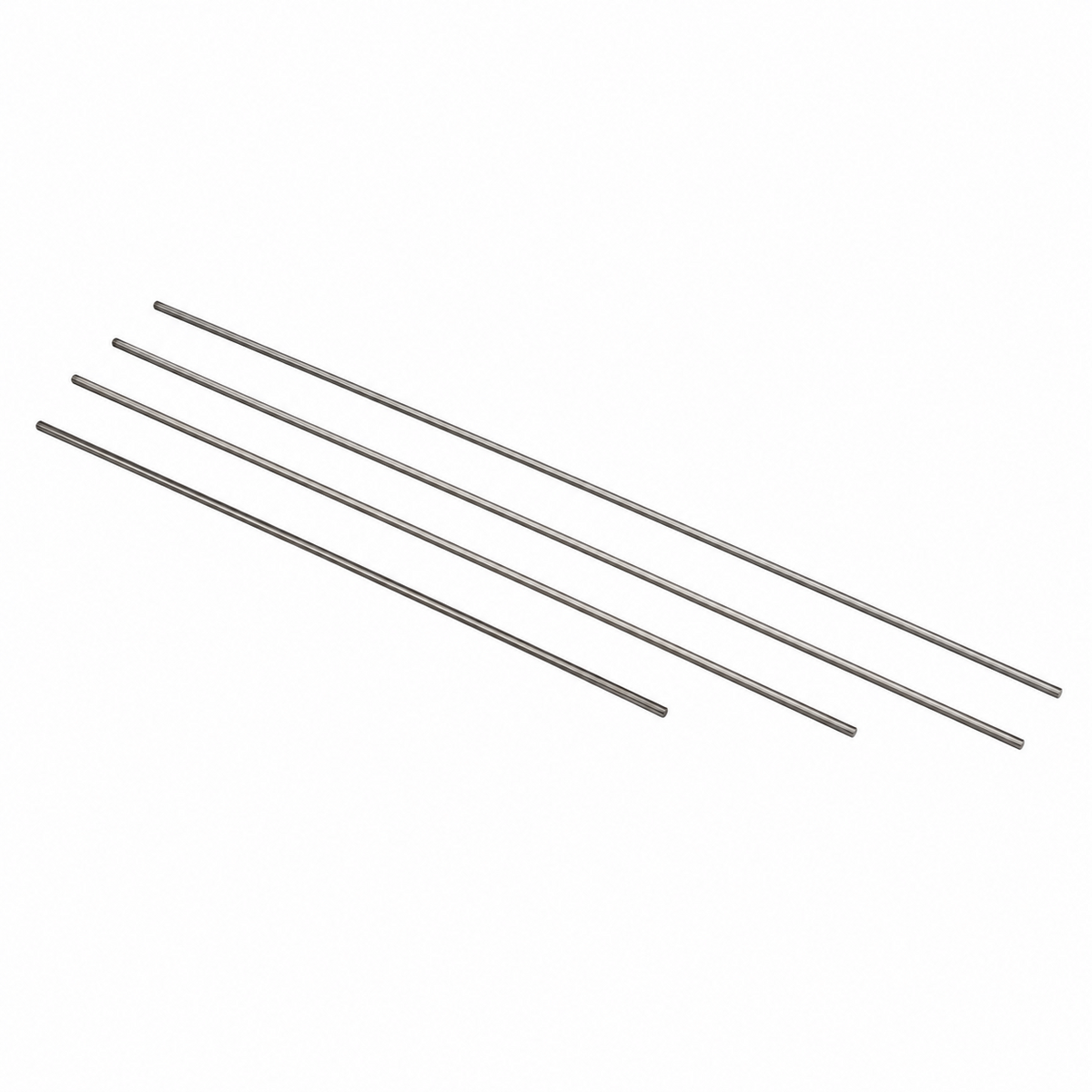

Omron F03-[] Electrodes and Accessories (for 61F Level Switch, SUS304/316/HAS/Titanium)

Omron F03-[] Electrodes and Accessories (for 61F Level Switch, SUS304/316/HAS/Titanium)

A Wide Variety of Electrodes for Long Lasting Reliability.

F03-01 SUS304 ELECTRODE Electrode SUS304 | Type: Electrode | Material: SUS304 | Weight: Approx. 170g | Material Indication: 1 line | Use with: 61F series level switch
F03-01 SUS316 ELECTRODE Electrode SUS316 | Type: Electrode | Material: SUS316 | Weight: Approx. 170g | Material Indication: 2 lines | Use with: 61F series level switch
F03-01 HAS B ELECTRODE Electrode N10665 | Type: Electrode | Material: N10665 | Weight: Approx. 195g | Material Indication: 3 lines | Use with: 61F series level switch
F03-01 HAS C ELECTRODE Electrode N10276 | Type: Electrode | Material: N10276 | Weight: Approx. 190g | Material Indication: 4 lines | Use with: 61F series level switch
F03-01 TITANIUM ELECTRODE Electrode Titanium | Type: Electrode | Material: Titanium | Weight: Approx. 100g | Material Indication: 5 lines | Use with: 61F series level switch
F03-01 SUS304 BINIL Insulated Electrode SUS304 Vinyl | Type: Insulated Electrode | Material: SUS304 | Sheath: Vinyl tubing (1m, 0.5mm thick) | Note: Strip ~10cm of sheath at tip before use
F03-01 SUS304 FLUORORESIN Insulated Electrode SUS304 Fluor | Type: Insulated Electrode | Material: SUS304 | Sheath: Fluororesin tubing (1m, 0.5mm thick) | Note: Strip ~10cm of sheath at tip before use
F03-01 SUS316 BINIL Insulated Electrode SUS316 Vinyl | Type: Insulated Electrode | Material: SUS316 | Sheath: Vinyl tubing (1m, 0.5mm thick) | Note: Strip ~10cm of sheath at tip before use
F03-01 SUS316 FLUORORESIN Insulated Electrode SUS316 Fluor | Type: Insulated Electrode | Material: SUS316 | Sheath: Fluororesin tubing (1m, 0.5mm thick) | Note: Strip ~10cm of sheath at tip before use
F03-02 SUS304 Connecting Nut SUS303 (equiv. SUS304) | Type: Connecting Nut | Material: SUS303 (equiv. SUS304) | Weight: Approx. 12g | Material Indication: Blank (spring washer included)
F03-02 SUS316 Connecting Nut SUS316 | Type: Connecting Nut | Material: SUS316 | Weight: Approx. 12g | Material Indication: — (spring washer included)
F03-02 HAS B Connecting Nut N10665 | Type: Connecting Nut | Material: N10665 | Weight: Approx. 20g | Material Indication: B
F03-02 HAS C Connecting Nut N10276 | Type: Connecting Nut | Material: N10276 | Weight: Approx. 20g | Material Indication: C
F03-02 TITANIUM Connecting Nut Titanium | Type: Connecting Nut | Material: Titanium | Weight: Approx. 6g | Material Indication: T
F03-60 SUS304 Electrode Set F03-60 SUS304 | Type: Electrode Set | Contents: F03-01 SUS304 ELECTRODE × 1 + F03-02 SUS304 × 1 + F03-03 SUS304 × 2 | Note: HAS and Titanium electrodes not available as sets
F03-60 SUS316 Electrode Set F03-60 SUS316 | Type: Electrode Set | Contents: F03-01 SUS316 ELECTRODE × 1 + F03-02 SUS316 × 1 + F03-03 SUS316 × 2 | Note: HAS and Titanium electrodes not available as sets
F03-03 SUS304 Lock Nut SUS303 (equiv. SUS304) | Type: Lock Nut | Material: SUS303 (equiv. SUS304) | Weight: Approx. 2g | Material Indication: 304 (spring washer included)
F03-03 SUS316 Lock Nut SUS316 | Type: Lock Nut | Material: SUS316 | Weight: Approx. 2g | Material Indication: 316 (spring washer included)
F03-03 HAS B Lock Nut N10665 | Type: Lock Nut | Material: N10665 | Weight: Approx. 5g | Material Indication: B
F03-03 HAS C Lock Nut N10276 | Type: Lock Nut | Material: N10276 | Weight: Approx. 5g | Material Indication: C
F03-03 TITANIUM Lock Nut Titanium | Type: Lock Nut | Material: Titanium | Weight: Approx. 2g | Material Indication: T
F03-14 1P Electrode Separator 1-pole | Type: Electrode Separator | Poles: 1-pole | Material: Ceramic | Max Temperature: 250°C max. | Applicable Holder: BF-[](R) | Note: Use at each joint (every 1m); cannot be used with PS-31
F03-14 3P Electrode Separator 3-pole | Type: Electrode Separator | Poles: 3-pole | Material: Ceramic | Max Temperature: 250°C max. | Applicable Holder: PS-3S(R) | Note: Use at each joint (every 1m); cannot be used with PS-31
F03-14 5P Electrode Separator 5-pole | Type: Electrode Separator | Poles: 5-pole | Material: Ceramic | Max Temperature: 250°C max. | Applicable Holder: PS-4S(R) / PS-5S(R) | Note: Use at each joint (every 1m); cannot be used with PS-31
F03-11 Accessory F03-11 | Type: Electrode Holder Accessory | Application: Protective Cover for PS-[]S and BF-3/-5
F03-12 Accessory F03-12 | Type: Electrode Holder Accessory | Application: Mounting Frame for PS-[]S
F03-13 Accessory F03-13 | Type: Electrode Holder Accessory | Application: Mounting Frame for Installing in Concrete for PS-[]S(R)
F03-31 Accessory F03-31 | Type: Electrode Holder Accessory | Application: Dust-proof Rubber Cap for PS-31
Level SwitchesOmron
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron F03-[] Electrodes and Accessories (for 61F Level Switch, SUS304/316/HAS/Titanium)

Brand Omron·Level Switches

Available part numbers (28)

F03-01 SUS304 ELECTRODE, F03-01 SUS316 ELECTRODE, F03-01 HAS B ELECTRODE, F03-01 HAS C ELECTRODE, F03-01 TITANIUM ELECTRODE, F03-01 SUS304 BINIL, F03-01 SUS304 FLUORORESIN, F03-01 SUS316 BINIL, F03-01 SUS316 FLUORORESIN, F03-02 SUS304 + 18 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
F03-01 SUS304 ELECTRODEElectrode SUS304 | Type: Electrode | Material: SUS304 | Weight: Approx. 170g | Material Indication: 1 line | Use with: 61F series level switch
F03-01 SUS316 ELECTRODEElectrode SUS316 | Type: Electrode | Material: SUS316 | Weight: Approx. 170g | Material Indication: 2 lines | Use with: 61F series level switch
F03-01 HAS B ELECTRODEElectrode N10665 | Type: Electrode | Material: N10665 | Weight: Approx. 195g | Material Indication: 3 lines | Use with: 61F series level switch
F03-01 HAS C ELECTRODEElectrode N10276 | Type: Electrode | Material: N10276 | Weight: Approx. 190g | Material Indication: 4 lines | Use with: 61F series level switch
F03-01 TITANIUM ELECTRODEElectrode Titanium | Type: Electrode | Material: Titanium | Weight: Approx. 100g | Material Indication: 5 lines | Use with: 61F series level switch
F03-01 SUS304 BINILInsulated Electrode SUS304 Vinyl | Type: Insulated Electrode | Material: SUS304 | Sheath: Vinyl tubing (1m, 0.5mm thick) | Note: Strip ~10cm of sheath at tip before use
F03-01 SUS304 FLUORORESINInsulated Electrode SUS304 Fluor | Type: Insulated Electrode | Material: SUS304 | Sheath: Fluororesin tubing (1m, 0.5mm thick) | Note: Strip ~10cm of sheath at tip before use
F03-01 SUS316 BINILInsulated Electrode SUS316 Vinyl | Type: Insulated Electrode | Material: SUS316 | Sheath: Vinyl tubing (1m, 0.5mm thick) | Note: Strip ~10cm of sheath at tip before use
F03-01 SUS316 FLUORORESINInsulated Electrode SUS316 Fluor | Type: Insulated Electrode | Material: SUS316 | Sheath: Fluororesin tubing (1m, 0.5mm thick) | Note: Strip ~10cm of sheath at tip before use
F03-02 SUS304Connecting Nut SUS303 (equiv. SUS304) | Type: Connecting Nut | Material: SUS303 (equiv. SUS304) | Weight: Approx. 12g | Material Indication: Blank (spring washer included)
F03-02 SUS316Connecting Nut SUS316 | Type: Connecting Nut | Material: SUS316 | Weight: Approx. 12g | Material Indication: — (spring washer included)
F03-02 HAS BConnecting Nut N10665 | Type: Connecting Nut | Material: N10665 | Weight: Approx. 20g | Material Indication: B
F03-02 HAS CConnecting Nut N10276 | Type: Connecting Nut | Material: N10276 | Weight: Approx. 20g | Material Indication: C
F03-02 TITANIUMConnecting Nut Titanium | Type: Connecting Nut | Material: Titanium | Weight: Approx. 6g | Material Indication: T
F03-60 SUS304Electrode Set F03-60 SUS304 | Type: Electrode Set | Contents: F03-01 SUS304 ELECTRODE × 1 + F03-02 SUS304 × 1 + F03-03 SUS304 × 2 | Note: HAS and Titanium electrodes not available as sets
F03-60 SUS316Electrode Set F03-60 SUS316 | Type: Electrode Set | Contents: F03-01 SUS316 ELECTRODE × 1 + F03-02 SUS316 × 1 + F03-03 SUS316 × 2 | Note: HAS and Titanium electrodes not available as sets
F03-03 SUS304Lock Nut SUS303 (equiv. SUS304) | Type: Lock Nut | Material: SUS303 (equiv. SUS304) | Weight: Approx. 2g | Material Indication: 304 (spring washer included)
F03-03 SUS316Lock Nut SUS316 | Type: Lock Nut | Material: SUS316 | Weight: Approx. 2g | Material Indication: 316 (spring washer included)
F03-03 HAS BLock Nut N10665 | Type: Lock Nut | Material: N10665 | Weight: Approx. 5g | Material Indication: B
F03-03 HAS CLock Nut N10276 | Type: Lock Nut | Material: N10276 | Weight: Approx. 5g | Material Indication: C
F03-03 TITANIUMLock Nut Titanium | Type: Lock Nut | Material: Titanium | Weight: Approx. 2g | Material Indication: T
F03-14 1PElectrode Separator 1-pole | Type: Electrode Separator | Poles: 1-pole | Material: Ceramic | Max Temperature: 250°C max. | Applicable Holder: BF-[](R) | Note: Use at each joint (every 1m); cannot be used with PS-31
F03-14 3PElectrode Separator 3-pole | Type: Electrode Separator | Poles: 3-pole | Material: Ceramic | Max Temperature: 250°C max. | Applicable Holder: PS-3S(R) | Note: Use at each joint (every 1m); cannot be used with PS-31
F03-14 5PElectrode Separator 5-pole | Type: Electrode Separator | Poles: 5-pole | Material: Ceramic | Max Temperature: 250°C max. | Applicable Holder: PS-4S(R) / PS-5S(R) | Note: Use at each joint (every 1m); cannot be used with PS-31
F03-11Accessory F03-11 | Type: Electrode Holder Accessory | Application: Protective Cover for PS-[]S and BF-3/-5
F03-12Accessory F03-12 | Type: Electrode Holder Accessory | Application: Mounting Frame for PS-[]S
F03-13Accessory F03-13 | Type: Electrode Holder Accessory | Application: Mounting Frame for Installing in Concrete for PS-[]S(R)
F03-31Accessory F03-31 | Type: Electrode Holder Accessory | Application: Dust-proof Rubber Cap for PS-31
