Omron G7K Mechanical Latching Relay with Manual Buttons (4-pole)

Omron G7K Mechanical Latching Relay with Manual Buttons (4-pole)

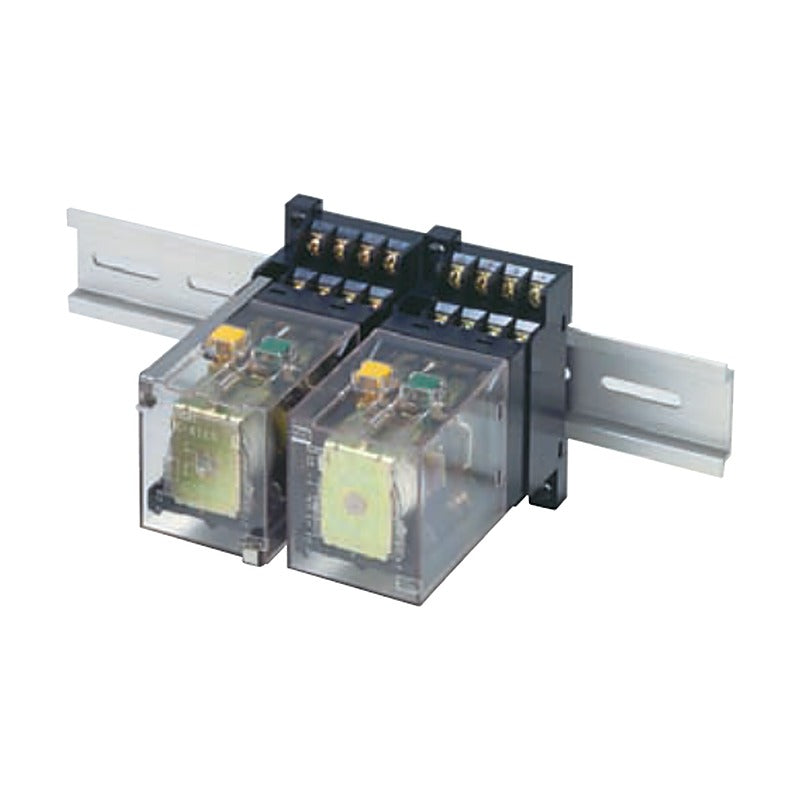

The Omron G7K is a compact mechanical-lock latching relay with manual set/reset buttons and gold-plated contacts.

Key features

  • Compact 71 x 42.5 x 48.5 mm (H x W x D), approx. 175 g
  • Quick set and reset response through pulse signals
  • Gold-plated contacts for high contact reliability
  • Compatible with PTF14A sockets (as for LY4 relays)

Specifications

Models listed 11
Category Relays
Series G7K
Brand Omron
Contacts DPDT + DPST-NO, single contact
Structure Encased, plug-in terminals
Ordering Specify rated voltage
Source Omron CSM_G7K_DS_E_2_6 (English ed.), p. 1
G7K-412S AC24 Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 24 VAC
G7K-412S AC100 Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 100 VAC
G7K-412S AC110 Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 110 VAC
G7K-412S AC200 Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 200 VAC
G7K-412S AC220 Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 220 VAC
G7K-412S DC24 Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 24 VDC
G7K-412S DC48 Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 48 VDC
G7K-412S DC100 Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 100 VDC
G7K-412S DC110 Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 110 VDC
G7K-412S DC125 Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 125 VDC
PKC Contacts: Hold-down clip (order in 10s) | Terminal: - | Coil: -
RelaysOmron
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron G7K Mechanical Latching Relay with Manual Buttons (4-pole)

Brand Omron·Relays

Available part numbers (11)

G7K-412S AC24, G7K-412S AC100, G7K-412S AC110, G7K-412S AC200, G7K-412S AC220, G7K-412S DC24, G7K-412S DC48, G7K-412S DC100, G7K-412S DC110, G7K-412S DC125 + 1 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
G7K-412S AC24Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 24 VAC
G7K-412S AC100Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 100 VAC
G7K-412S AC110Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 110 VAC
G7K-412S AC200Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 200 VAC
G7K-412S AC220Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 220 VAC
G7K-412S DC24Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 24 VDC
G7K-412S DC48Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 48 VDC
G7K-412S DC100Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 100 VDC
G7K-412S DC110Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 110 VDC
G7K-412S DC125Contacts: DPDT, DPST-NO | Terminal: Plug-in | Coil: 125 VDC
PKCContacts: Hold-down clip (order in 10s) | Terminal: - | Coil: -
