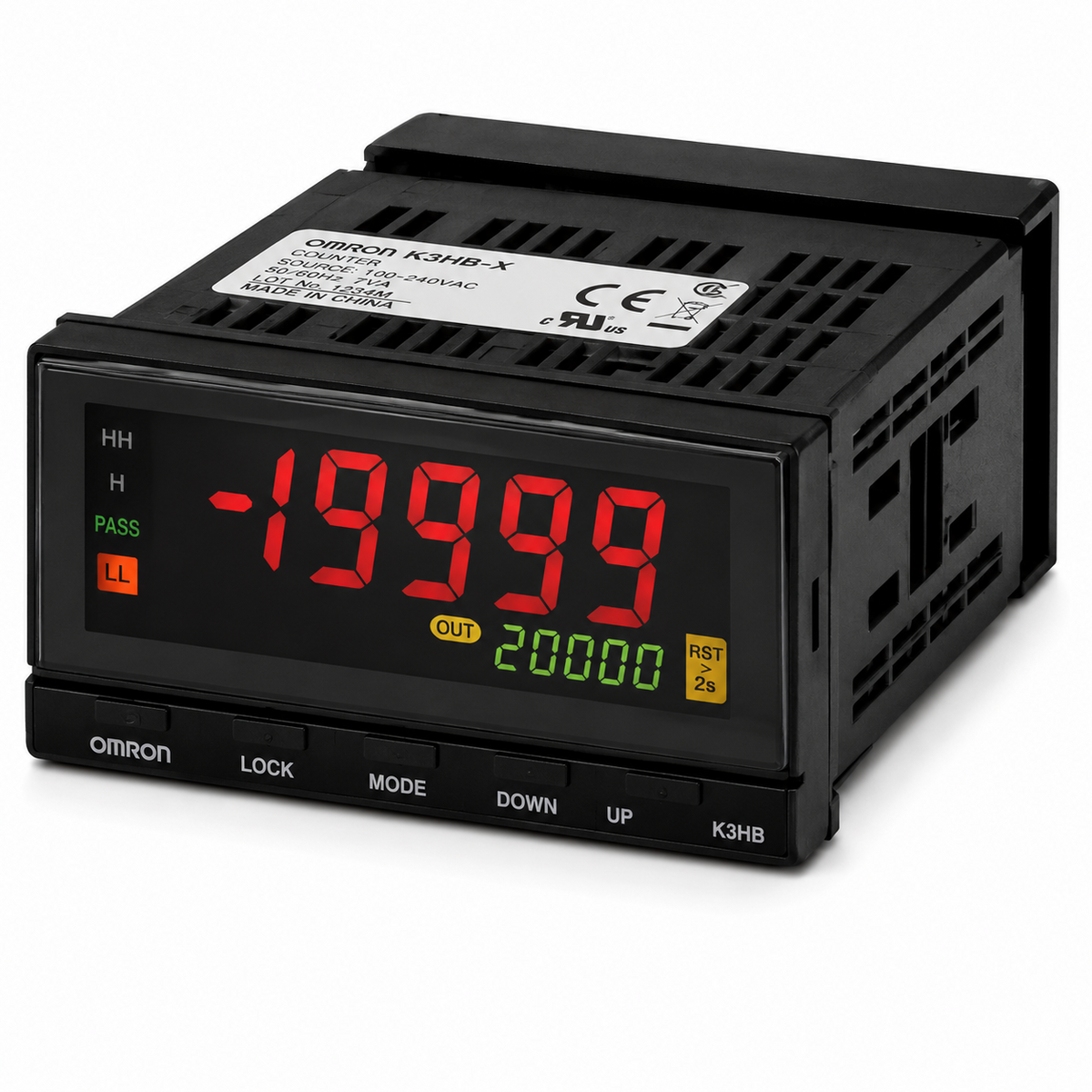

Omron K3HB-X Optional Boards (K33 Sensor Power/Output / K34 Relay/Transistor / K35 Event Input)

Omron K3HB-X Optional Boards (K33 Sensor Power/Output / K34 Relay/Transistor / K35 Event Input)

Optional boards for K3HB-X Process Indicator.

Key features

  • K33: Sensor power supply and output boards (relay, linear current/voltage, communications)
  • K34: Relay contact and transistor output boards
  • K35: Event input boards (NPN/PNP, 5 or 8 inputs)
K33-CPA K33 Board: Relay output (PASS SPDT) + Sensor power supply (12VDC 80mA) | Type: Sensor Power Supply/Output Board | Output: Relay SPDT (PASS) | Sensor Power: 12VDC +/-10% 80mA | Note: CPA for relay outputs only
K33-L1A K33 Board: Linear current output (0~20 or 4~20mA DC) + Sensor power supply (12VDC 80mA) | Type: Sensor Power Supply/Output Board | Output: Linear current 0~20mA or 4~20mA DC | Sensor Power: 12VDC +/-10% 80mA
K33-L2A K33 Board: Linear voltage output (0~5, 1~5, or 0~10VDC) + Sensor power supply (12VDC 80mA) | Type: Sensor Power Supply/Output Board | Output: Linear voltage 0~5V / 1~5V / 0~10VDC | Sensor Power: 12VDC +/-10% 80mA
K33-A K33 Board: Sensor power supply only (12VDC 80mA) | Type: Sensor Power Supply Board | Sensor Power: 12VDC +/-10% 80mA
K33-FLK1A K33 Board: RS-232C communications + Sensor power supply (12VDC 80mA) | Type: Sensor Power Supply/Output Board | Communications: RS-232C | Sensor Power: 12VDC +/-10% 80mA
K33-FLK3A K33 Board: RS-485 communications + Sensor power supply (12VDC 80mA) | Type: Sensor Power Supply/Output Board | Communications: RS-485 | Sensor Power: 12VDC +/-10% 80mA
K34-C1 K34 Board: Relay contact output H/L (SPDT each) | Type: Relay Output Board | Output: Relay contact SPDT × 2 (H / L)
K34-C2 K34 Board: Relay contact output HH/H/LL/L (SPST-NO each) | Type: Relay Output Board | Output: Relay contact SPST-NO × 4 (HH / H / LL / L)
K34-T1 K34 Board: Transistor NPN open collector HH/H/PASS/L/LL | Type: Transistor Output Board | Output: NPN open collector × 5 (HH/H/PASS/L/LL)
K34-T2 K34 Board: Transistor PNP open collector HH/H/PASS/L/LL | Type: Transistor Output Board | Output: PNP open collector × 5 (HH/H/PASS/L/LL)
K34-BCD K34 Board: BCD output + Transistor NPN open collector HH/H/PASS/L/LL | Type: BCD + Transistor Output Board | Output: BCD + NPN open collector × 5 | Note: Special BCD Output Cable K32-BCD required
K35-1 K35 Board: 5 event inputs, M3 terminal, NPN open collector | Type: Event Input Board | Inputs: 5 | Terminal: M3 | Logic: NPN open collector
K35-2 K35 Board: 8 event inputs, 10-pin MIL connector, NPN open collector | Type: Event Input Board | Inputs: 8 | Terminal: 10-pin MIL connector | Logic: NPN open collector | Note: No bank selection for None transistor output
K35-3 K35 Board: 5 event inputs, M3 terminal, PNP open collector | Type: Event Input Board | Inputs: 5 | Terminal: M3 | Logic: PNP open collector
K35-4 K35 Board: 8 event inputs, 10-pin MIL connector, PNP open collector | Type: Event Input Board | Inputs: 8 | Terminal: 10-pin MIL connector | Logic: PNP open collector | Note: No bank selection for None transistor output
Display UnitOmron
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron K3HB-X Optional Boards (K33 Sensor Power/Output / K34 Relay/Transistor / K35 Event Input)

Brand Omron·Display Unit

Available part numbers (15)

K33-CPA, K33-L1A, K33-L2A, K33-A, K33-FLK1A, K33-FLK3A, K34-C1, K34-C2, K34-T1, K34-T2 + 5 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K33-CPAK33 Board: Relay output (PASS SPDT) + Sensor power supply (12VDC 80mA) | Type: Sensor Power Supply/Output Board | Output: Relay SPDT (PASS) | Sensor Power: 12VDC +/-10% 80mA | Note: CPA for relay outputs only
K33-L1AK33 Board: Linear current output (0~20 or 4~20mA DC) + Sensor power supply (12VDC 80mA) | Type: Sensor Power Supply/Output Board | Output: Linear current 0~20mA or 4~20mA DC | Sensor Power: 12VDC +/-10% 80mA
K33-L2AK33 Board: Linear voltage output (0~5, 1~5, or 0~10VDC) + Sensor power supply (12VDC 80mA) | Type: Sensor Power Supply/Output Board | Output: Linear voltage 0~5V / 1~5V / 0~10VDC | Sensor Power: 12VDC +/-10% 80mA
K33-AK33 Board: Sensor power supply only (12VDC 80mA) | Type: Sensor Power Supply Board | Sensor Power: 12VDC +/-10% 80mA
K33-FLK1AK33 Board: RS-232C communications + Sensor power supply (12VDC 80mA) | Type: Sensor Power Supply/Output Board | Communications: RS-232C | Sensor Power: 12VDC +/-10% 80mA
K33-FLK3AK33 Board: RS-485 communications + Sensor power supply (12VDC 80mA) | Type: Sensor Power Supply/Output Board | Communications: RS-485 | Sensor Power: 12VDC +/-10% 80mA
K34-C1K34 Board: Relay contact output H/L (SPDT each) | Type: Relay Output Board | Output: Relay contact SPDT × 2 (H / L)
K34-C2K34 Board: Relay contact output HH/H/LL/L (SPST-NO each) | Type: Relay Output Board | Output: Relay contact SPST-NO × 4 (HH / H / LL / L)
K34-T1K34 Board: Transistor NPN open collector HH/H/PASS/L/LL | Type: Transistor Output Board | Output: NPN open collector × 5 (HH/H/PASS/L/LL)
K34-T2K34 Board: Transistor PNP open collector HH/H/PASS/L/LL | Type: Transistor Output Board | Output: PNP open collector × 5 (HH/H/PASS/L/LL)
K34-BCDK34 Board: BCD output + Transistor NPN open collector HH/H/PASS/L/LL | Type: BCD + Transistor Output Board | Output: BCD + NPN open collector × 5 | Note: Special BCD Output Cable K32-BCD required
K35-1K35 Board: 5 event inputs, M3 terminal, NPN open collector | Type: Event Input Board | Inputs: 5 | Terminal: M3 | Logic: NPN open collector
K35-2K35 Board: 8 event inputs, 10-pin MIL connector, NPN open collector | Type: Event Input Board | Inputs: 8 | Terminal: 10-pin MIL connector | Logic: NPN open collector | Note: No bank selection for None transistor output
K35-3K35 Board: 5 event inputs, M3 terminal, PNP open collector | Type: Event Input Board | Inputs: 5 | Terminal: M3 | Logic: PNP open collector
K35-4K35 Board: 8 event inputs, 10-pin MIL connector, PNP open collector | Type: Event Input Board | Inputs: 8 | Terminal: 10-pin MIL connector | Logic: PNP open collector | Note: No bank selection for None transistor output
