• Omron K3HB-X Process Indicator Base Unit (DC/AC Voltage/Current Input, 100~240VAC or 24VAC/VDC)
1 1

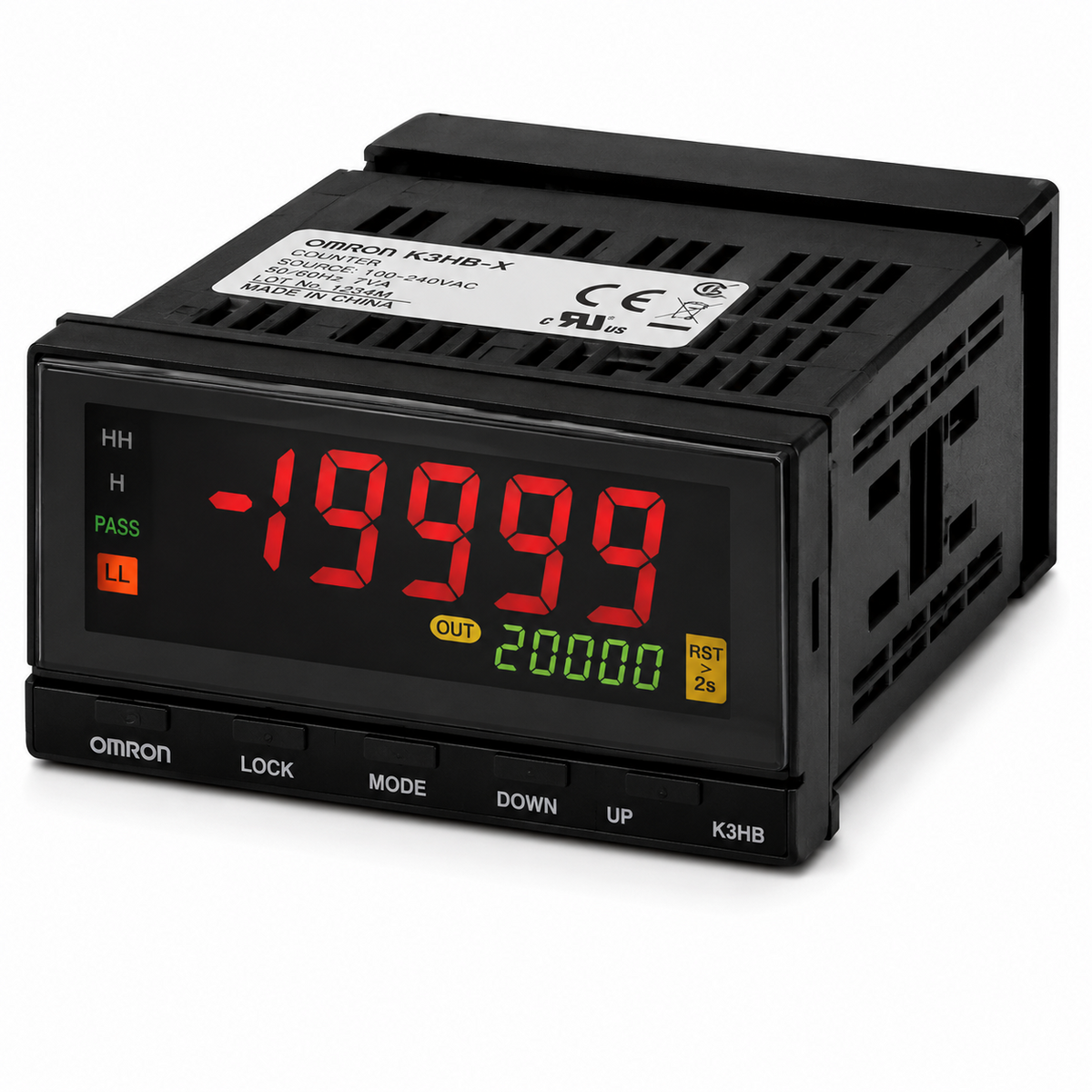

Omron K3HB-X Process Indicator Base Unit (DC/AC Voltage/Current Input, 100~240VAC or 24VAC/VDC)

Omron K3HB-X Process Indicator Base Unit (DC/AC Voltage/Current Input, 100~240VAC or 24VAC/VDC)

A Process Indicator Ideal for Discriminating and Displaying Measurements for Voltage/Current Signals.

Key features

  • DC voltage, DC current, AC voltage, AC current input types
  • Optional boards (K33/K34/K35) available for output, communications, and event inputs

Specifications

Type Process Indicator Base Unit
Optional Boards K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XVD 100-240VAC Base Unit, DC Voltage Input, 100~240VAC | Type: Process Indicator Base Unit | Input: DC Voltage Input | Supply Voltage: 100~240VAC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XVD 24VAC/VDC Base Unit, DC Voltage Input, 24VAC/VDC | Type: Process Indicator Base Unit | Input: DC Voltage Input | Supply Voltage: 24VAC/VDC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XAD 100-240VAC Base Unit, DC Current Input, 100~240VAC | Type: Process Indicator Base Unit | Input: DC Current Input | Supply Voltage: 100~240VAC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XAD 24VAC/VDC Base Unit, DC Current Input, 24VAC/VDC | Type: Process Indicator Base Unit | Input: DC Current Input | Supply Voltage: 24VAC/VDC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XVA 100-240VAC Base Unit, AC Voltage Input, 100~240VAC | Type: Process Indicator Base Unit | Input: AC Voltage Input | Supply Voltage: 100~240VAC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XVA 24VAC/VDC Base Unit, AC Voltage Input, 24VAC/VDC | Type: Process Indicator Base Unit | Input: AC Voltage Input | Supply Voltage: 24VAC/VDC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XAA 100-240VAC Base Unit, AC Current Input, 100~240VAC | Type: Process Indicator Base Unit | Input: AC Current Input | Supply Voltage: 100~240VAC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XAA 24VAC/VDC Base Unit, AC Current Input, 24VAC/VDC | Type: Process Indicator Base Unit | Input: AC Current Input | Supply Voltage: 24VAC/VDC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
Display UnitOmron
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron K3HB-X Process Indicator Base Unit (DC/AC Voltage/Current Input, 100~240VAC or 24VAC/VDC)

Brand Omron·Display Unit

Available part numbers (8)

K3HB-XVD 100-240VAC, K3HB-XVD 24VAC/VDC, K3HB-XAD 100-240VAC, K3HB-XAD 24VAC/VDC, K3HB-XVA 100-240VAC, K3HB-XVA 24VAC/VDC, K3HB-XAA 100-240VAC, K3HB-XAA 24VAC/VDC

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K3HB-XVD 100-240VACBase Unit, DC Voltage Input, 100~240VAC | Type: Process Indicator Base Unit | Input: DC Voltage Input | Supply Voltage: 100~240VAC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XVD 24VAC/VDCBase Unit, DC Voltage Input, 24VAC/VDC | Type: Process Indicator Base Unit | Input: DC Voltage Input | Supply Voltage: 24VAC/VDC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XAD 100-240VACBase Unit, DC Current Input, 100~240VAC | Type: Process Indicator Base Unit | Input: DC Current Input | Supply Voltage: 100~240VAC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XAD 24VAC/VDCBase Unit, DC Current Input, 24VAC/VDC | Type: Process Indicator Base Unit | Input: DC Current Input | Supply Voltage: 24VAC/VDC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XVA 100-240VACBase Unit, AC Voltage Input, 100~240VAC | Type: Process Indicator Base Unit | Input: AC Voltage Input | Supply Voltage: 100~240VAC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XVA 24VAC/VDCBase Unit, AC Voltage Input, 24VAC/VDC | Type: Process Indicator Base Unit | Input: AC Voltage Input | Supply Voltage: 24VAC/VDC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XAA 100-240VACBase Unit, AC Current Input, 100~240VAC | Type: Process Indicator Base Unit | Input: AC Current Input | Supply Voltage: 100~240VAC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
K3HB-XAA 24VAC/VDCBase Unit, AC Current Input, 24VAC/VDC | Type: Process Indicator Base Unit | Input: AC Current Input | Supply Voltage: 24VAC/VDC | Optional Boards: K33 (output/comms) + K34 (relay/transistor) + K35 (event input)
